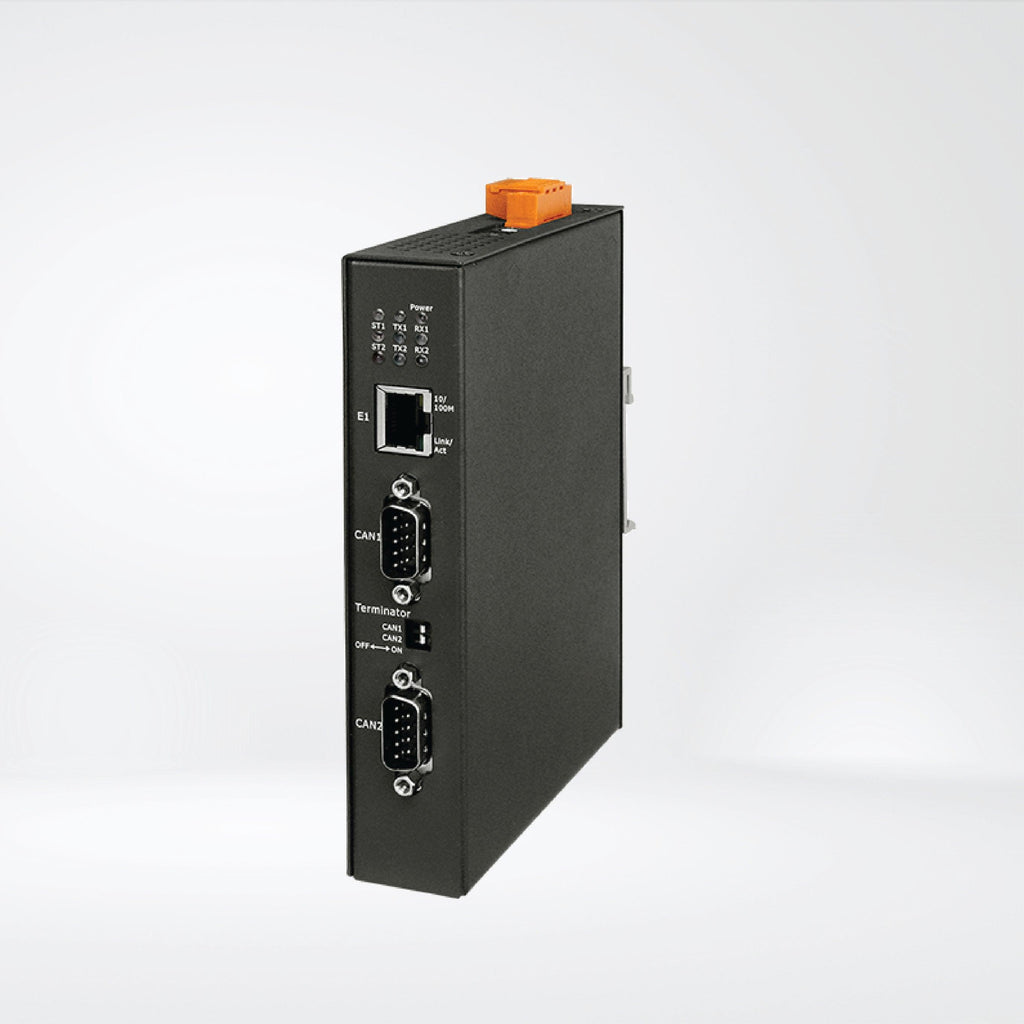

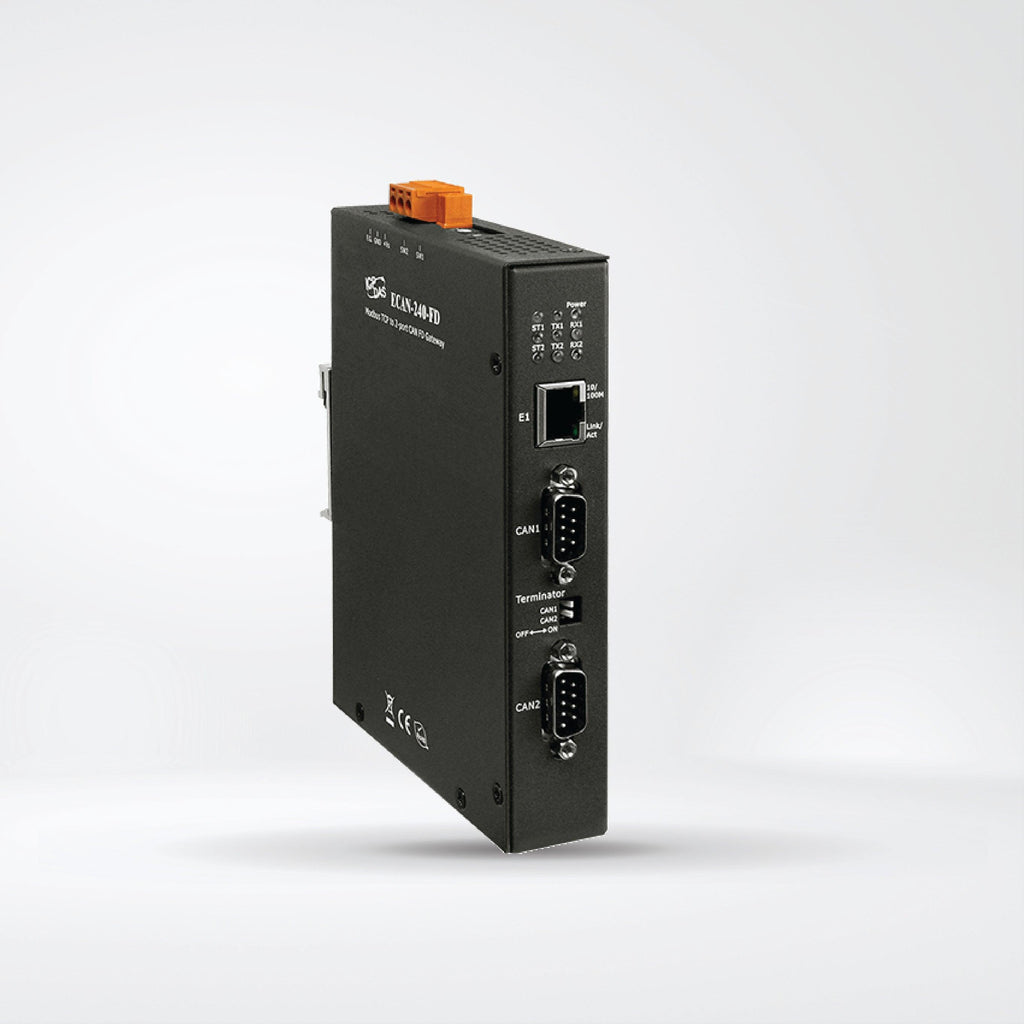

ECAN-240-FD Modbus TCP to 2-port CAN FD Gateway

Features

Hardware
- Compatible with the ISO 11898-2 standard
- Compatible with CAN specification 2.0 A/B and FD
- CAN FD support for ISO and Non-ISO (Bosch) standards switchable
- CAN FD bit rates for data field from 100 kbps to 10000 kbps
- CAN bit rates from 10 kbps to 1000 kbps
- Built-in DIP-switch to enable/disable the terminal resistor
- Two CAN bus interfaces with 9 pin D-sub connector

Software
- Web configuration
- CAN bus ID filter

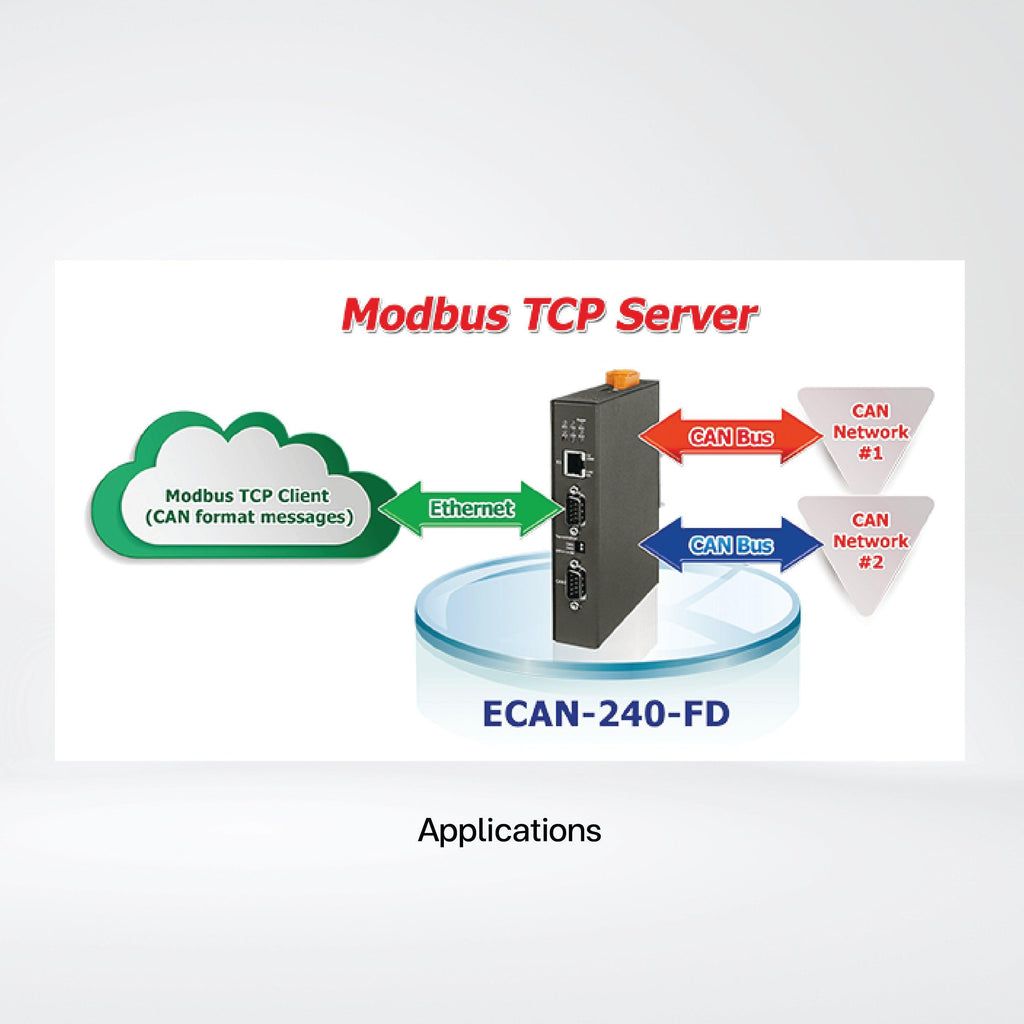

- Modbus TCP Server function
- UDP responder for device discovery
- Static IP or DHCP network configuration
