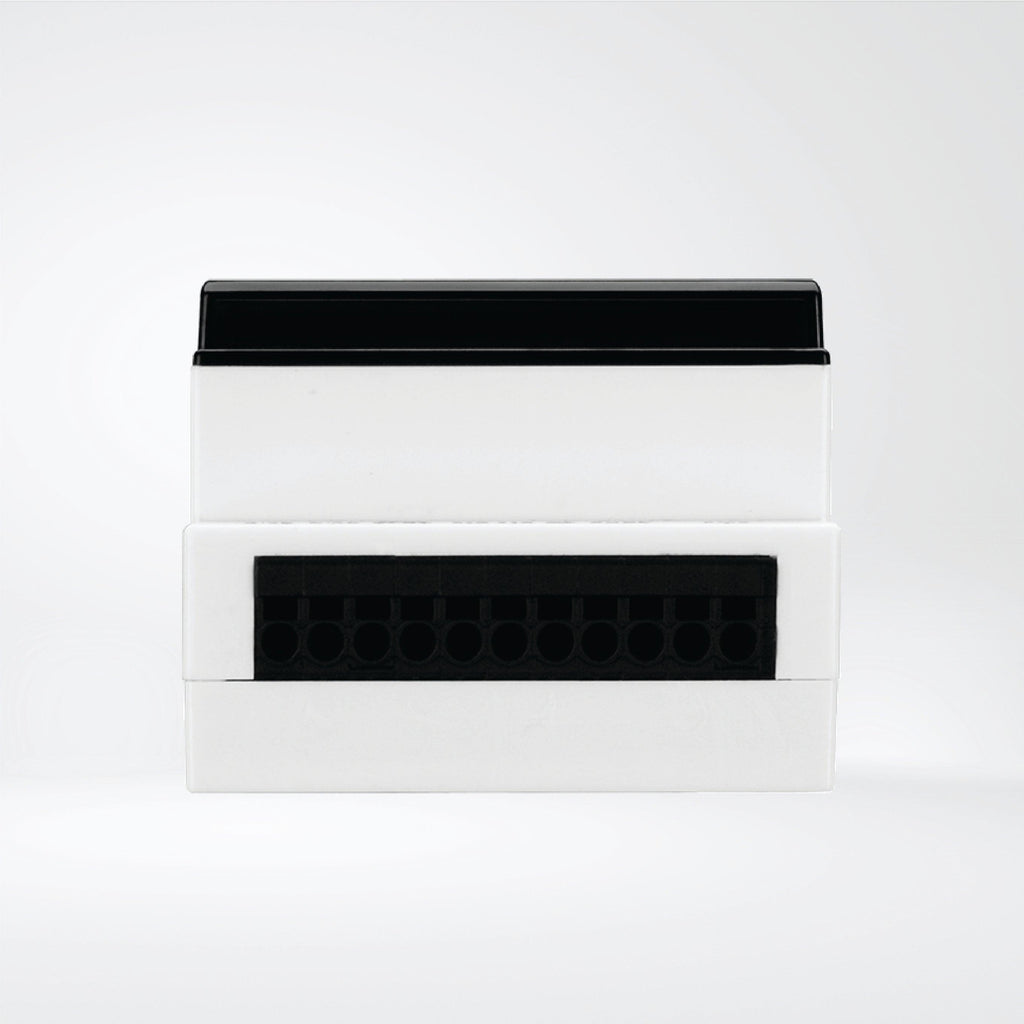

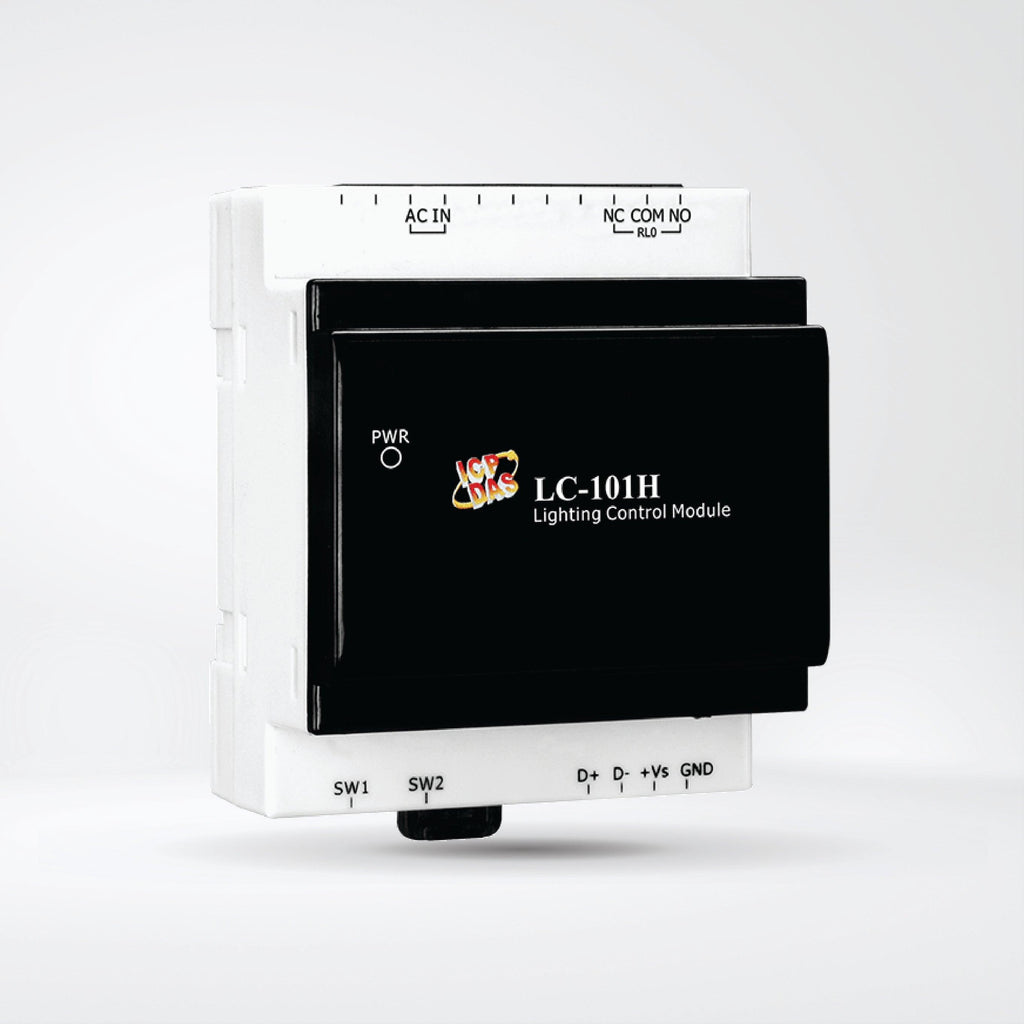

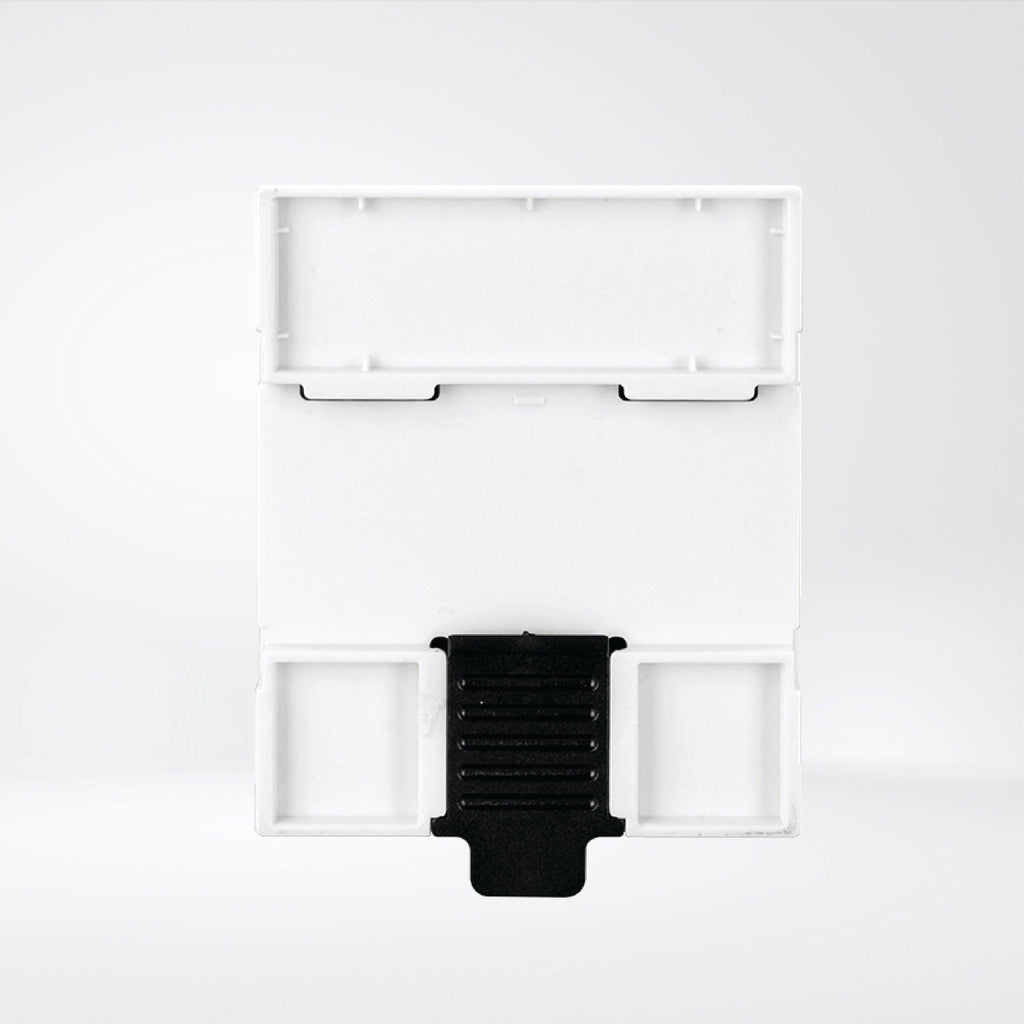

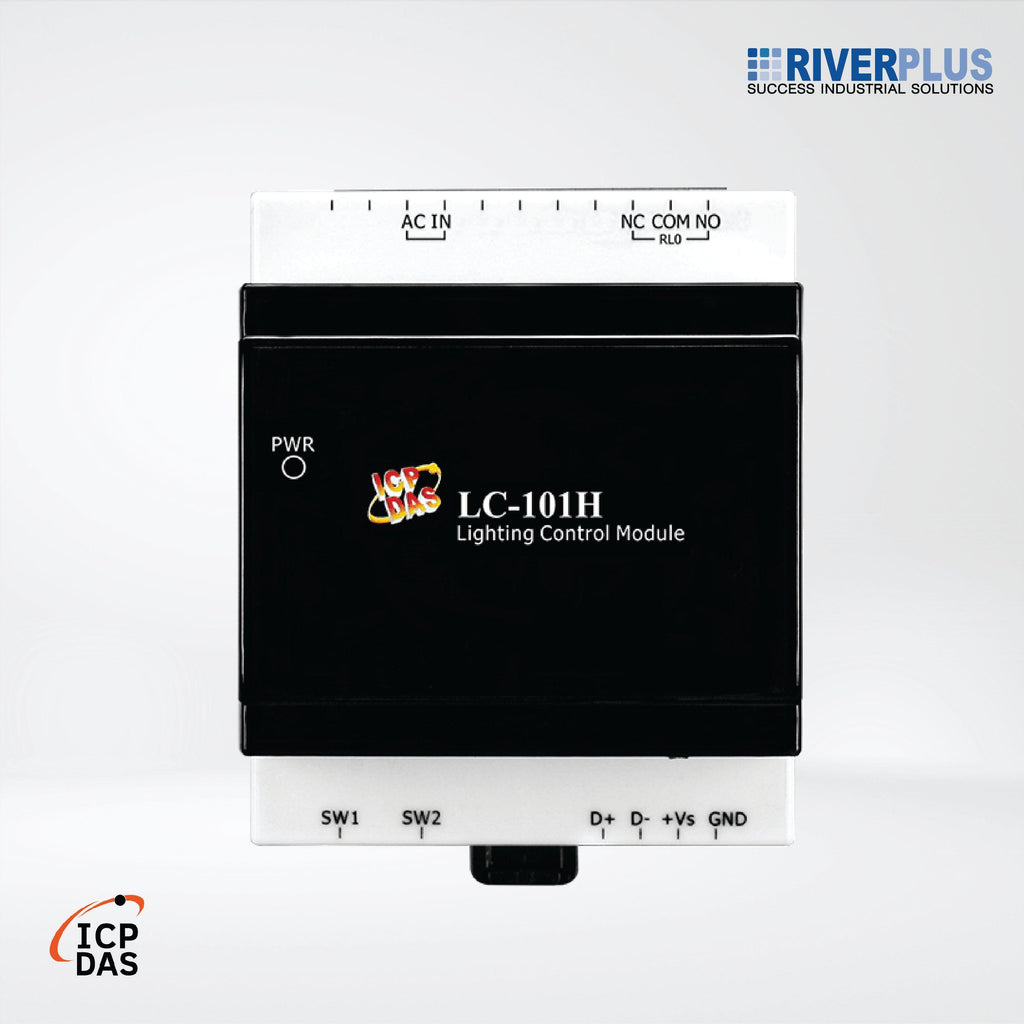

LC-101H 1-CH Lighting Control Module with AC Load Current Measurement

Features

- 1-CH Lighting Control Module with AC Load Current Measurement (1 AC DI + 1 Relay output)

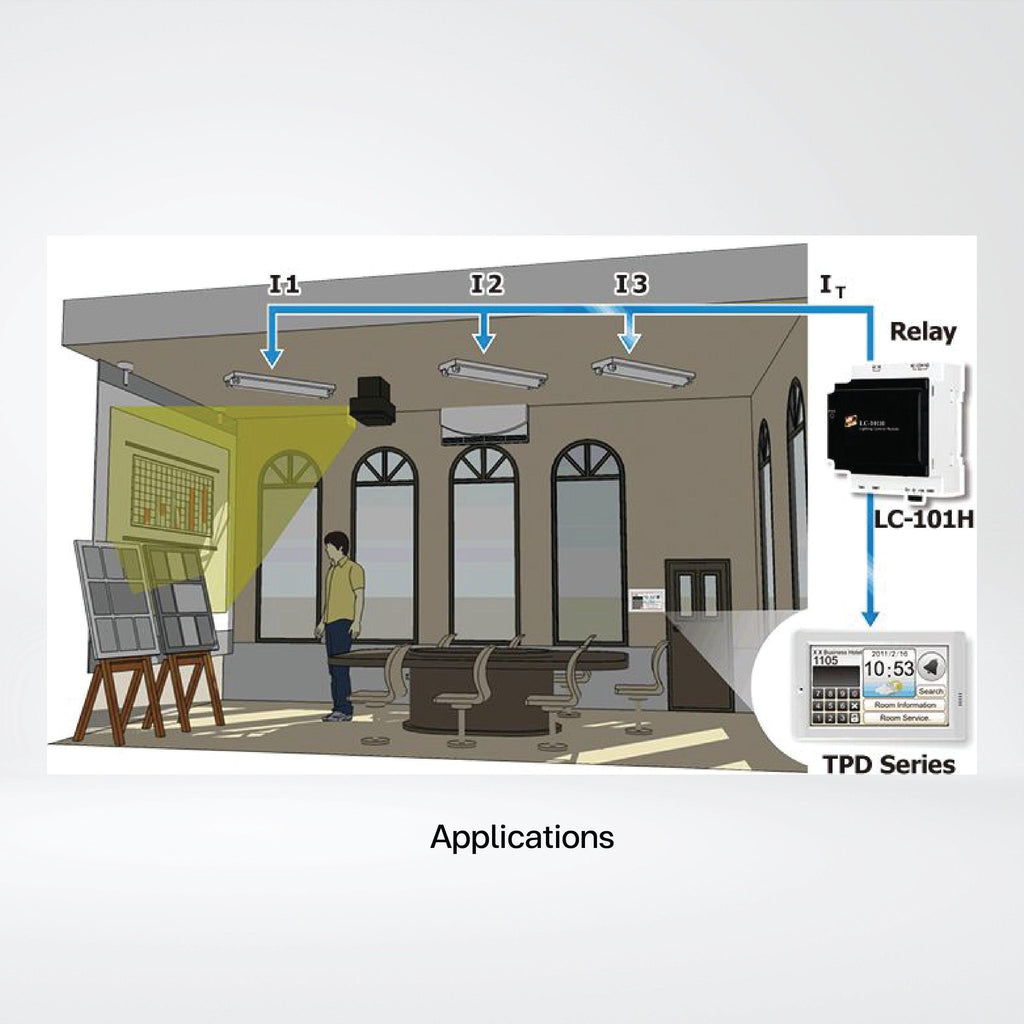

- High Power Relay Output to Turn On/Off the Lighting
- Number of Lighting Fixtures That Can Be Connected:
        Incandescent Lamp: 40 W/ 220 VAC * 5 Sets
        LED(Electronic ballast): 40 W/ 220 VAC *8 Sets
- 0 to 5 A AC power Load Current Measurement Relay output

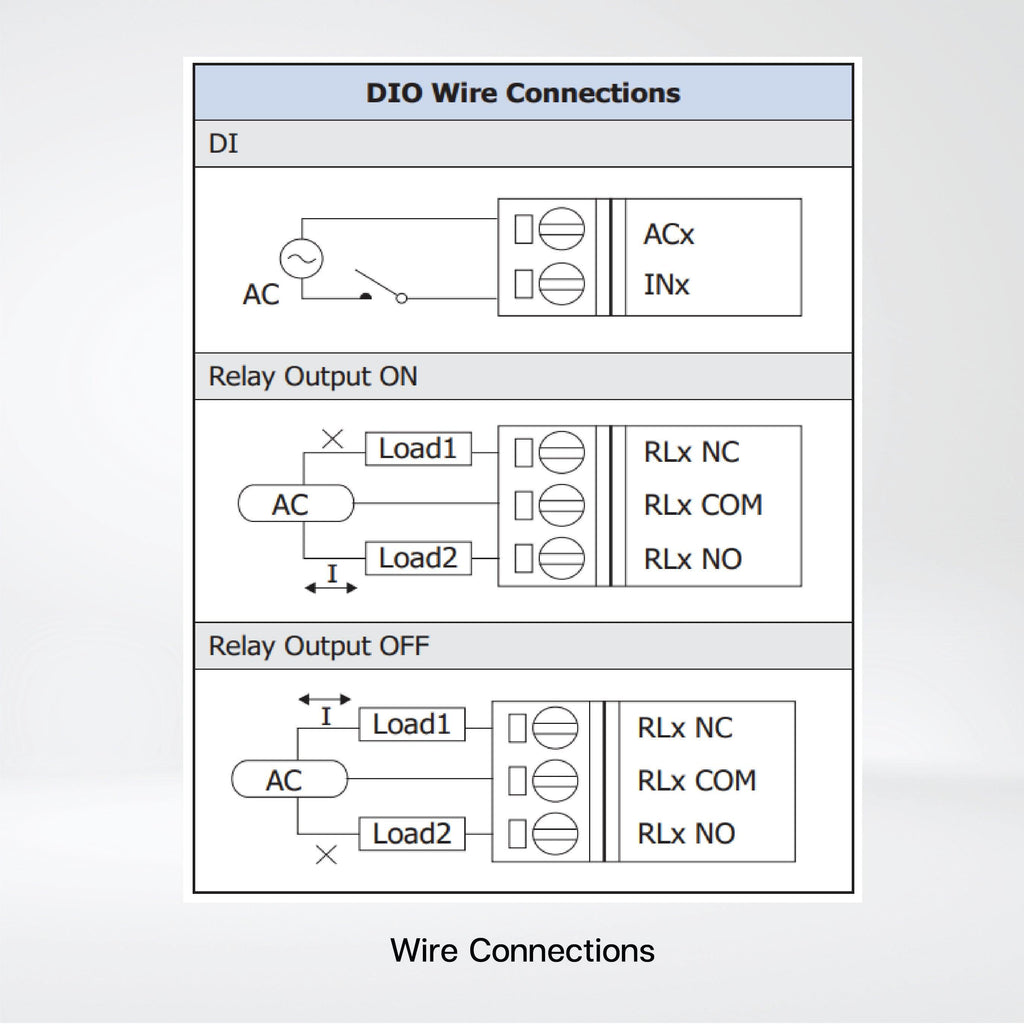

- Isolated AC Digital Input

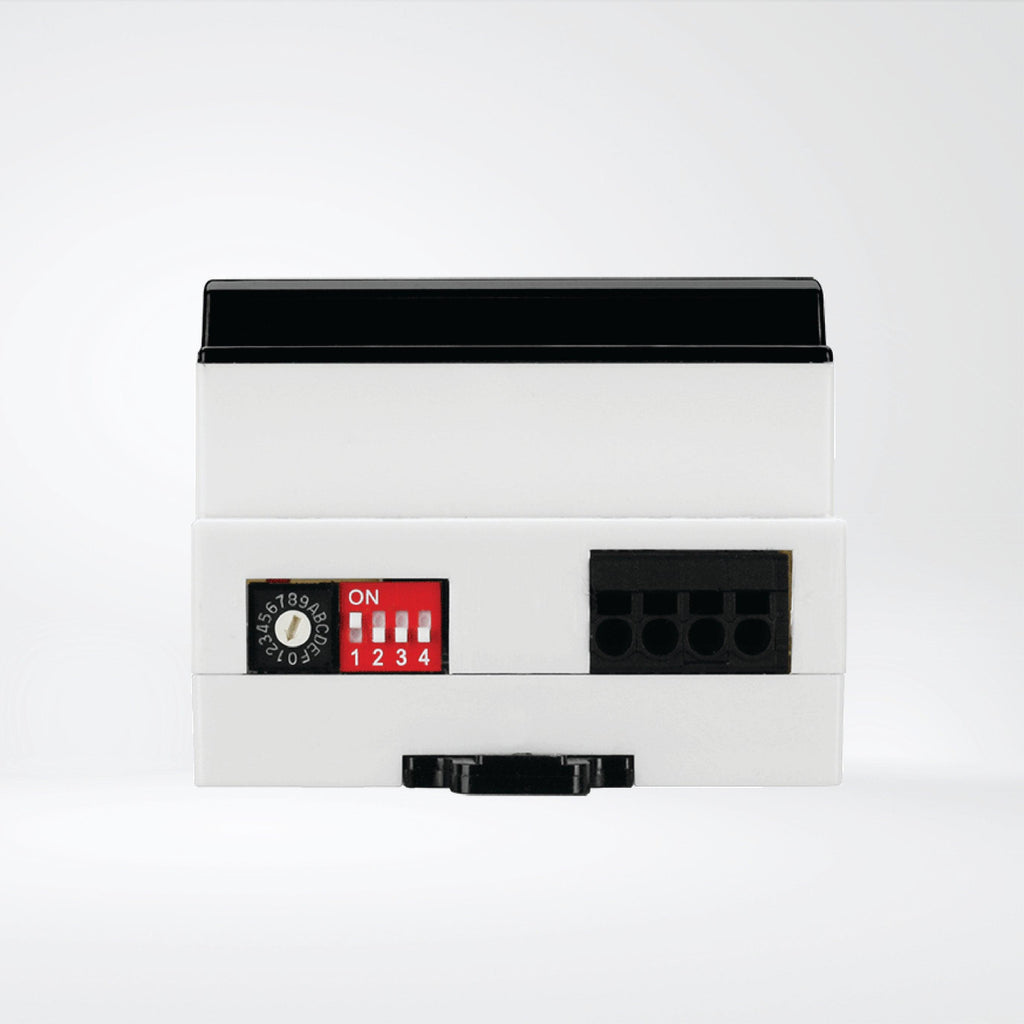

- Node Addresses by Hardware Configuration
- Low Power Consumption
- Modbus RTU and DCON Protocols
