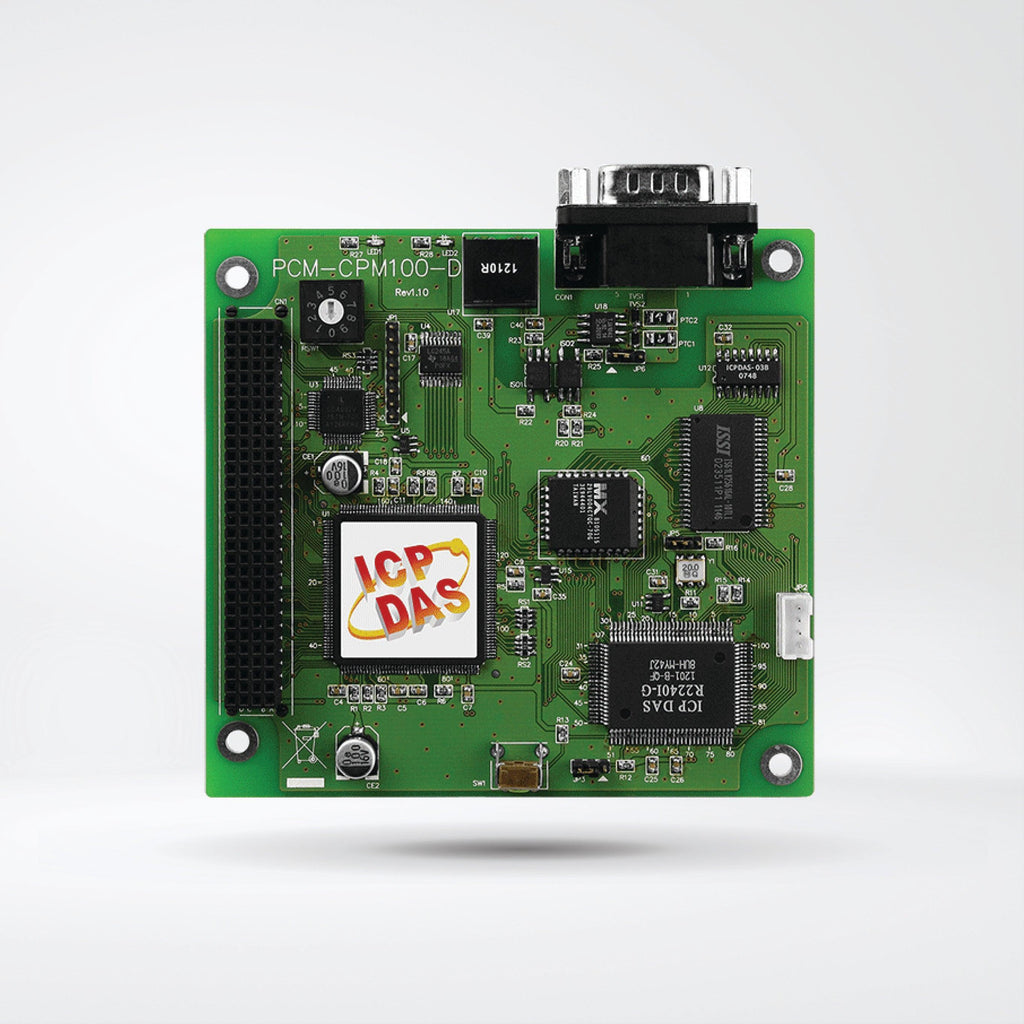

PCM-CPM100-D 1 Port Isolated Protection CAN Communication PCI-104 Module

Features

- PCI104 compliant
- 9-pin D-sub connector
- Compatible with CiA-301 v4.02
- Fully compatible with ISO 11898-2 standard
- 2500 Vrms photo couple isolation on the CAN bus
- Built-in jumper to select 120 ohm terminal resister
- 1KV galvanic isolation
- Direct memory mapping to the CAN controller
- Provide VB, VC++, Delphi, BC++ demos
- Driver support Windows 98/ME/NT/2K/XP/WinCE and Linux
