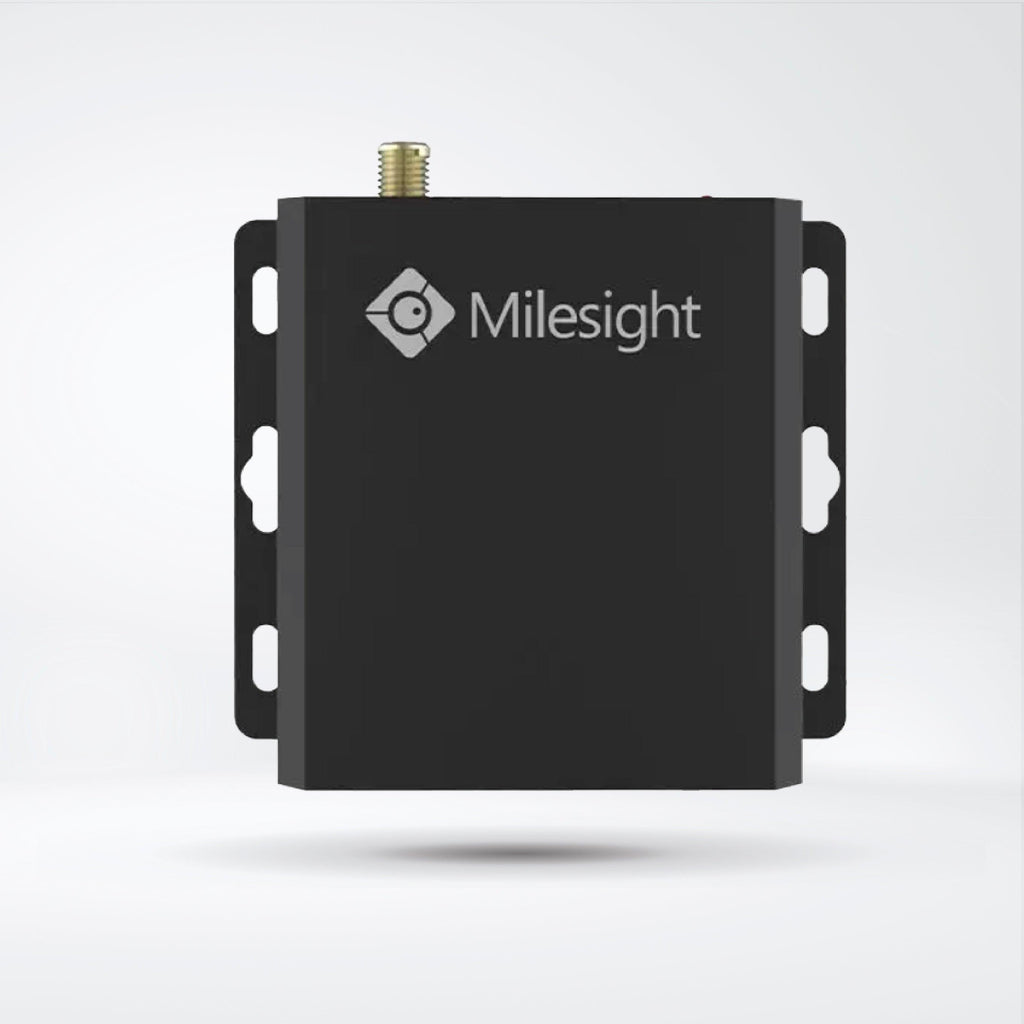

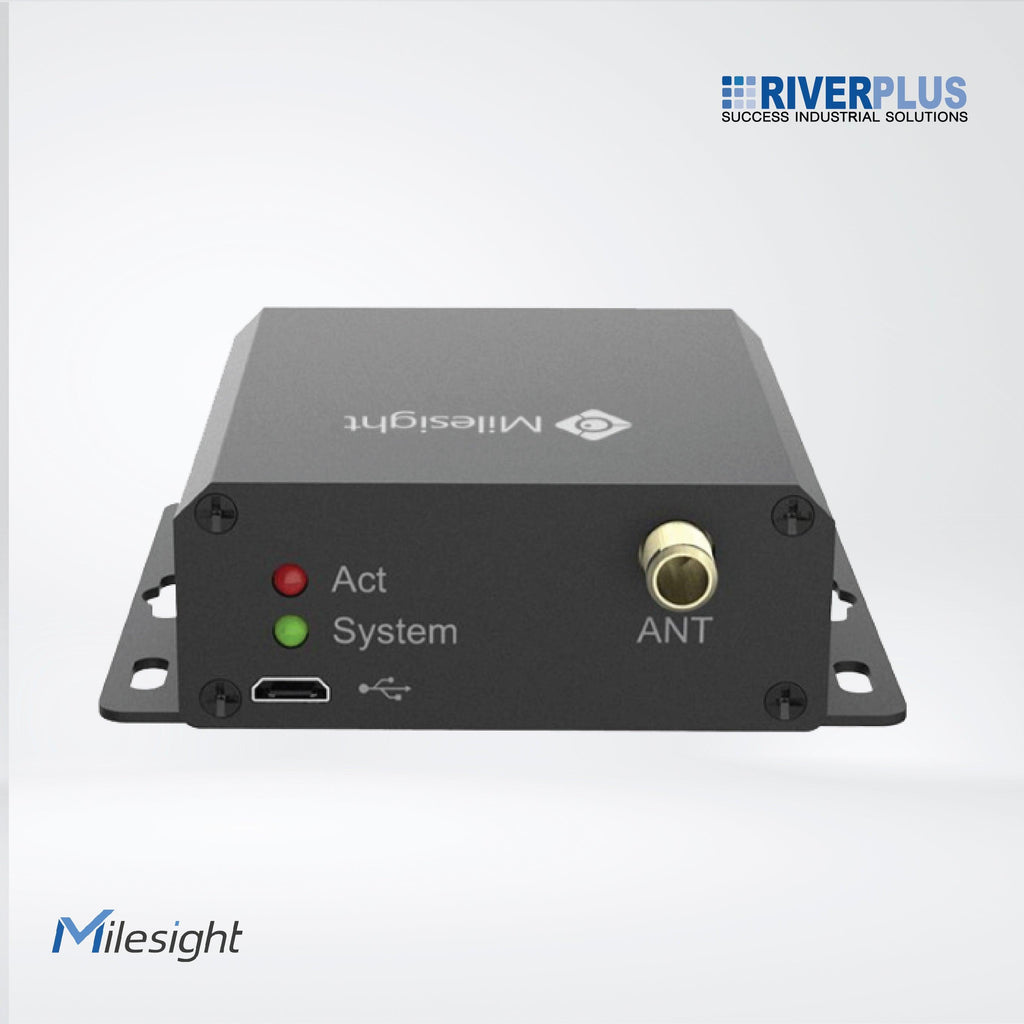

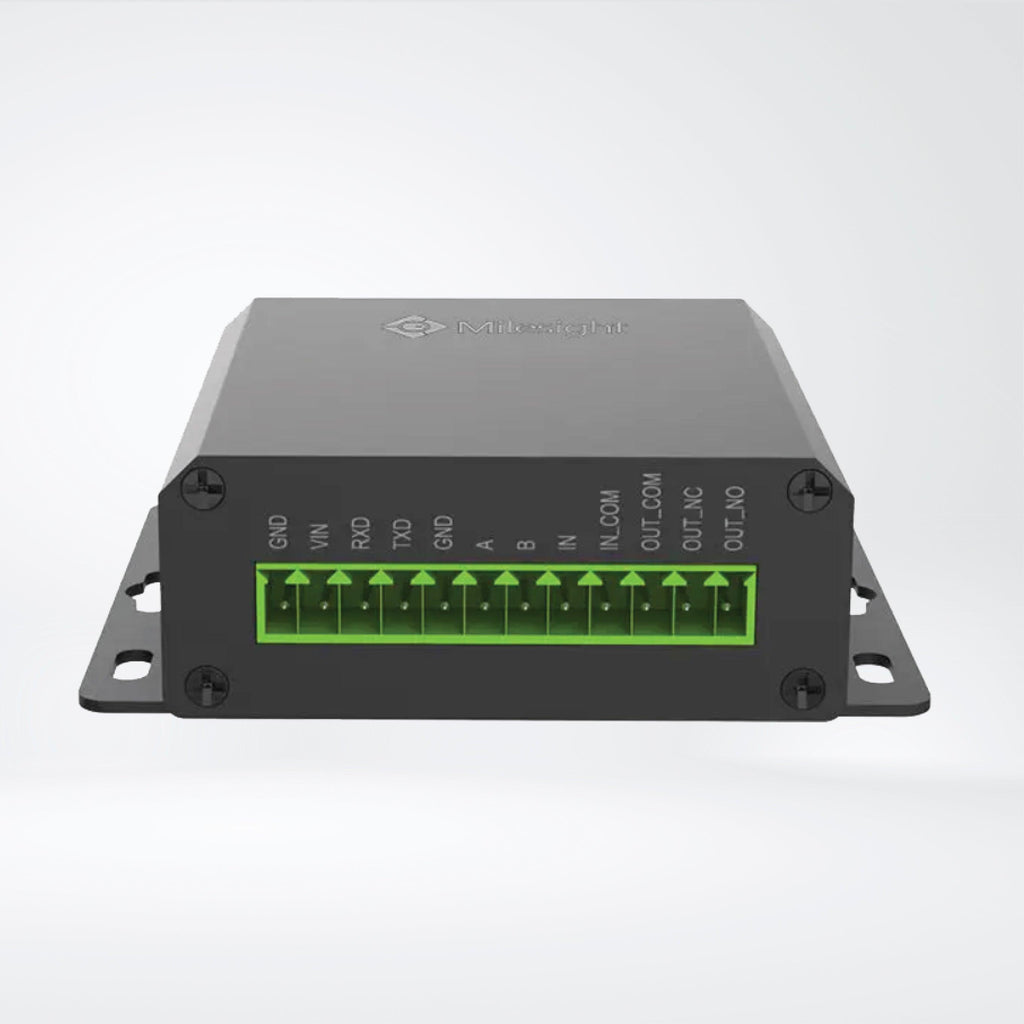

UC1152 Controller with 2 Digital Inputs + RS232 + RS485

Features

Featuring 2 serial inputs and 1 alarm input & relay output, UC1152 supports standard LoRaWAN® class C protocol, which is perfectly used as a remote data logger or a controller.

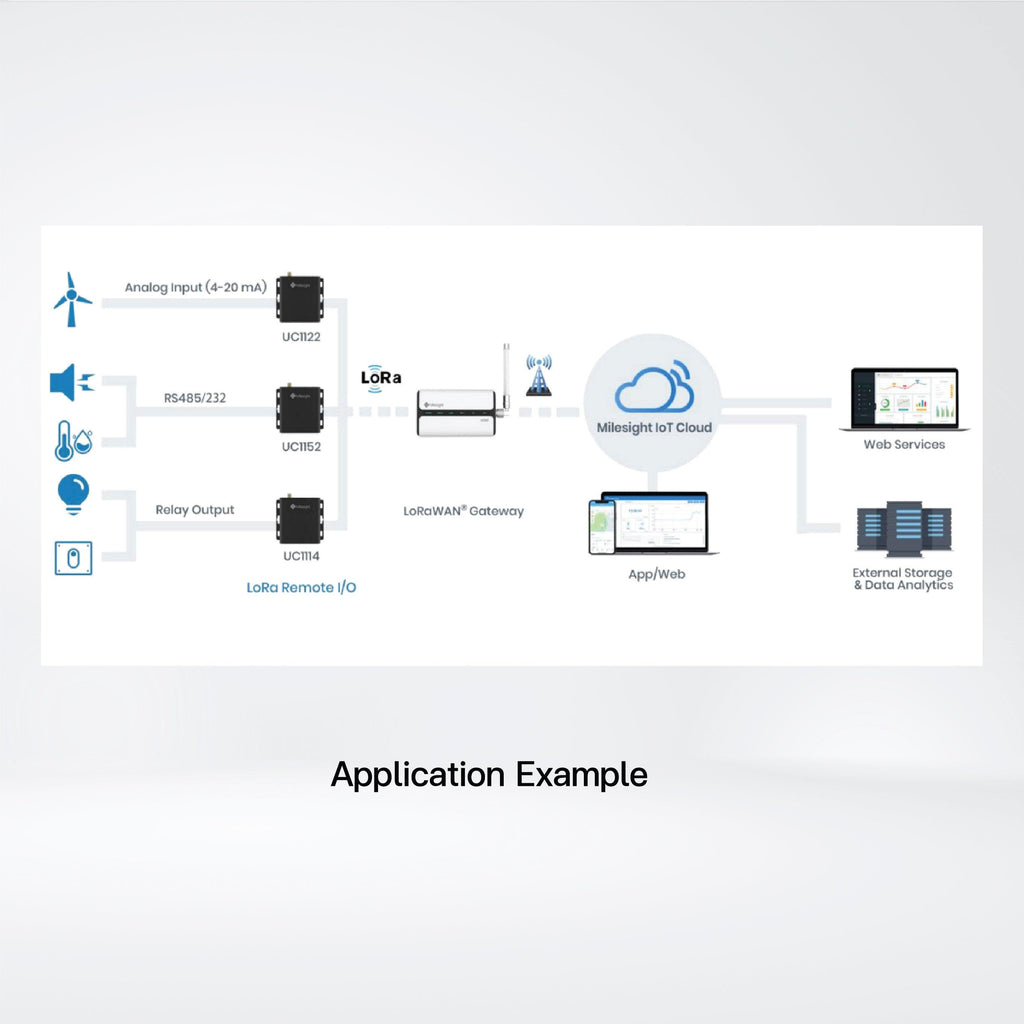

Coupled with Milesight LoRaWAN® gateway, UC1152 enables users to fastly build up a LoRa-Based IoT solution for data collection, remote control and monitoring of field devices.

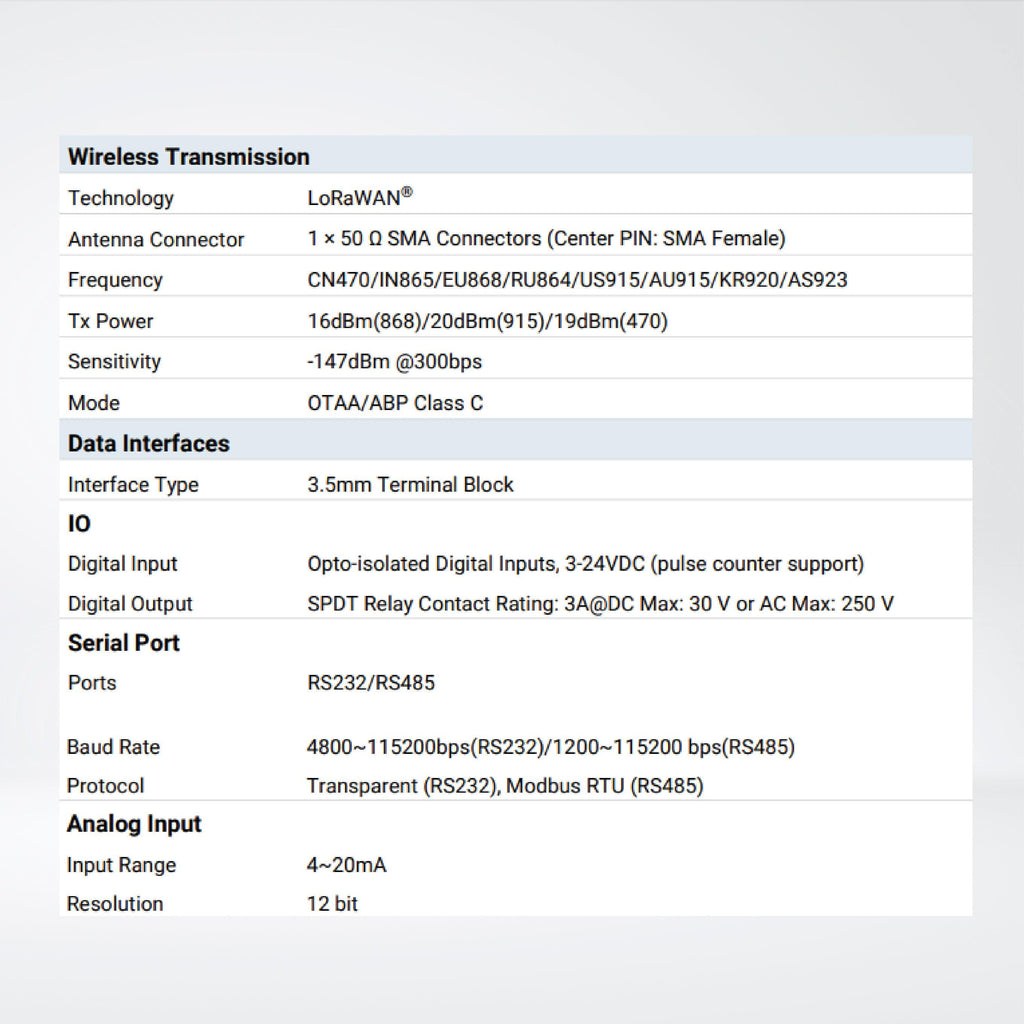

• Protocol: LoRaWAN® 1.0/1.0.2 Class C
• Connector: 1 × 50 Ω SMA (Center PIN: SMA Female)
• Configuration Interface: 1 × Micro USB Port
• 1 x RS232
• 1 x RS485
• Baud Rate: 4800~115200bps(RS232)/1200~115200 bps(RS485)
• Protocol: Transparent (RS232), Modbus RTU (RS485)
• 1 x Opto-isolated Digital Inputs - DC Voltage (3-24V)
• 1 x SPDT Relay Contact Rating: - 3 Amp DC (Max: 30 V) or 3 Amp AC (Max: 250 V)
• Ingress Protection : IP30
• Mounting: Desktop or Wall Mounting
