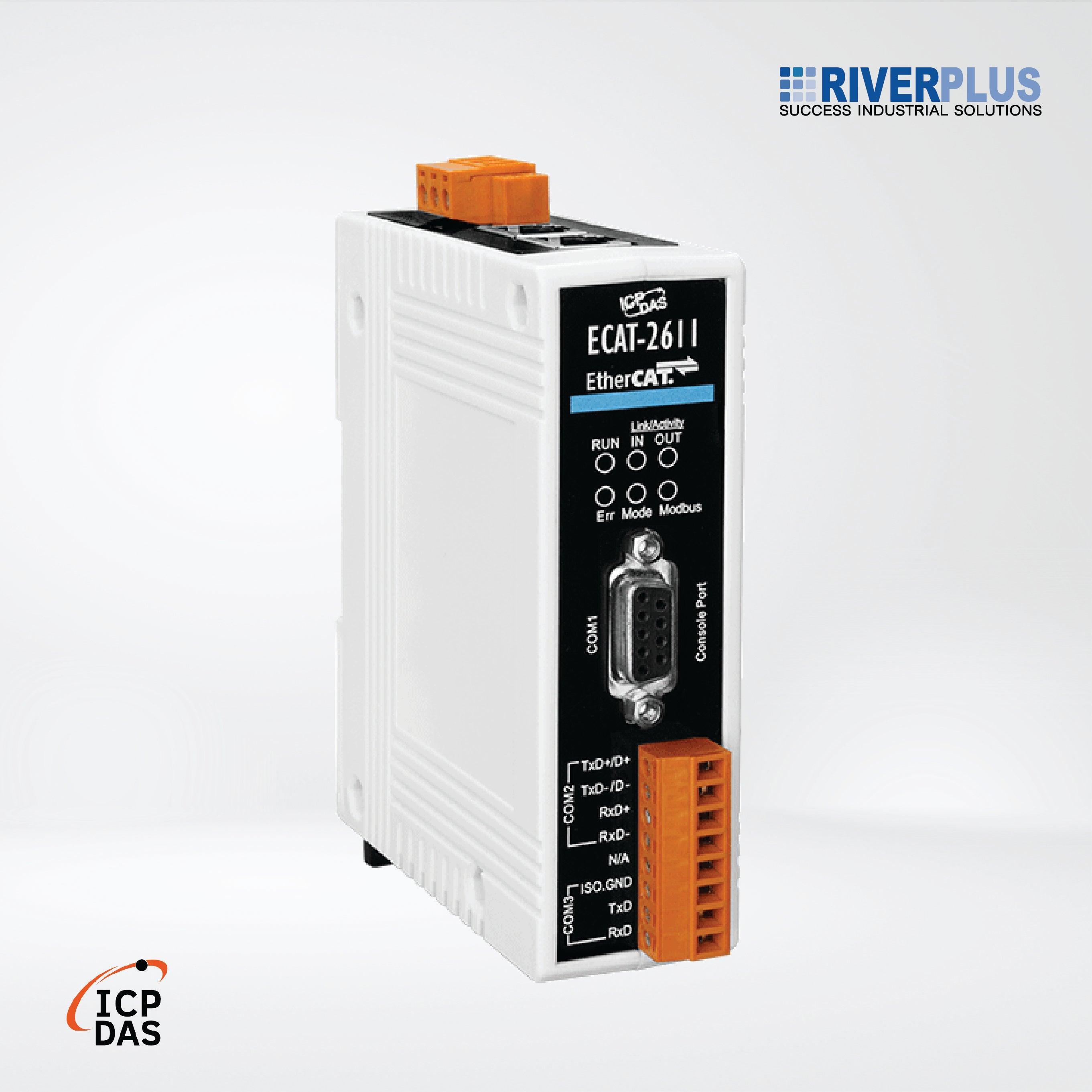

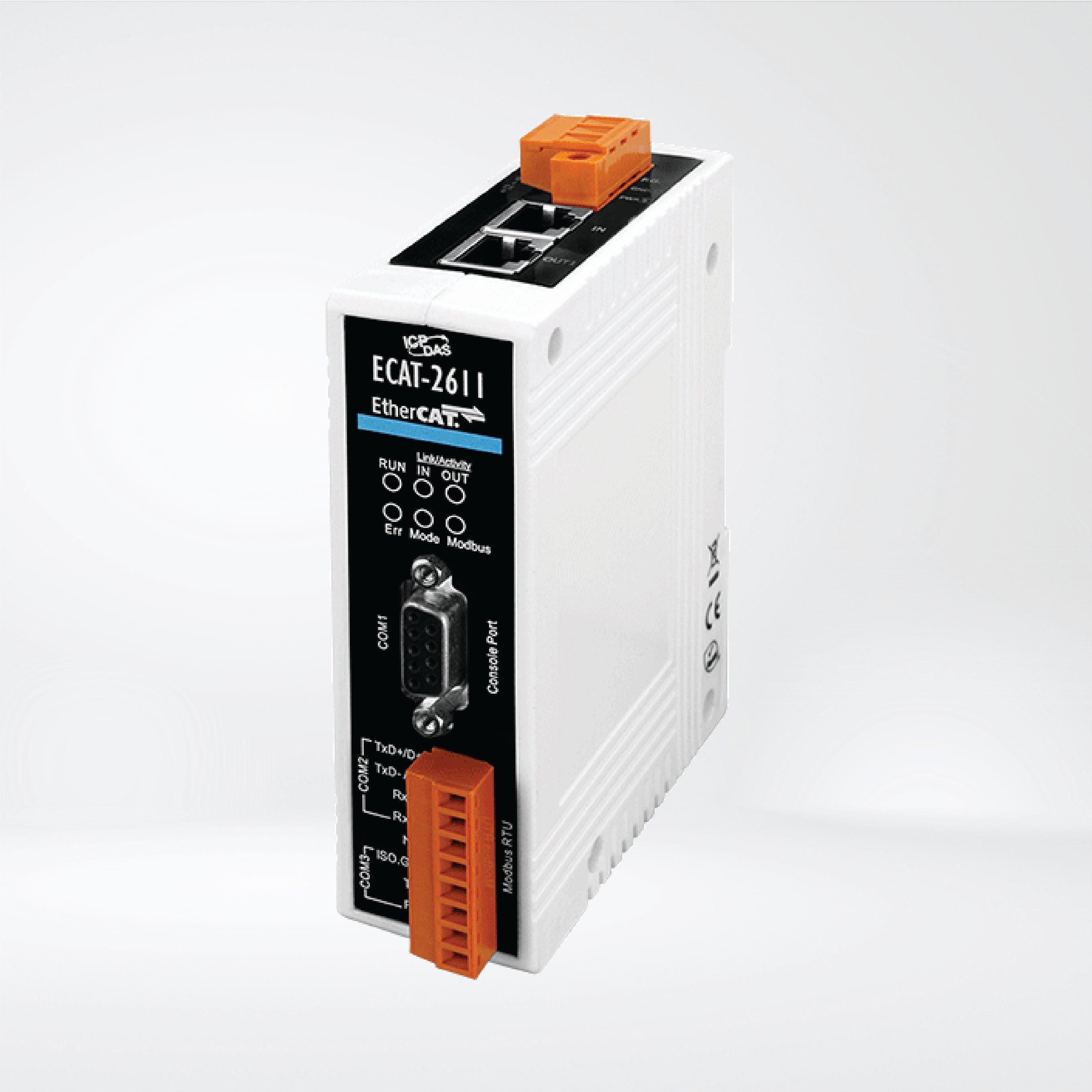

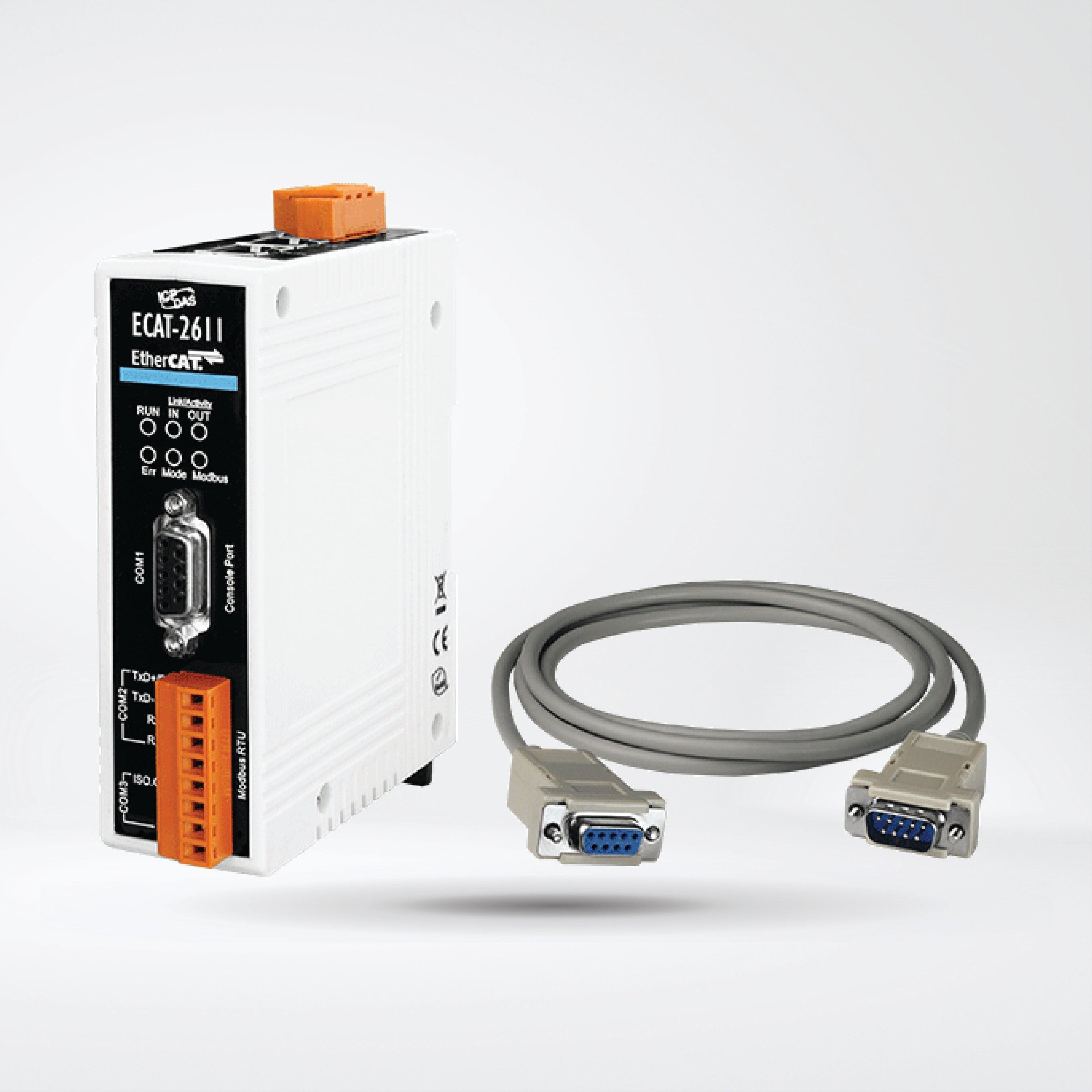

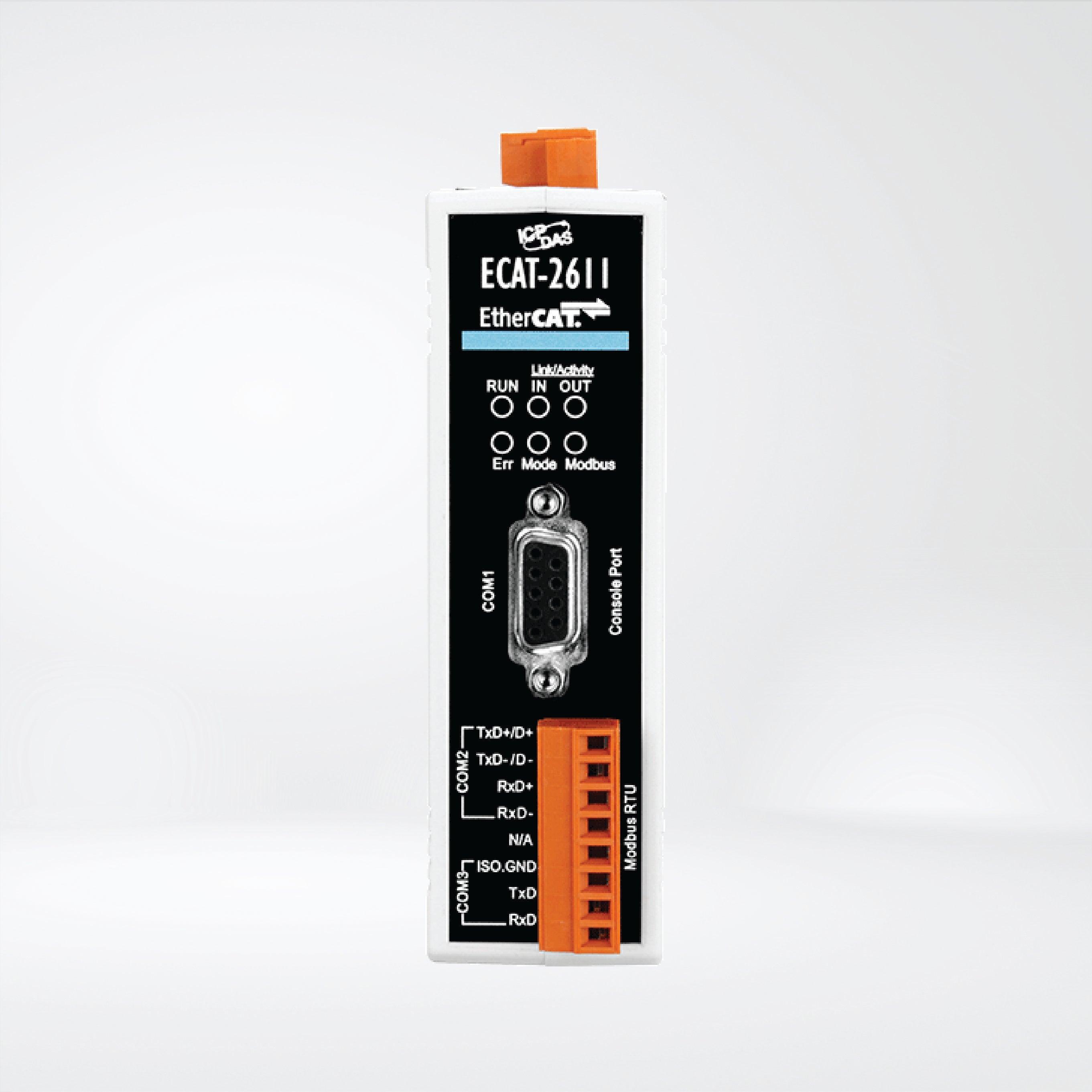

ECAT-2611 EtherCAT Slave to Modbus RTU Slave Gateway

Features

-Powerful MCU handles efficient network traffic

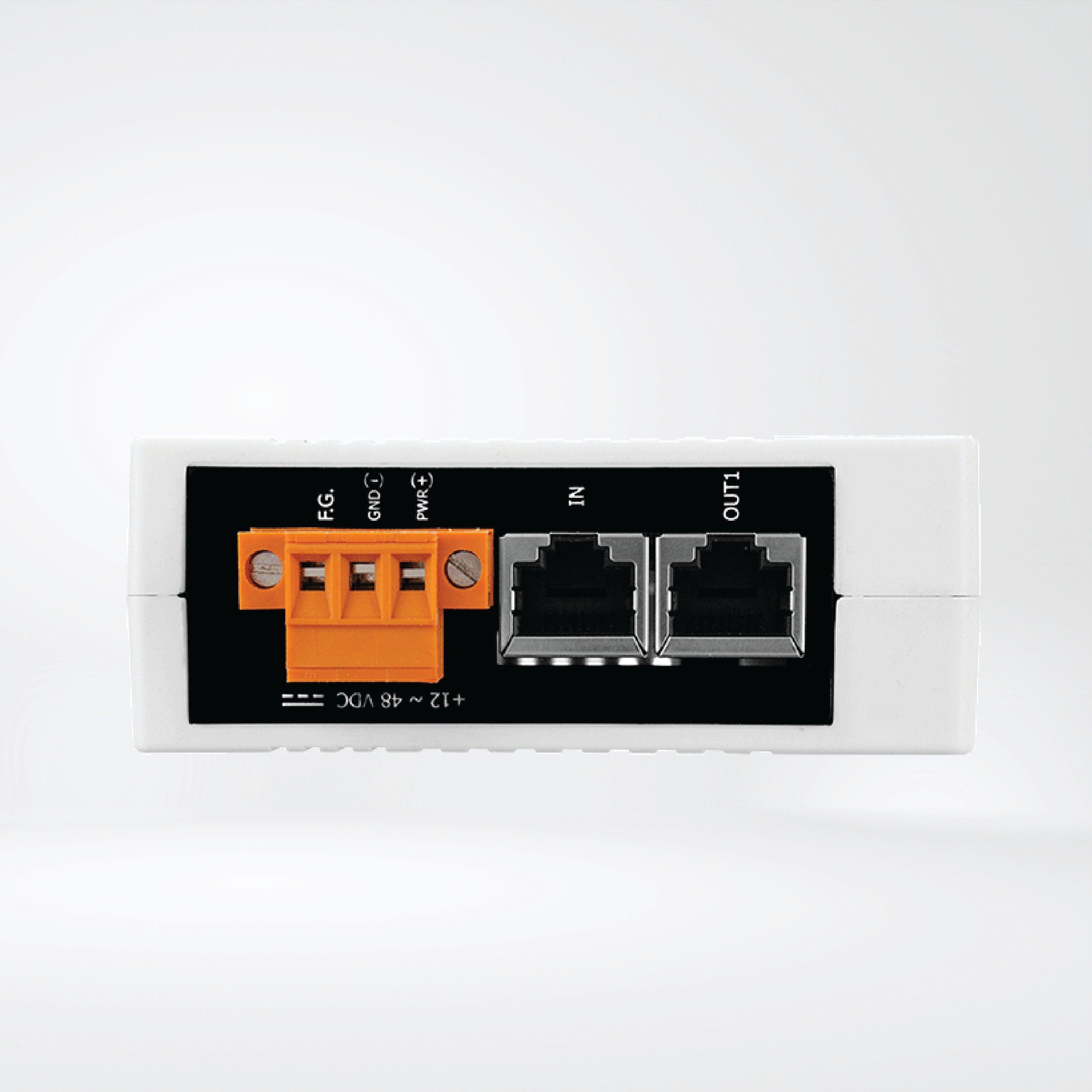

-2 x RJ-45 EtherCAT connectors

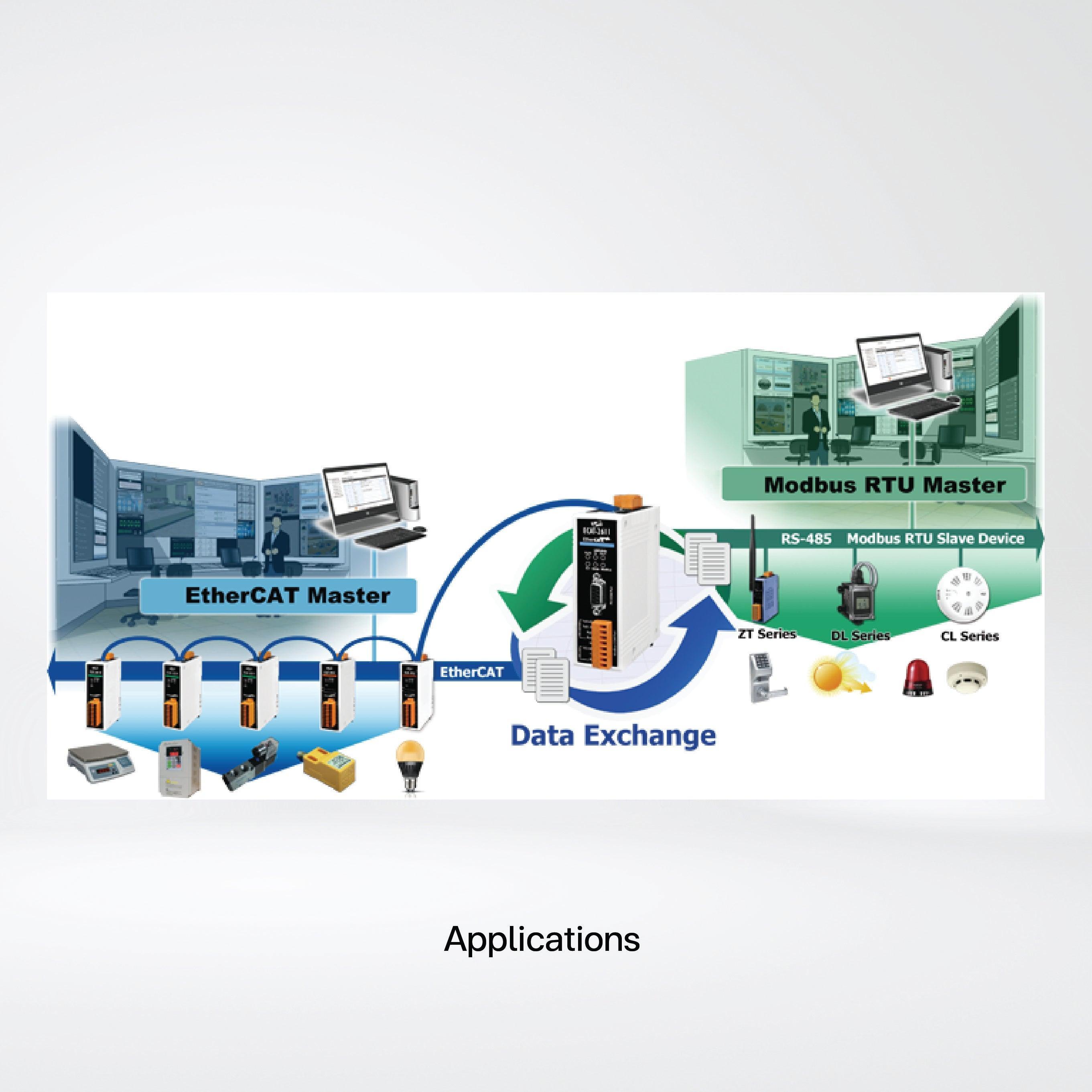

-Transfer of I/O data between two networks
-Allows system integrators to retro-fit older automation devices into modern EtherCAT communication structures
-Requires no hardware or software changes to be made to the connected device
-Compatible with all PLCs with EtherCAT support
-Performs complete serial protocol conversion, no PLC function blocks required
-Supports maximum 256 WORD Input and 256 WORD Output Data
-Supports serial port interface
     Supports Modbus RTU (Salve) protocol
     Supports RS-232/422/485 Port
     Supports maximum Baud Rate 115200 bps
     Supports Modbus Function code 03, 04, 06 and 16
