Description
The Water Quality Sensors can be applied in general water treatment, sewage treatment, aquaculture, surface water monitoring, environmental protection engineering, cooling tower circulating water, beverage, and food, industrial sewage discharge monitoring, etc.
Optional IoT Router and Cloud Platform - ThingsMaster
Optional IoT Router and Cloud Platform - ThingsMaster
- Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
- Real-time online monitoring, analysis, reporting
- Remote cloud security and visual management

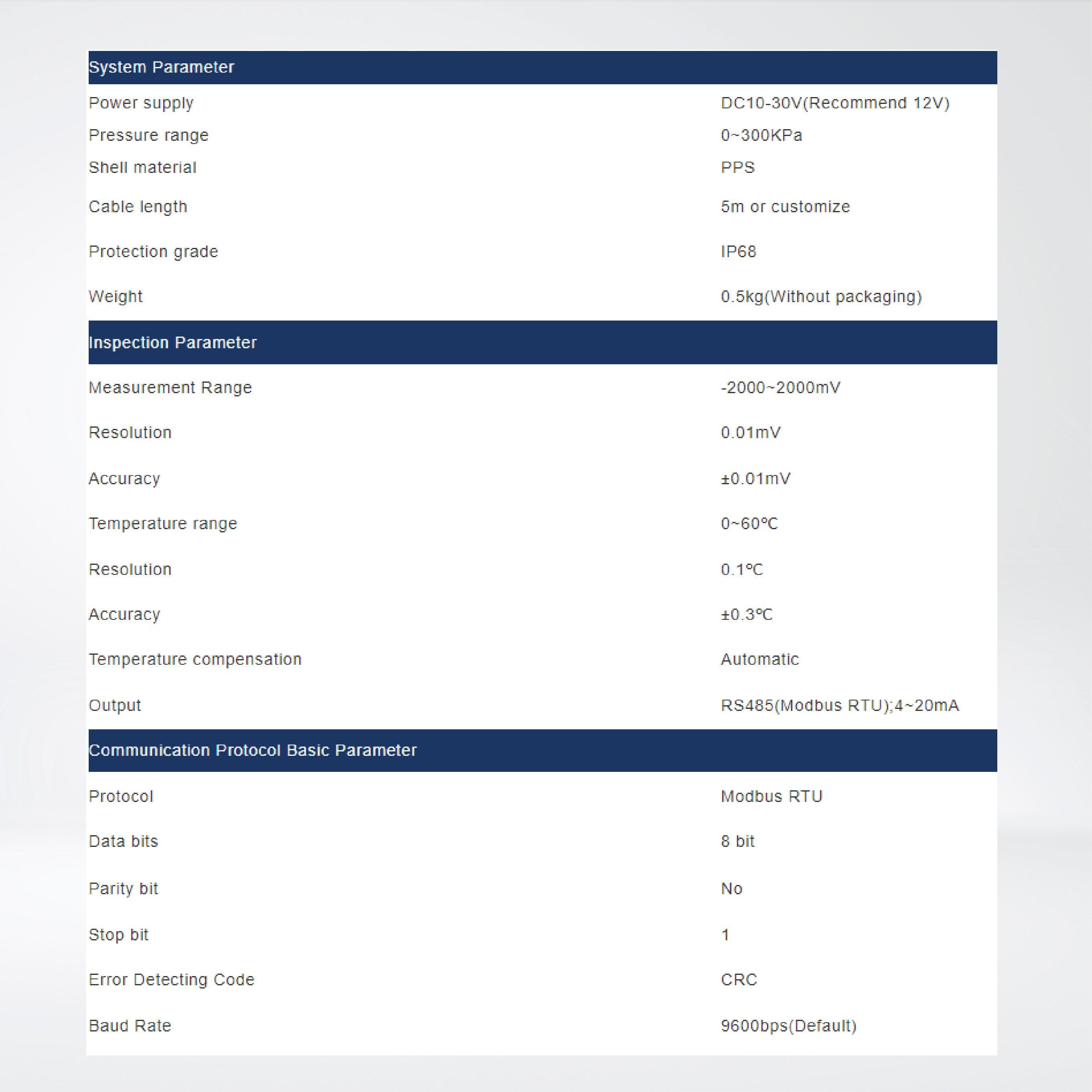

Features
- Power supply DC10-30V(Recommend 12V)
- Pressure range 0~300KPa
- Shell material PPS
- Cable length 5m or customize
- Protection grade IP68
- Weight 0.5kg(Without packaging)
- Measurement Range -2000~2000mV
- Resolution 0.01mV
- Accuracy ±0.01mV
- Temperature range 0~60℃
- Resolution 0.1℃
- Accuracy ±0.3℃
- Temperature compensation Automatic
- Output RS485(Modbus RTU);4~20mA
- Protocol Modbus RTU
- Data bits 8 bit
- Parity bit No
- Stop bit 1
- Error Detecting Code CRC
- Baud Rate 9600bps(Default)
Term and Condition
ส่งสินค้า : By Order 4-6 สัปดาห์
รับประกันสินค้า : 1 Year
