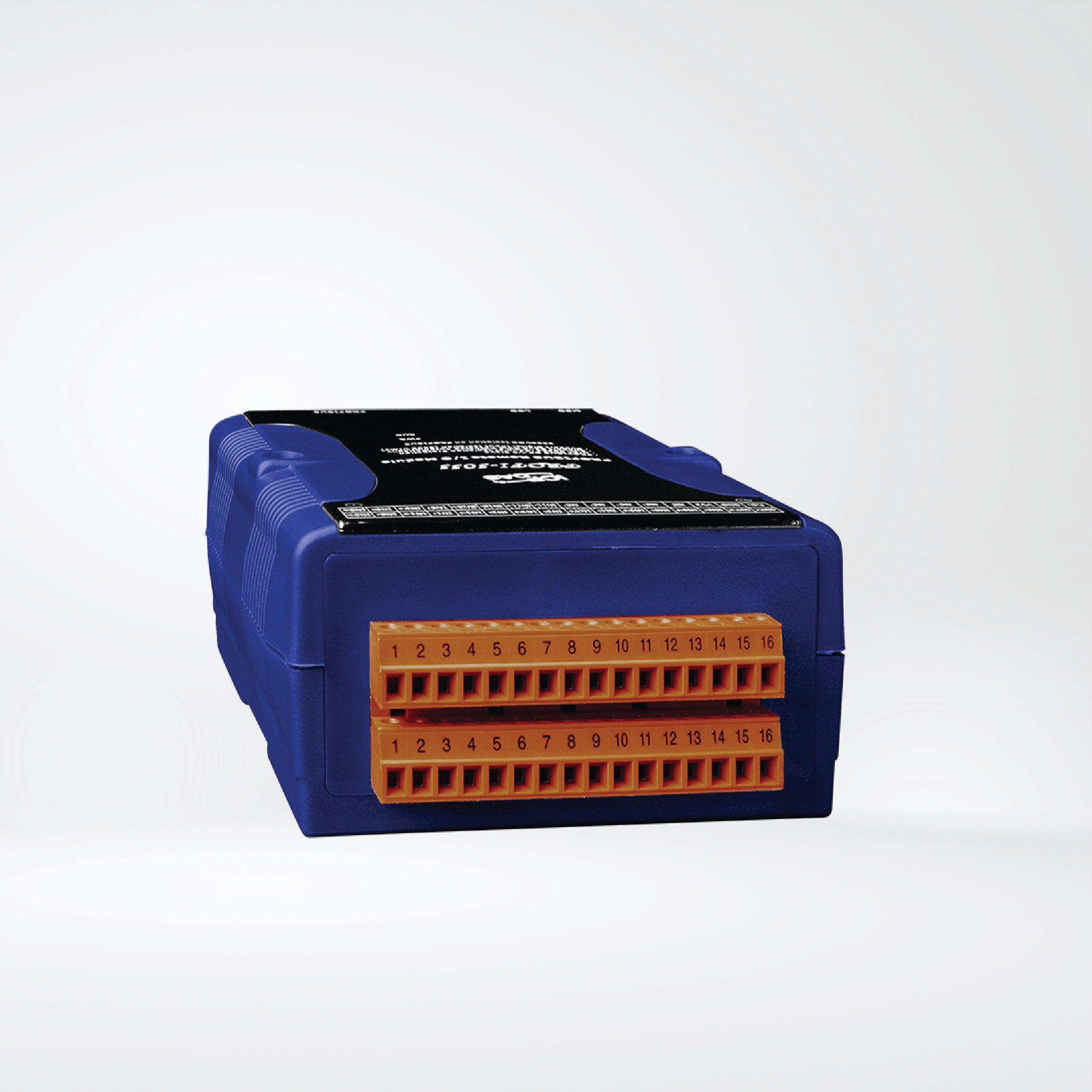

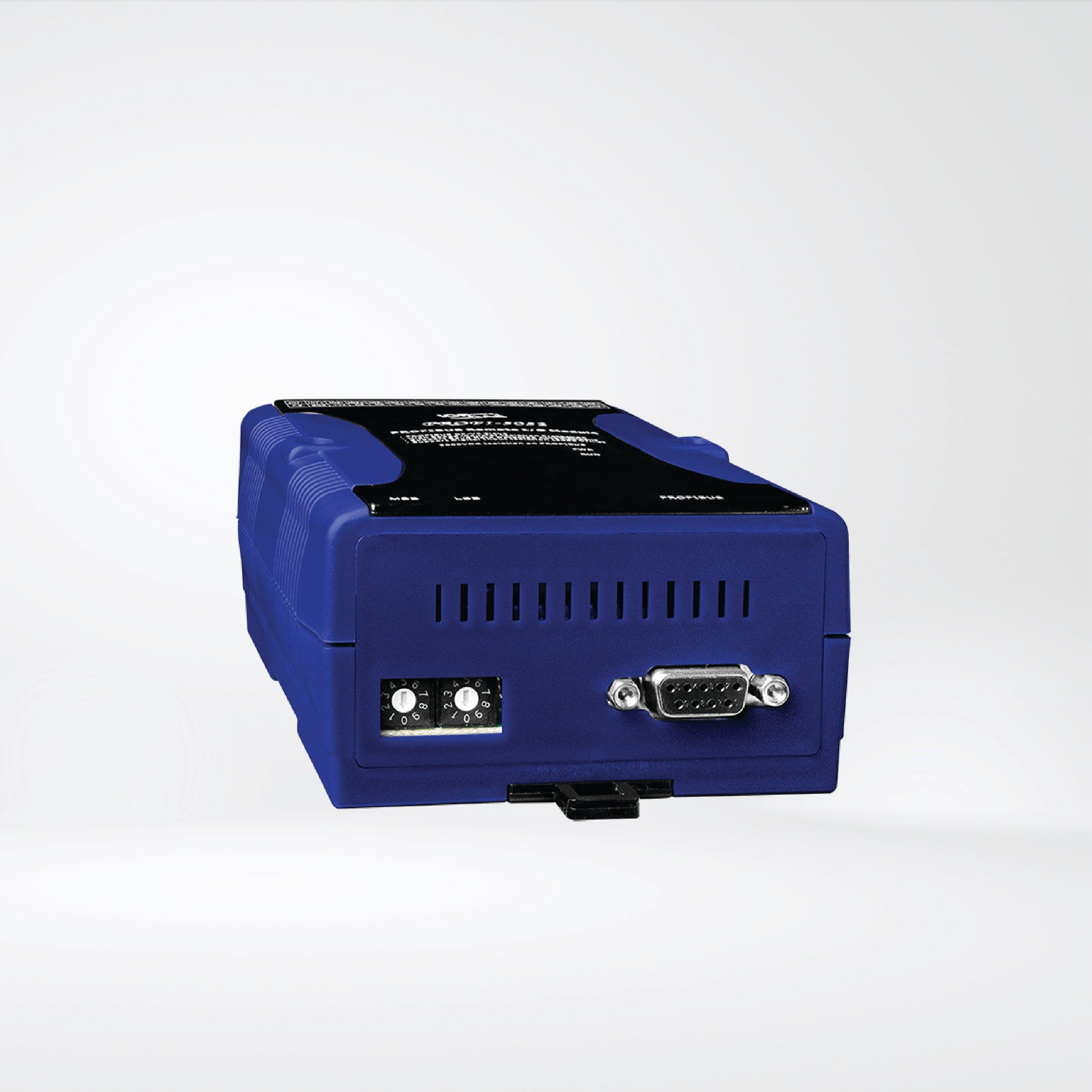

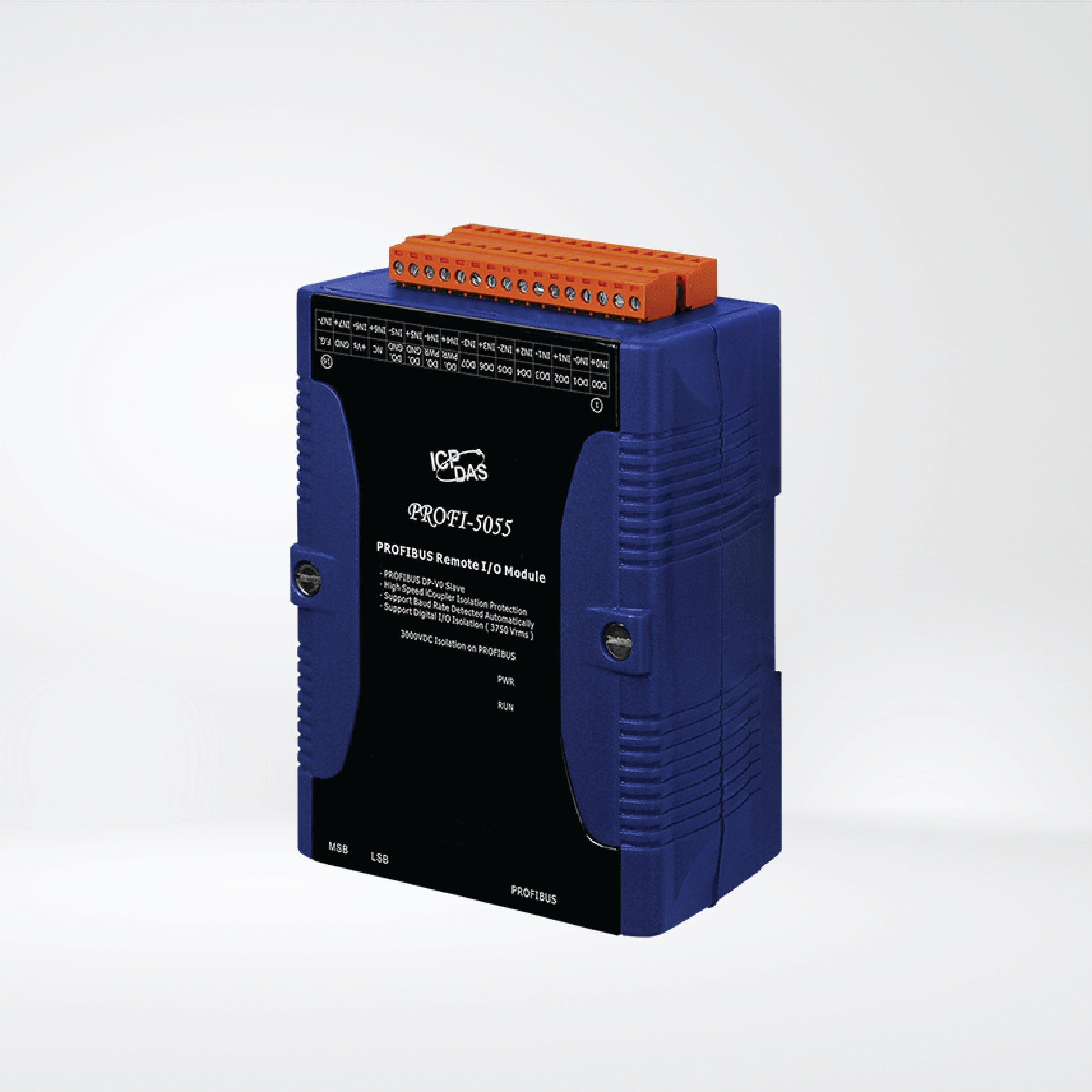

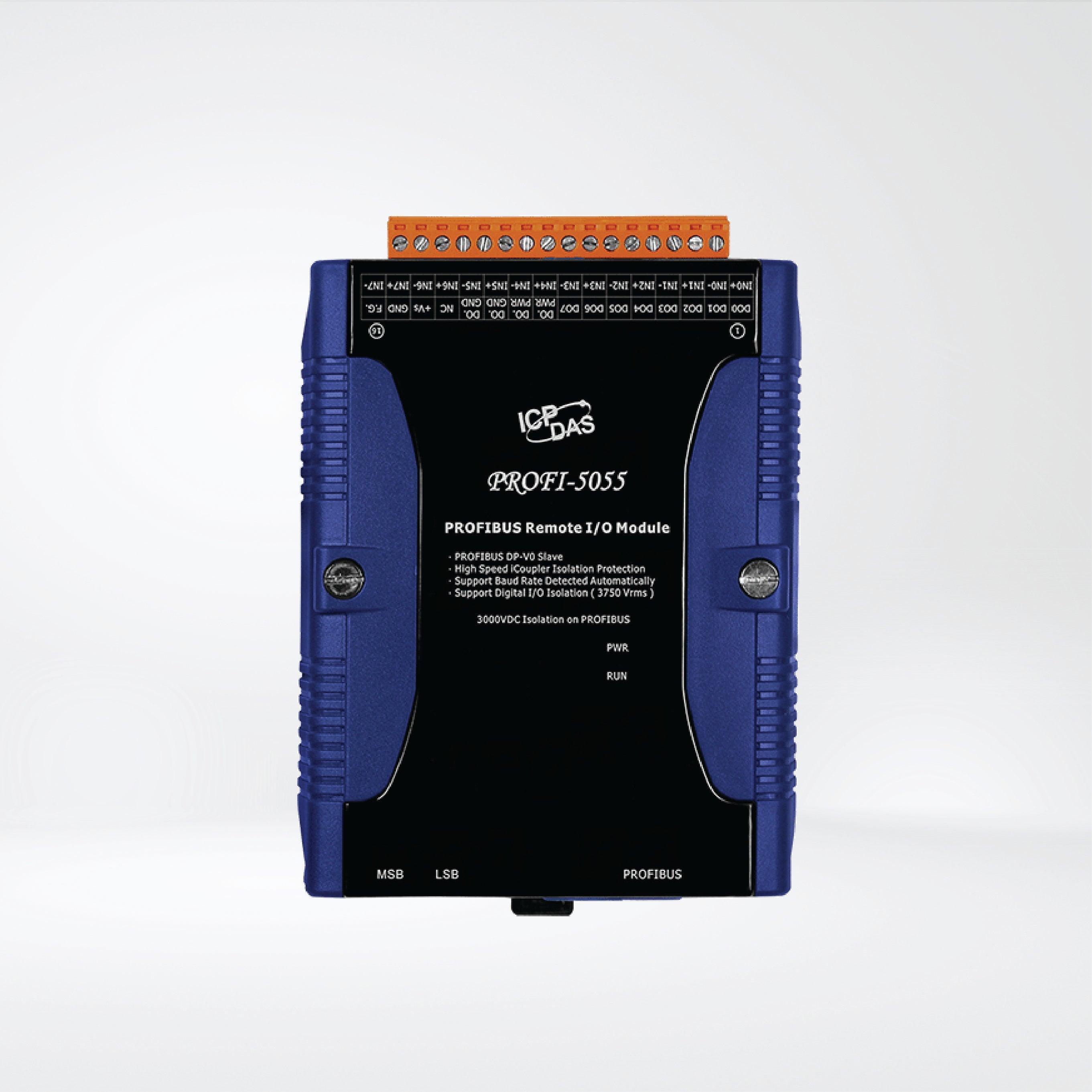

PROFI-5055 PROFIBUS Remote I/O Module

Features

- PROFIBUS Remote I/O Module (8-channel Isolated Digital Input and 8-channel Isolated Digital Output)
- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Address Setting : 0~99 set by rotary switches
- I/O modules Configuration : Configured by GSD file
- Network Isolation Protection : 3000 VDC on PROFIBUS side
- DC Isolation Protection : 3000 VDC on PROFIBUS side
- 4KV ESD Protection : Contact for each terminal
