Description
WS102-EC is a smart water quality analysis sensor for Electric Conductive, which can be used to detect and distinguish pure water, mountain spring water, mineralized water, purified water, tap water, sewage, etc.
At the same time built-in temperature detection, measuring range 0 ~ 80 ℃. The signal output mode supports RS485 (Modbus RTU) and 4~20mA. The Conductivity Electrode also supports M39x1.5 and G3/4 thread gauge for different installation.
Optional IoT Router and Cloud Platform - ThingsMaster
At the same time built-in temperature detection, measuring range 0 ~ 80 ℃. The signal output mode supports RS485 (Modbus RTU) and 4~20mA. The Conductivity Electrode also supports M39x1.5 and G3/4 thread gauge for different installation.
Optional IoT Router and Cloud Platform - ThingsMaster
- Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
- Real-time online monitoring, analysis, reporting
- Remote cloud security and visual management

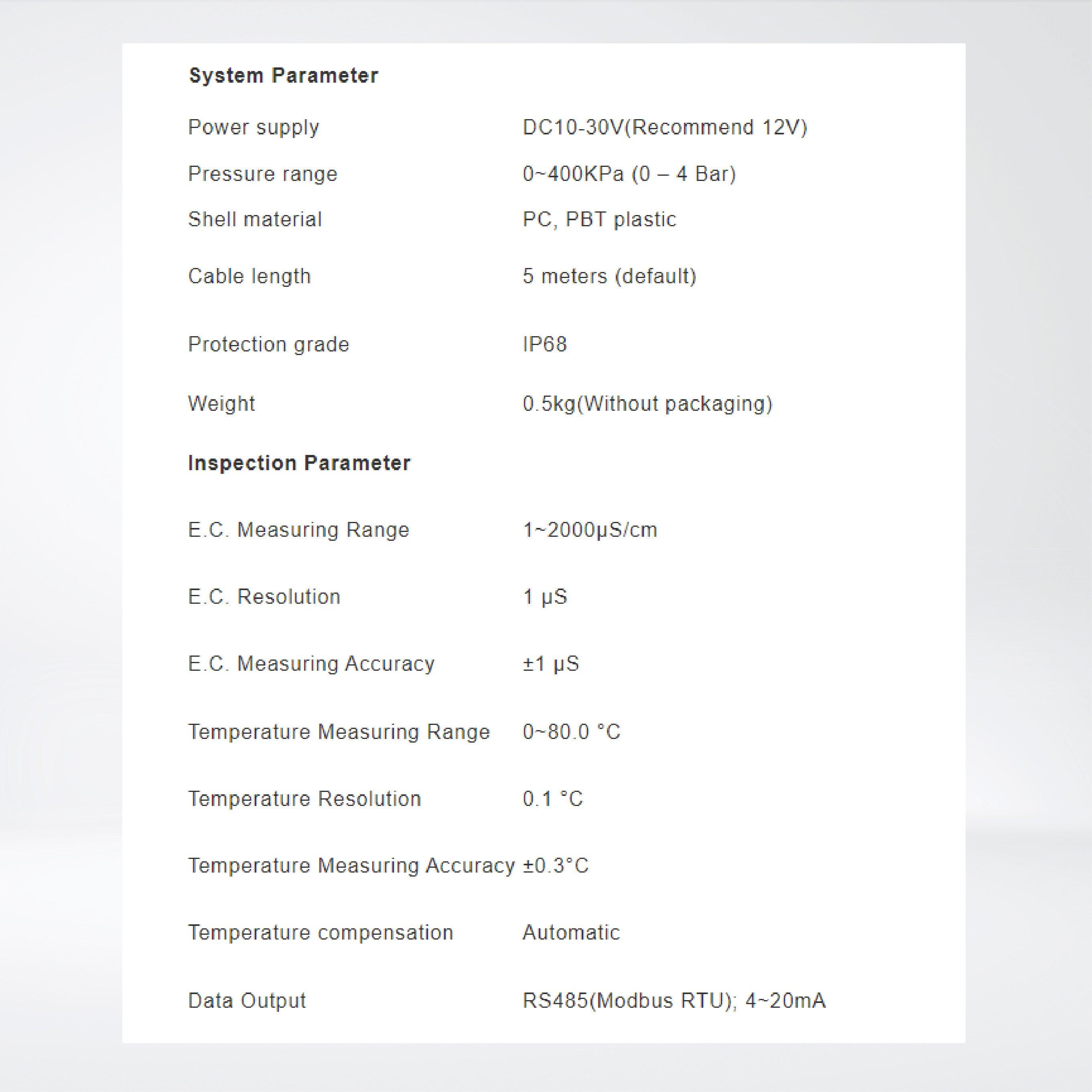

Features
- Power supply DC10-30V(Recommend 12V)
- Pressure range 0~400KPa (0 – 4 Bar)
- Shell material PC, PBT plastic
- Cable length 5 meters (default)
- Protection grade IP68
- Weight 0.5kg(Without packaging)
- E.C. Measuring Range 1~2000μS/cm
- E.C. Resolution 1 μS
- E.C. Measuring Accuracy ±1 μS
- Temperature Measuring Range 0~80.0 °C
- Temperature Resolution 0.1 °C
- Temperature Measuring Accuracy ±0.3°C
- Temperature compensation Automatic
- Data Output RS485(Modbus RTU); 4~20mA
