ES105M Outdoor Multiple Air Sensor

Features

The ES105M series is an intergraded outdoor sensor unit for multiple gas sensors. The monitored data is output through RS-485 interface by Modbus protocol. The ES105M sensor unit accepts 10~30Vdc power input voltage and is protected by the IP65 grade Anti-U/V lightweight ABS louver radiation shield. With the optional NBIoT/WiFi gateway WR222 or LoRa end node LC144, the data can be monitor on the cloud platform.

Intergraded Device

• Intergraded multiple sensorsCentral management by sharing a signal output

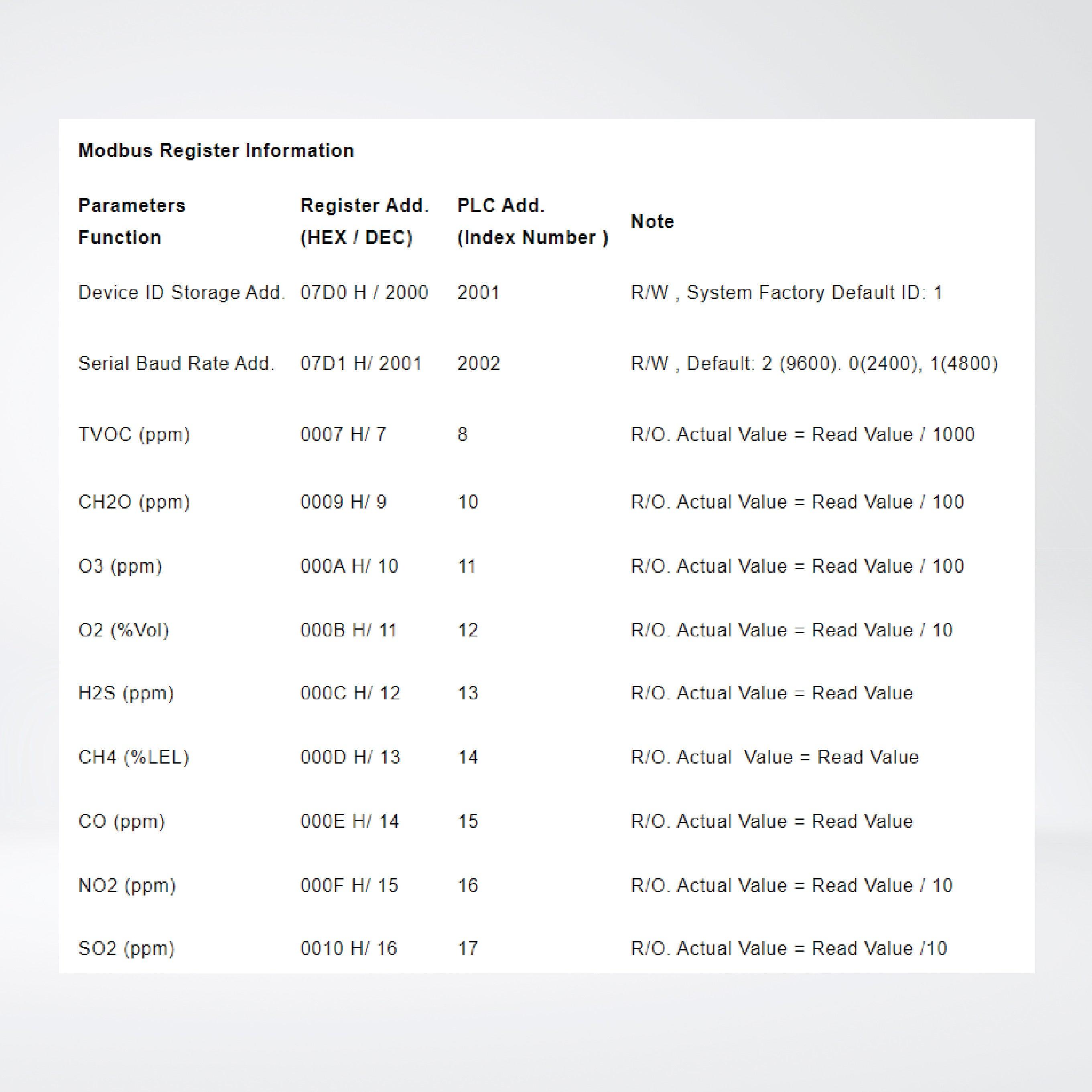

• Support Industrial Modbus RTU protocol, RS485

Outdoor Protective Enclosure

• Prevent direct ultraviolet radiation to the sensors
• Avoid rapid aging of sensors under harsh environmental conditions such as strong winds, rain, and snow
• The sensor parts are ventilated for truly sensing the changes in external detection parameters

Flexible Design

• Customized Shutter Height: Single or multiple parameters both can use small shutter, small size, light weight and easy to install
• Customized Monitoring parameters: Each parameter is independent and high sensitivity, users can freely integrate monitoring parameters

Optional IoT Router and Cloud Platform - ThingsMaster

• Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
• Real-time online monitoring, analysis, reporting
• Remote cloud security and visual management
