ES107 Integrated Weather Station Sensor

Features

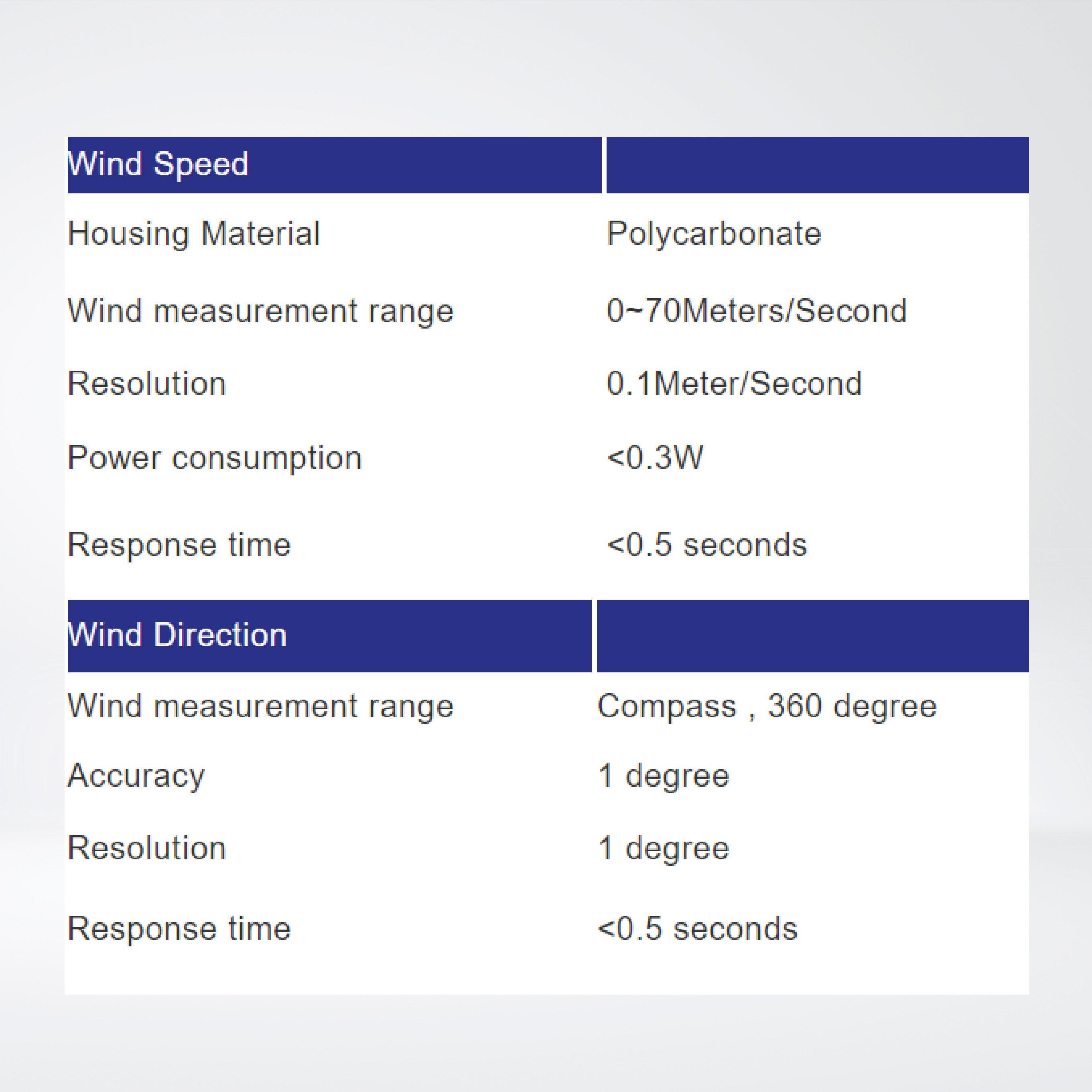

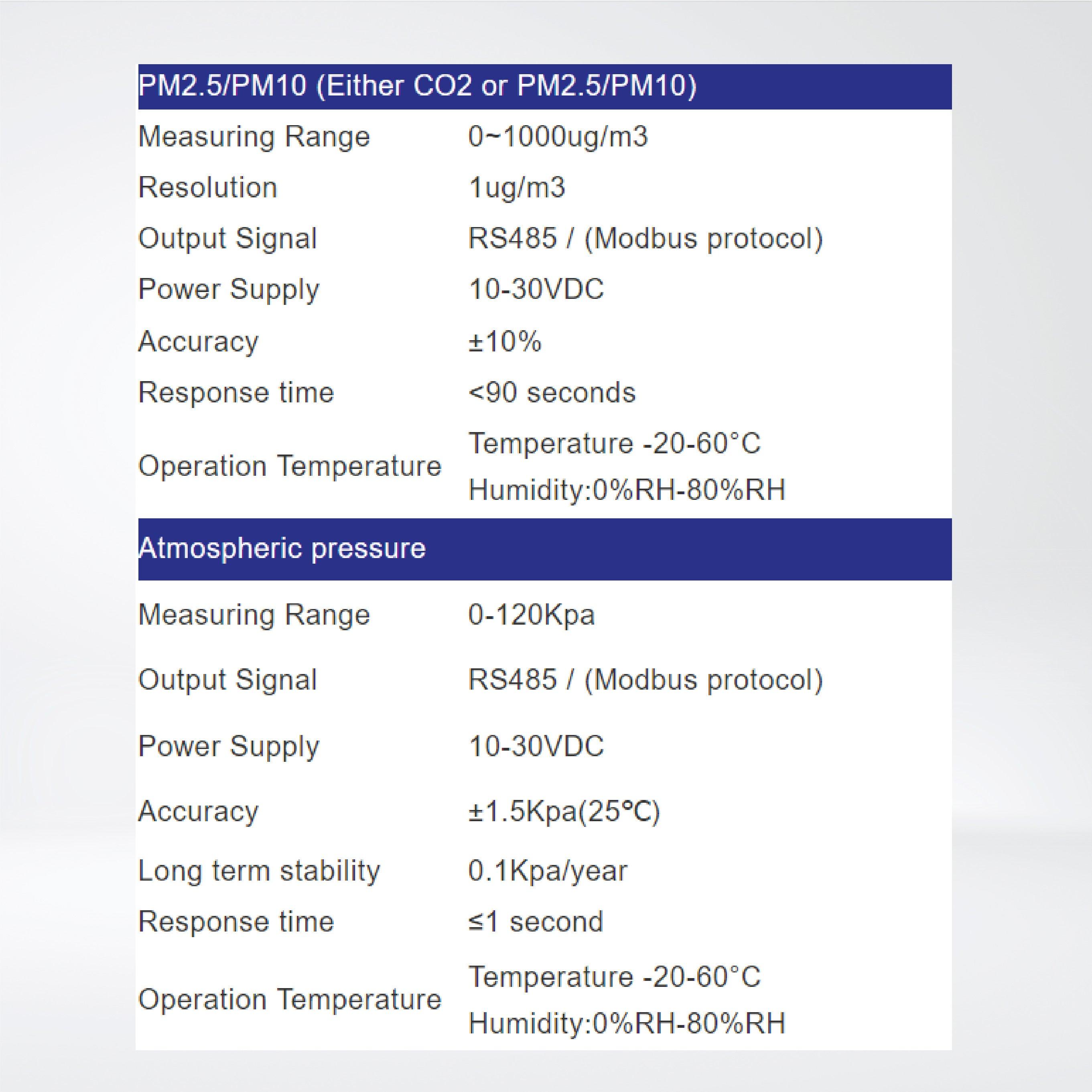

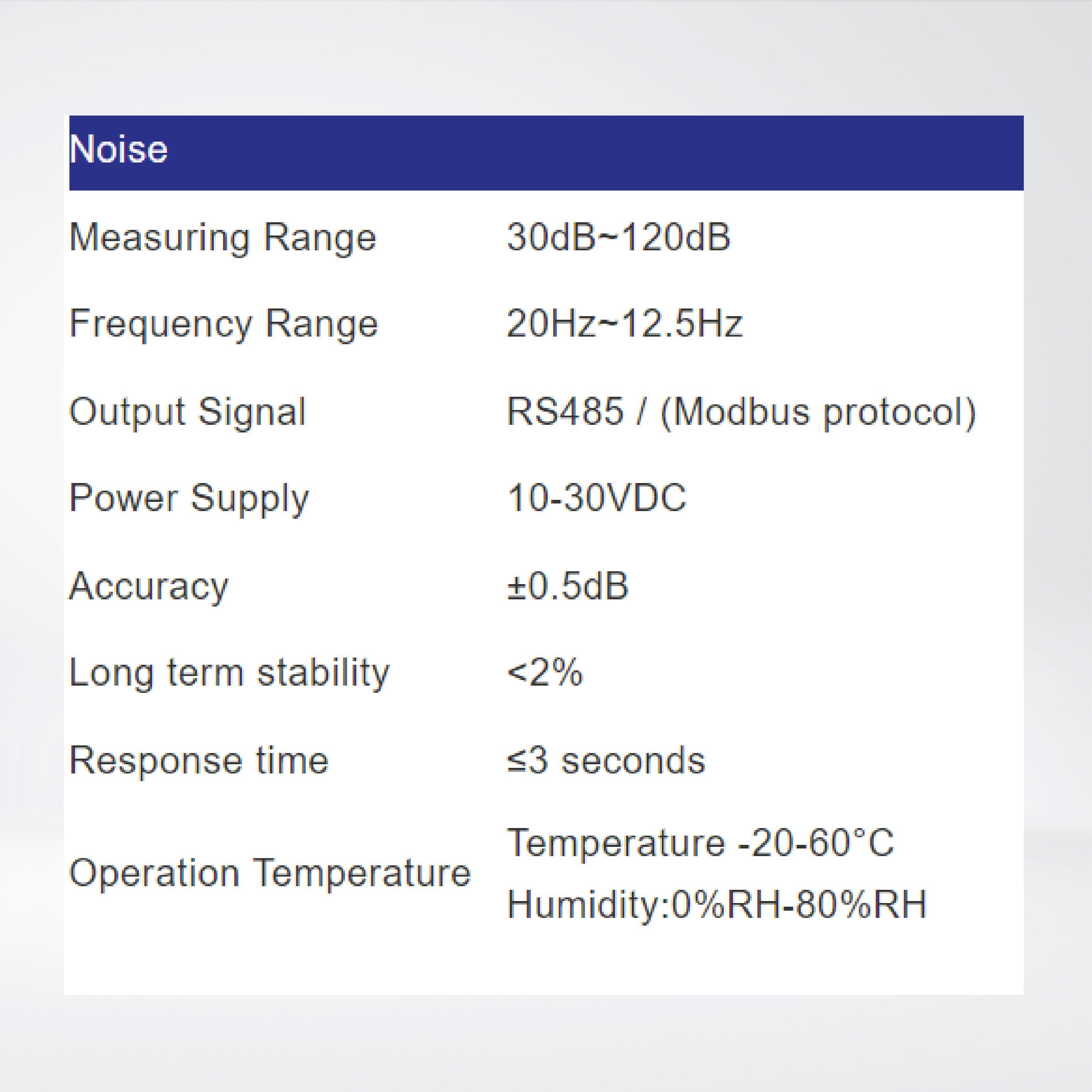

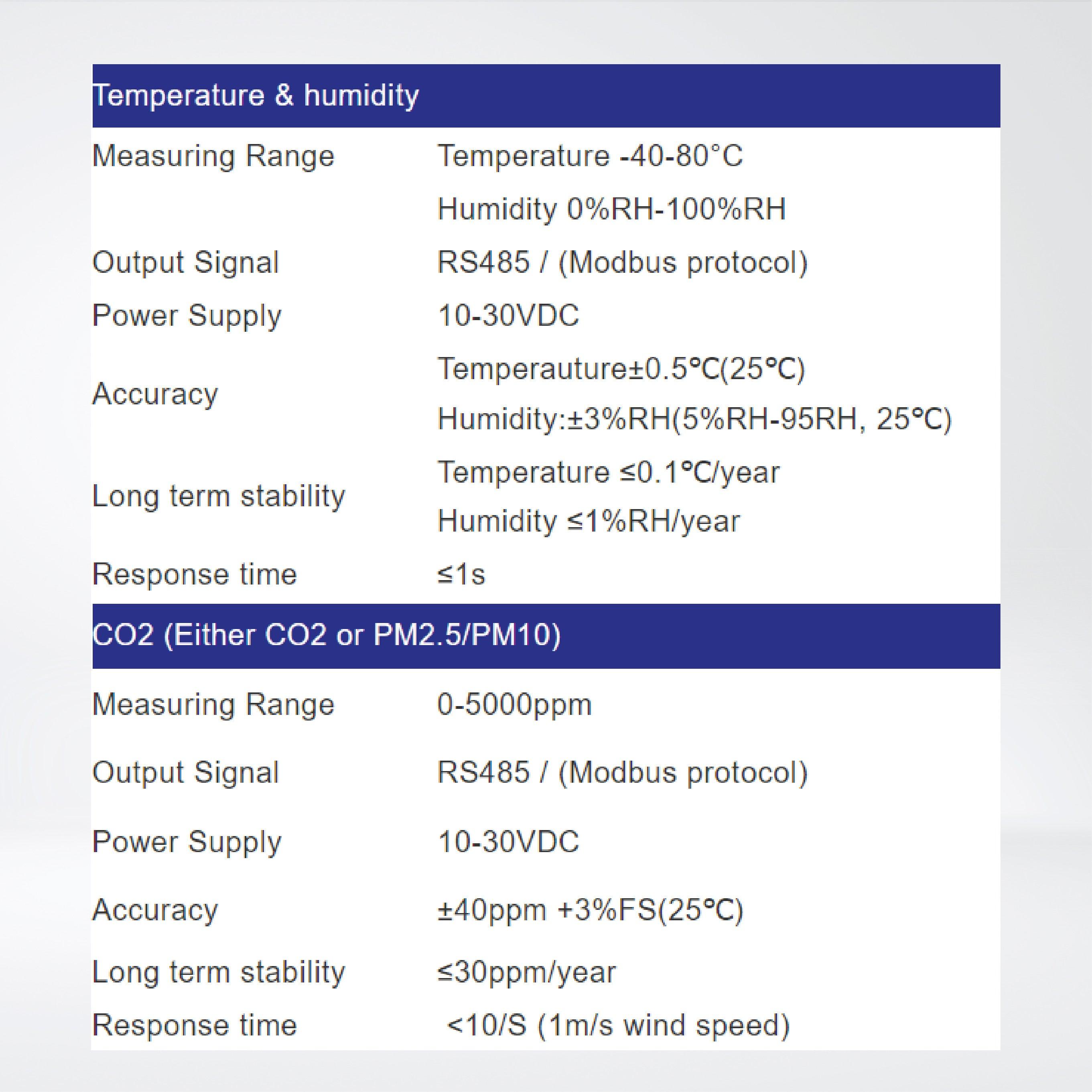

The ES107 series is an integrated outdoor sensor unit for all types of environmental and weather monitoring sensors include temperature, humidity, noise, Atmospheric Pressure, wind direction, wind speed, and CO2 or PM2.5&10.

The monitored data is output through RS-485 interface by Modbus protocol. The ES107 sensor unit accepts 10~30Vdc power input voltage and is protected by the IP65 grade Anti-U/V lightweight ABS louver radiation shield.

Intergraded Device

• Intergraded multiple sensorsCentral management by sharing a signal output
• Support Industrial Modbus RTU protocol, RS485

Outdoor Protective Enclosure

• Prevent direct ultraviolet radiation to the sensors
• Avoid rapid aging of sensors under harsh environmental conditions such as strong winds, rain, and snow
• The sensor parts are ventilated for truly sensing the changes in external detection parameters

Flexible Design

• Customized Shutter Height: Single or multiple parameters both can use small shutter, small size, lightweight and easy to install
• Customized Monitoring parameters: Each parameter is an independent and high sensitivity, users can freely integrate monitoring parameters

Optional IoT Router and Cloud Platform - ThingsMaster

• Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
• Real-time online monitoring, analysis, reporting
• Remote cloud security and visual management
