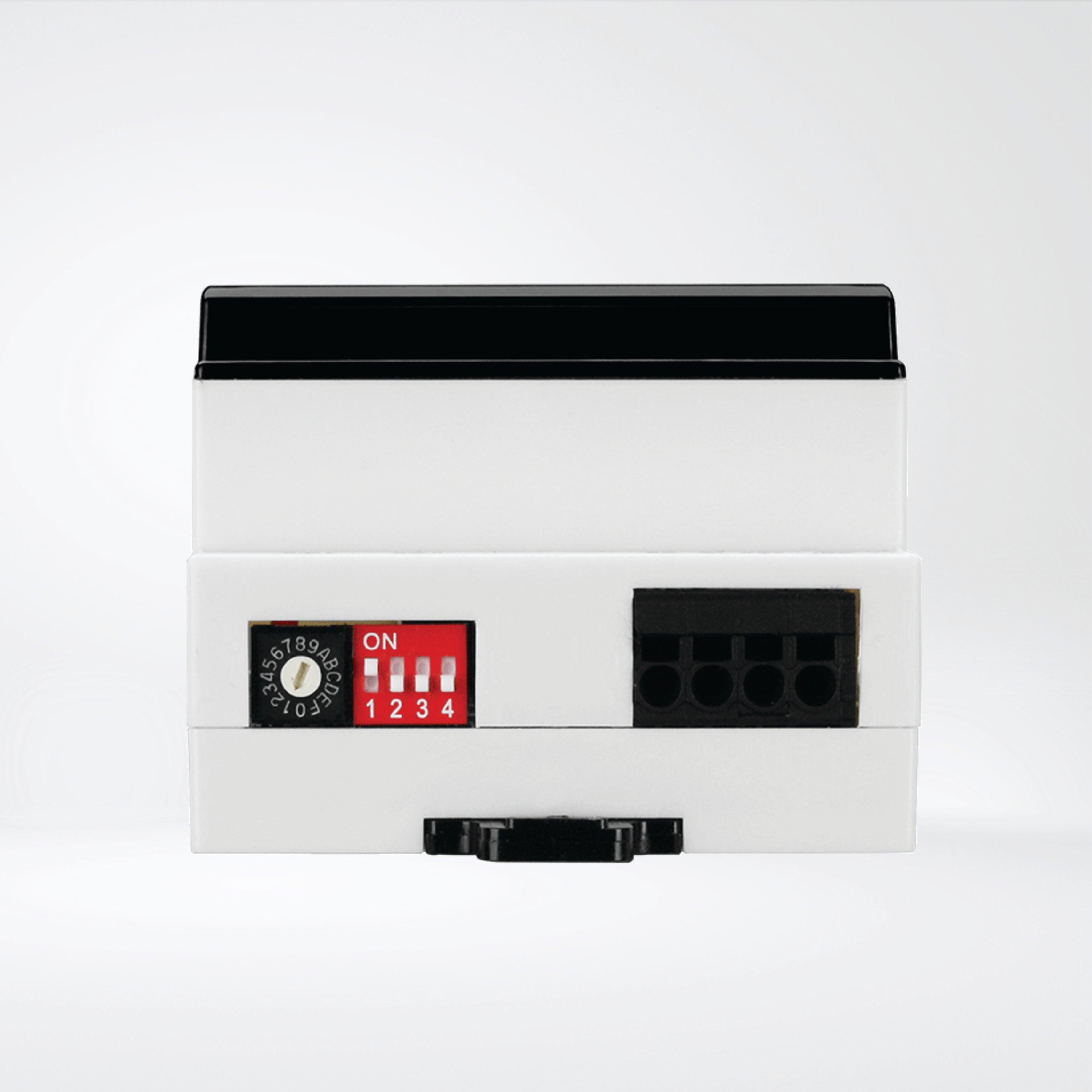

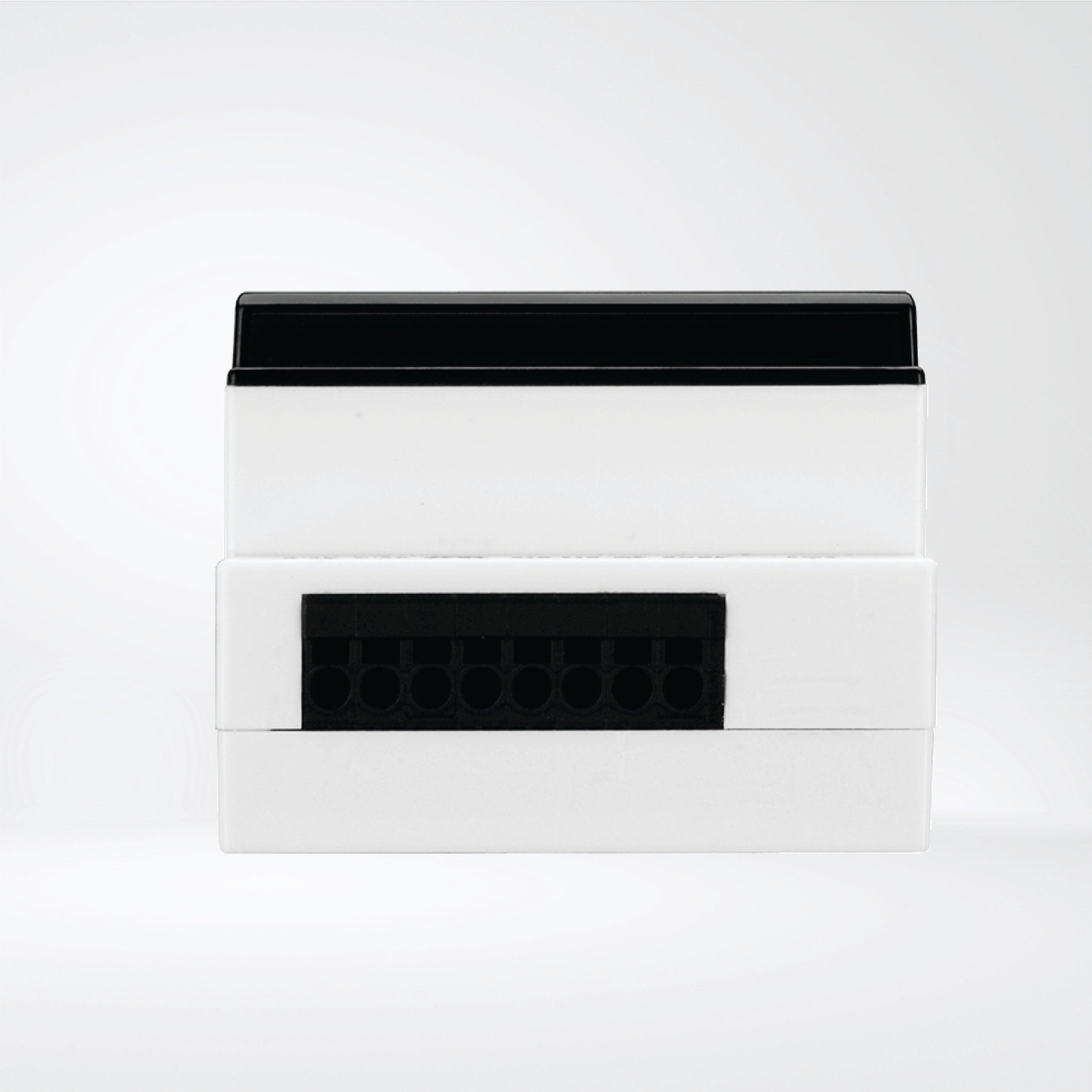

LC-103H 1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module

Features

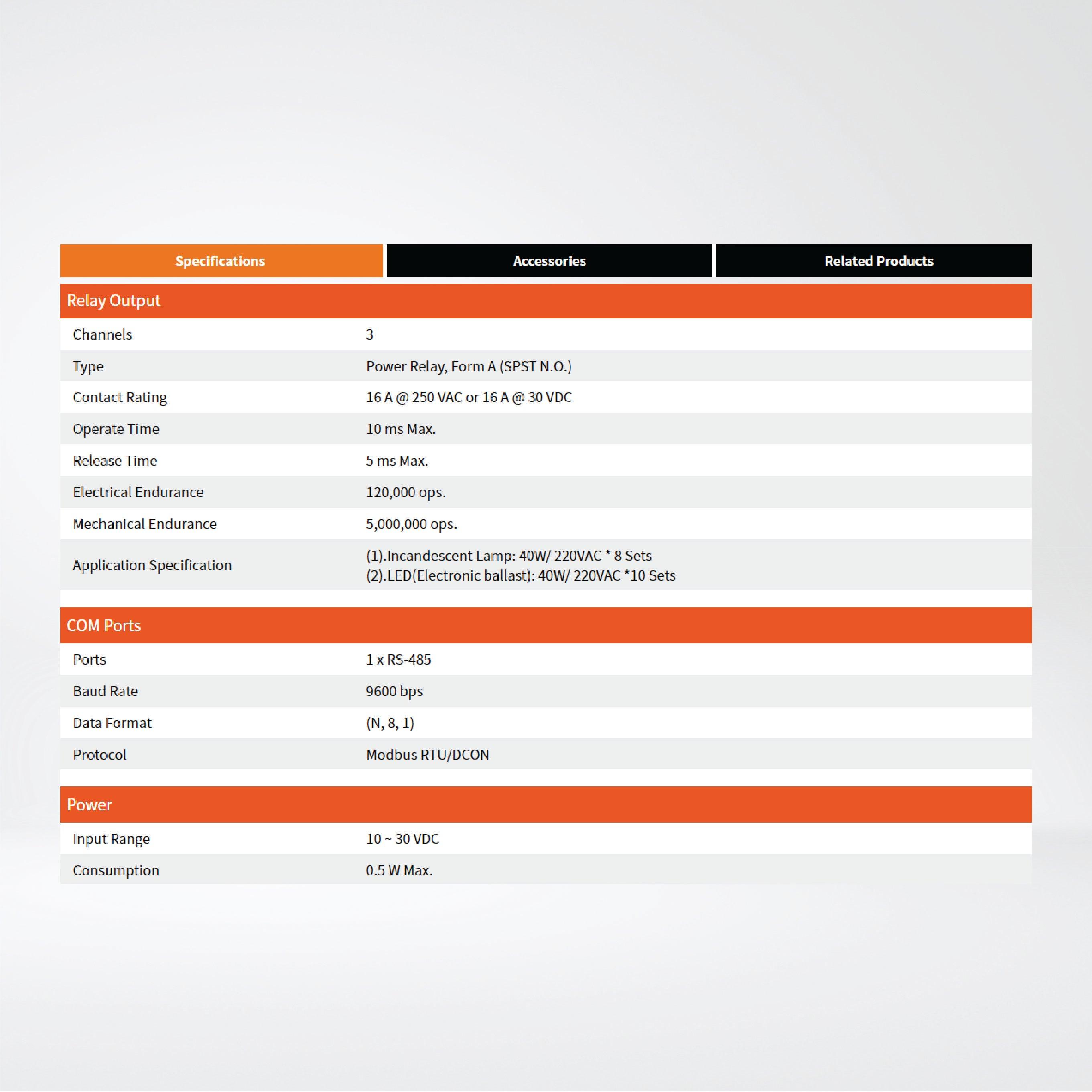

- 1-channel AC Digital Input and 3-channel Relay Output Lighting Control Module with High Power Relay Output

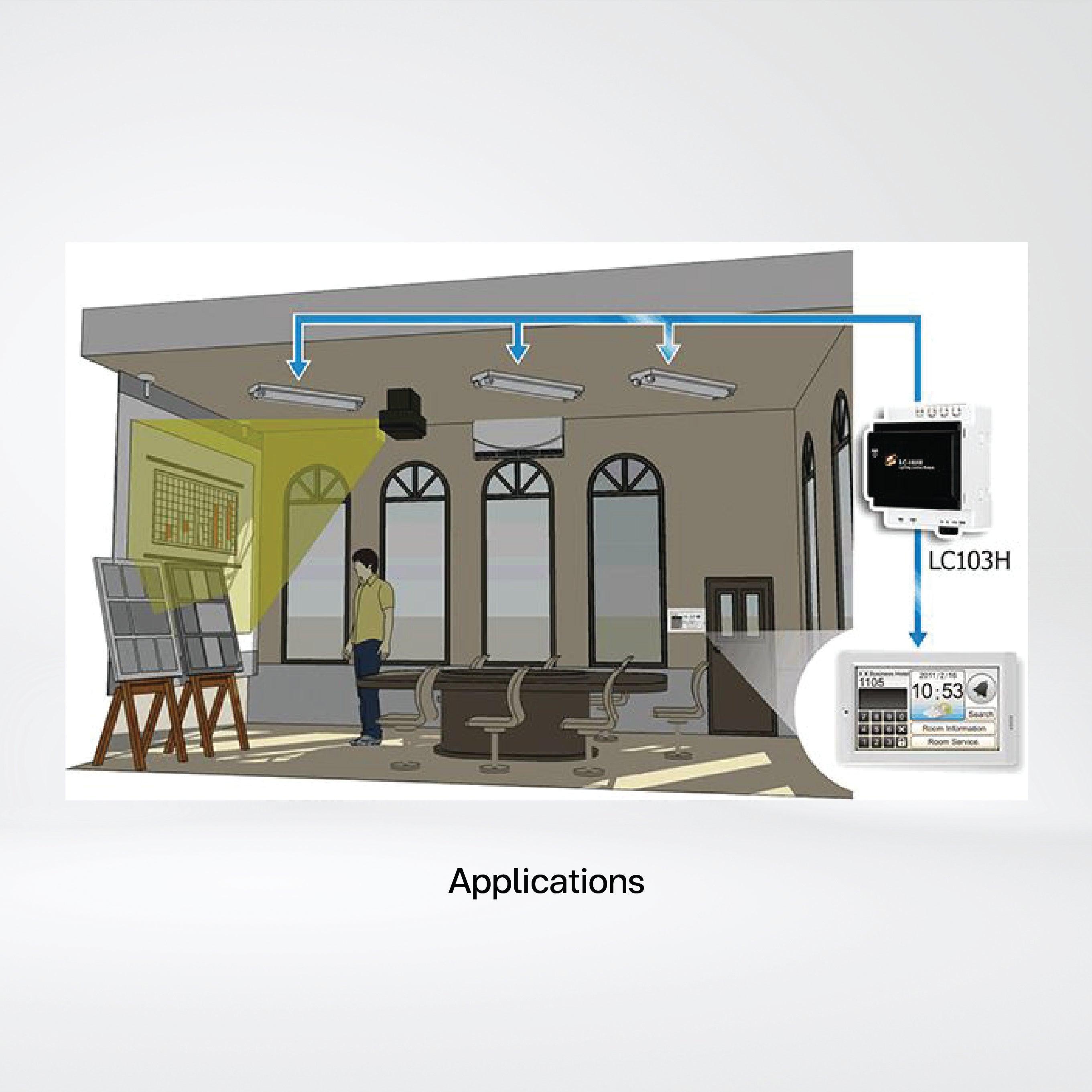

- Provide High Power Relay Output to turn ON/OFF the Lighting
- Support Lighting Module (Max.):
- Incandescent Lamp: 40 W/ 220 VAC * 8 Sets
- LED(Electronic ballast): 40 W/ 220 VAC * 10 Sets

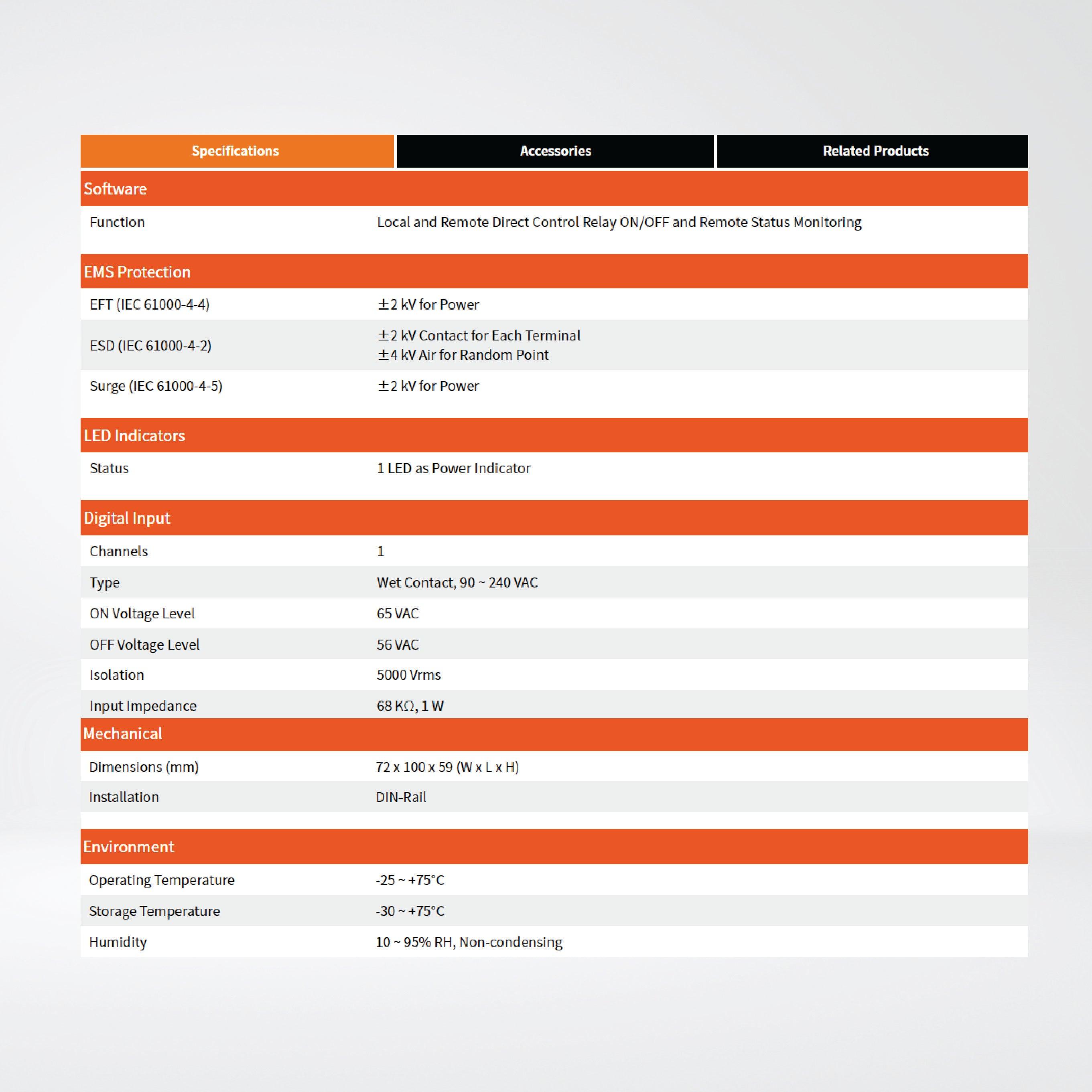

- Isolated AC Digital Input
- Made from fire retardant materials (UL94-V0 Level)
- 5000 VDC Intra-Module Isolation
- ±2 kV Surge, ±4 kV ESD and EFT Protection
- Supports Modbus RTU and DCON Protocols
- Low power consumption
- DIN-Rail mounting
