เริ่ม IoT Project
ของคุณ

Router อุตสาหกรรม

ที่ทั้งอึด เสถียร และราคาดีที่สุดในกลุ่ม

เพียง 4,500 บาท

สั่งซื้อเลย

พูดคุยกับผู้เชี่ยวชาญ

ฟีเจอร์หลัก
ที่ออกแบบมาเพื่องานอุตสาหกรรม

Dual SIM Failover

รองรับ 4G LTE/3G พร้อม Dual SIM สำหรับการสำรองข้อมูลระหว่างเครือข่ายผู้ให้บริการหลายราย

Wi-Fi Interface

รองรับ 802.11 b/g/n และทำงานได้ทั้งโหมด AP หรือ Client เพื่อสร้างเครือข่ายไร้สายอเนกประสงค์

VPN Security

ส่งข้อมูลอย่างปลอดภัยด้วย VPN Tunnels ที่หลากหลาย เช่น IPsec, OpenVPN, GRE และ WireGuard

Modbus Gateway

ทำหน้าที่เป็น Modbus Gateway ช่วยแปลงโปรโตคอล Modbus RTU ให้เป็น Modbus TCP

Industrial Design

ออกแบบมาเพื่อความทนทาน รองรับช่วงอุณหภูมิการทำงานที่กว้าง ตั้งแต่ -40°C ถึง +70°C

ใช้งานได้จริง
ในหลากหลายอุตสาหกรรม

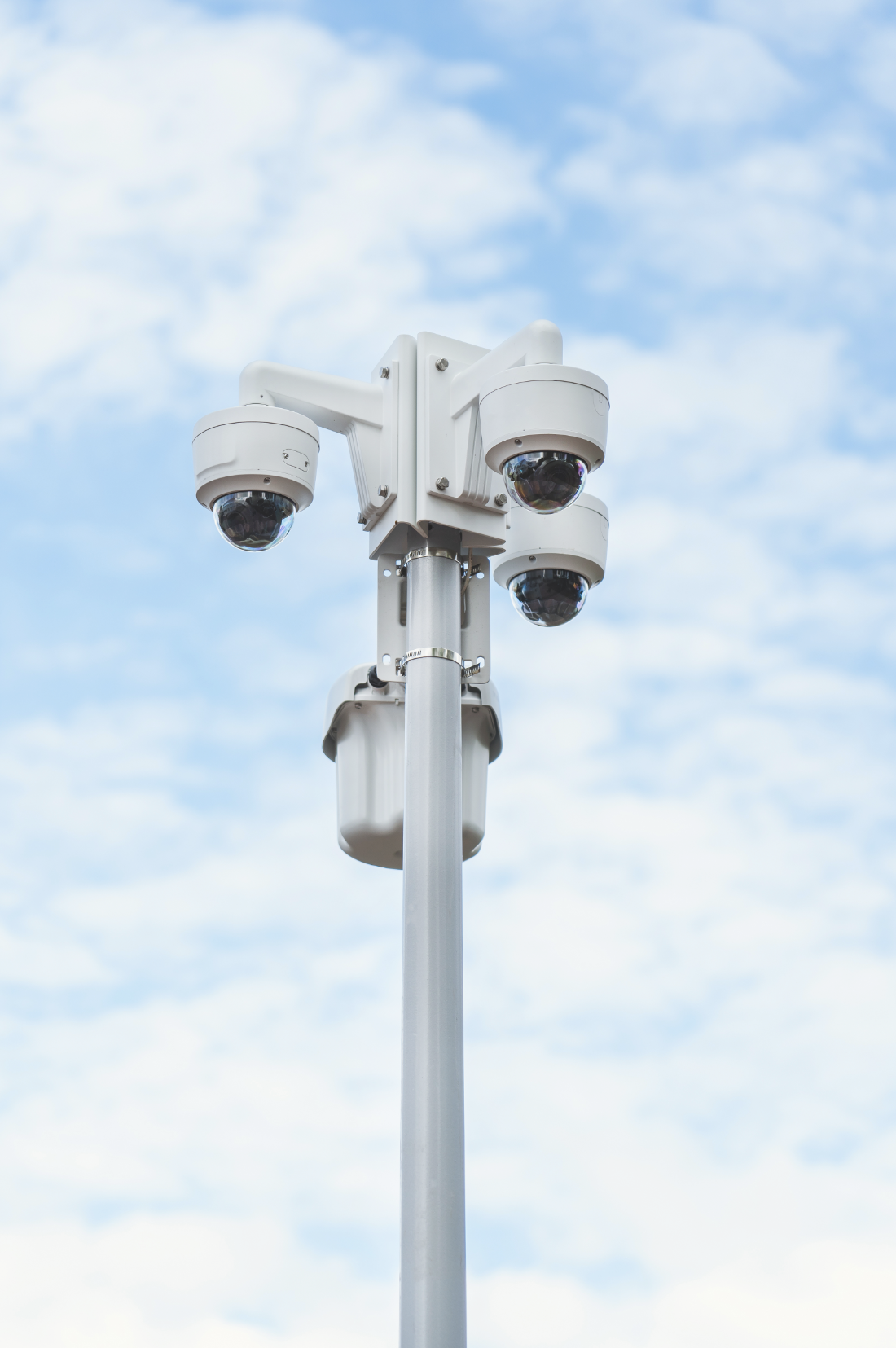

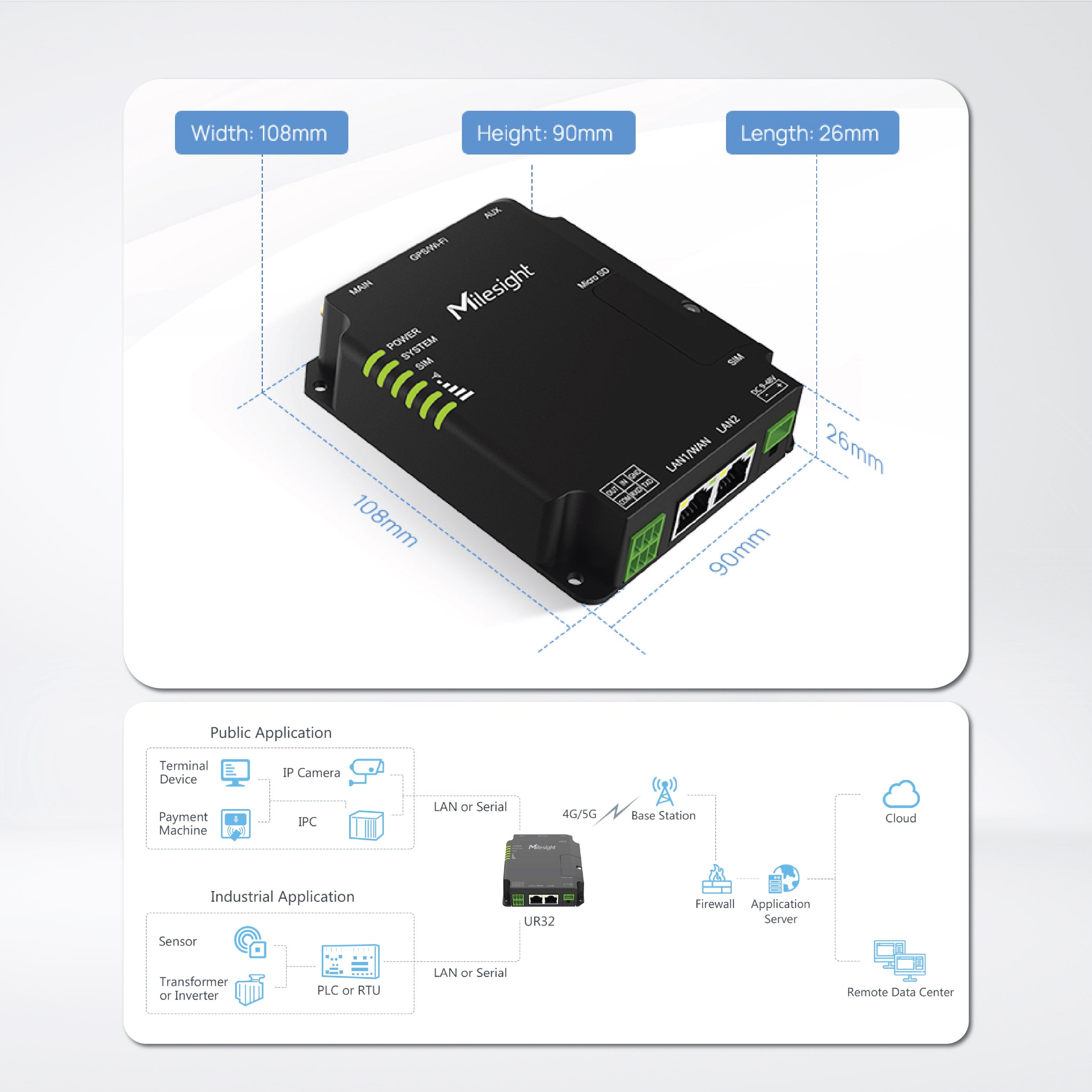

เชื่อมต่อกับ IP Camera เพื่อการเฝ้าระวังและส่งข้อมูลภาพแบบเรียลไทม์ไปยัง Remote Data Center

เชื่อมต่อโดยตรงกับอุปกรณ์ PLC หรือ RTU เพื่อควบคุมและมอนิเตอร์เครื่องจักรในโรงงาน

รวบรวมข้อมูลจาก Sensor ที่หลากหลายในพื้นที่ภาคสนามเพื่อการเกษตรอัจฉริยะ หรือการมอนิเตอร์สถานีระยะไกล

Title
Describes the appearance of the image
Title
Title

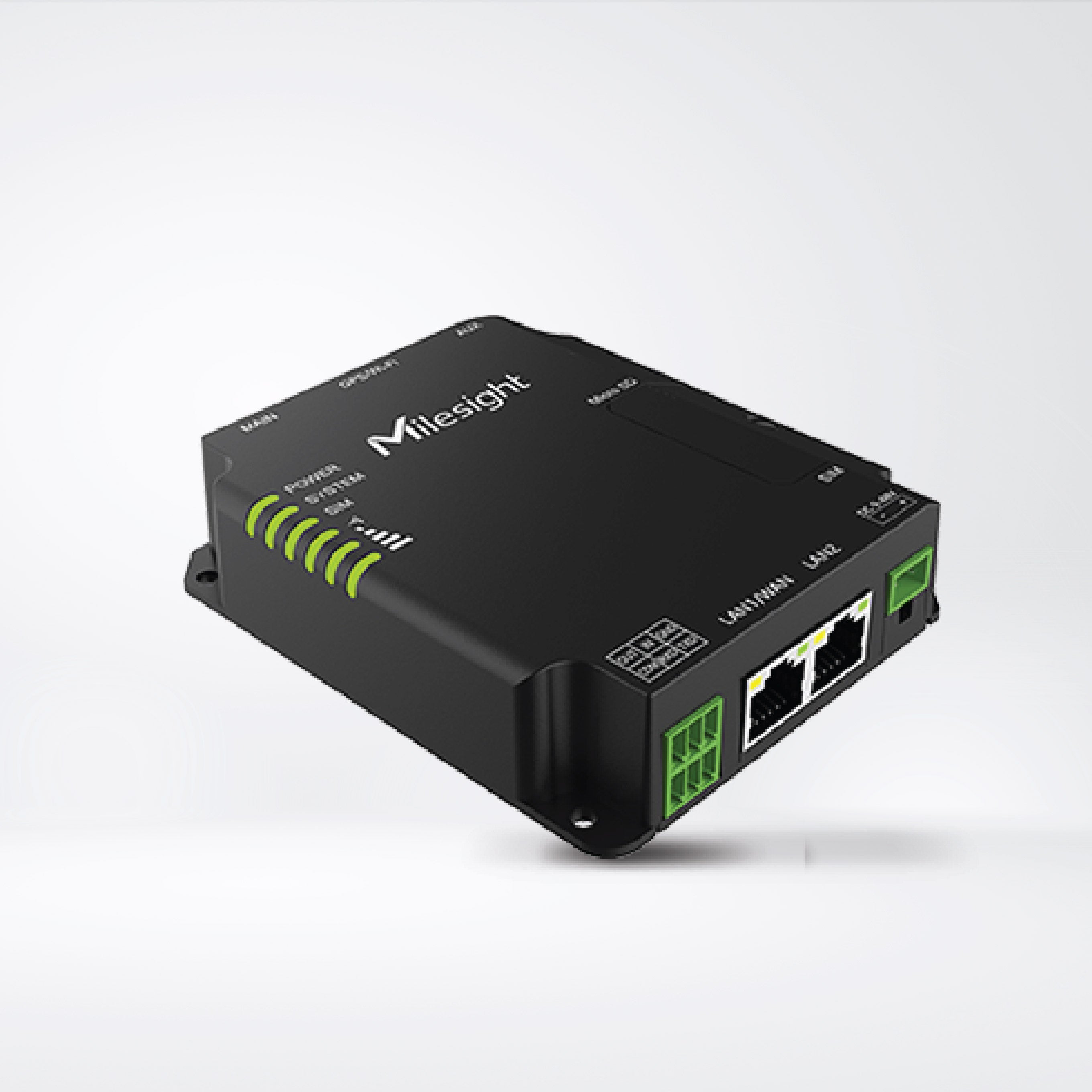

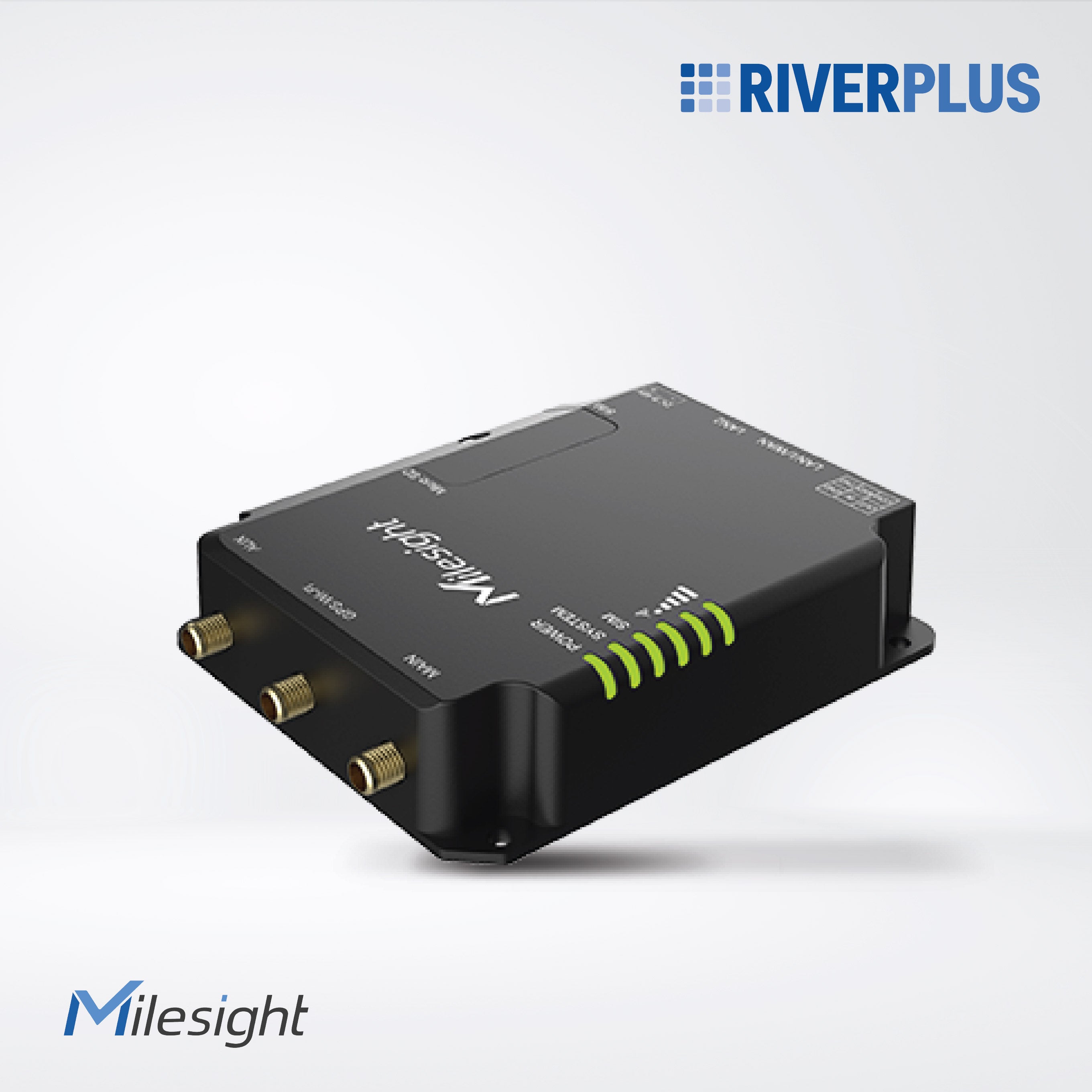

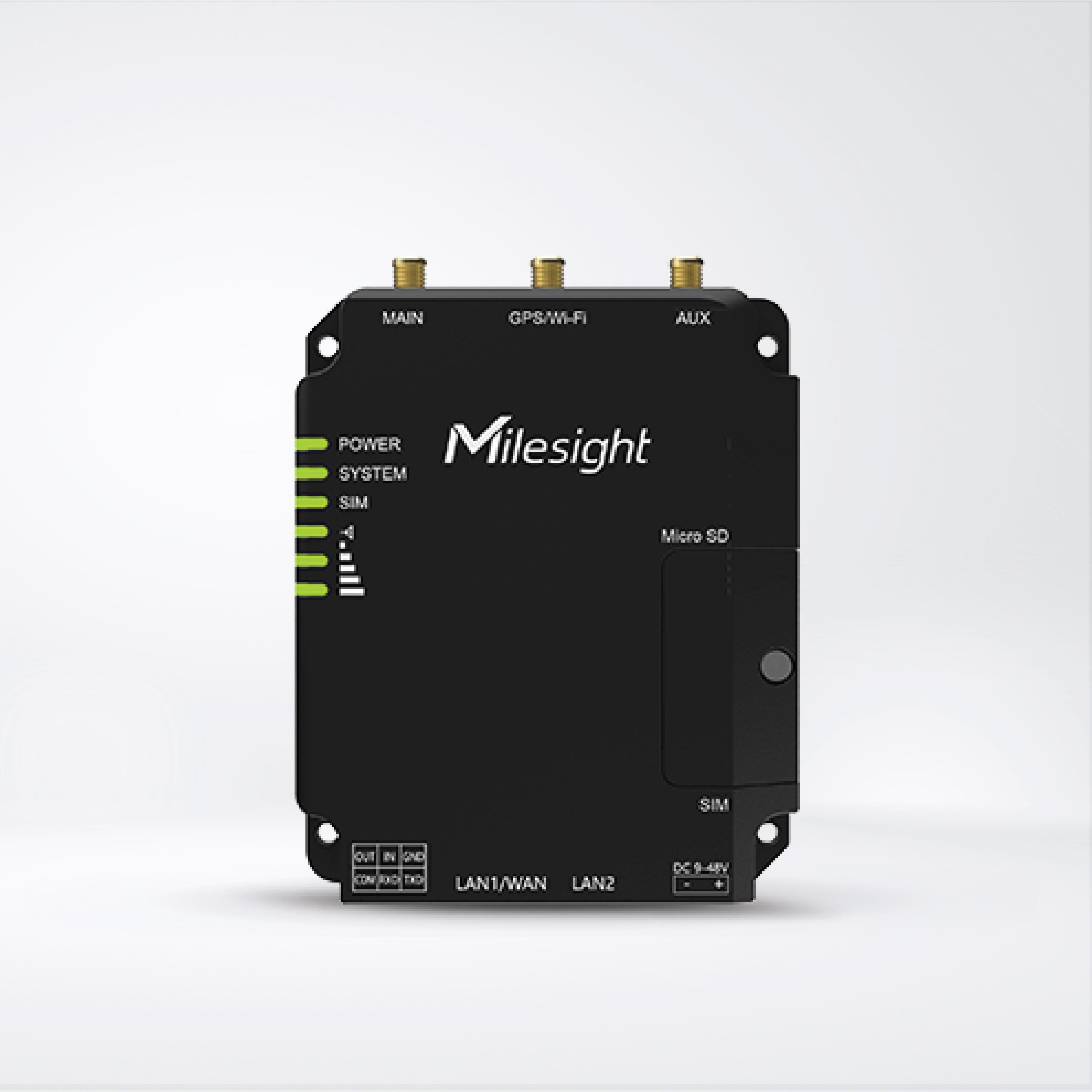

UR32 Dual SIM LOW-COST Industrial Cellular Router

4,500.00 ฿

Features

  • Industrial Grade Design for Harsh Environment
  • Rugged And Pocket-Sized Design
  • Embedded Python SDK for Secondary Development
  • Ultra-High Protection System

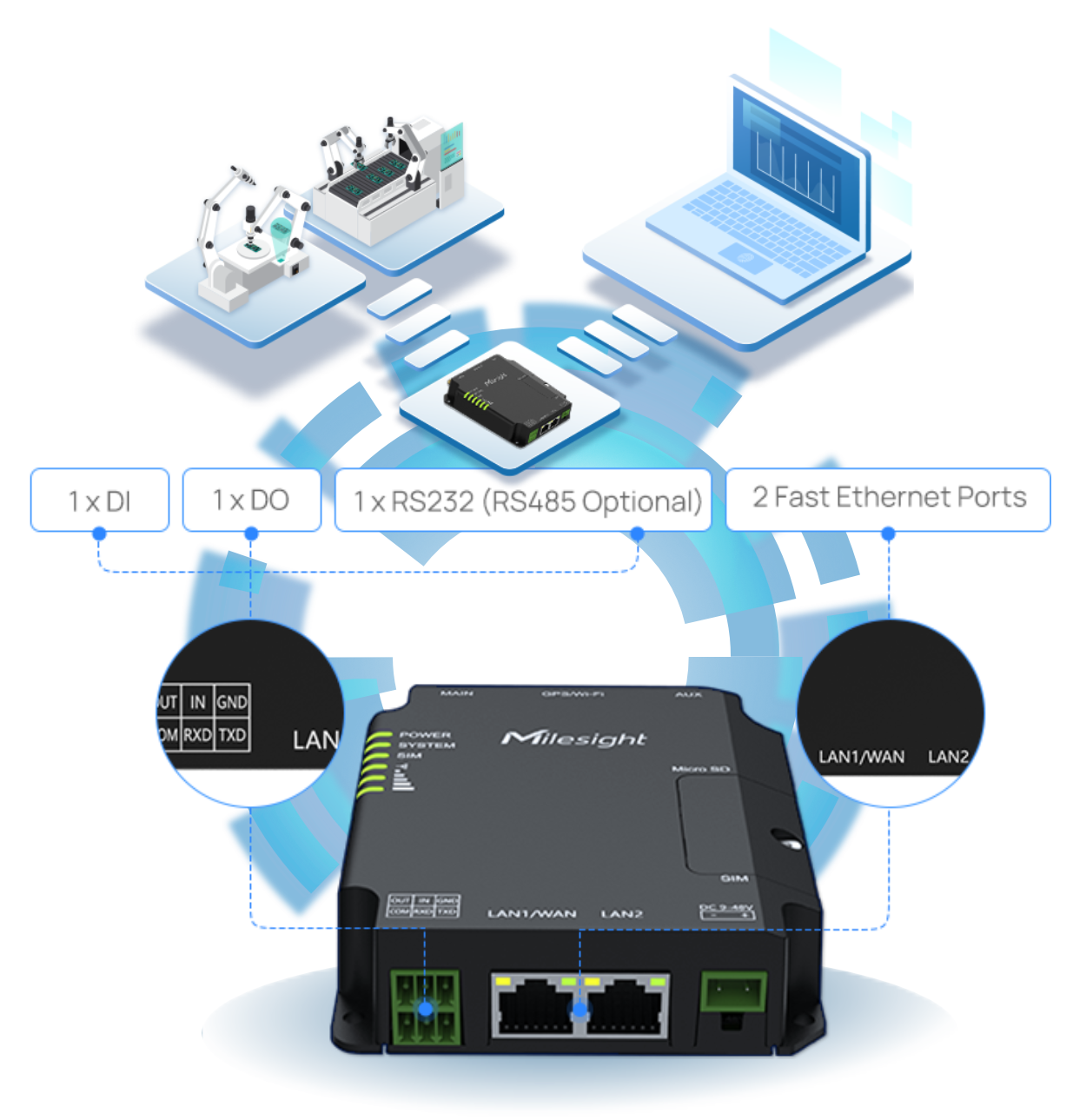

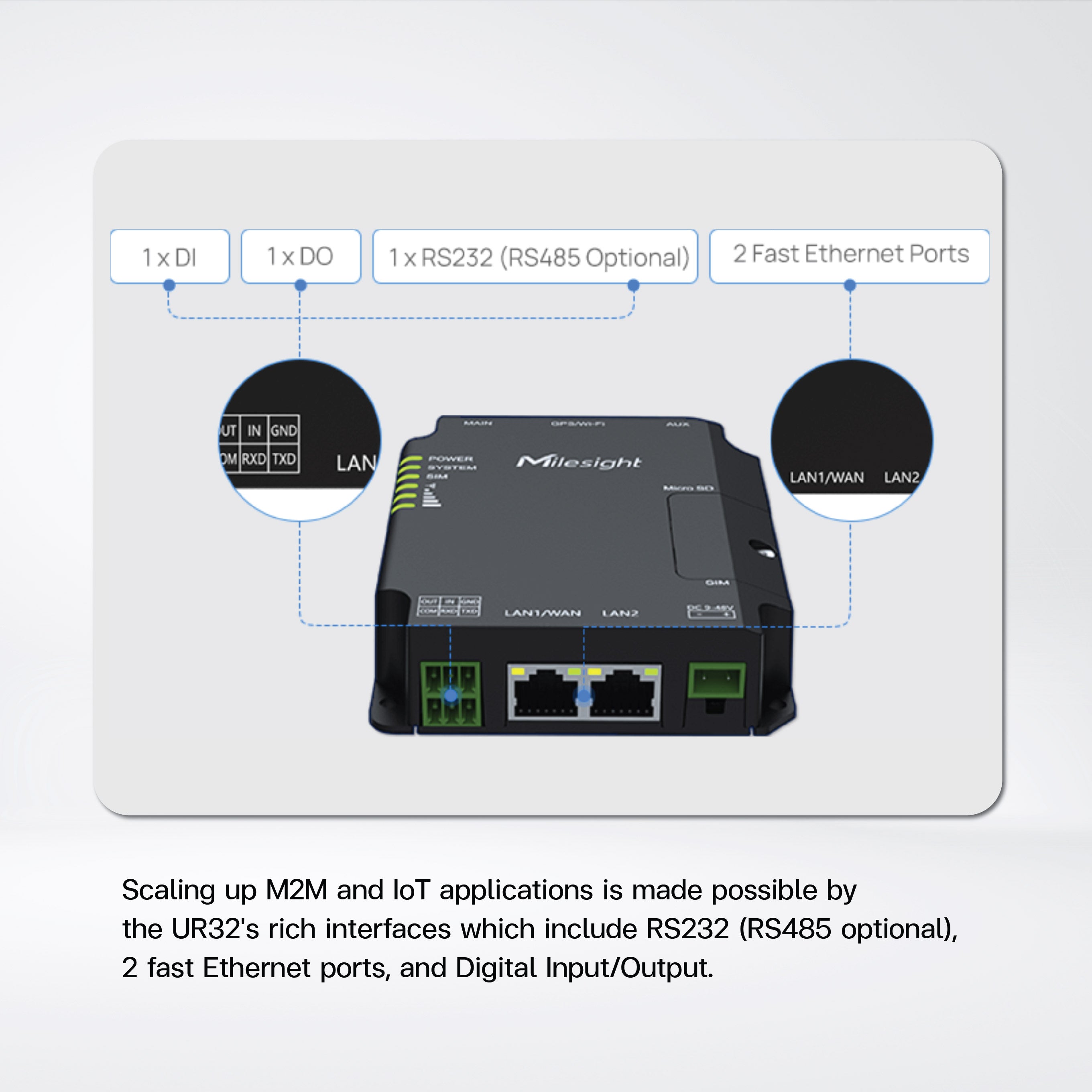

  • Rich Interfaces for Multiple Applications
  • Stable Cellular, Ethernet, and Wi-Fi Transmission
  • Open VPN Tunnel and Various Protocols (Including DLMS/Modbus)
  • Remote Management on Milesight VPN and Device Hub

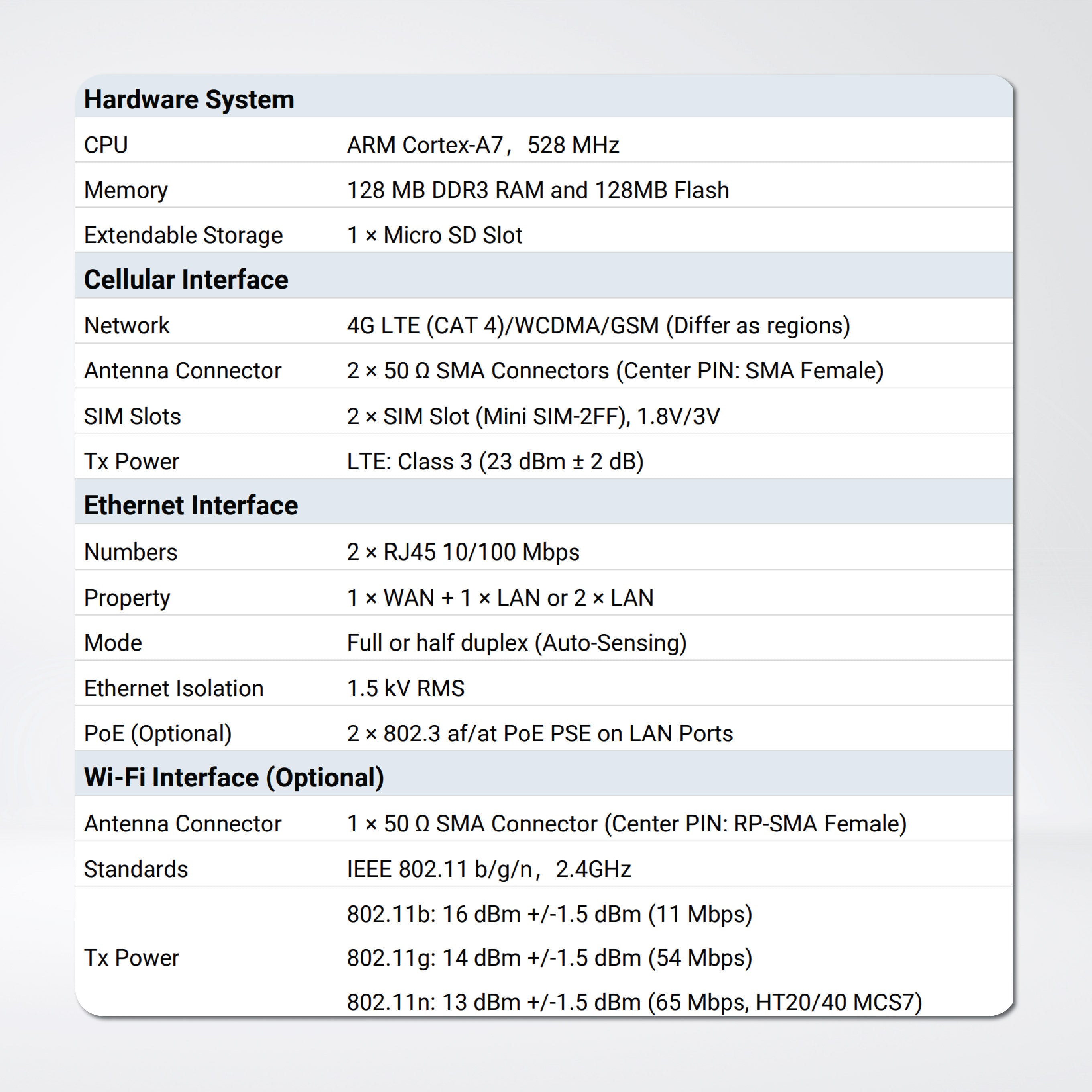

  • Hardware System
    CPU    : ARM Cortex-A7,528 MHz
    Memory   : 128 MB DDR3 RAM and 128MB Flash
    Extendable Storage   : 1 × Micro SD Slot
  • Cellular Interface
    Network   : 4G LTE (CAT 4)/WCDMA/GSM (Differ as regions)
    Antenna Connector    :2 × 50 Ω SMA Connectors (Center PIN: SMA Female)
    SIM Slots  :  2 × SIM Slot (Mini SIM-2FF), 1.8V/3V
    Tx Power :   LTE: Class 3 (23 dBm ± 2 dB)
  • Ethernet Interface
    Numbers   : 2 × RJ45 10/100 Mbps
    Property   : 1 × WAN + 1 × LAN or 2 × LAN
    Mode    : Full or half duplex (Auto-Sensing)
    Ethernet Isolation   : 1.5 kV RMS
    PoE (Optional)  :  2 × 802.3 af/at PoE PSE on LAN Ports
  • Wi-Fi Interface (Optional)
    Antenna Connector :   1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female)
    Standards  :     IEEE 802.11 b/g/n,2.4GHz
    Tx Power  :
    - 802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
    - 802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
    - 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)

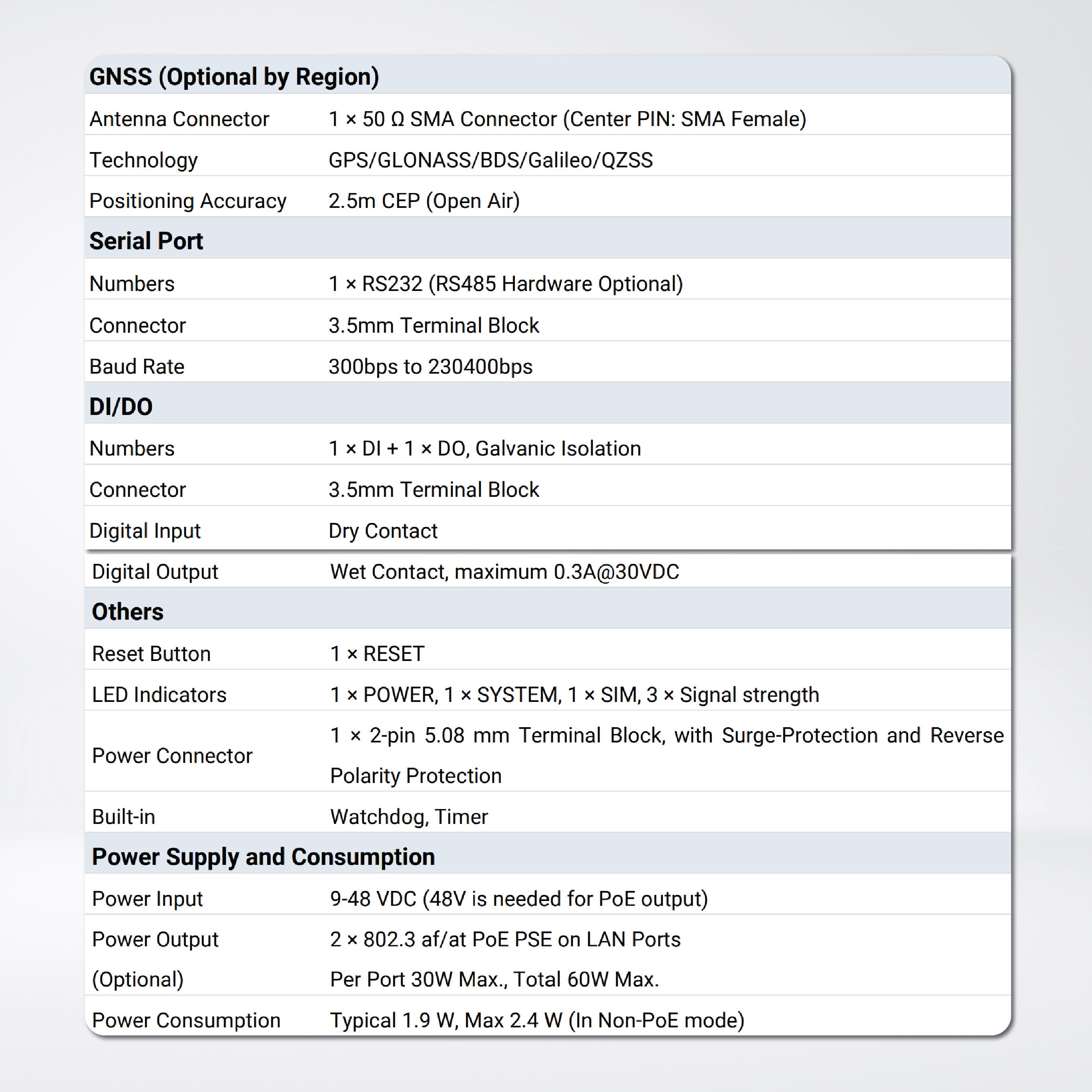

  • GNSS (Optional by Region)
    Antenna Connector   :    1 × 50 Ω SMA Connector (Center PIN: SMA Female)
    Technology    :   GPS/GLONASS/BDS/Galileo/QZSS
    Positioning Accuracy    :   2.5m CEP (Open Air)
  • Serial Port
    Numbers    : 1 × RS232 (RS485 Hardware Optional)
    Connector :   3.5mm Terminal Block
    Baud Rate  :  300bps to 230400bps

Orders are typically delivered within 1-3 business days.

สามารถเปลี่ยนสินค้าใหม่ได้ ภายใน 7 วัน

Title

พร้อมเชื่อมต่อ
ทุกโปรเจ็กต์ของคุณ

ในราคาที่คุ้มเกินคาด

สั่งซื้อเลย

รับใบเสนอราคา
