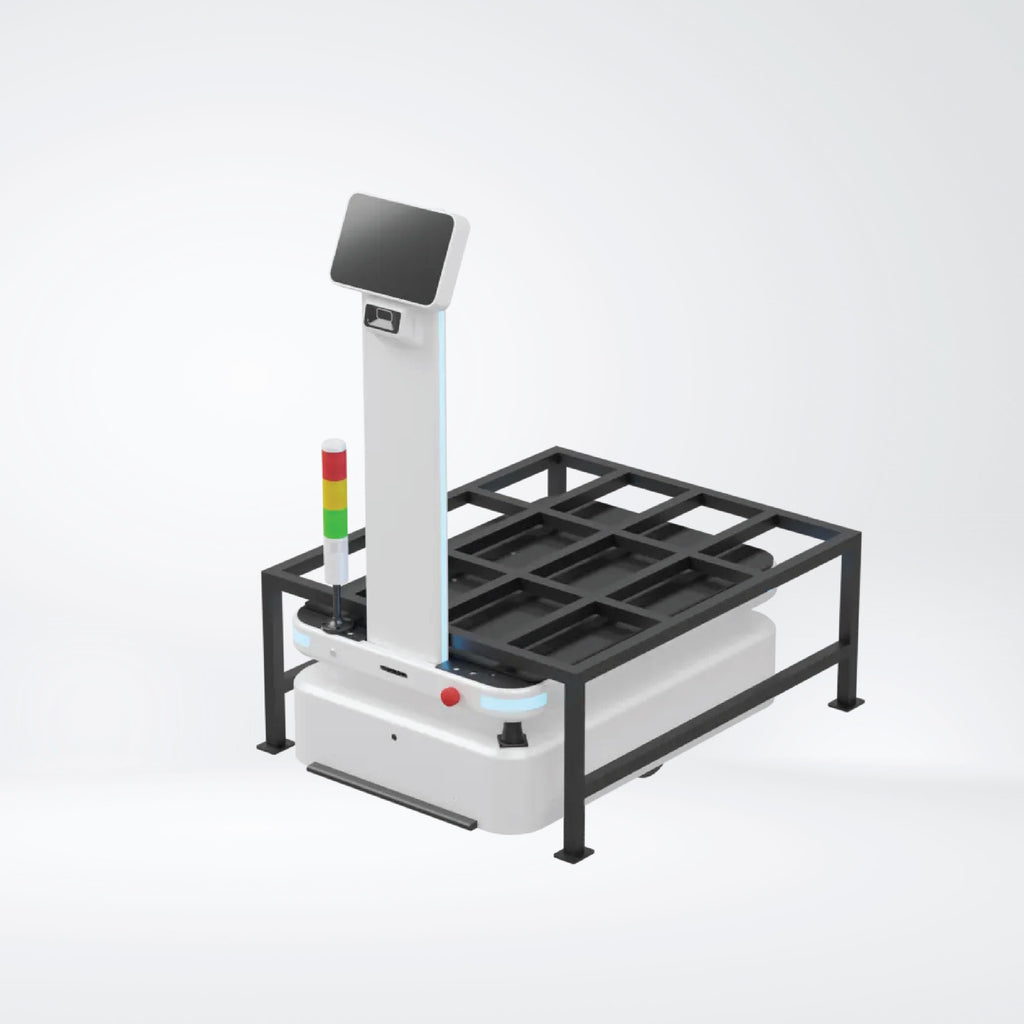

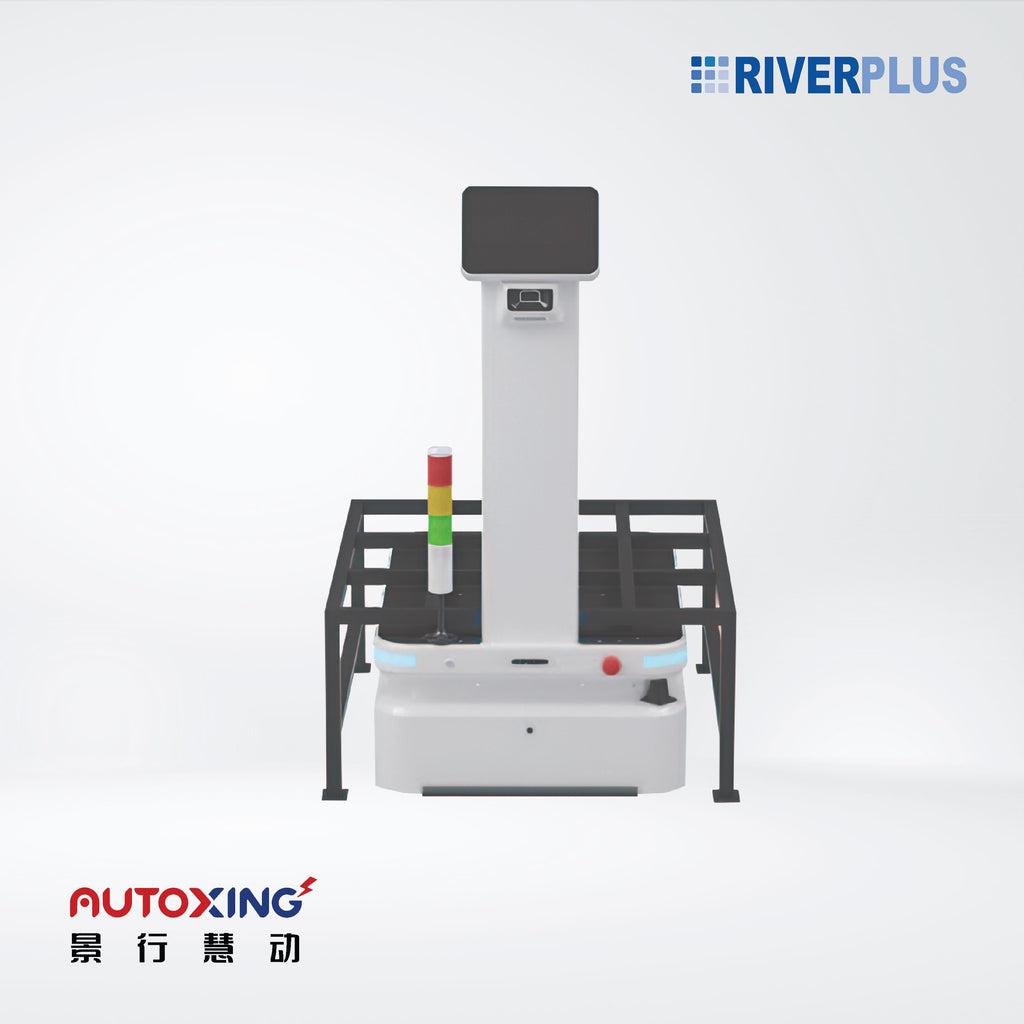

L-600 Lifting Robots

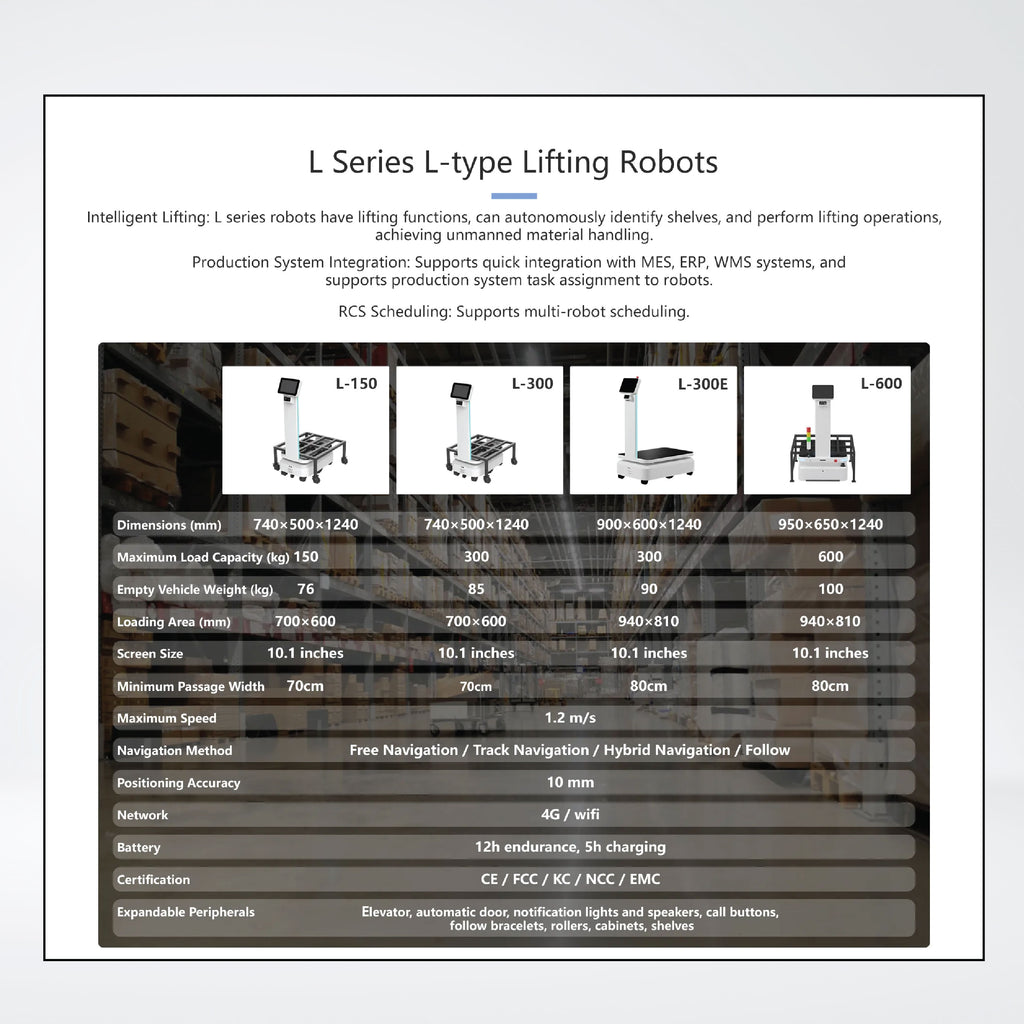

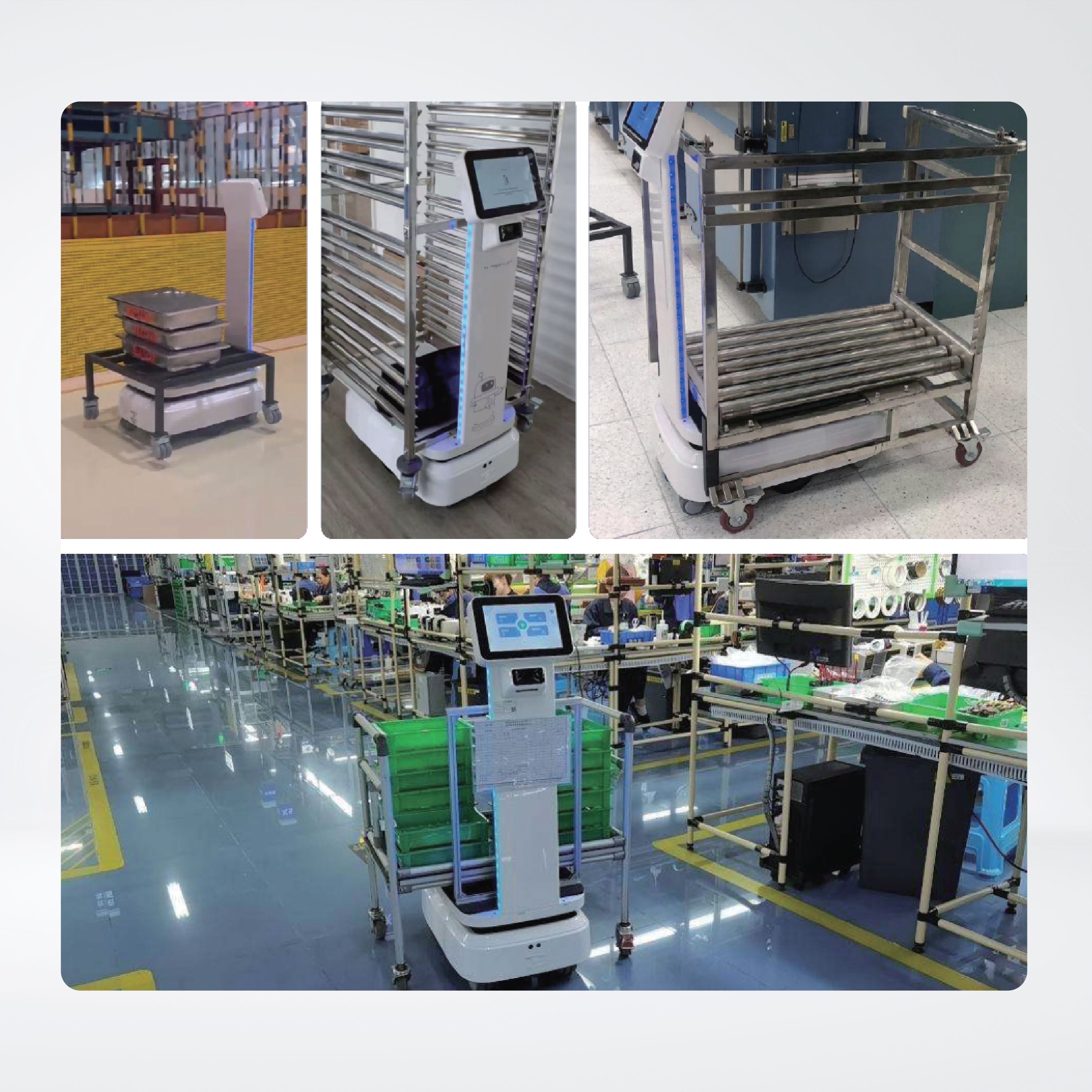

Intelligent Lifting: L series robots have lifting functions, can autonomously identify shelves, and perform
lifting operations, achieving unmanned material handling.
Production System Integration: Supports quick integration with MES, ERP, WMS systems, and supports
production system task assignment to robots.
RCS Scheduling: Supports multi-robot scheduling.

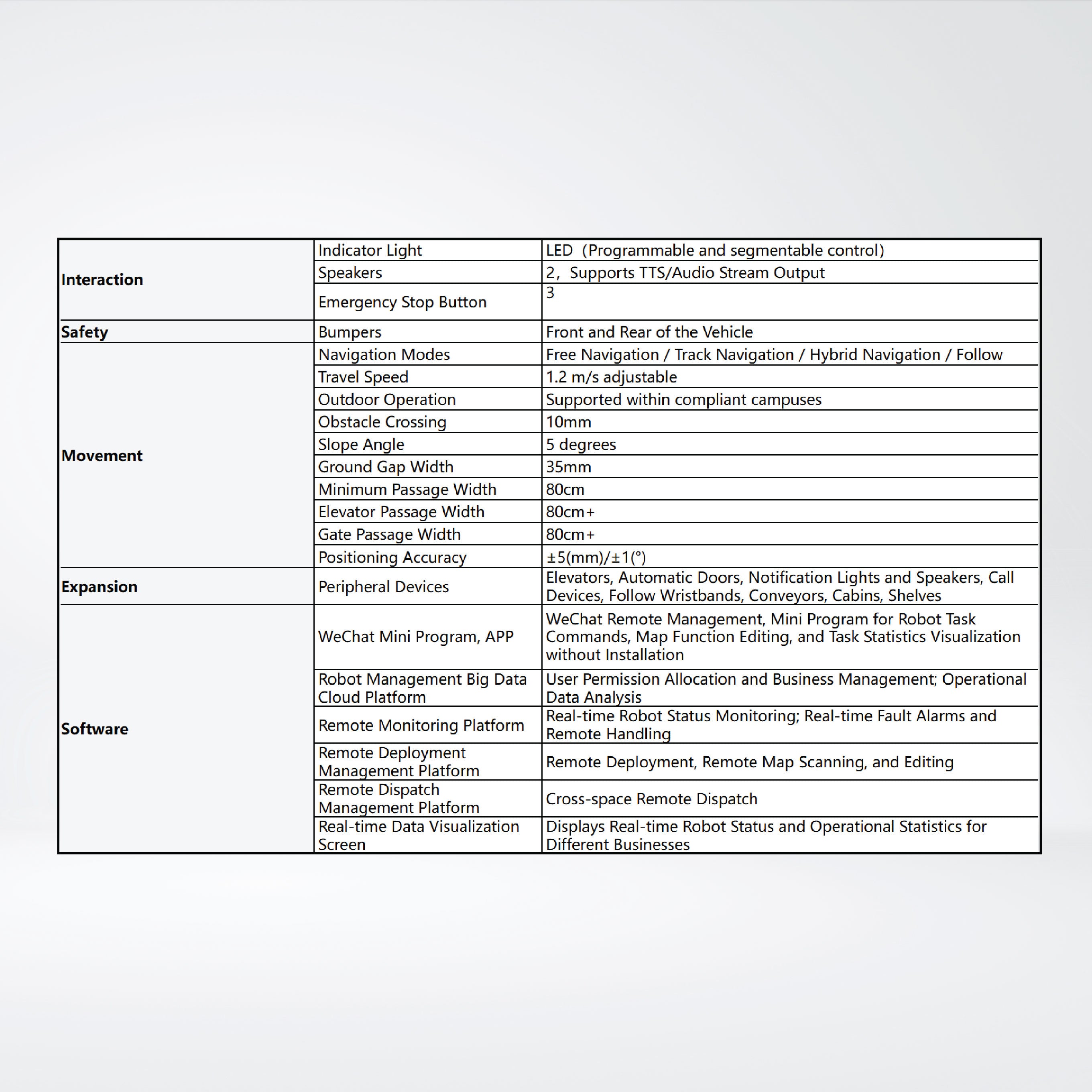

Features

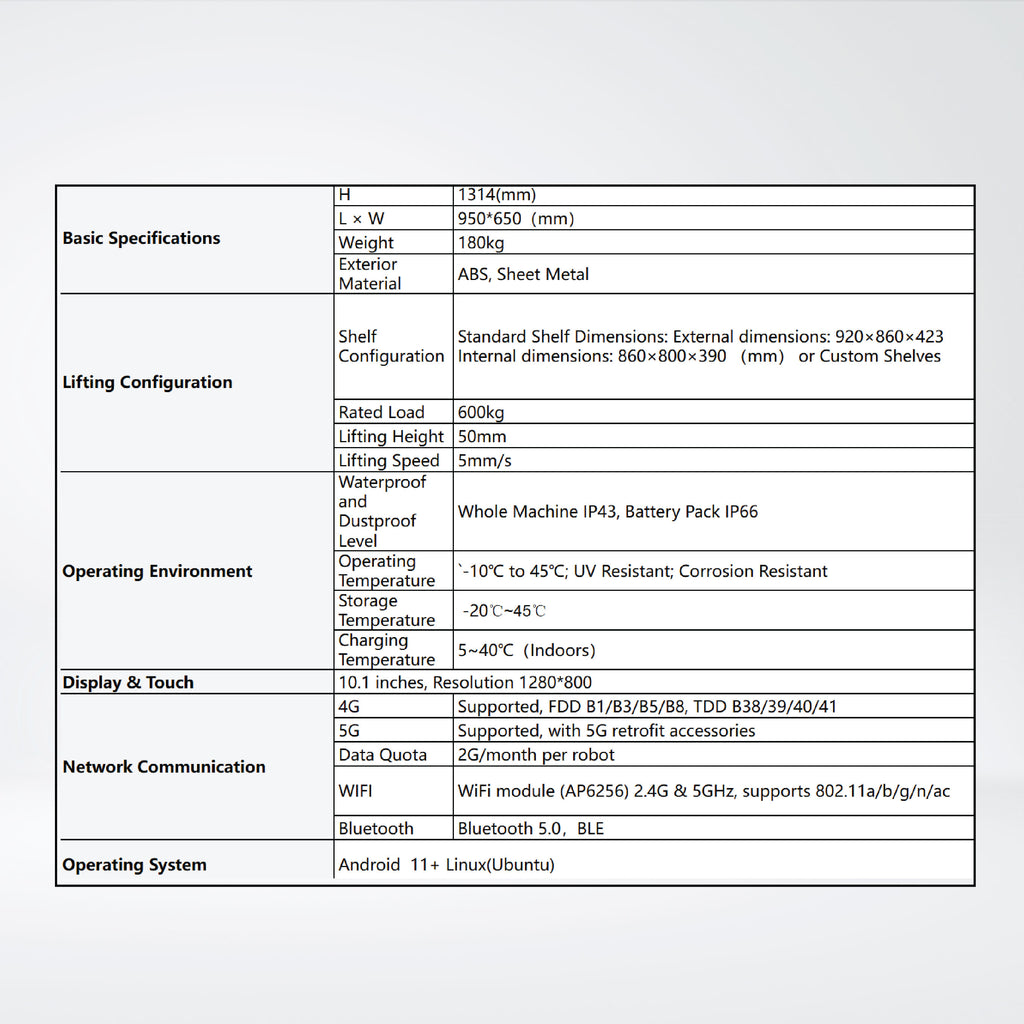

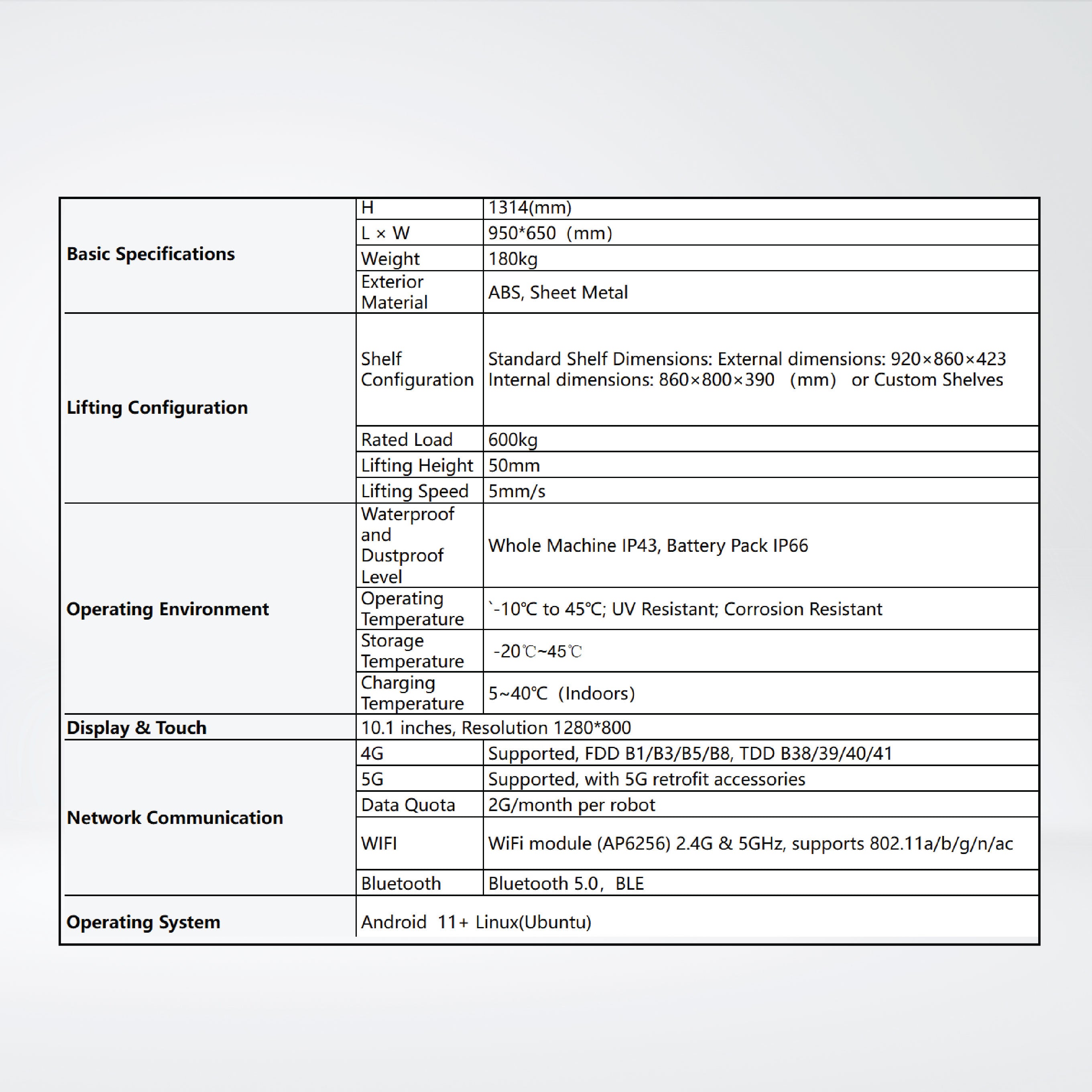

• Basics
  Height 1314 (mm)
  Size 950*650（mm）
  Weight 180kg
  Exterior material ABS, Sheet Metal
• Lifting Configuration
  Shelf Configuration：Standard Shelf Dimensions: External dimensions: 920×860×423
  Internal dimensions: 860×800×390 （mm） or Custom Shelves
  Rated load 600kg
  Lifting height 50mm
  Lifting speed 5mm/s

• Maximum Speed : 1.2m/s
  Navigation Method : Free Navigation / Track Navigation / Hybrid Navigation / Follow
  Positioning Accuracy : 10mm
  Network : 4G/wifi
  Battery : 12h endurance, 5h charging
  Certification : CE / FCC / KC / NCC / EMC
  Expandable Peripherals : Elevator, automatic door, notification lights and speakers, call buttons, follow bracelets, rollers, cabinets, shelves
