In-Sight 8000 vision system , World’s smallest 5MP self-contained vision system

This family of ultra-compact, standalone vision systems deliver industry-leading vision tool performance, in the form factor of a traditional GigE Vision camera. Measuring just 35mm x 32mm x 76mm, all In-Sight 8000 series models feature power over Ethernet (POE), and provide the best standalone vision system option for integrating into small spaces.

As the world’s smallest, stand-alone vision system, the In-Sight 8000 series offers a range of monochrome and color vision systems in resolutions from 0.3MP up to 5MP. Supporting Gigabit Ethernet for high-speed communications, these vision systems offer very fast acquisition and two performance levels to meet a diverse array of machine vision demands.

Features

• World’s smallest standalone vision system, available 0.3MP up to 5MP

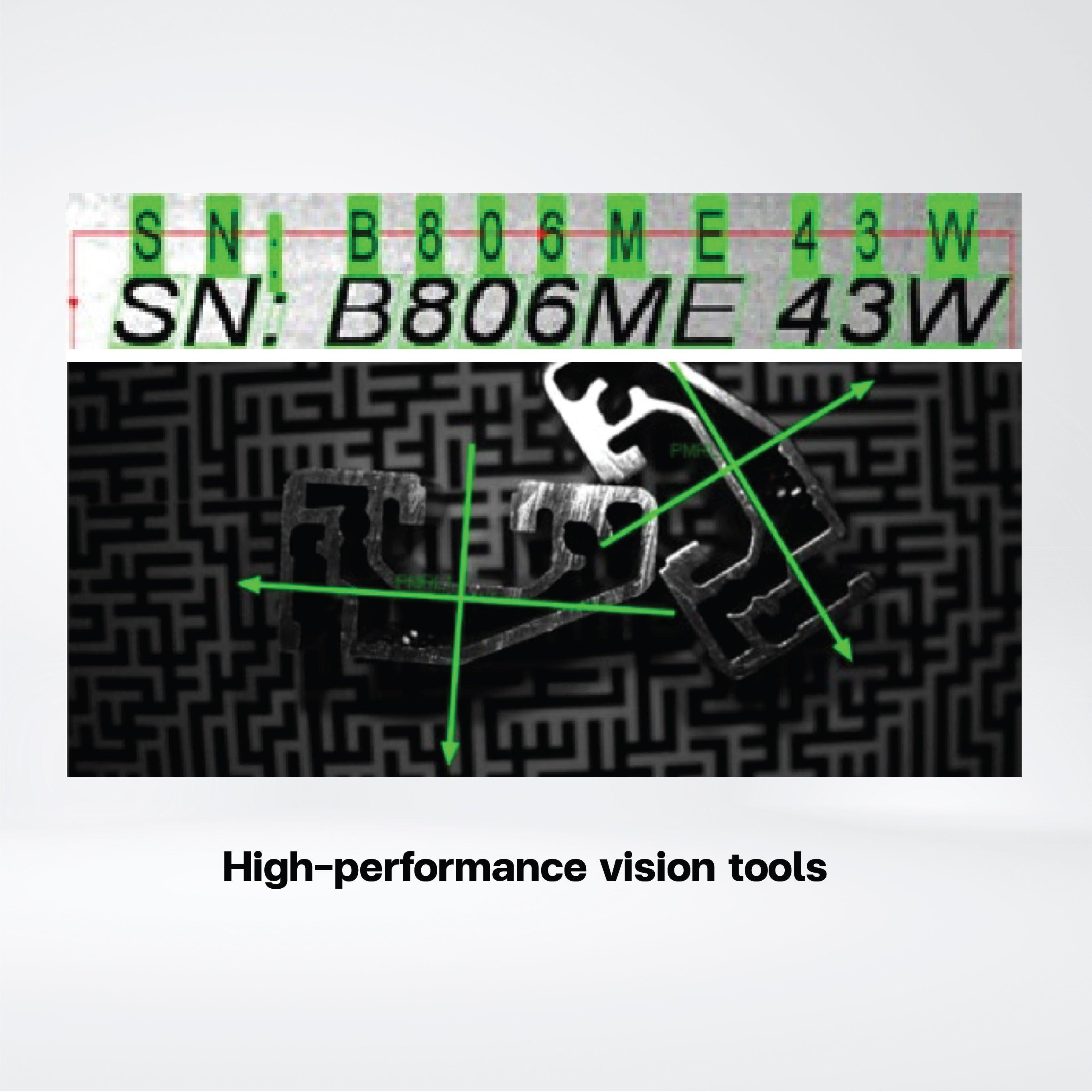

• Powerful vision tool library including new PatMax RedLine,® OCRMax,™ PowerGrid,® Hotbars,® and IDMax®

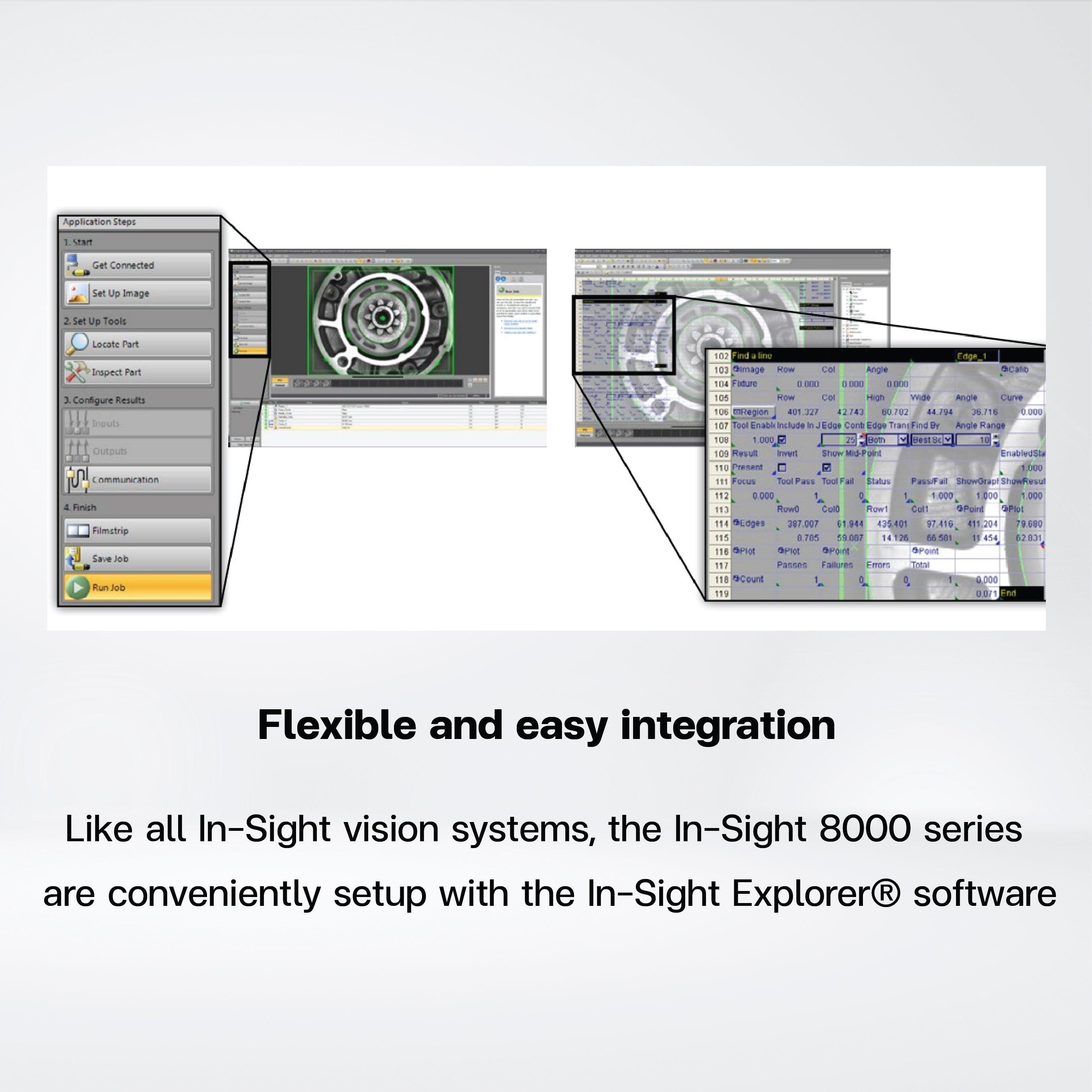

• Step-by-step application setup using EasyBuilder®, with the added flexibility and control of a spreadsheet with scripting
• High-speed communication with Gigabit Ethernet


Smallest vision systems

In-Sight 8000 compresses an entire self-contained vision system into an amazingly small package about the size of a traditional image-capture-only camera. All In-Sight 8000 models can be mounted at angles of up to 45-degrees using the In-Sight non-linear calibration tool.

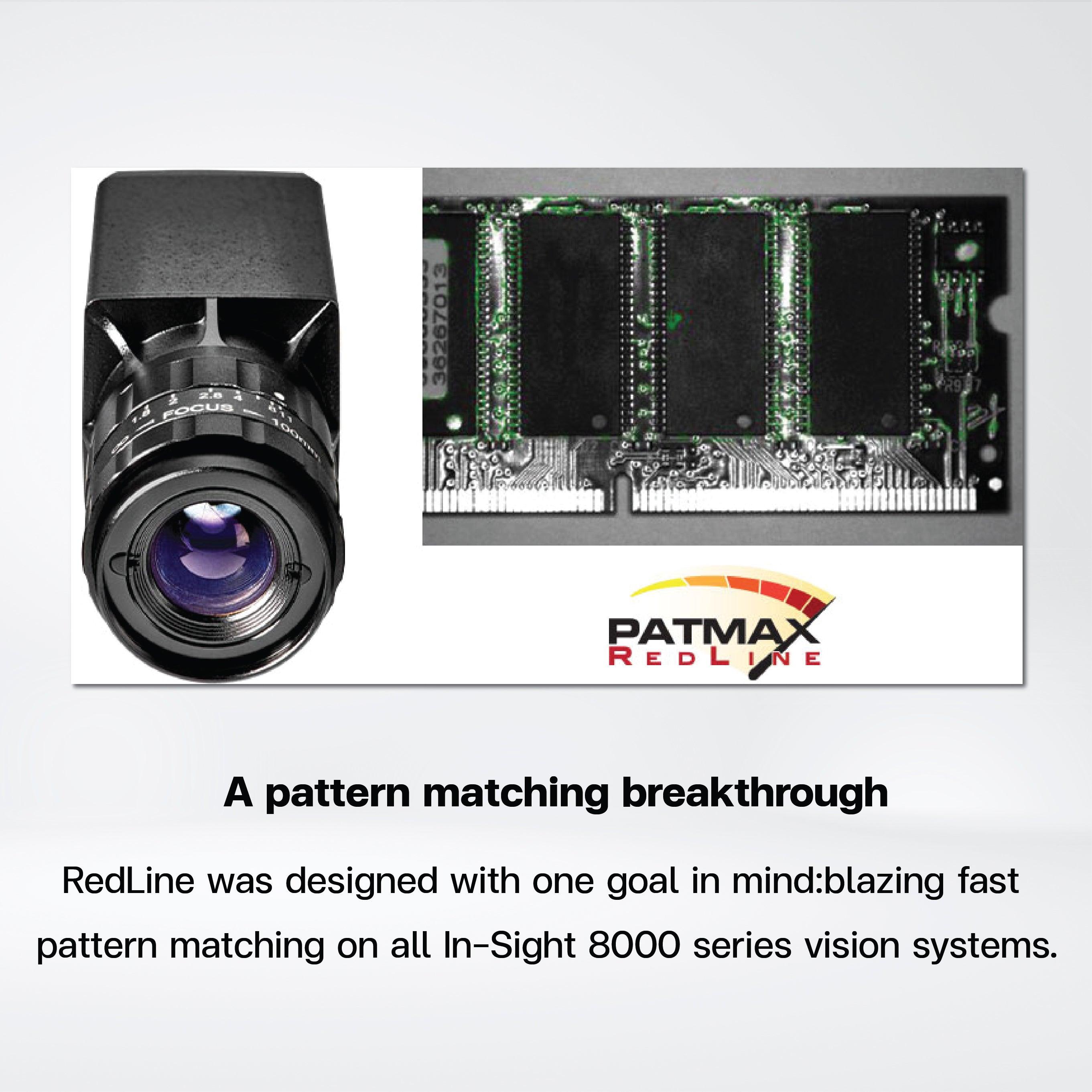

RedLine was designed with one goal in mind: blazing fast pattern matching on all In-Sight 8000 series vision systems. In typical applications, PatMax RedLine runs 4 to 7 times faster than PatMax – or faster! – with no loss of search accuracy or robustness.

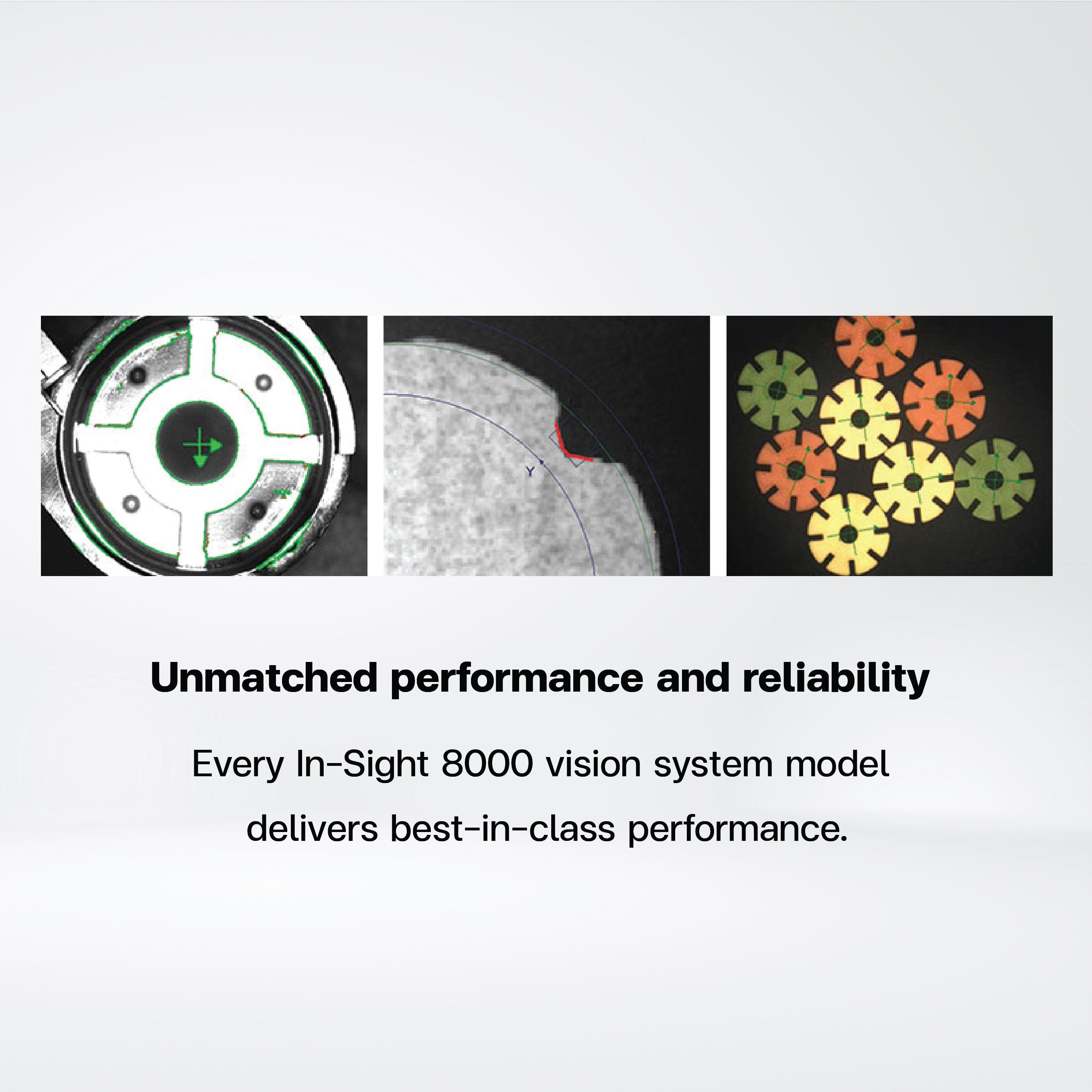

Every In-Sight 8000 vision system model delivers best-in-class performance. Most models are equipped with a full library of proven Cognex vision tools through the easy to use In-Sight Explorer software.
