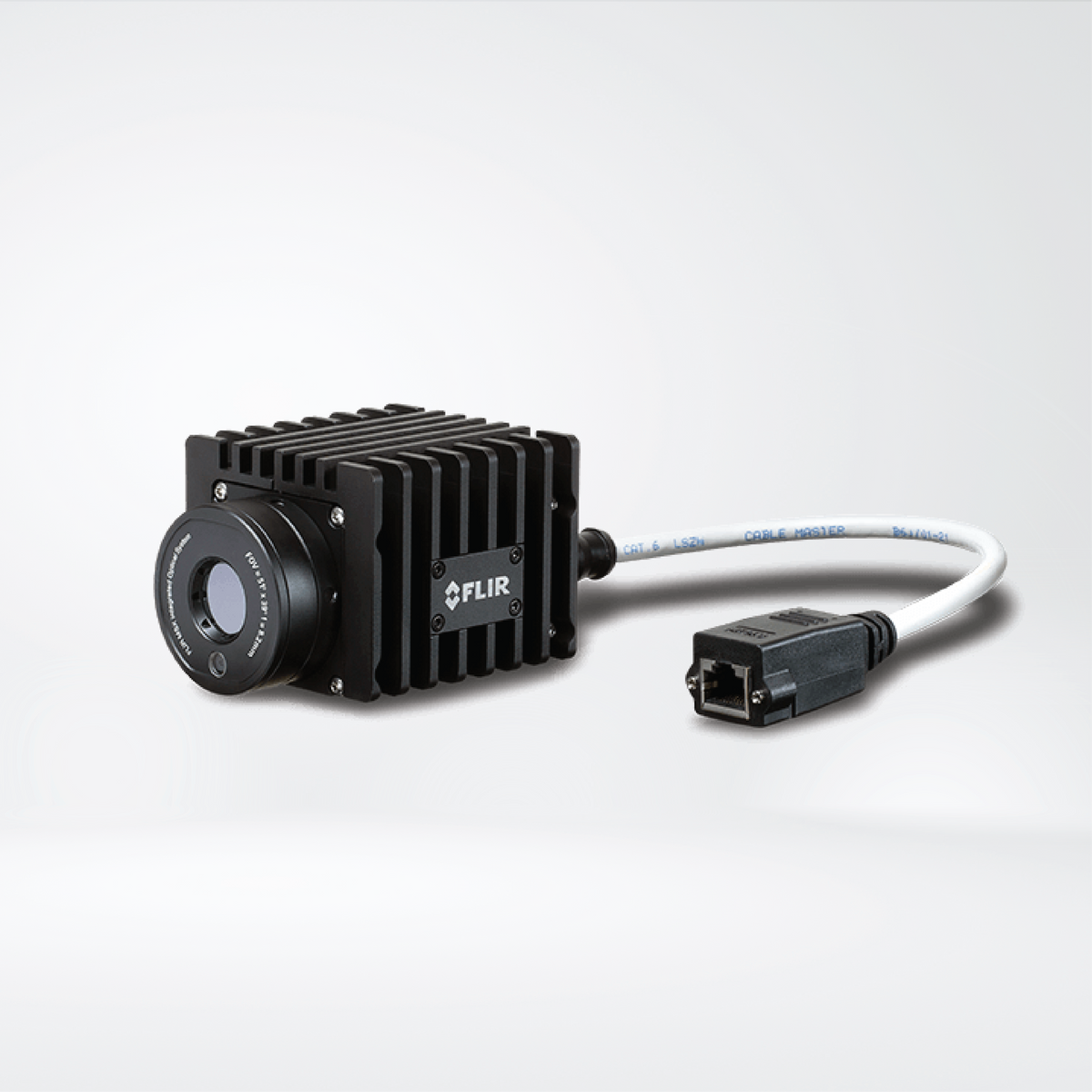

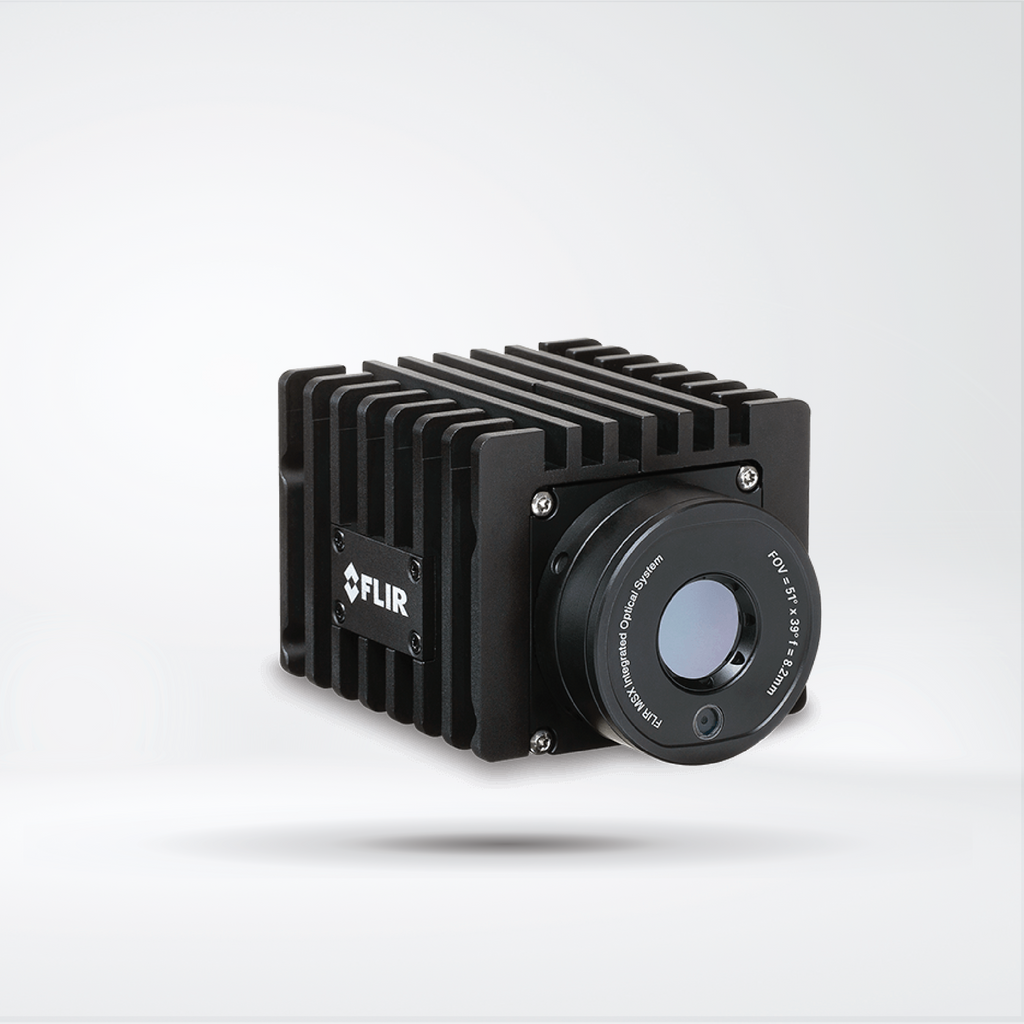

A40 Compact Thermal Smart Sensor Camera

The A40 compact thermal smart sensor camera is ideal for users who want built-in, on-camera analytics and alarm capabilities for condition monitoring and early fire detection applications. It is a flexible, configurable solution built to meet the unique needs of automation customers across a broad range of industries. When used as a system component for cloud and Industrial Internet of Things (IIoT) solutions, the Flir A40 can help companies protect assets, improve safety, maximize uptime, and minimize maintenance costs.

Features

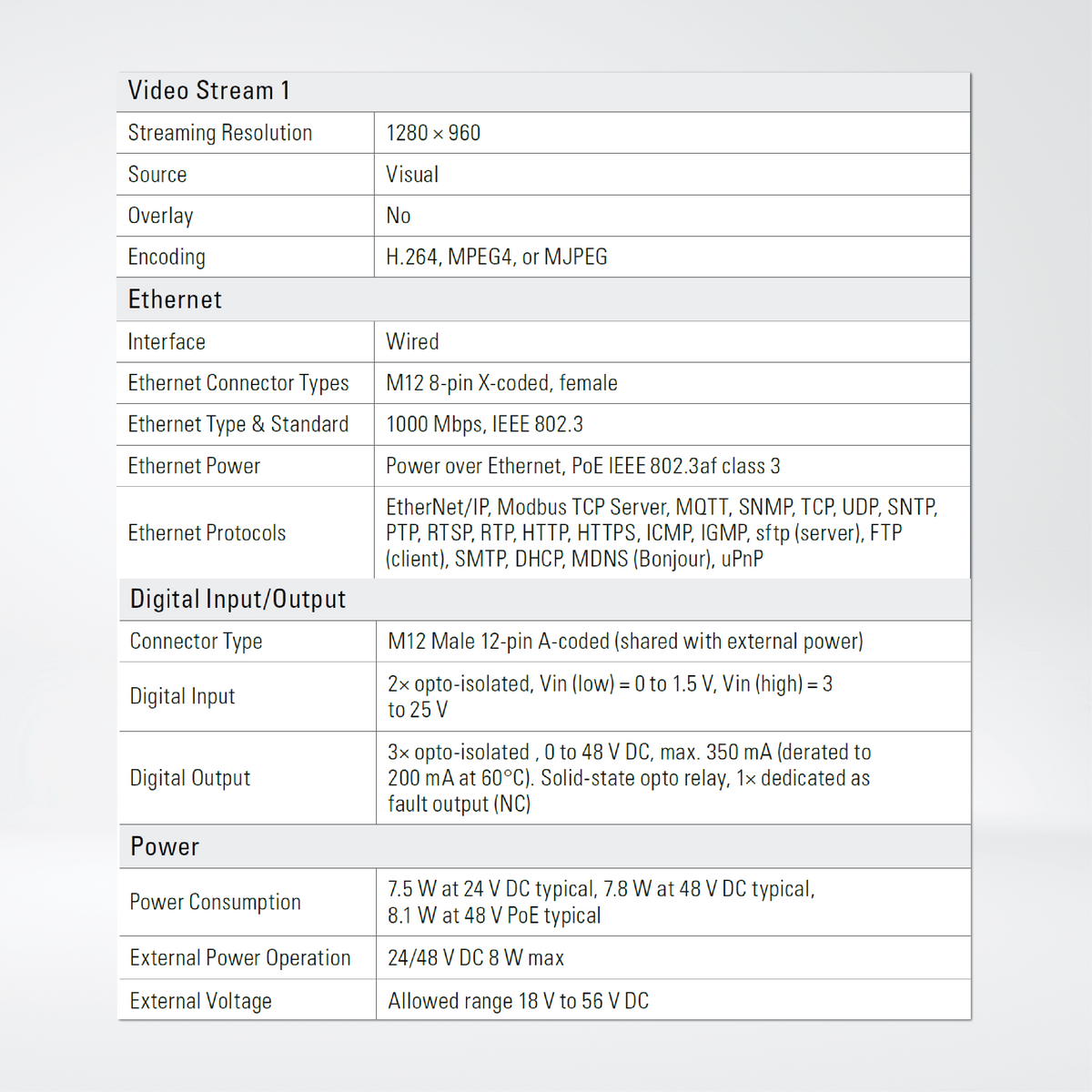

• Digital I/O connector type
  M12 12-pin A-coded, Male (shared with external power)

• Digital Inputs    2x opto-isolated, Vin (low) = 0–1.5 V, Vin (high) = 3–25 V

• Digital Output Purpose    As a function of alarm, output to external device
  Fault (NC)

• Digital Outputs    3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)

• Encoding    H.264, MPEG4, or MJPEG

• Ethernet Interface    Wired
• EMC
  ETSI EN 301 489-1 (radio)
  ETSI EN 301 489-17 (radio)
  EN 61000-4-8 (magnetic field)
  FCC 47 CFR Part 15 Class B (emission US)
  ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  EN ISO 14982 (EMC - Agricultural and forestry machinery)
• Measurement Frequency    Up to 10 Hz
• f-number    1.4

• Image Frequency    30 Hz

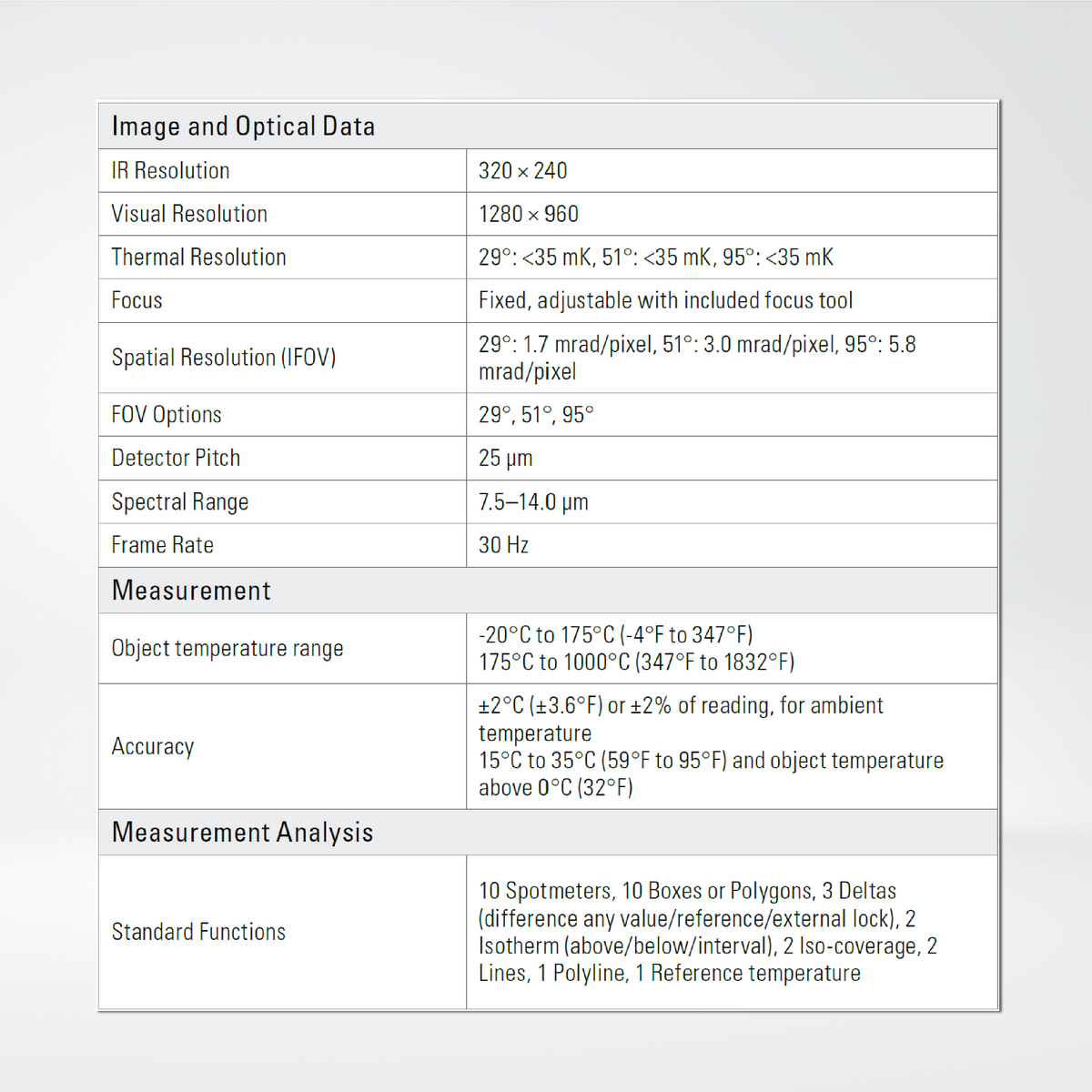

• Thermal Sensitivity/NETD    <35 mK

• Accuracy
  ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)

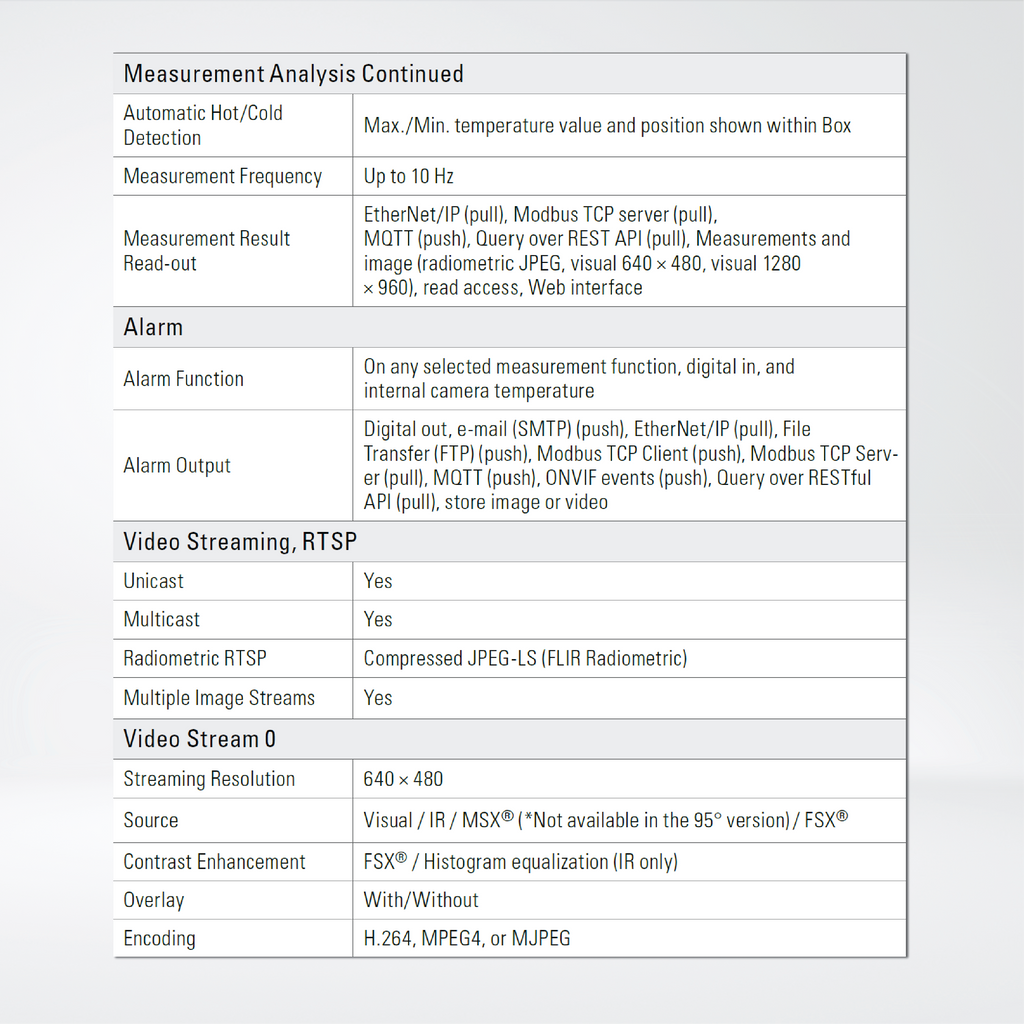

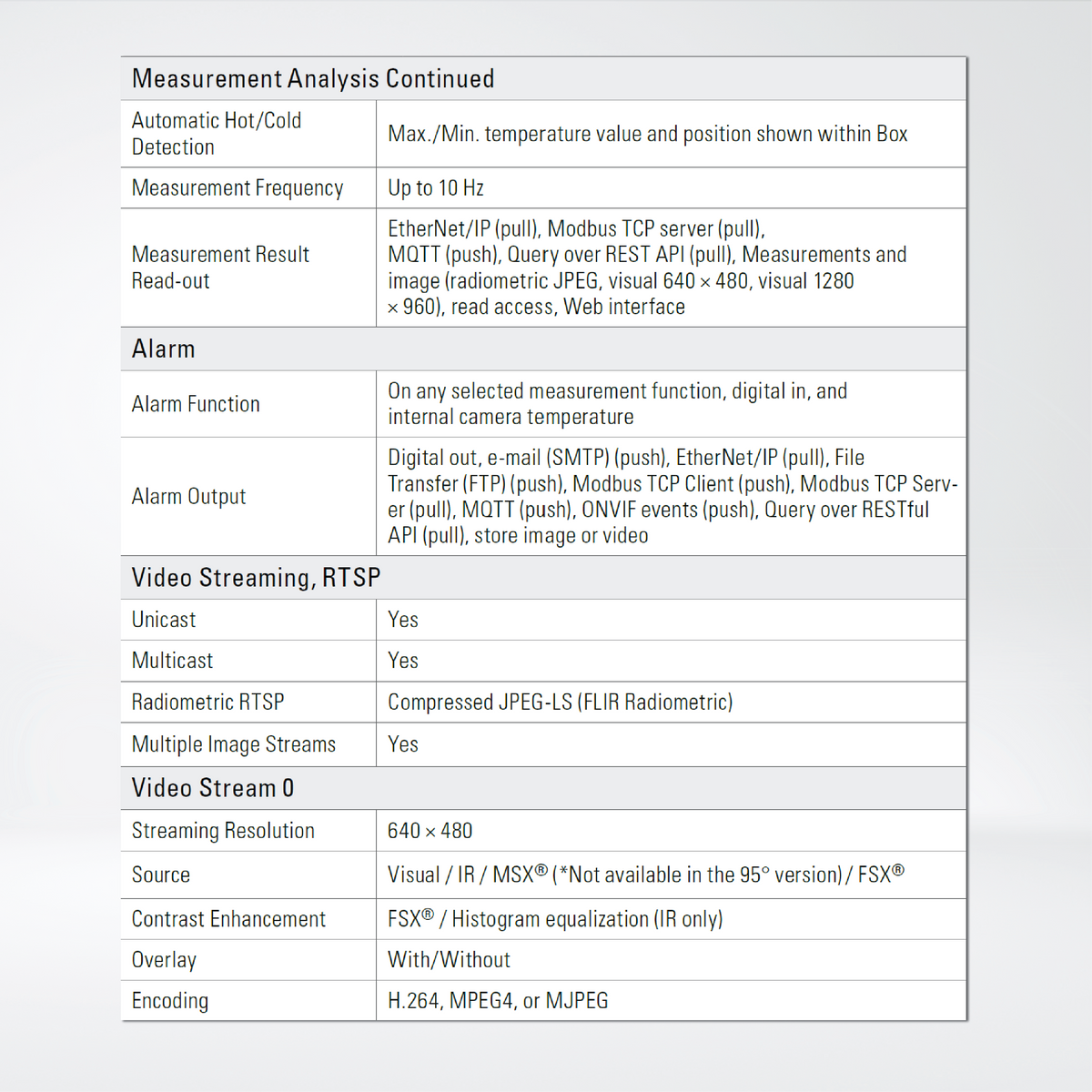

• Alarm Functions
  On any selected measurement function, digital in, and internal camera temperature

• Alarm Output
  Digital out E-mail (SMTP) (push) EtherNet/IP (pull) File transfer (FTP) (push) Modbus TCP Client (pull) Server (push) MQTT (push) ONVIF events (push) Query over RESTful API (pull) Store image or video
