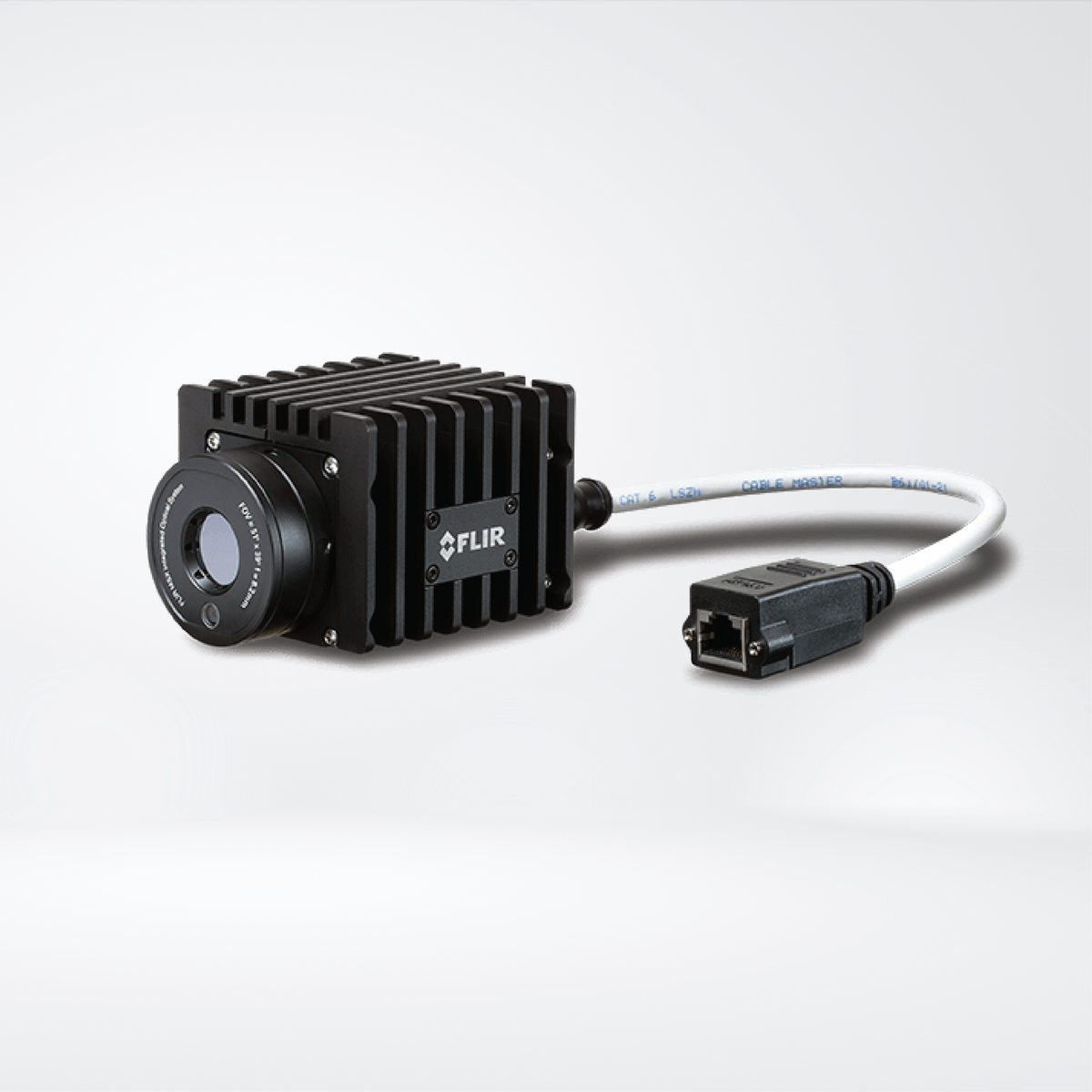

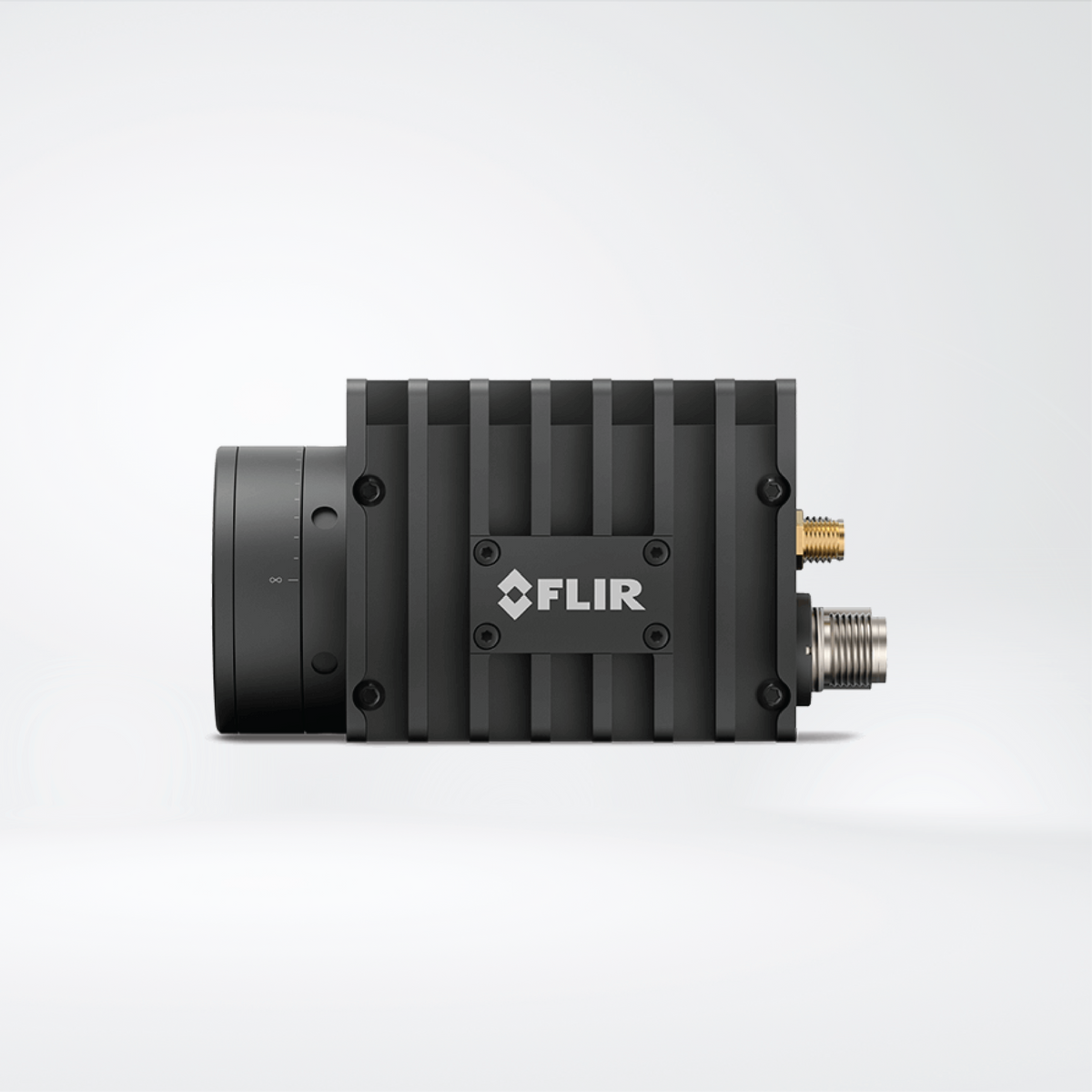

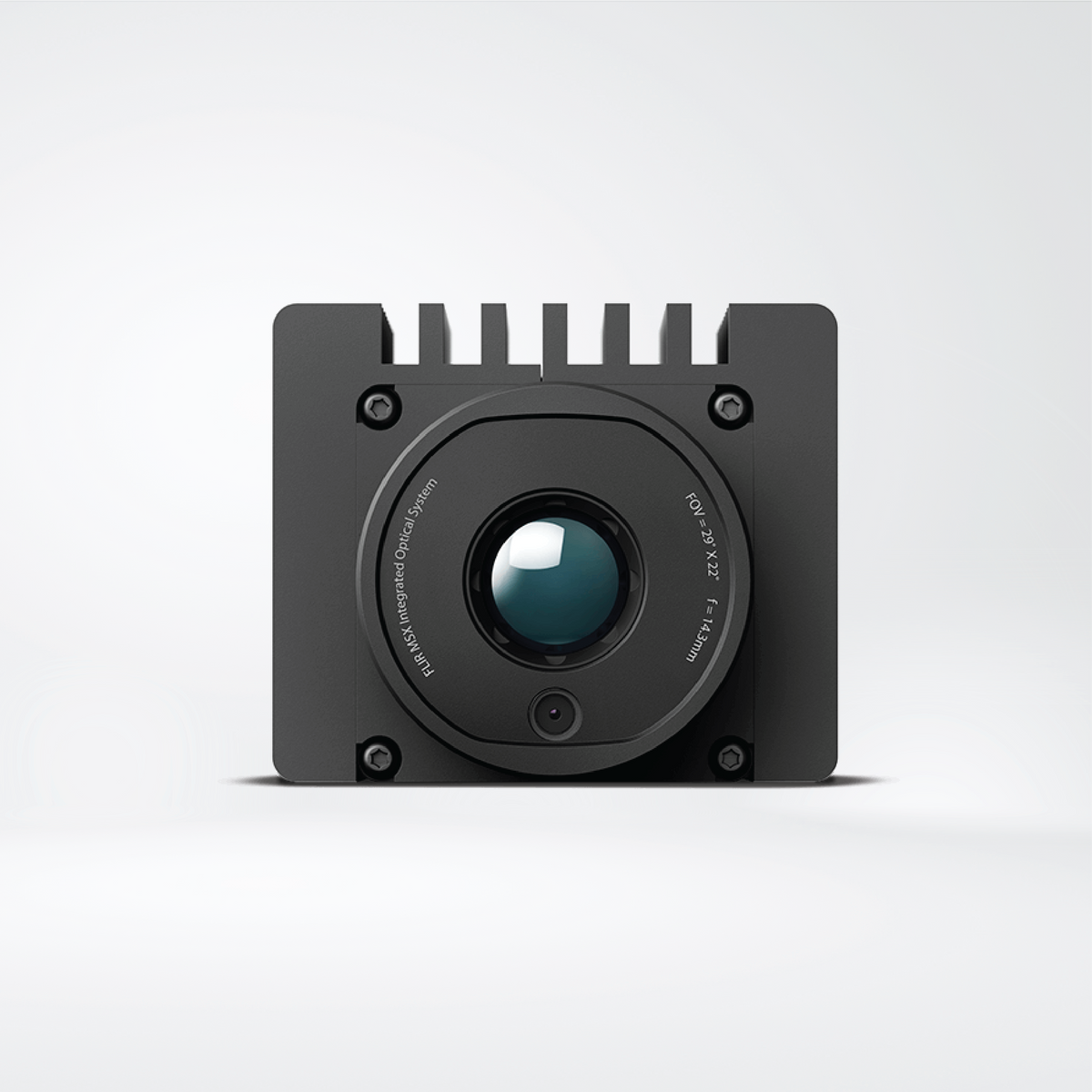

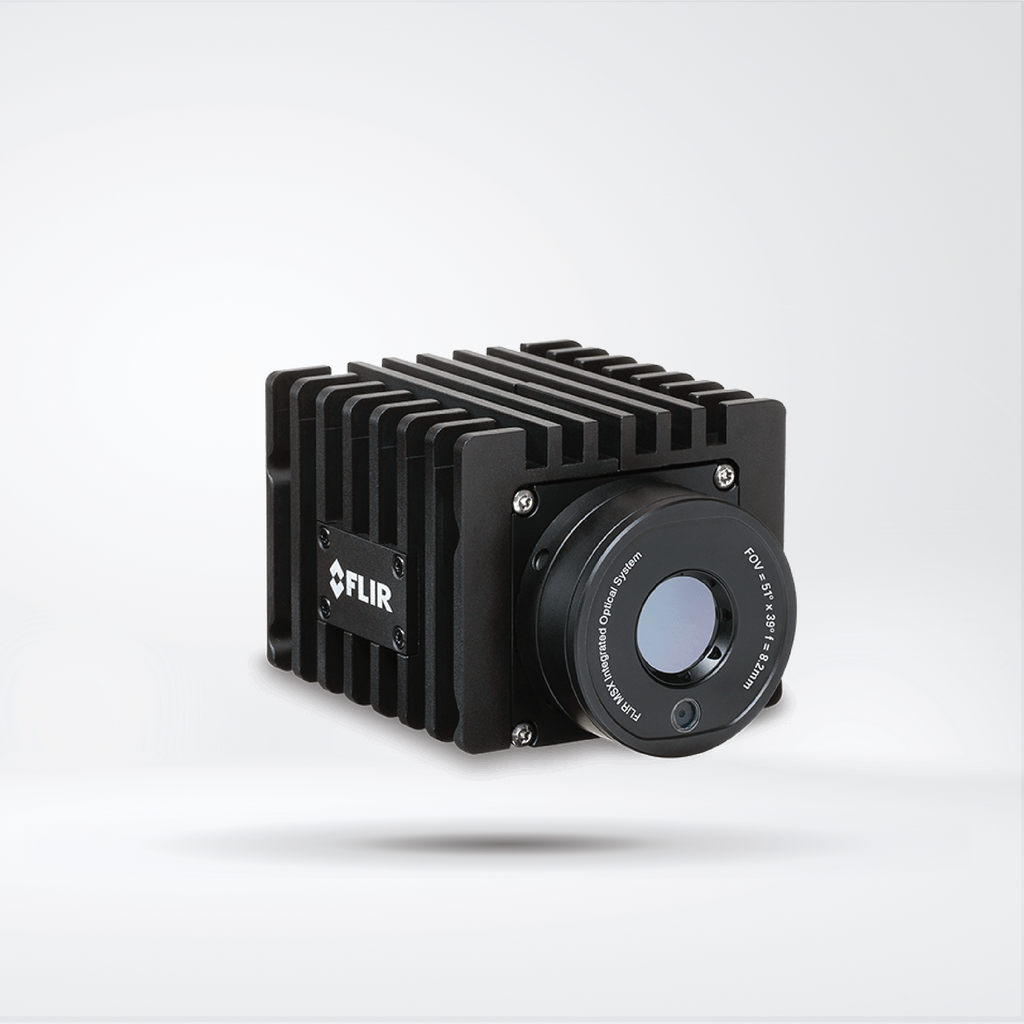

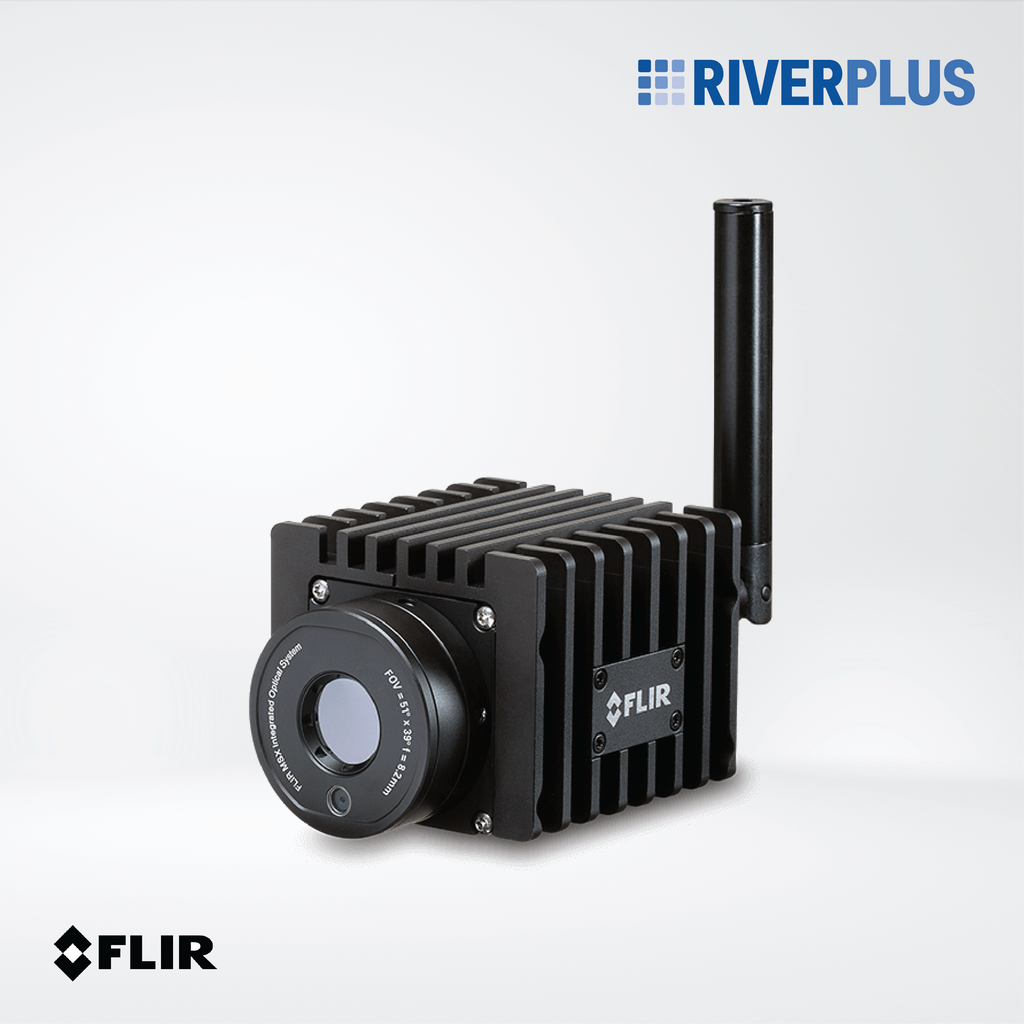

A50/A70 Smart Sensor , Fixed-Mount Thermal Camera

Flir A50 and A70 smart sensor cameras are ideal for users who want built-in, on-camera analytics and alarm capabilities for condition monitoring and early fire detection applications. With options for Wi-Fi, an integrated visual camera, and ONVIF S compatibility (advanced version only), Flir A50/A70 cameras are a flexible, configurable solution to meet the unique needs of automation customers across a broad range of industries. When used as a system component for cloud and Industrial Internet of Things (IIoT) solutions, A50/A70 cameras can help companies protect assets, improve safety, maximize uptime, and minimize maintenance costs.

Features

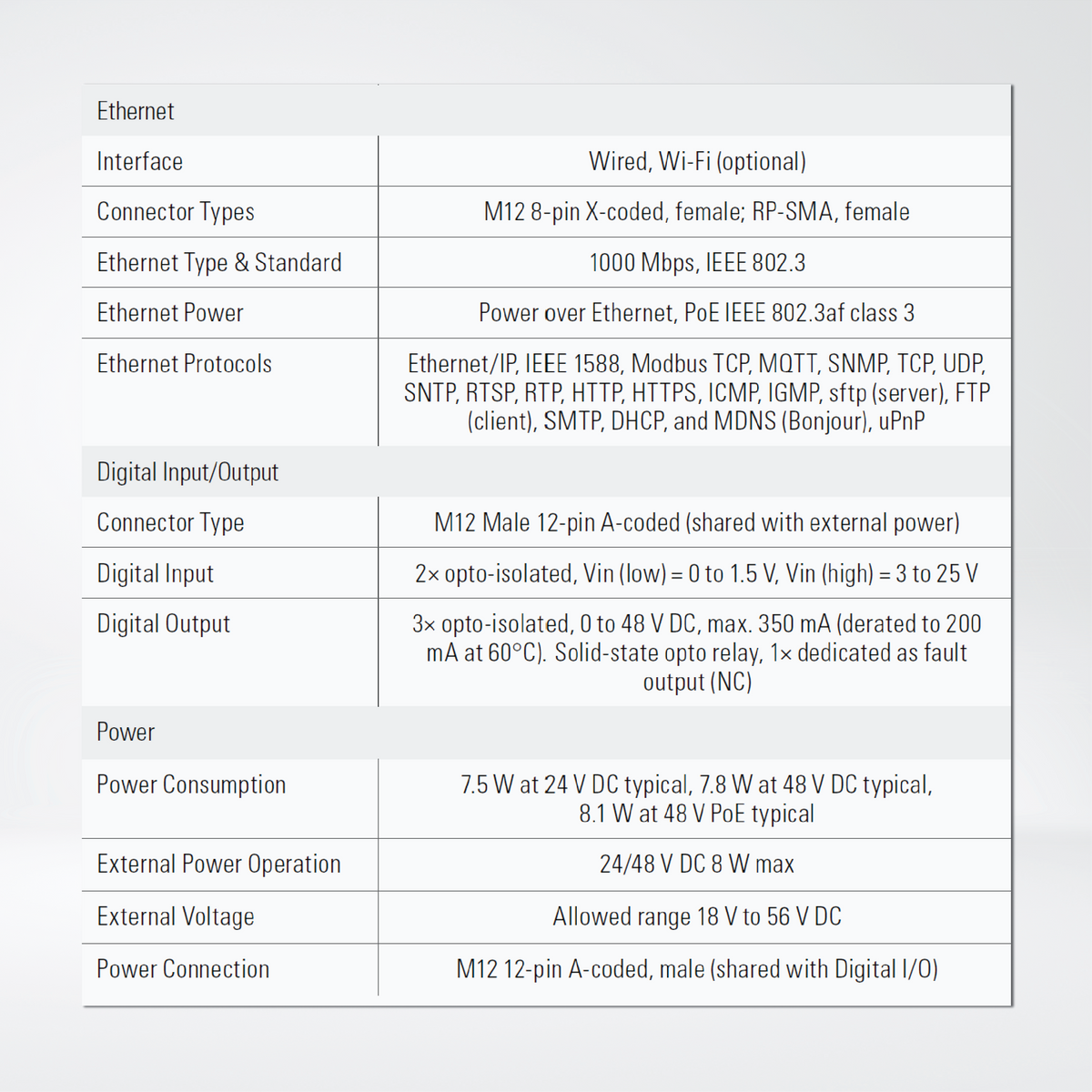

• Digital I/O connector type
  M12 12-pin A-coded, Male (shared with external power)
• Digital Inputs
  2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
• Digital Output Purpose
  • As a function of alarm, output to external device • Fault (NC)
• Digital Outputs
  3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)

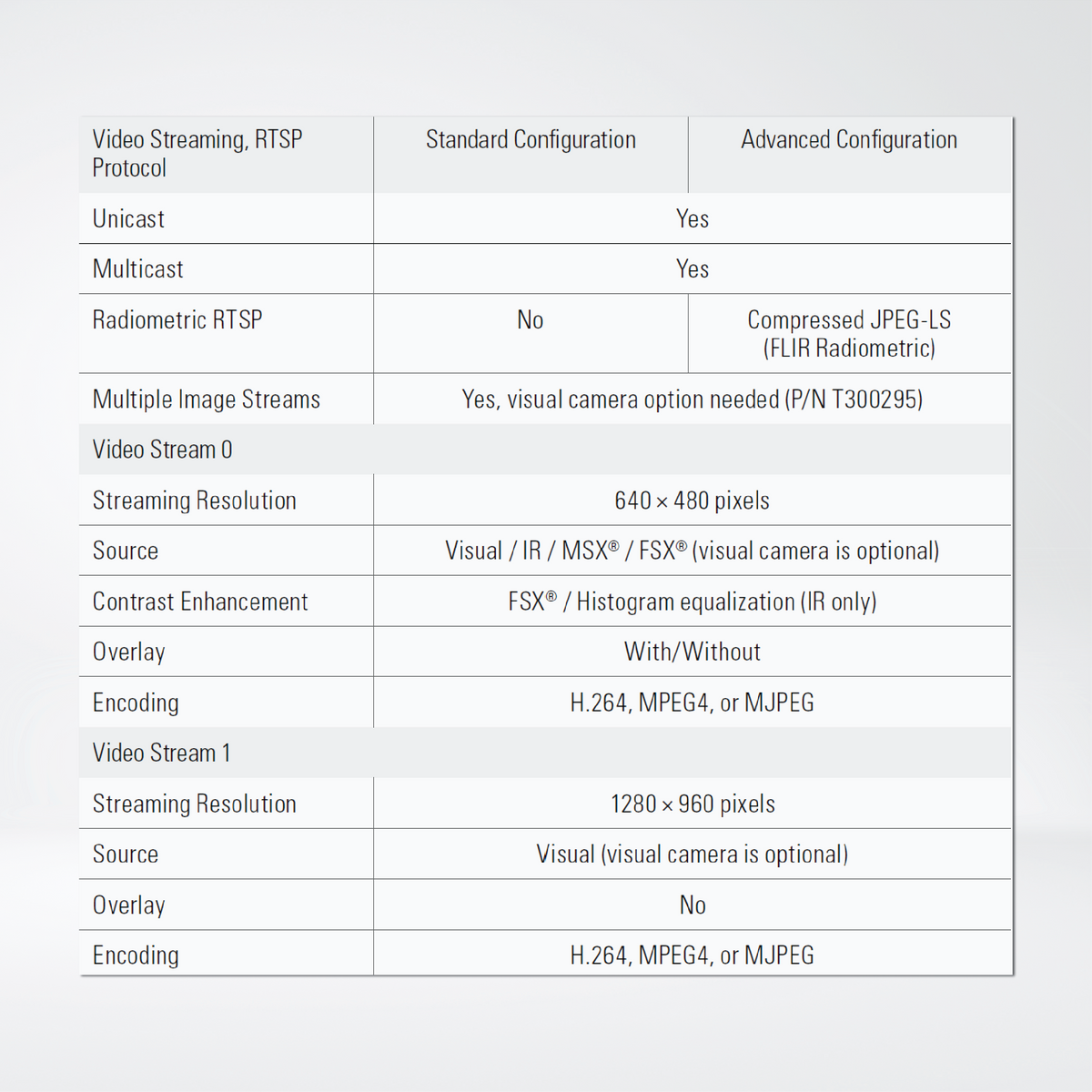

• Encoding
  Standard: H.264, MPEG4, or MJPEG
  Advanced: Video stream - H.264, MPEG4, or MJPEG
  Radiometric stream - Compressed JPEG-LS, FLIR radiometric
• Ethernet Interface    Wired, Wi-Fi (optional)
• WiFi    Optional feature purchased separately. RP-SMA, female connector
• EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17 (radio)
  • EN 61000-4-8 (magnetic field)
  • FCC 47 CFR Part 15 Class B (emission US)
  • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
  • EN ISO 14982 (EMC - Agricultural and forestry machinery)

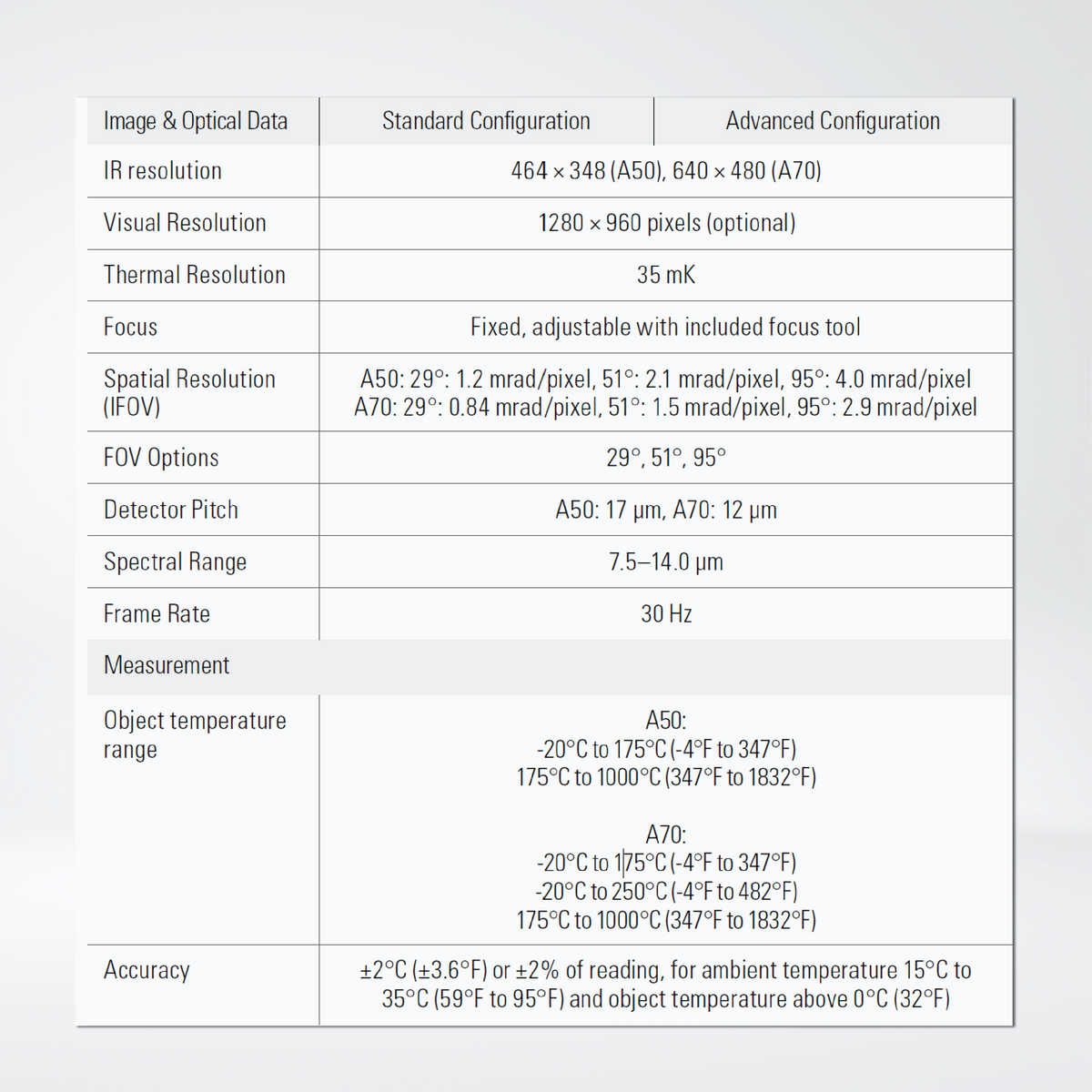

• f-number    1.4
• Image Frequency    30 Hz
• Thermal Sensitivity/NETD    <35 mK
• Accuracy
  ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)

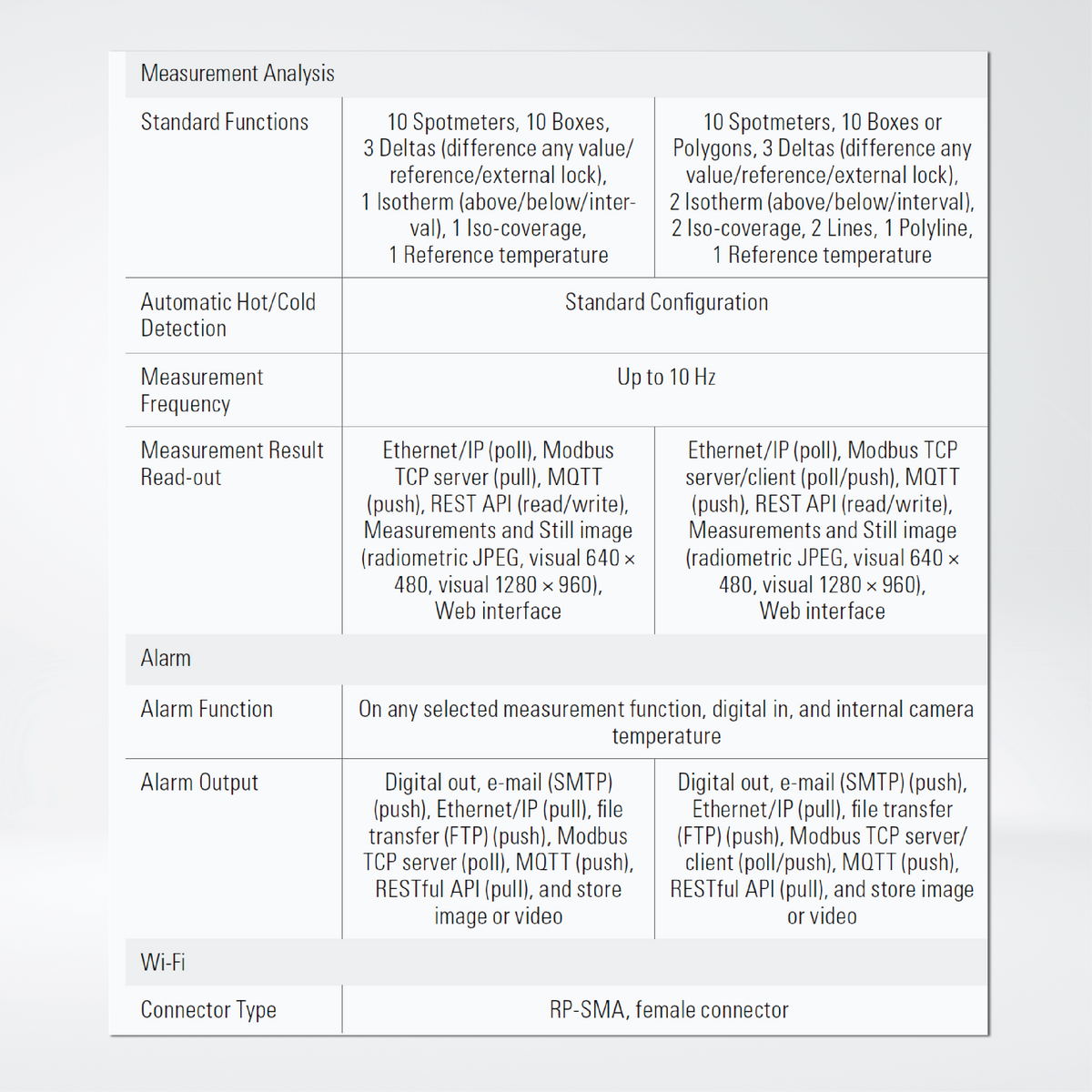

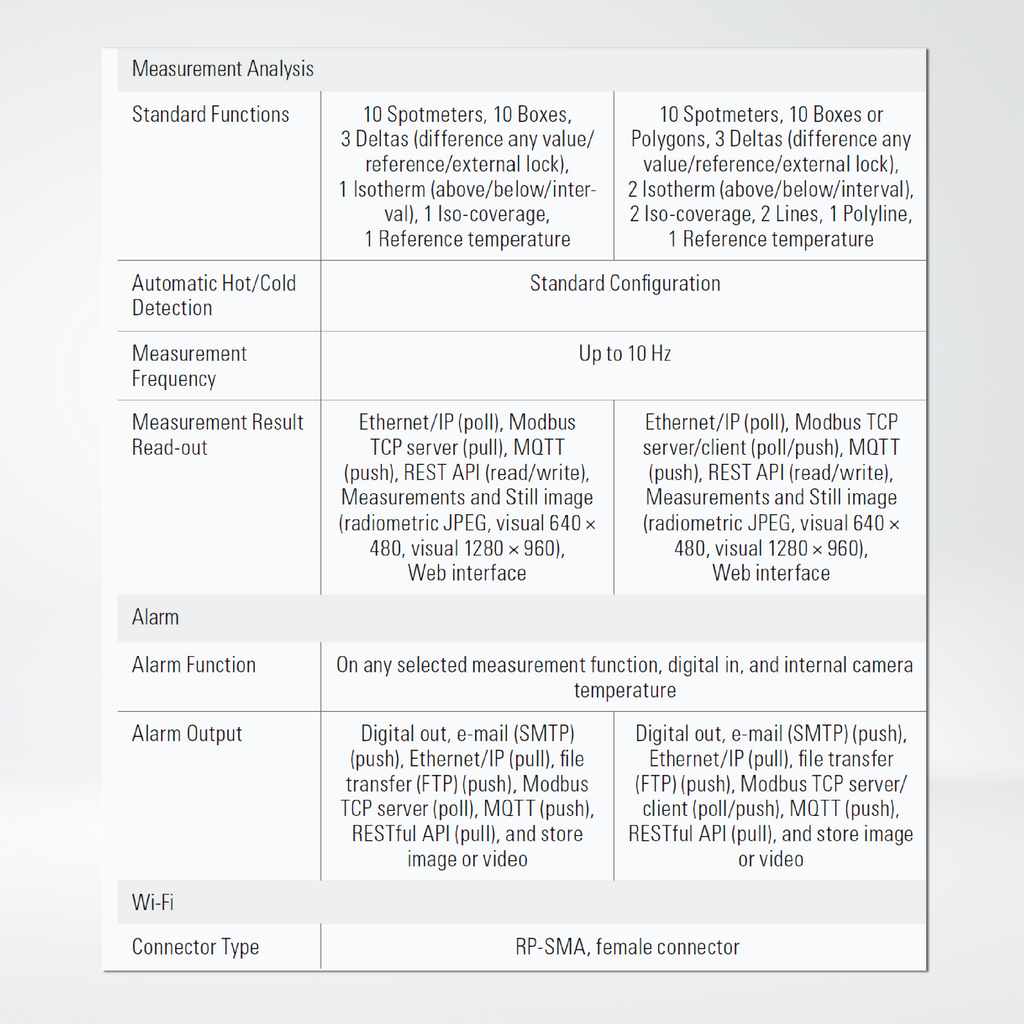

• Alarm Functions
  Standard: 10 Spotmeters 10 Boxes 3 Deltas (difference any value/reference/external lock) 1 Isotherm (above/below/interval) 1 Iso-coverage 1 Reference temperature
  Advanced: 10 Spotmeters 10 Boxes and Mask polygons (total number) 3 Deltas (difference any value/reference/external lock) 2 Isotherm (above/below/interval) 2 Iso-coverage 1 Reference temperature 2 Lines 1 Polyline
• Alarm Output
  • Digital out
  • E-mail (SMTP) (push)
  • Ethernet/IP
  • File transfer (FTP) (push)
  • Modbus TCP server (pull)
  • MQTT (push)
  • Query over RESTful API (pull)
  • Store image or video
