A500f/A700f Advanced Smart Sensor

A500f/A700f Advanced Smart Sensor
Fixed-Mount Thermal Imaging Camera for Condition Monitoring and Early Fire Detection

Flir A500f and A700f Advanced Smart Sensor Thermal Cameras are ideal for users who want built-in, on-camera analytics and alarm capabilities for outdoor condition monitoring and early fire detection applications. These cameras can help companies protect assets, improve safety, maximize uptime, and minimize maintenance costs. Featuring a protective housing designed to withstand harsh environmental conditions, Flir A500f/A700f cameras combine unmatched thermal imaging with edge computing and industrial internet of things (IIoT) for simplified inclusion in new or existing networks. For VMS integrations, thermal and visible streams can be viewed independently or simultaneously. The cameras are easy to add, set up, and operate in HMI/SCADA systems, offering automation system solution providers a running start.

Features

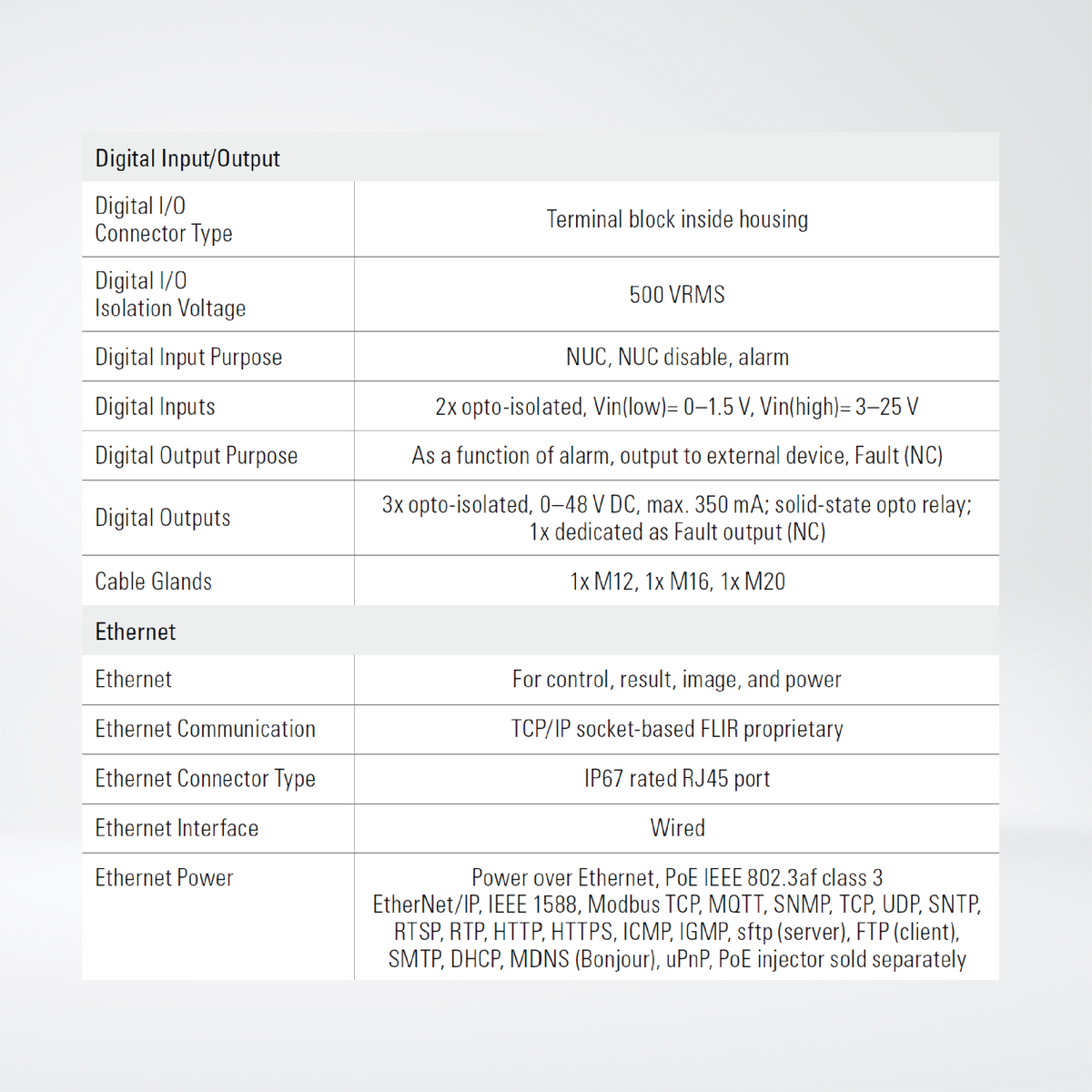

• Digital I/O connector type    Terminal block inside housing

• Digital Inputs    2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V

• Digital Output Purpose
  • As a function of alarm, output to external device • Fault (NC)

• Digital Outputs
  3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)

• Encoding
  Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS, FLIR radiometric

• Ethernet Interface    Wired

• EMC    EN50130-4, EN61000-6-3, EN55022 Classe B, FCC Part. 15 Class B

• Mounting    Bought separately, pole and wall adaptors available

• f-number
  14°: 1.5
  24°: 1.3
  42°: 1.1
  80°: 1.3

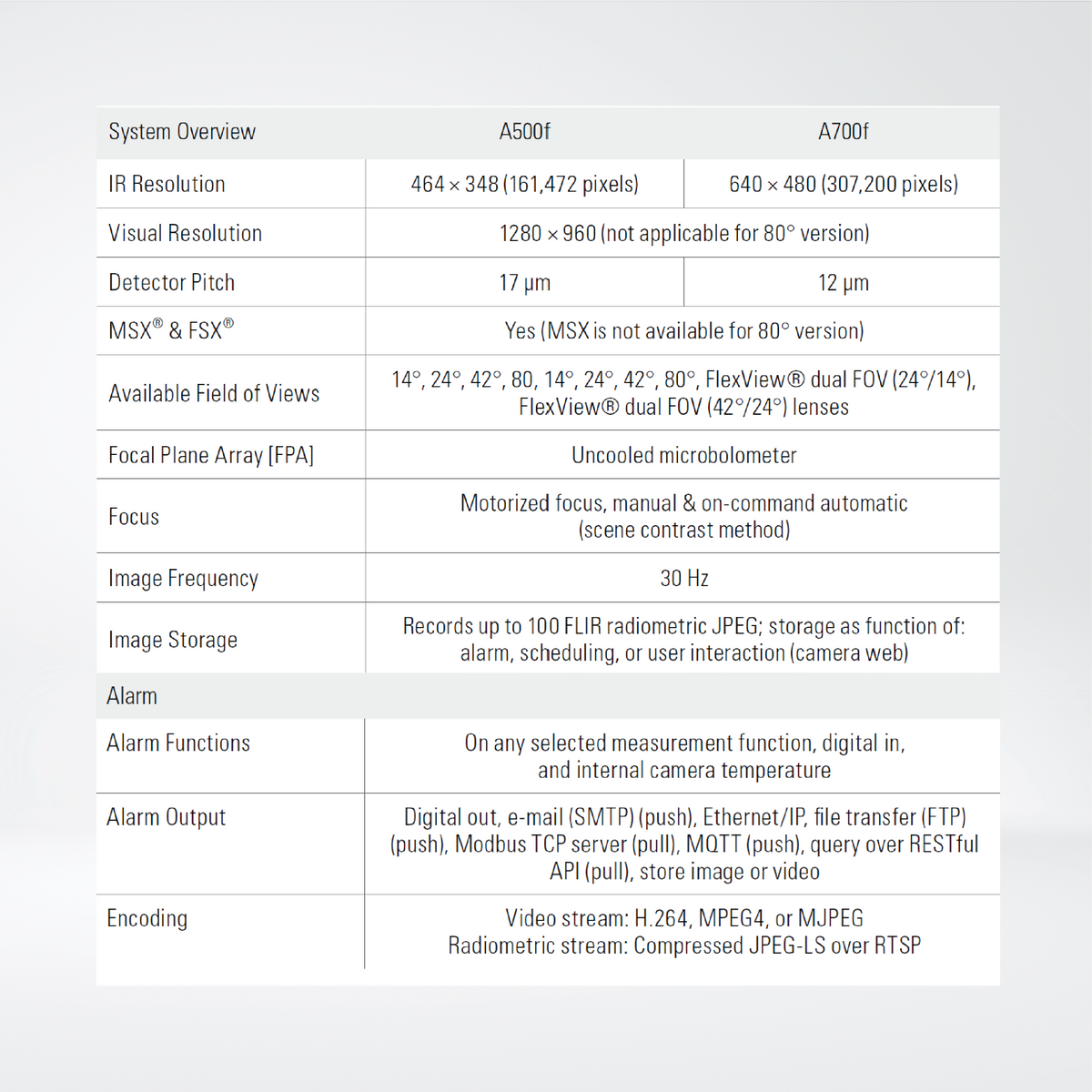

• Image Frequency    30 Hz

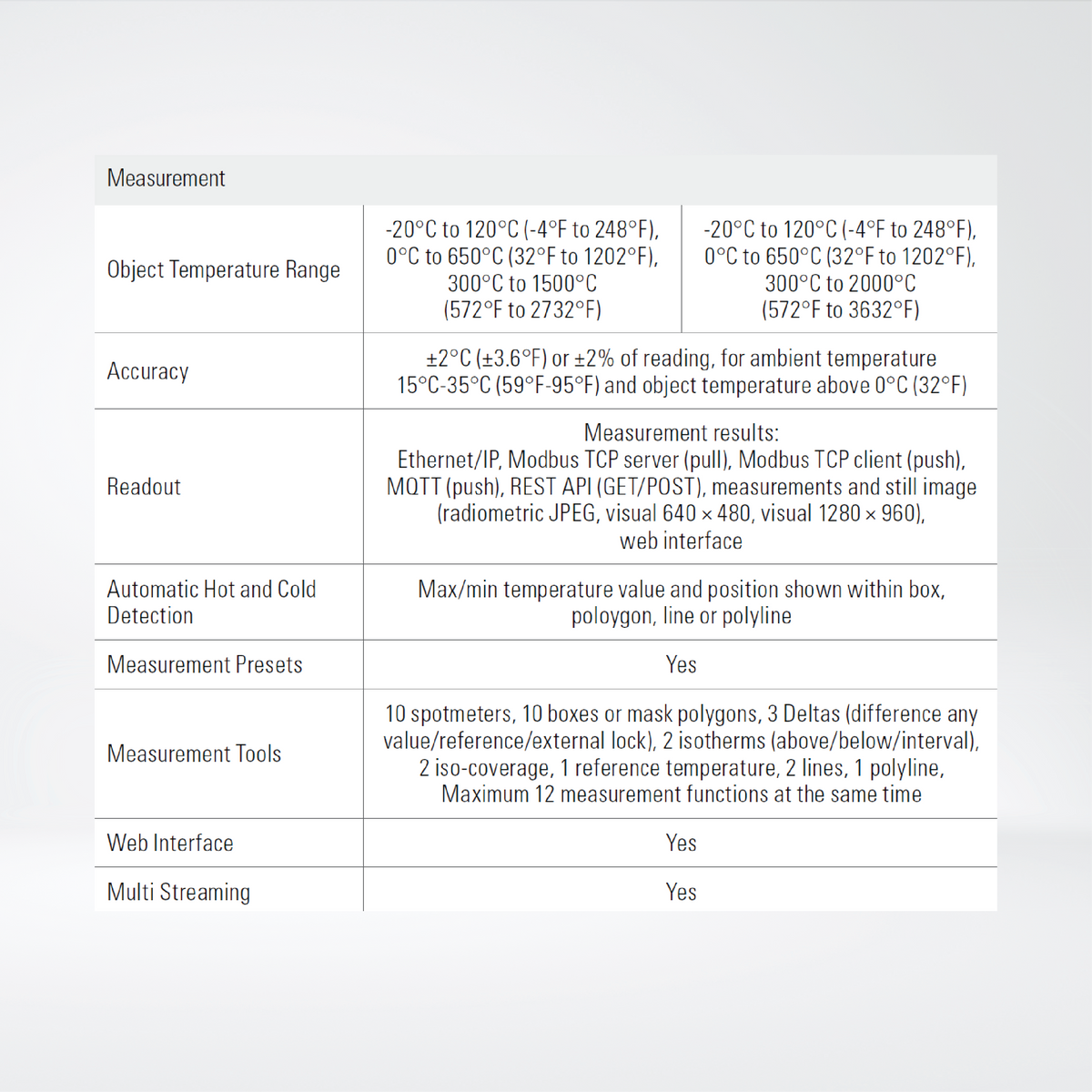

• Accuracy    ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15° to 35°C (59° to 95°F) and object temperature above 0°C (32°F)

• Alarm Functions
  On any selected measurement function, digital in, and internal camera temperature

• Alarm Output
  • Digital out • E-mail (SMTP) (push) • Ethernet/IP • File transfer (FTP) (push) • Modbus TCP server (pull) • MQTT (push) • Query over RESTful API (pull) • Store image or video
