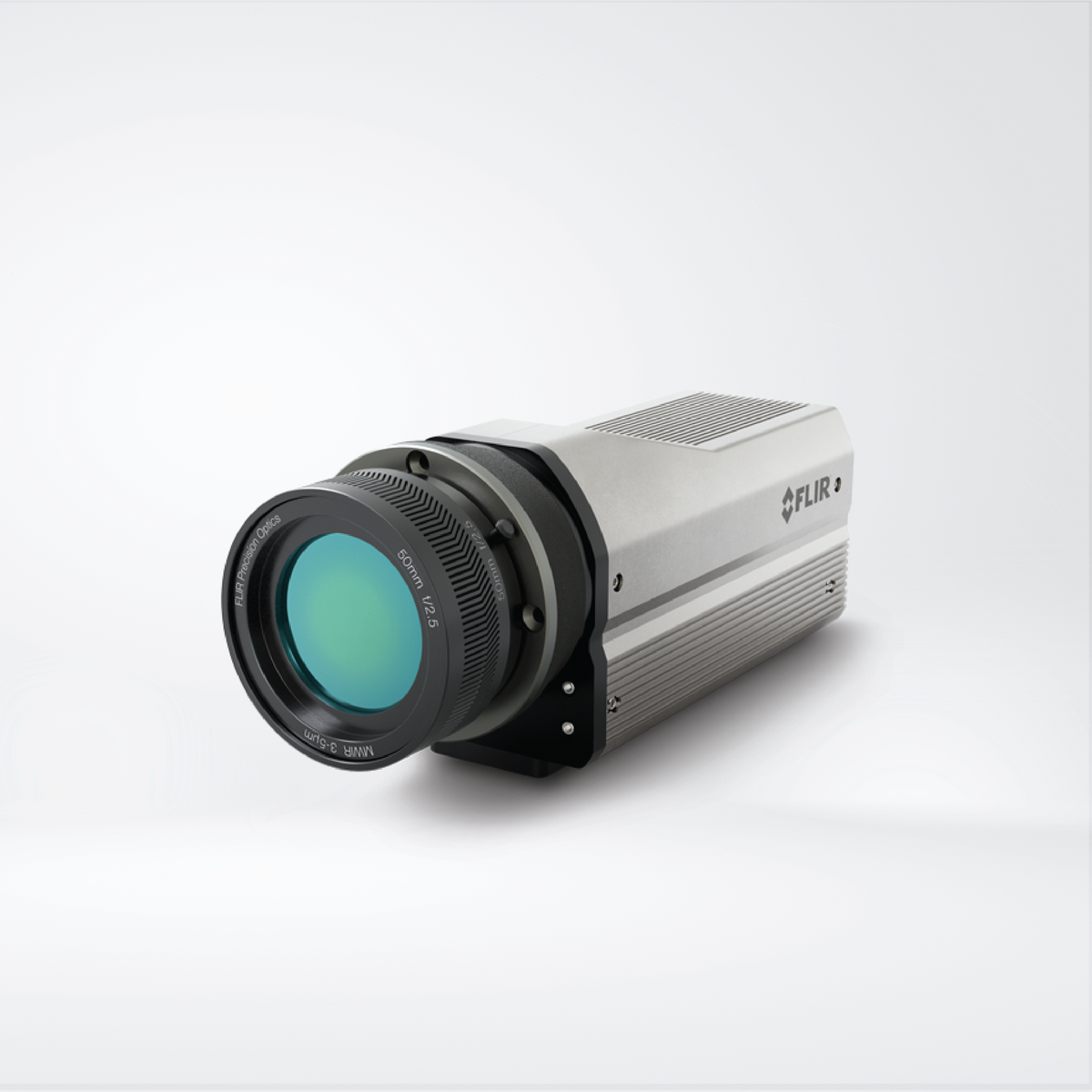

A6301 Advanced Thermal Camera for 24/7 Process Monitoring and Quality Control

Flir A6301 Advanced Thermal Camera offer engineers and system integrators the best and most advanced thermal camera for Process Control, Monitoring and Quality Assurance. Its industry-leading 27,000-hour cryocooler lifetime maximizes camera uptime for consistent production throughput, while minimizing cost through planned maintenance. Its fast integration times improves yield, through-put time, costs, while ensuring consistent quality. This cooled camera platform provides a streamlined solution for accurate temperature measurement. The Standard kit includes a Flir A6301 Advanced Thermal Camera, accessories, and 17 mm, 24 mm, or 50 mm lens.

Features

• The highly sensitive, cooled MWIR sensor improves defect detection and
  increases product quality.
• Industry-leading long-life micro cooler, with 27,000-hour mean time to
  failure, maximizes camera uptime for consistent production schedules.
• Fast integration times ensure accurate temperature measurements on
  moving products and production lines.
• Low-latency, deterministic synchronization to external sources means
  thermal images are captured precisely when needed for decision support.
• Standard GigE Vision protocols, REST API and a built-in web interfaces
  shorten implementation timelines.

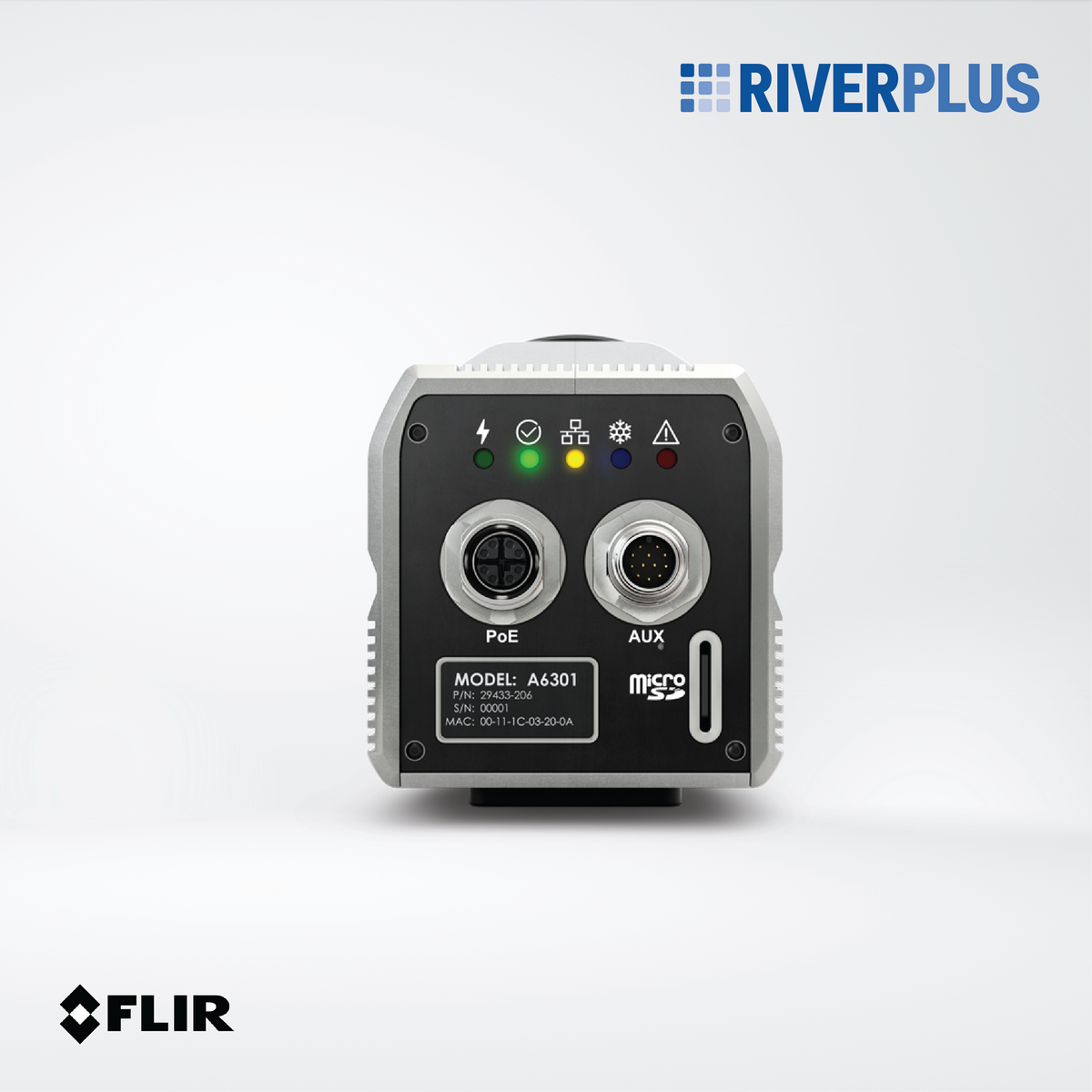

• Digital I/O connector type
  M12 12-pin A-coded, Male (shared with external power)

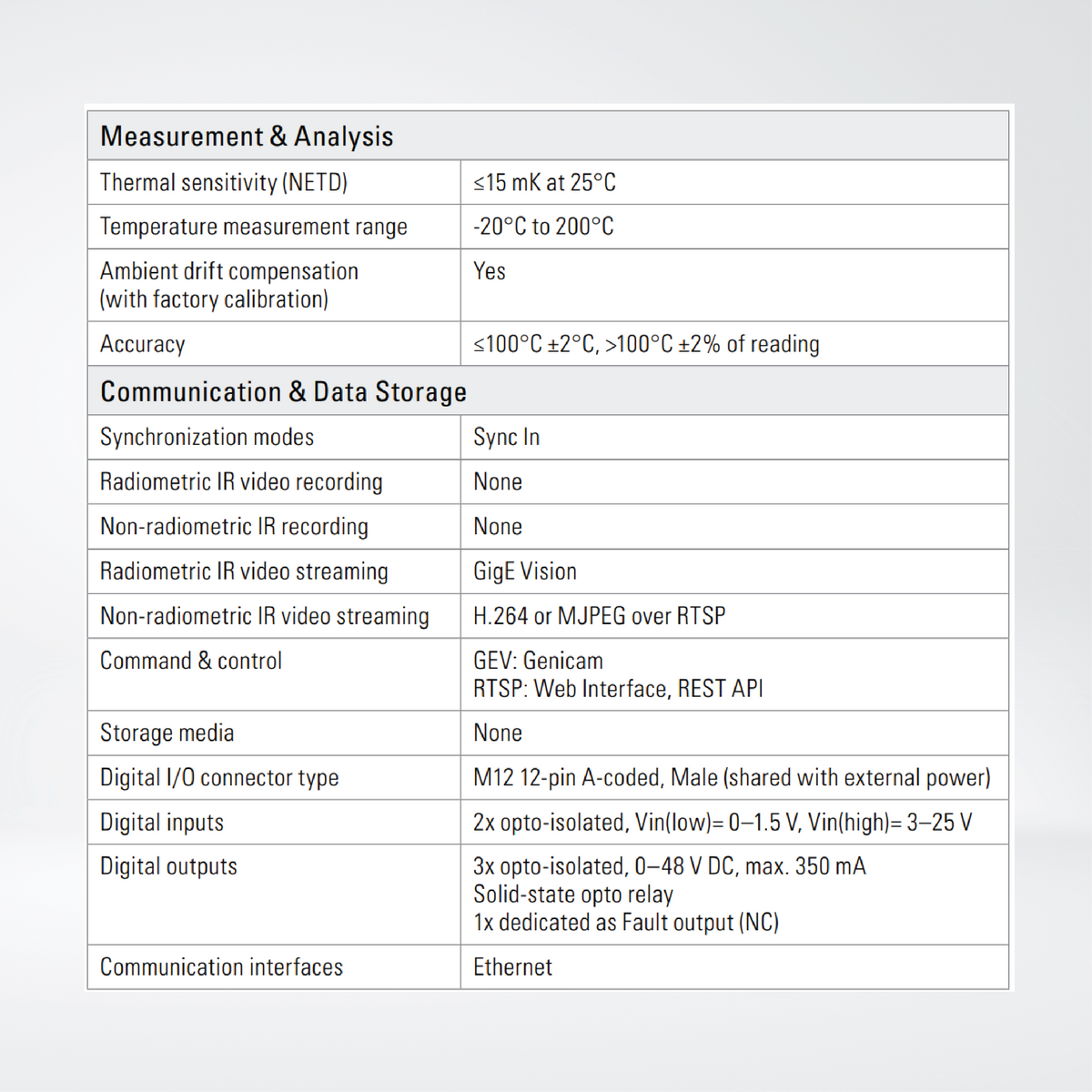

• Digital Inputs    2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V

• Digital Outputs    3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)

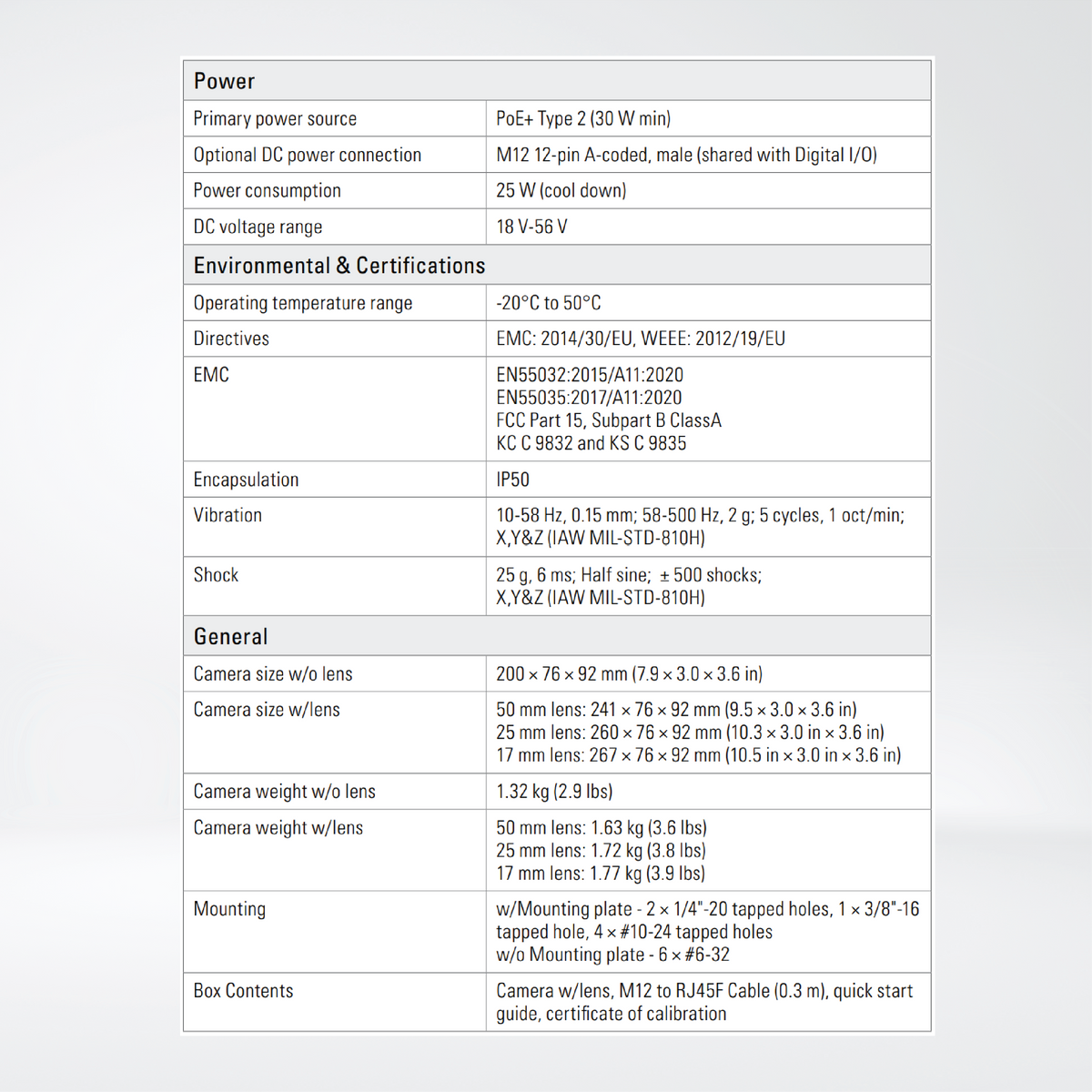

• EMC
  EN55032:2015/A11:2020
  EN55035:2017/A11:2020
  FCC Part 15, Subpart B ClassA
  KC C 9832 and KS C 9835

• Mounting
  With mounting plate - 2 × 1/4"-20 tapped holes, 1 × 3/8"-16; tapped hole, 4 × #10-24 tapped holes Without mounting plate - 6 × #6-32

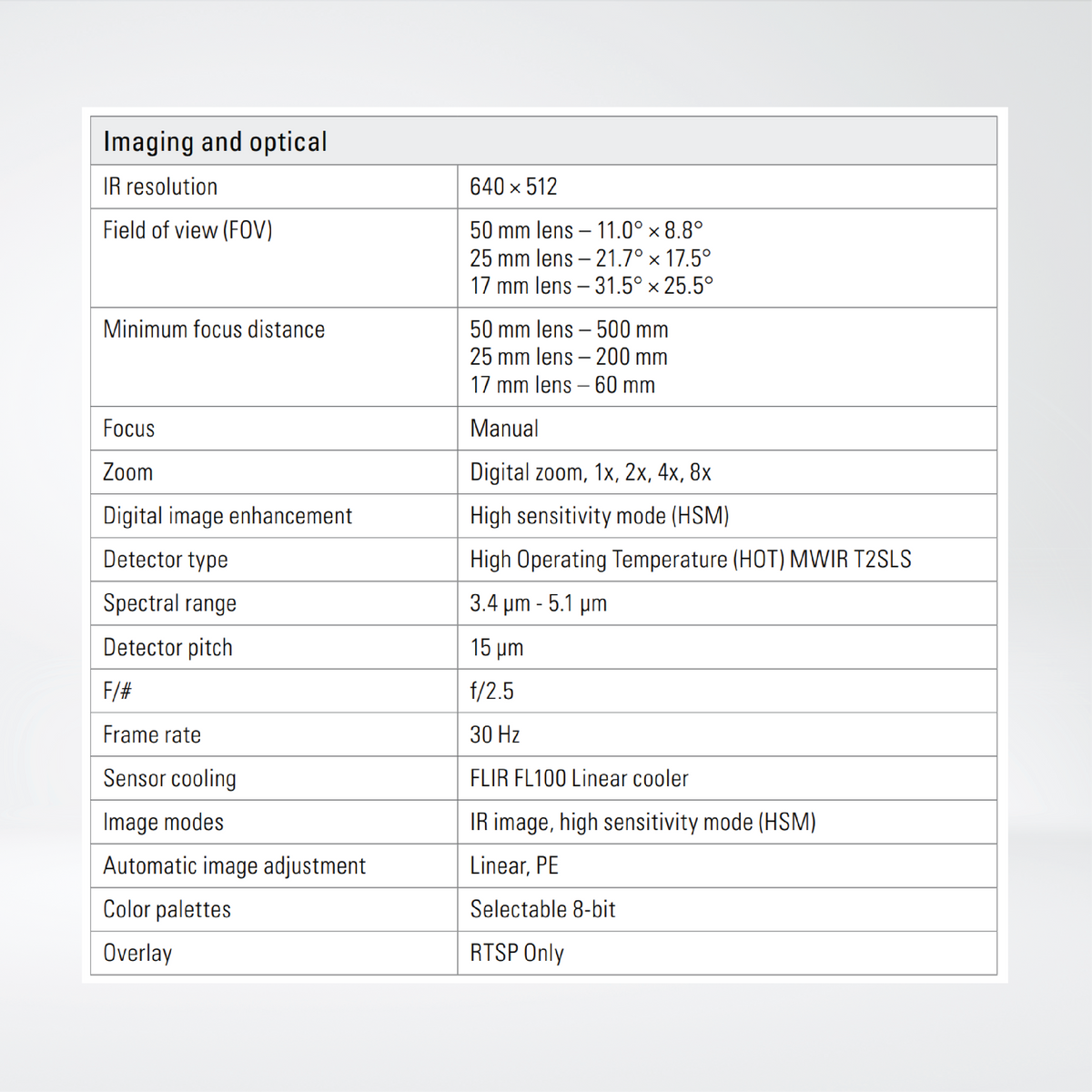

• f-number    f/2.5

• Image Frequency    30 Hz

• Thermal Sensitivity/NETD    ≤15 mK at 25°C

• Accuracy    ≤100°C ±2°C, >100°C ±2% of reading
• Main Applications
  • Inline inspection and validation of package heat sealing
  • Process control and monitoring for adhesives
  • Quality assurance during paper and plastics production
  • Remote monitoring of electrical/mechanical systems
