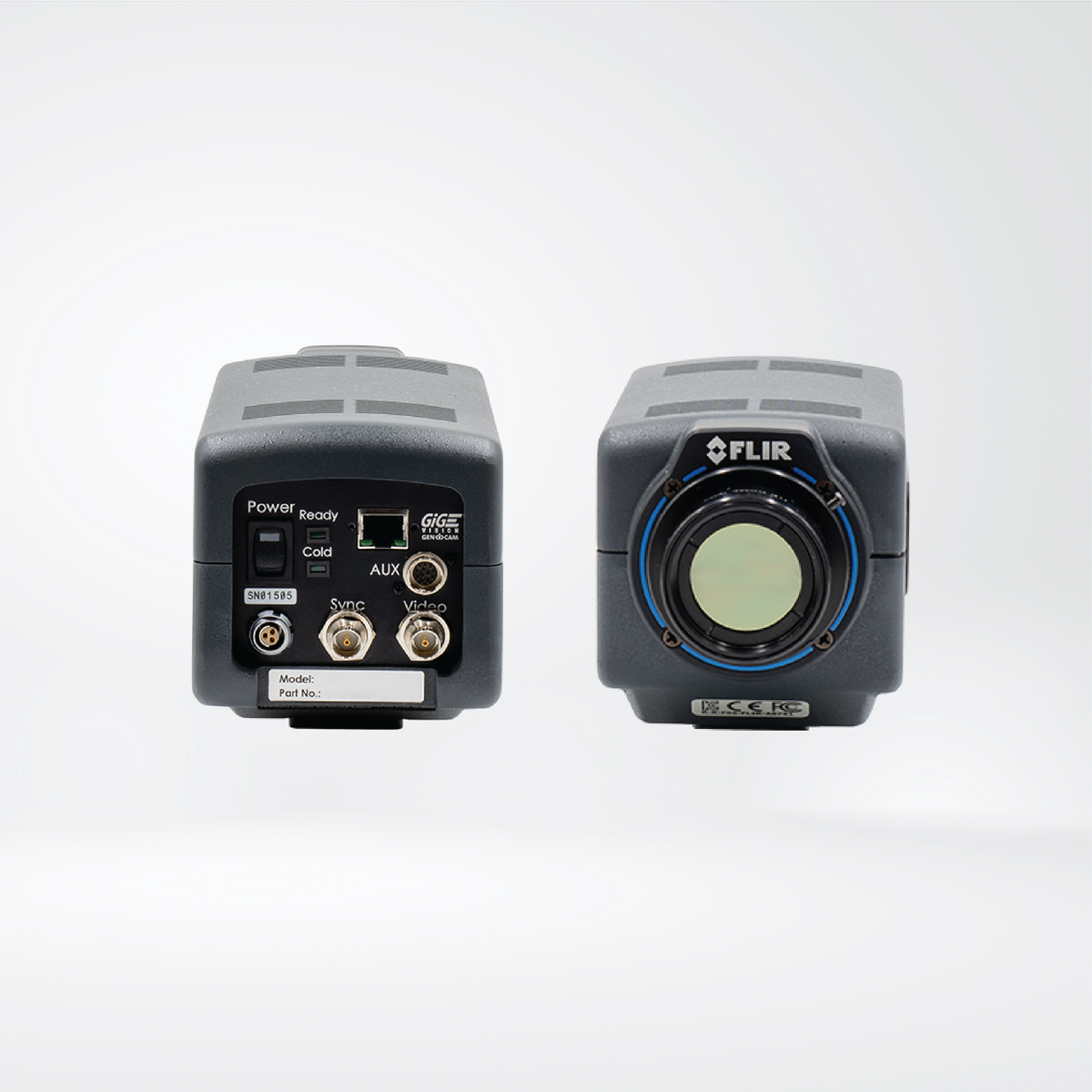

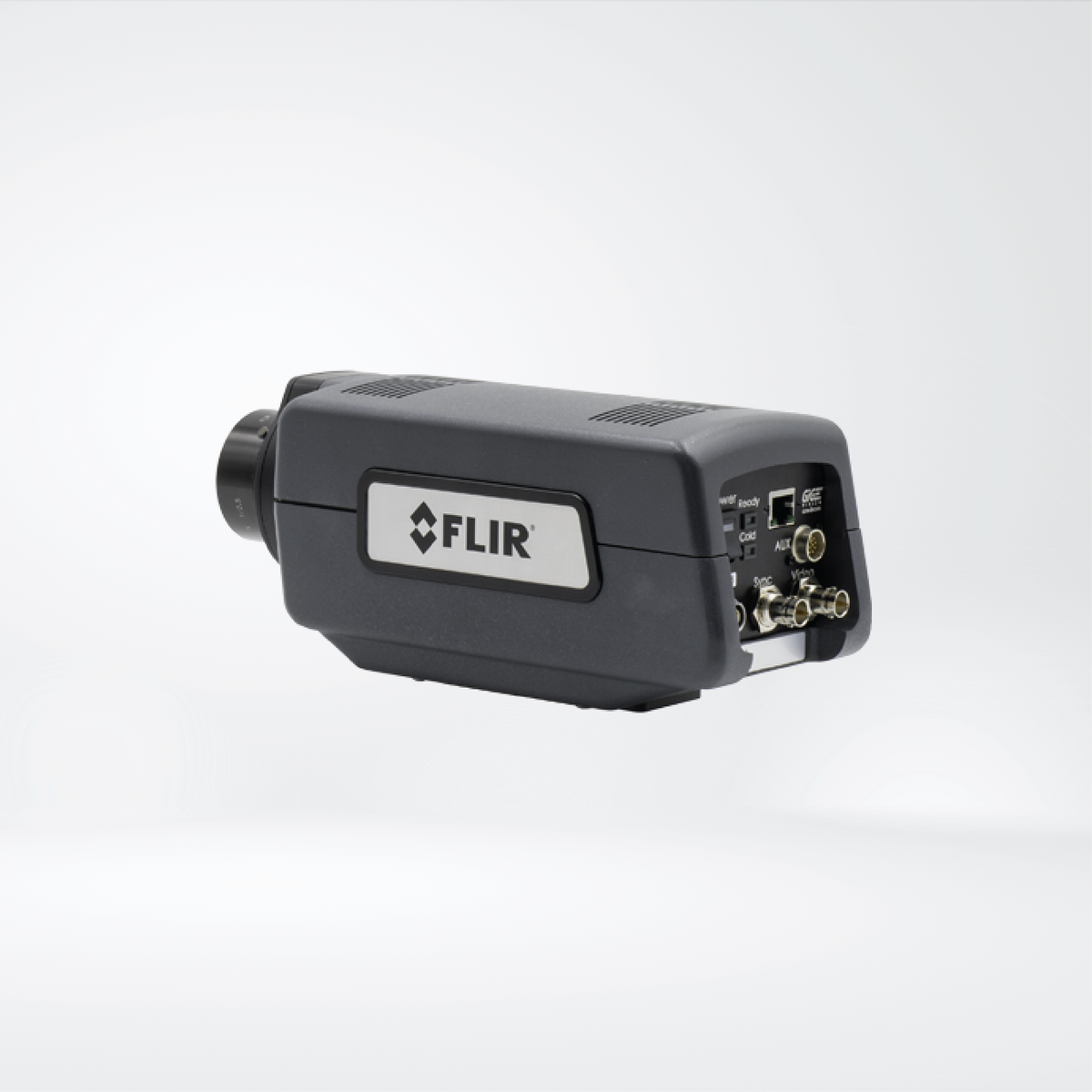

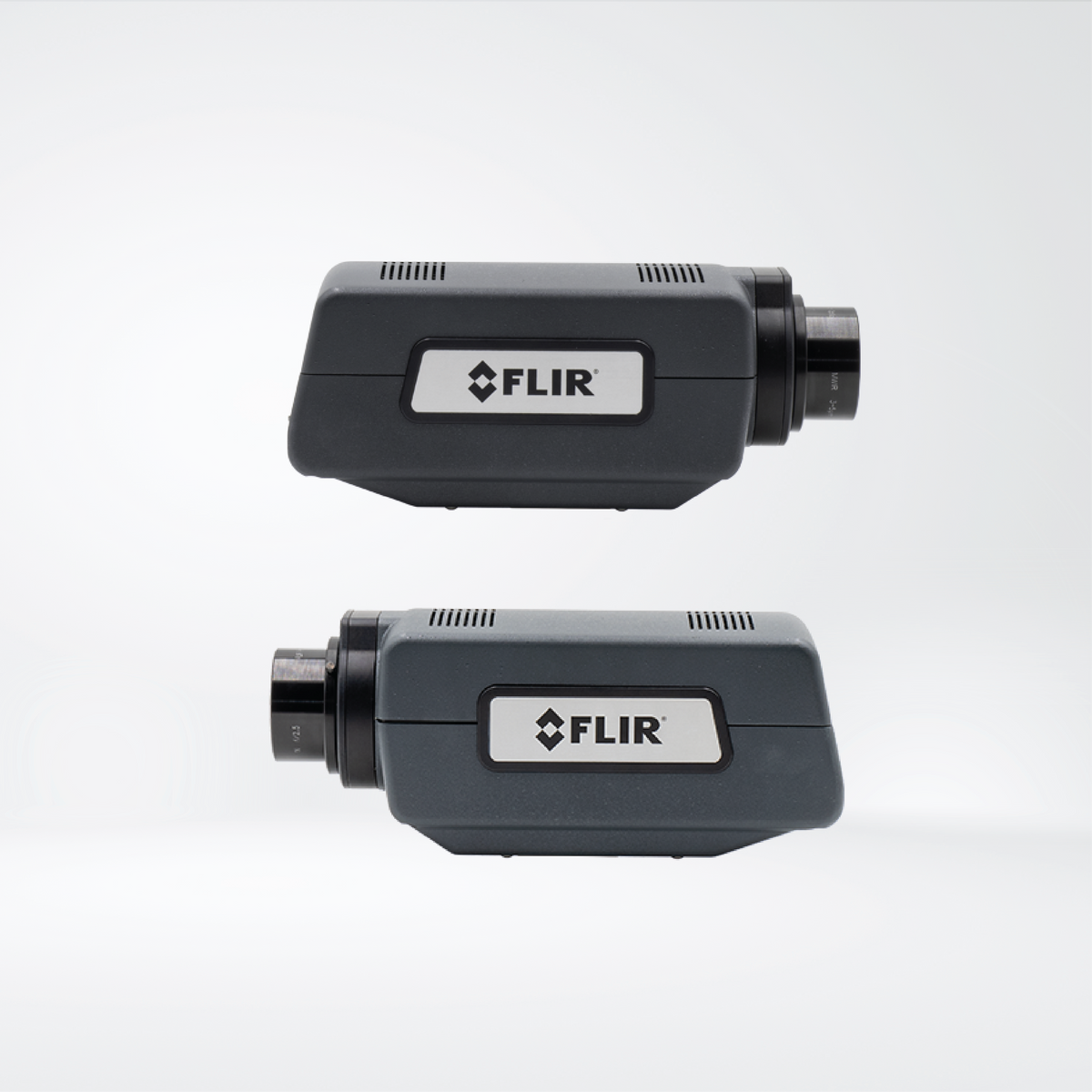

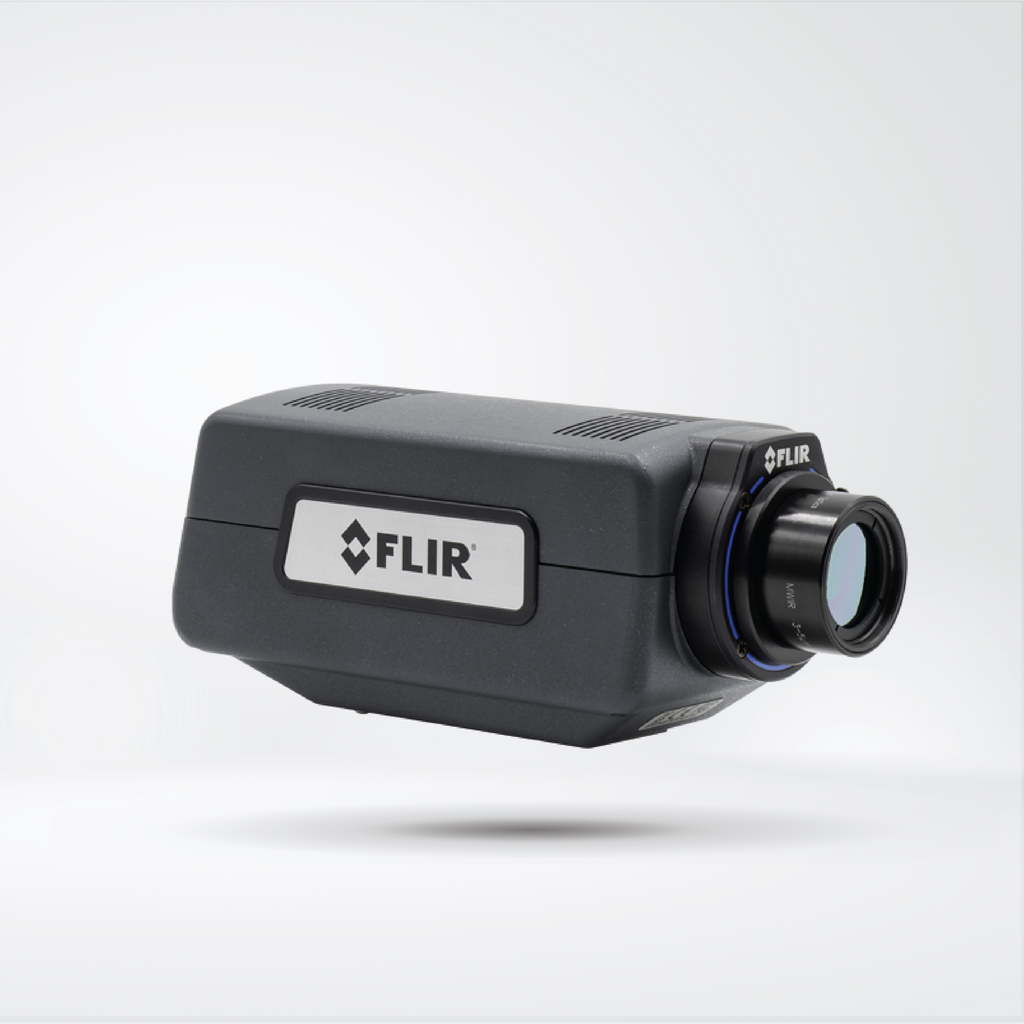

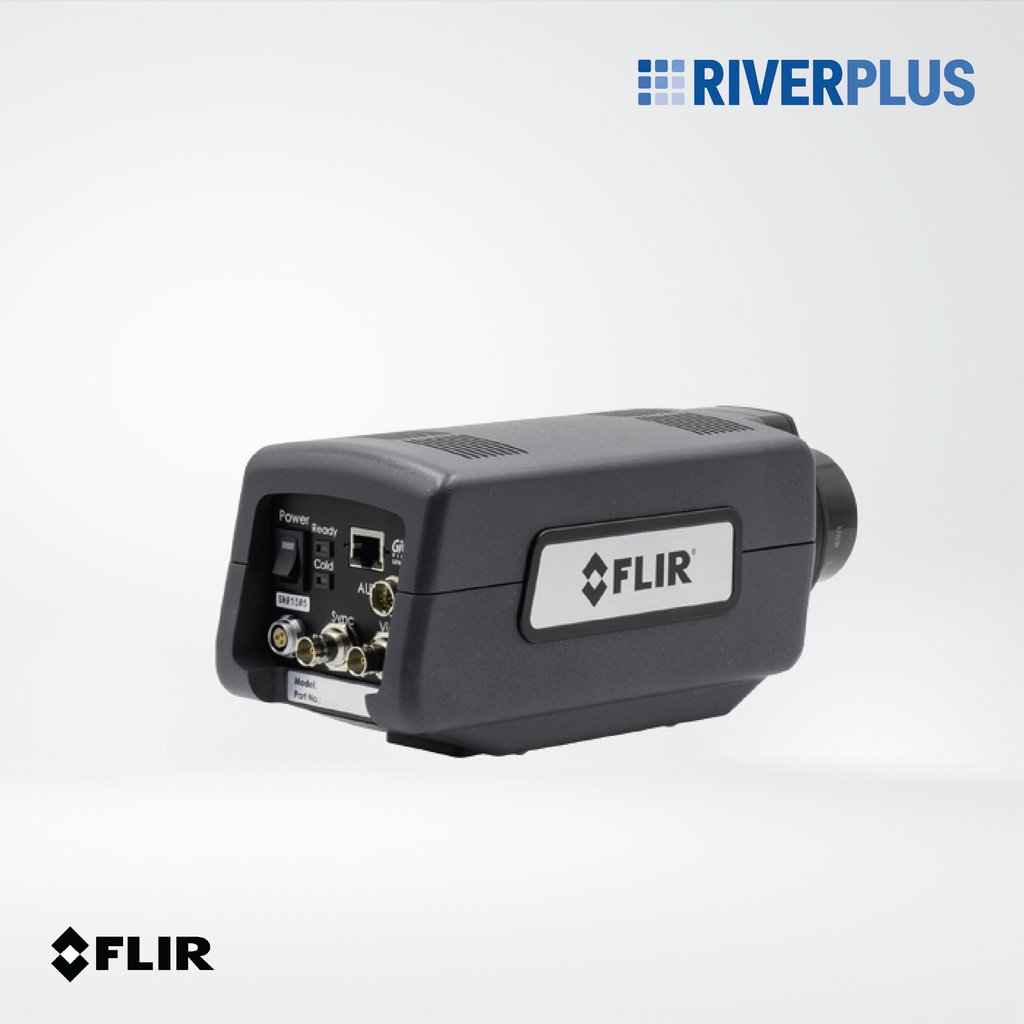

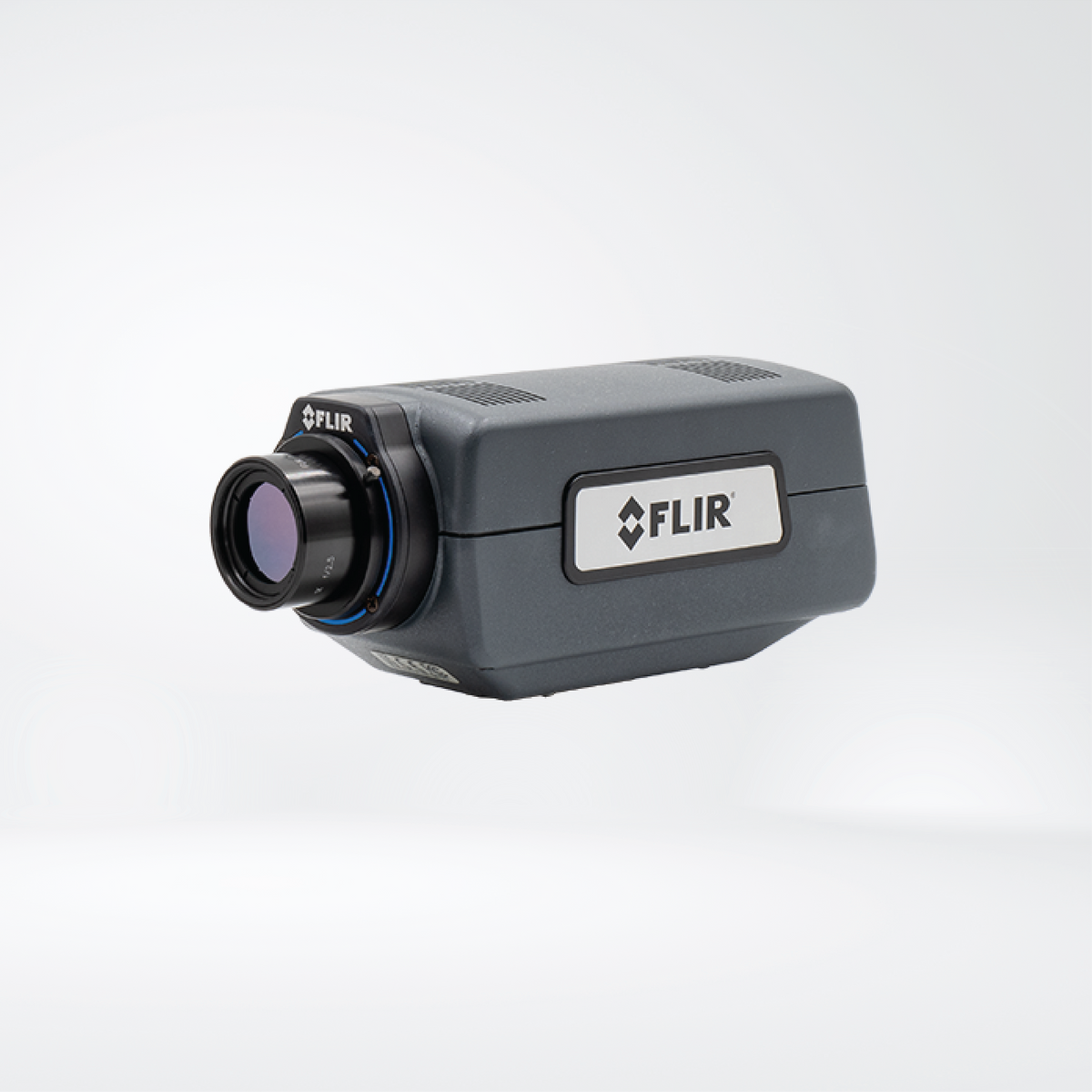

A6451 Long-Life Cooled MWIR Camera

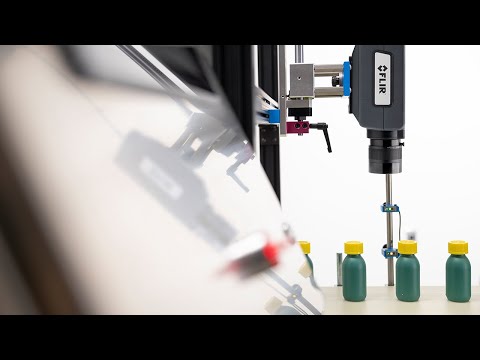

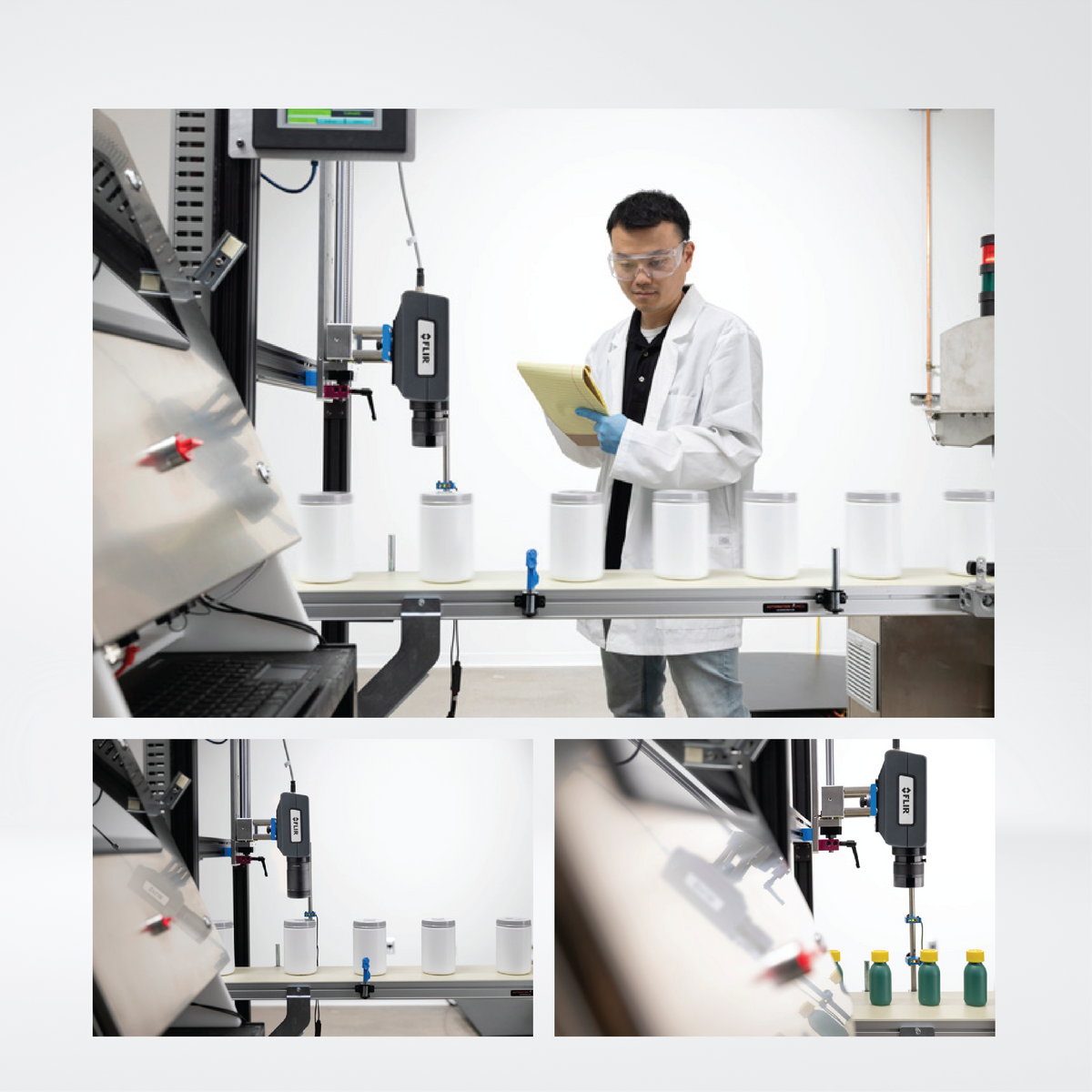

The Flir A6451 is a high-performance MWIR automation camera designed for advanced process control, quality assurance, and non-destructive testing. Part of the A6400-Series, it delivers high thermal sensitivity and fast frame rates for accurate temperature measurement on moving products.

Built on proven A6700-Series electronics, the Flir A6451 supports GigE Vision and GenICam for easy system integration. Its industry-leading long-life linear cooler reduces maintenance demands, making it ideal for continuous 24/7 automation in demanding industrial environments.

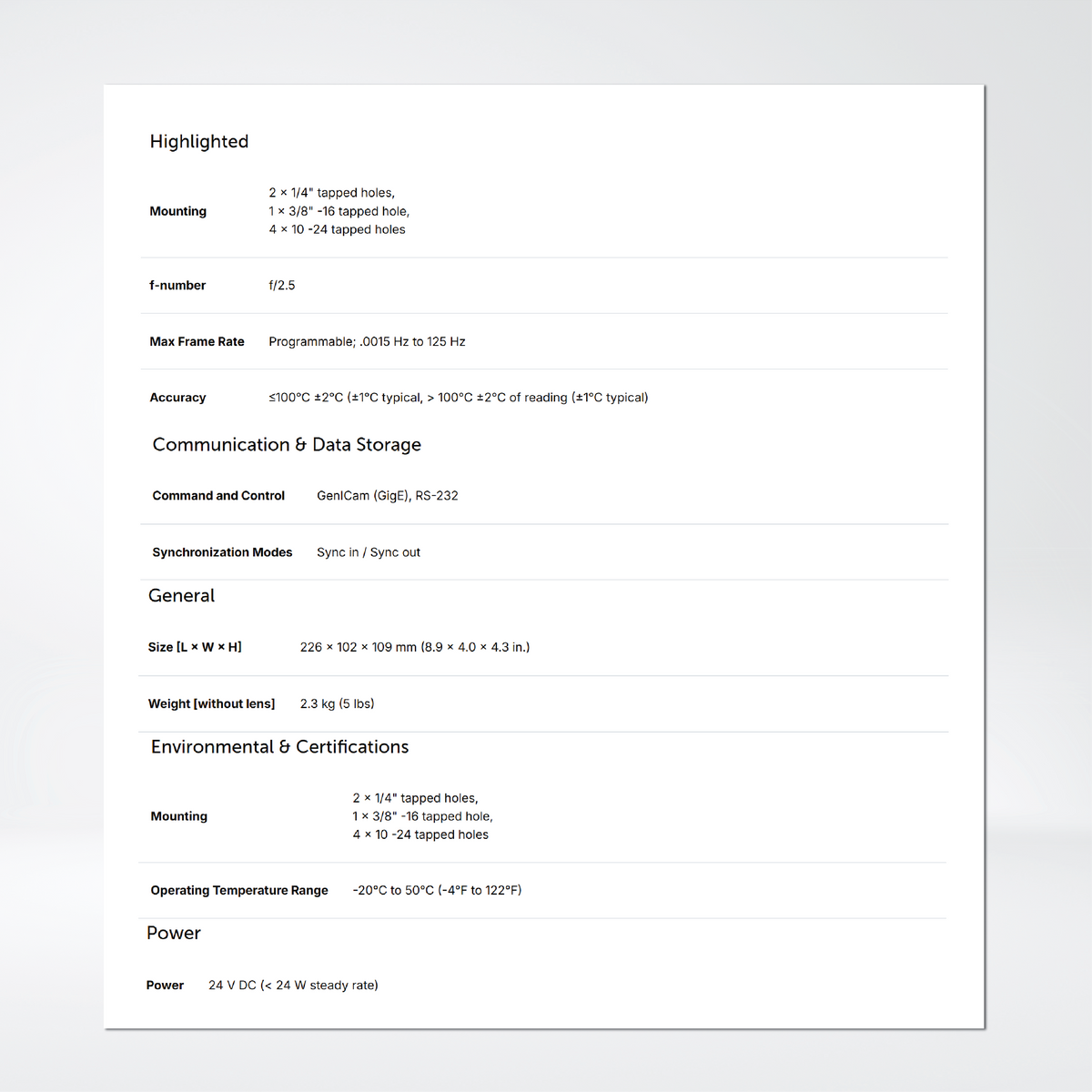

Features

• Mounting    2 × 1/4" tapped holes,
  1 × 3/8" -16 tapped hole,
  4 × 10 -24 tapped holes

• f-number    f/2.5

• Max Frame Rate    Programmable; .0015 Hz to 125 Hz

• Accuracy    ≤100°C ±2°C (±1°C typical, > 100°C ±2°C of reading (±1°C typical)

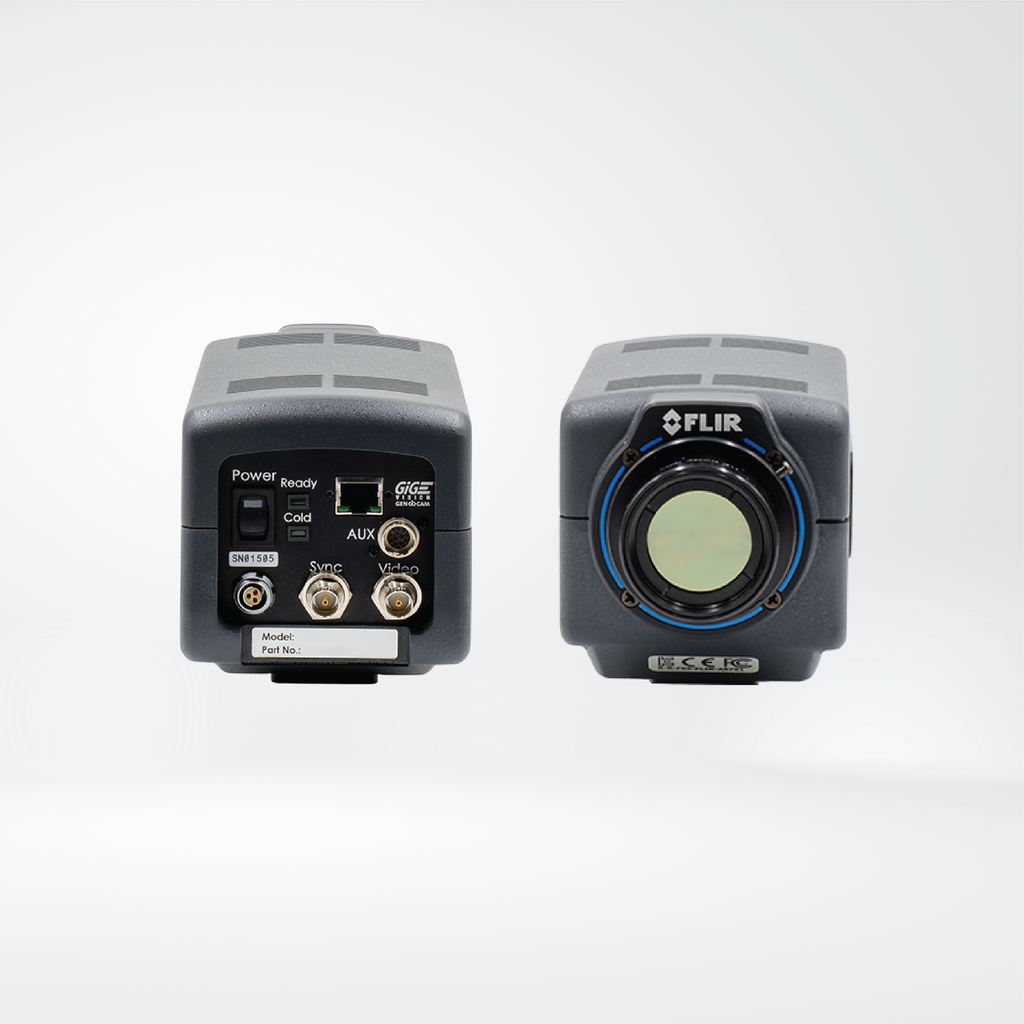

• Command and Control    GenICam (GigE), RS-232
• Synchronization Modes    Sync in / Sync out

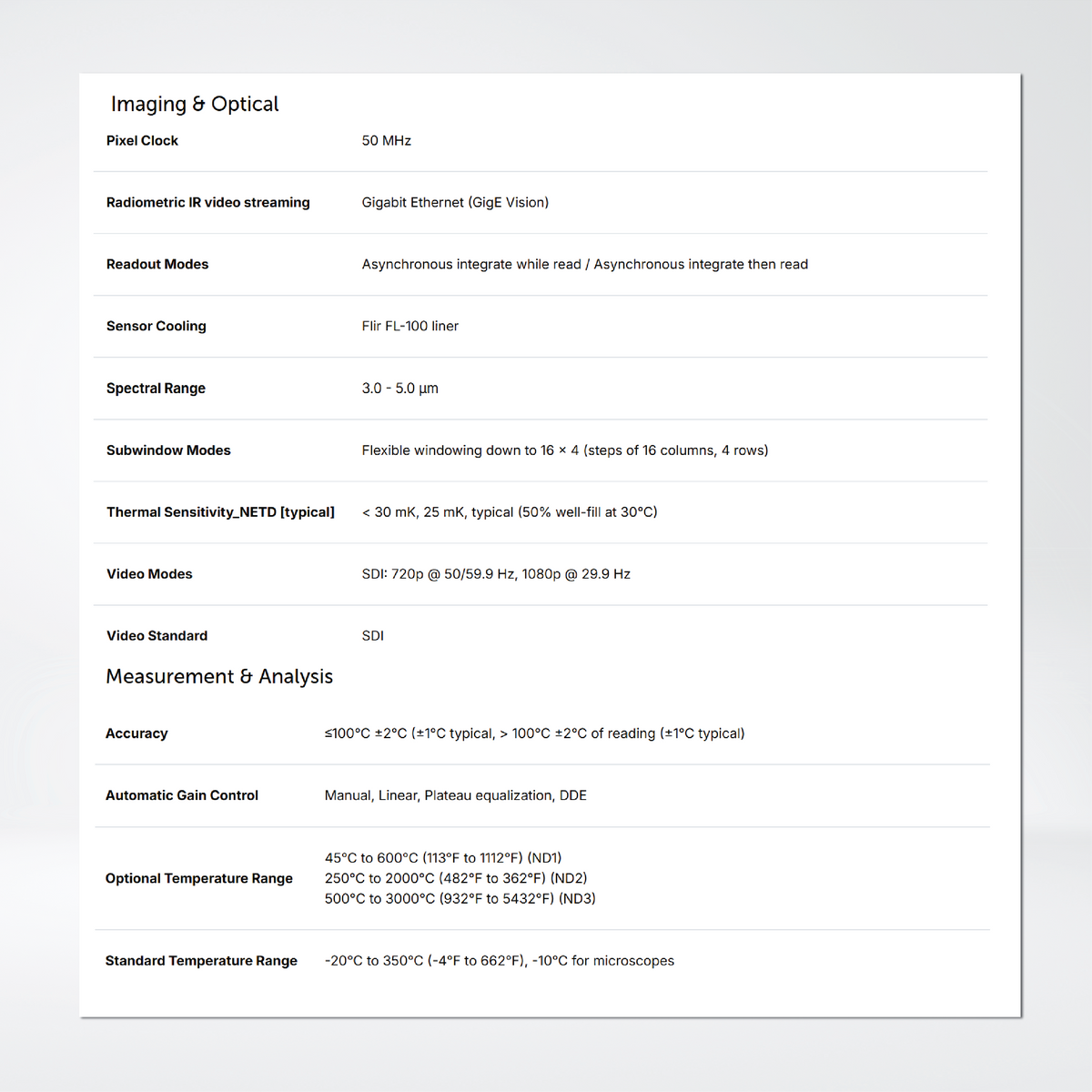

• Measurement & Analysis
  Accuracy
  ≤100°C ±2°C (±1°C typical, > 100°C ±2°C of reading (±1°C typical)
  Automatic Gain Control
  Manual, Linear, Plateau equalization, DDE
  Optional Temperature Range
  45°C to 600°C (113°F to 1112°F) (ND1)
  250°C to 2000°C (482°F to 362°F) (ND2)
  500°C to 3000°C (932°F to 5432°F) (ND3)
  Standard Temperature Range
  -20°C to 350°C (-4°F to 662°F), -10°C for microscopes
• Size [L × W × H]    226 × 102 × 109 mm (8.9 × 4.0 × 4.3 in.)
  Weight [without lens]    2.3 kg
• Power    24 V DC (< 24 W steady rate)

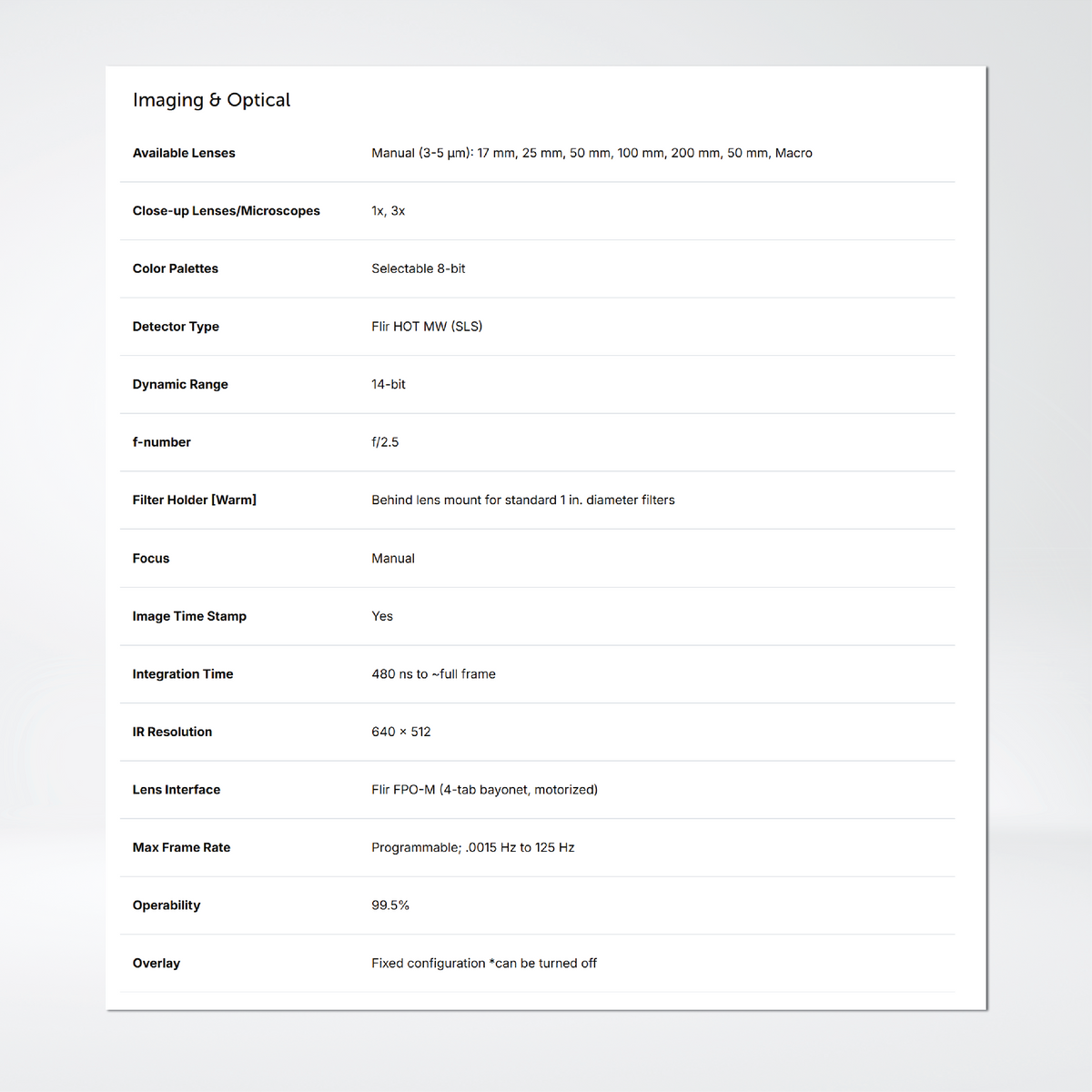

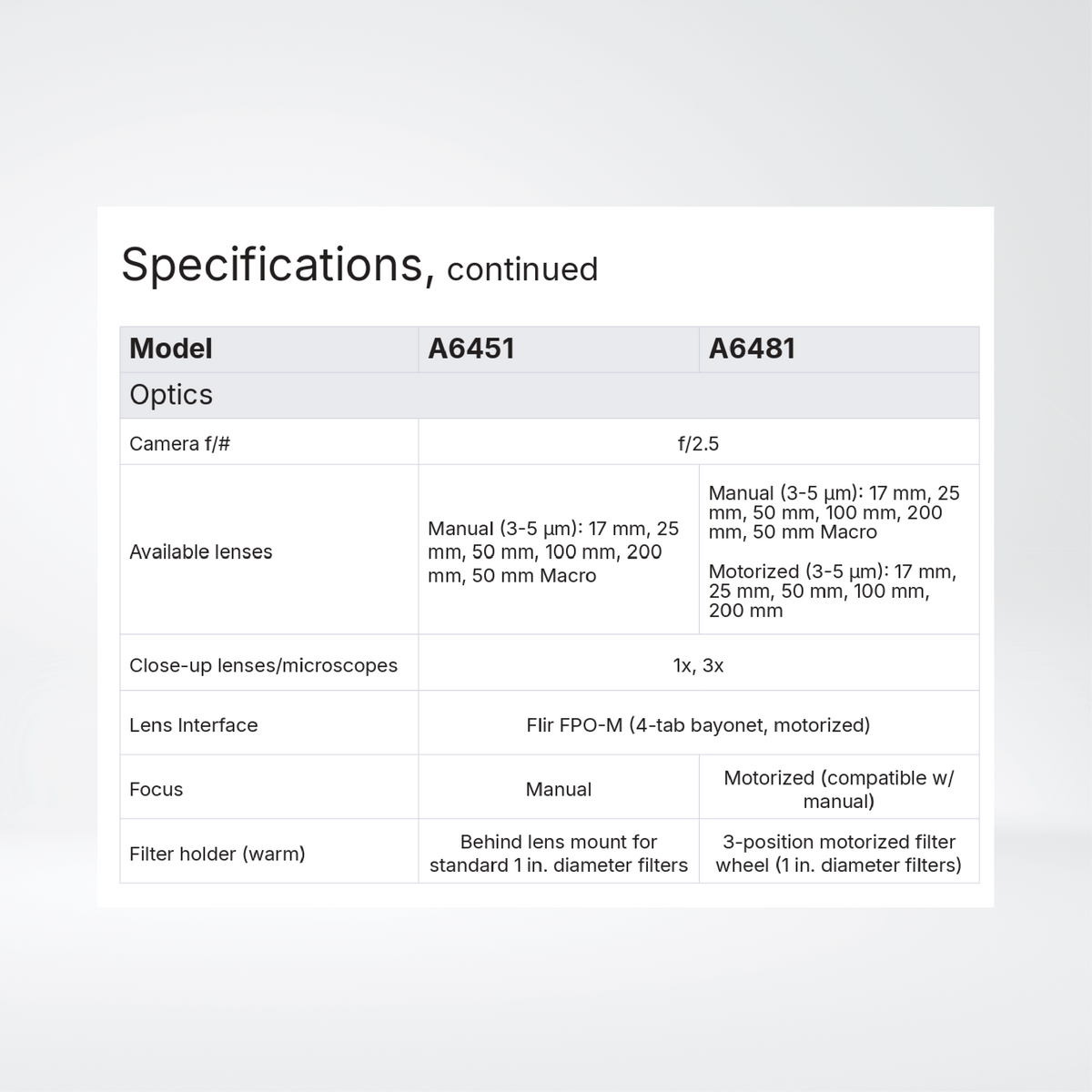

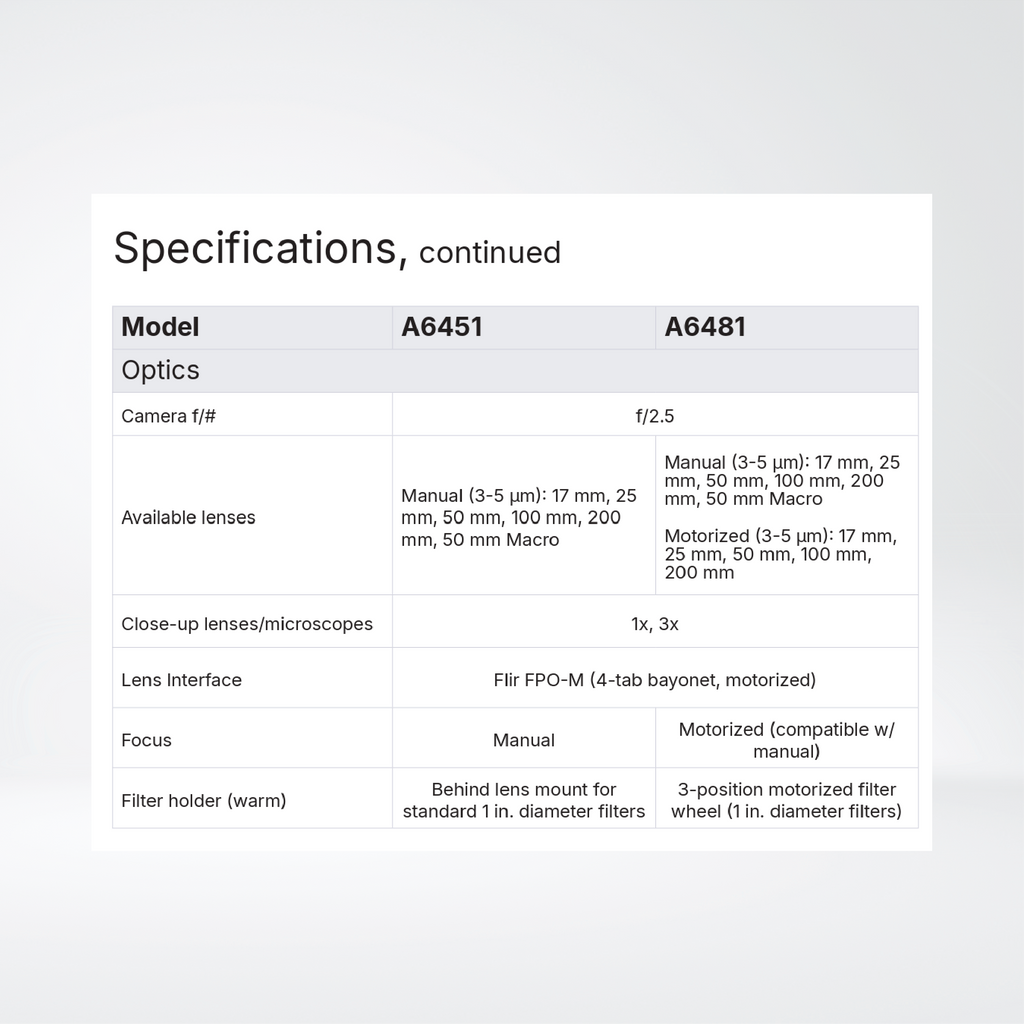

• Optics

  • Camera f/#: f/2.5
  • Available lenses: Manual (3-5 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm, 50 mm Macro
  • Close-up lenses/microscopes: 1x, 3x
  • Lens Interface: Flir FPO-M (4-tab bayonet, motorized)
  • Focus: Manual
  • Filter holder (warm): Behind lens mount for standard 1 in. diameter filters
