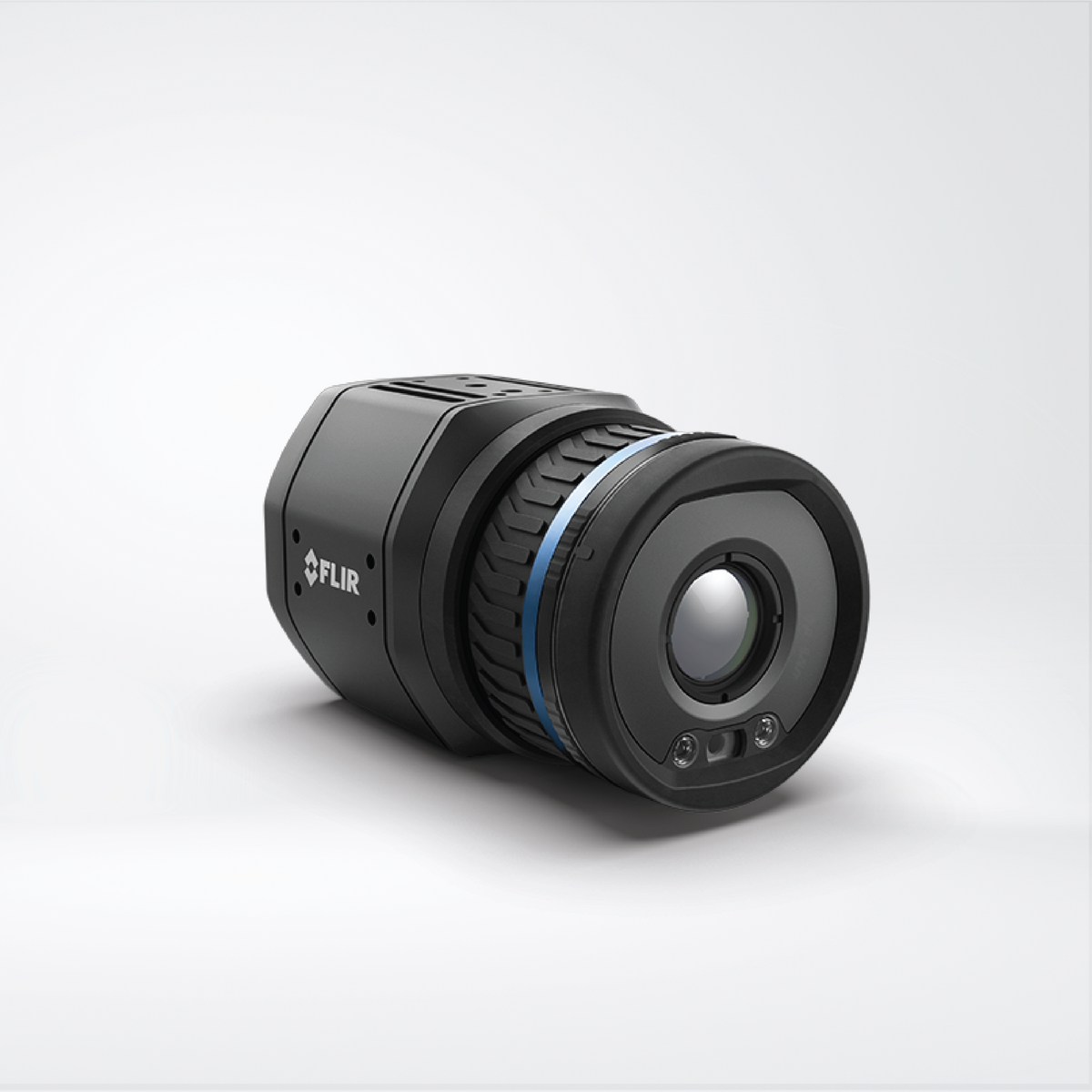

Axxx-Series Smart Sensor , Fixed-Mount Thermal Camera

The Flir Axxx-Series Thermal Smart Sensor Camera has the features automation solution providers need for complex monitoring applications, including critical infrastructure, product quality, and early fire detection. The Smart Sensor configuration includes multiple measurement tools and alarms while also providing computing-on-the-edge, with analytics performed at the camera level for immediate results. With a range of lens choices, motorized focus control, and unrivaled connectivity, A400/A500/A700 cameras offer unmatched power and flexibility. Easy configuration allows you to tailor this monitoring system to your company’s quality, productivity, maintenance, and safety needs.

Features

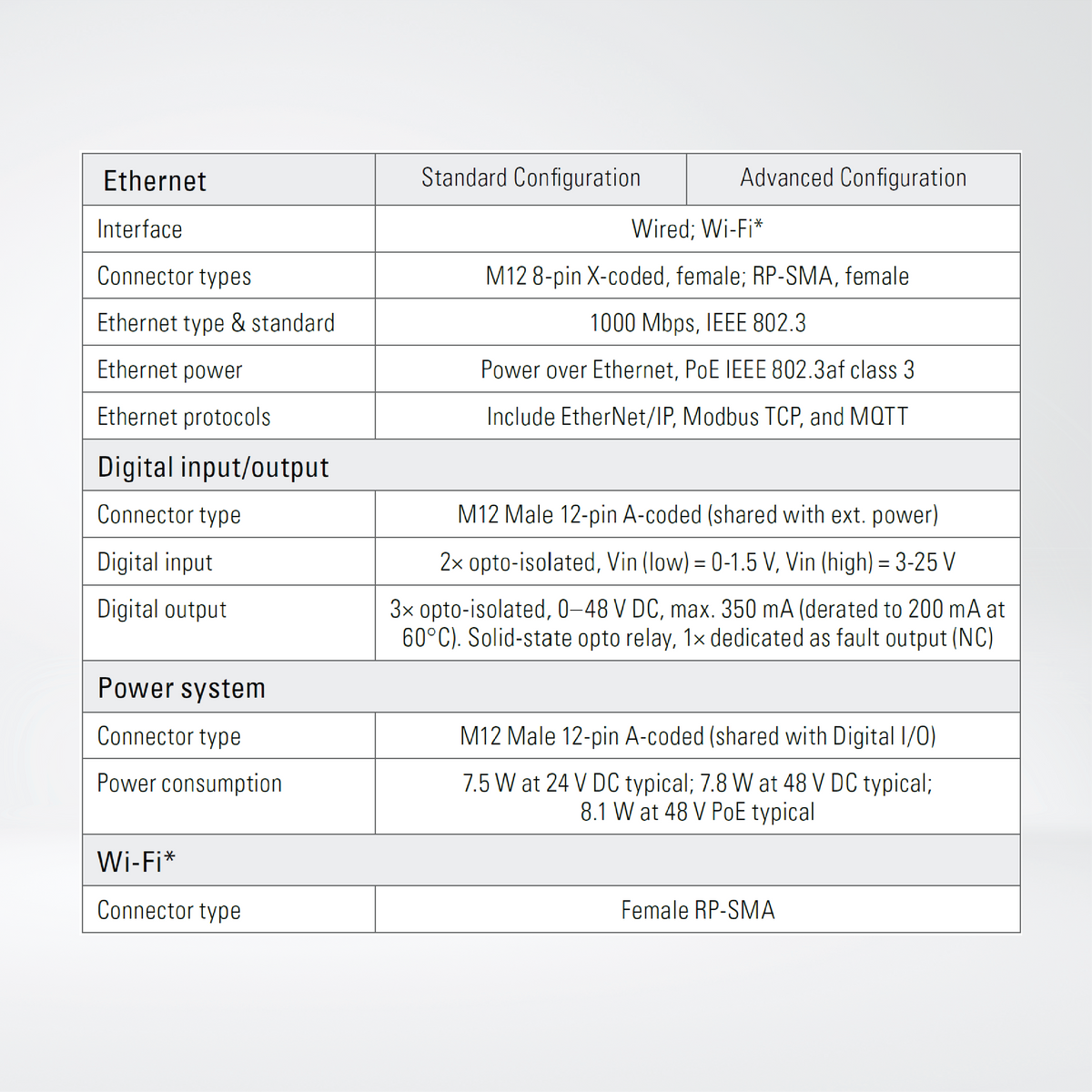

• Digital I/O connector type
  M12 12-pin A-coded, Male (shared with external power)

• Digital Inputs    2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V

• Digital Output Purpose
  A400-Standard, A700-Standard:
  • As a function of alarm, output to external device • Fault (NC)
  A500-Standard: Programmatically set; fault (NC)
  Advanced: • As a function of alarm, output to external device • Fault (NC)

• Digital Outputs    3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)

• Encoding
  A400-Standard, A700-Standard: H.264, MPEG4, or MJPEG
  A500-Standard: RTSP video streaming: H.264 / MPEG4 / MJPEG RTSP radiometric streaming: compressed JPEG-LS, FLIR radiometric GVSP video streaming: uncompressed GVSP radiometric streaming: temperature linear and FLIR radiometric
  Advanced: Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS, FLIR radiometric

• Ethernet Interface    Wired, Wi-Fi (optional)

• WiFi    Optional feature purchased separately. RP-SMA, female connector

• EMC
  • ETSI EN 301 489-1 (radio) • ETSI EN 301 489-17 (radio) • EN 61000-4-8 (magnetic field) • FCC 47 CFR Part 15 Class B (emission US) • ISO 13766-1 (EMC - Earth-moving and building construction machinery) • EN ISO 14982 (EMC - Agricultural and forestry machinery)
• Image Frequency    30 Hz

• Thermal Sensitivity/NETD
  A400, A700: Lens dependent
  A500: <30 mK, 42° @ 30°C (86°F)
  <40 mK, 24° @ 30°C (86°F)
  <50 mK, 14° @ 30°C (86°F)

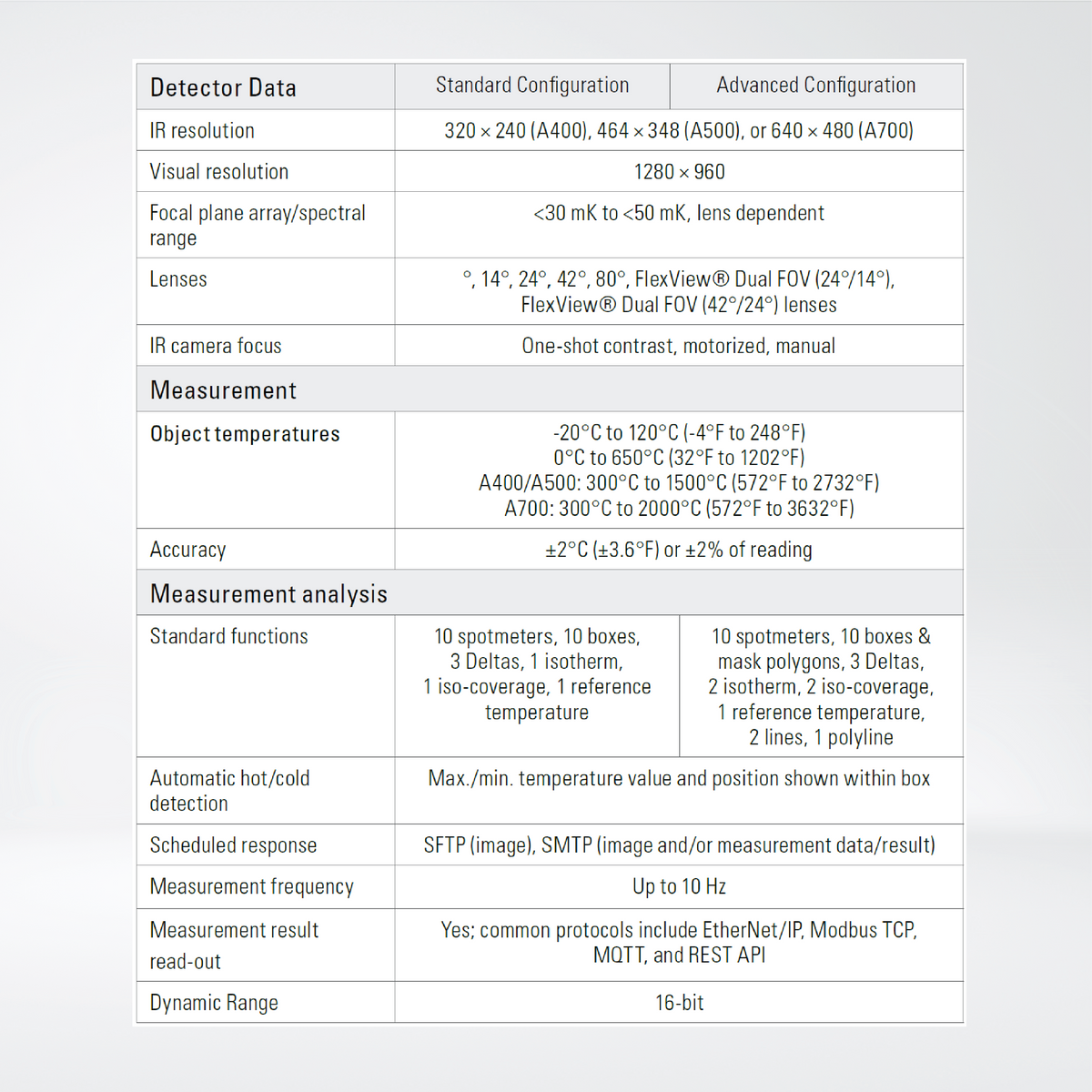

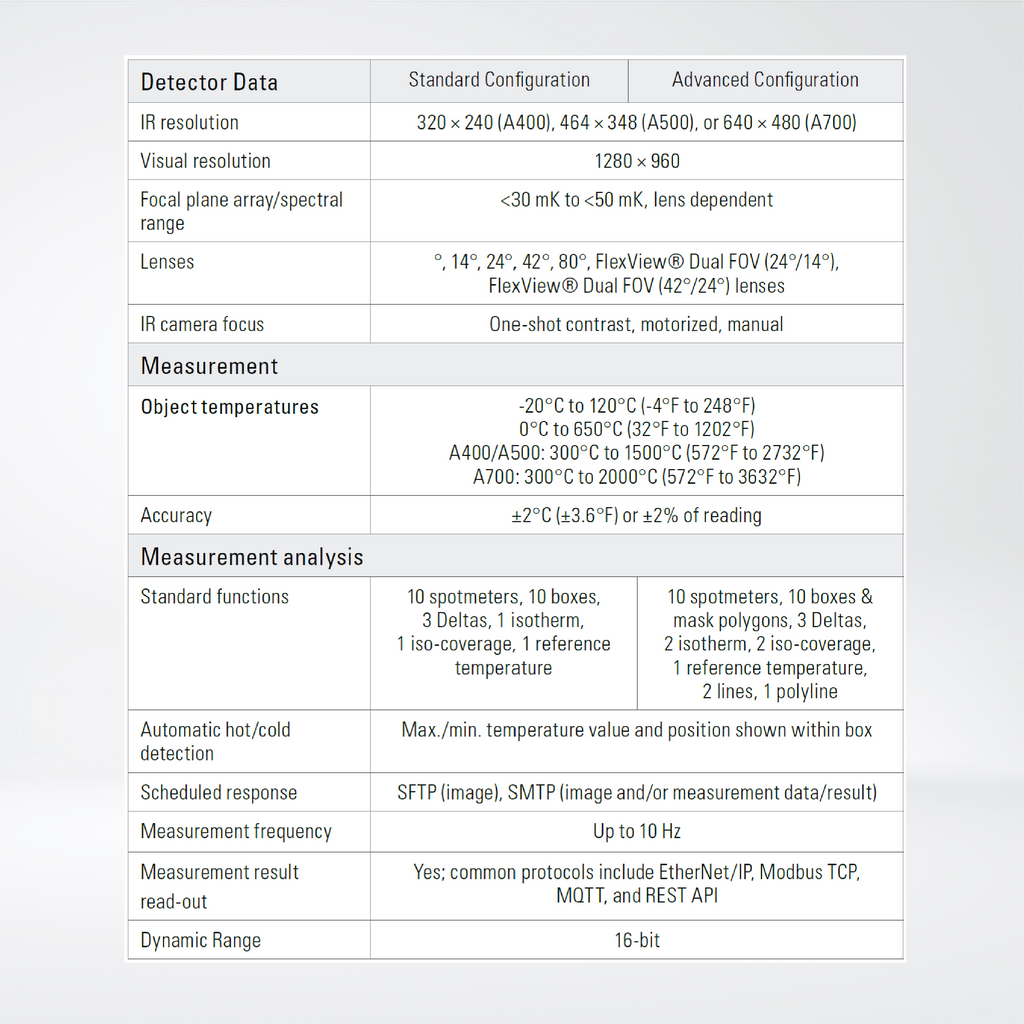

• Accuracy
  ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)

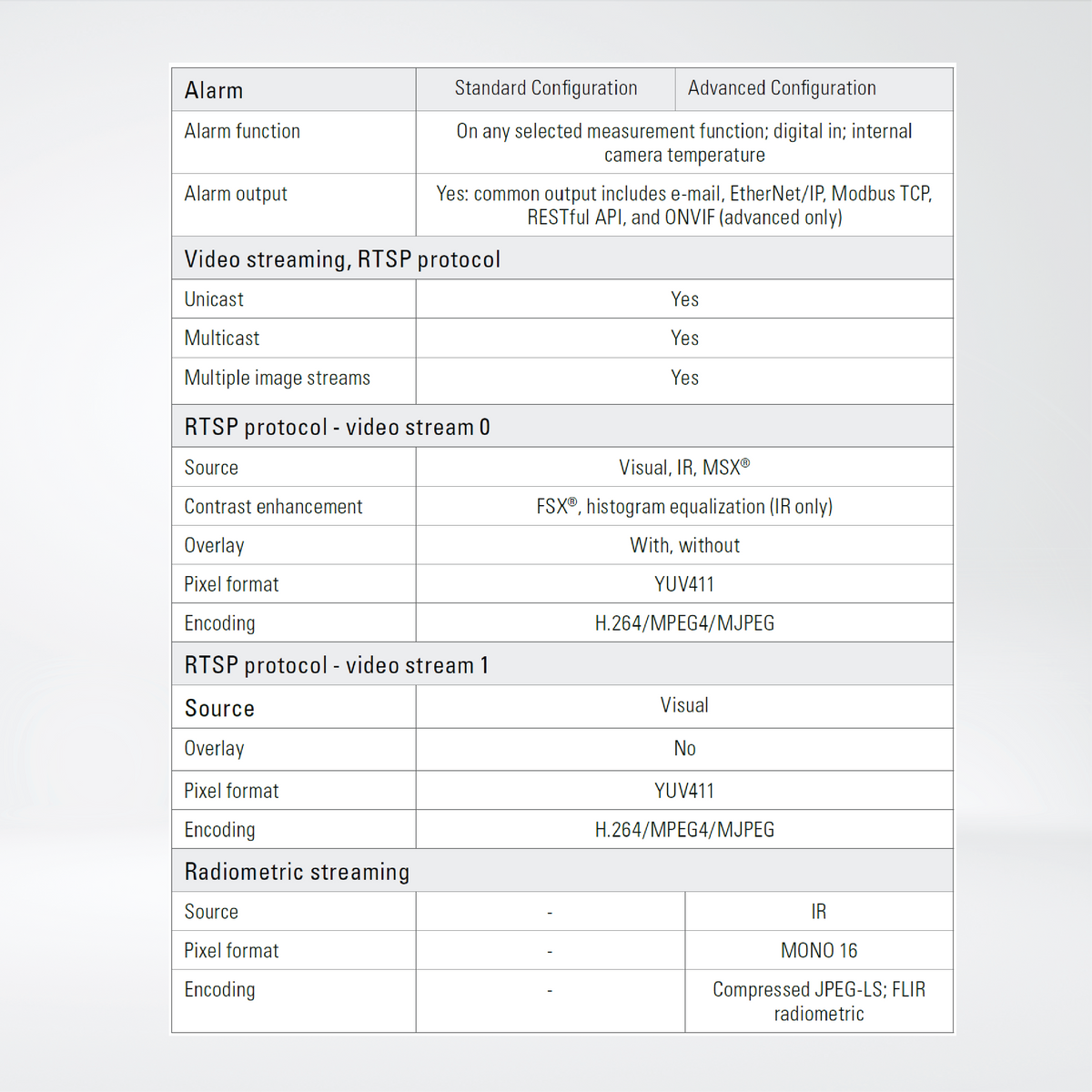

• Alarm Functions
  On any selected measurement function, digital in, and internal camera temperature

• Alarm Output
  • Digital out • E-mail (SMTP) (push) • EtherNet/IP (pull) • File transfer (FTP) (push) • Modbus TCP slave (pull) • MQTT (push) • Query over RESTful API (pull) • Store image or video
