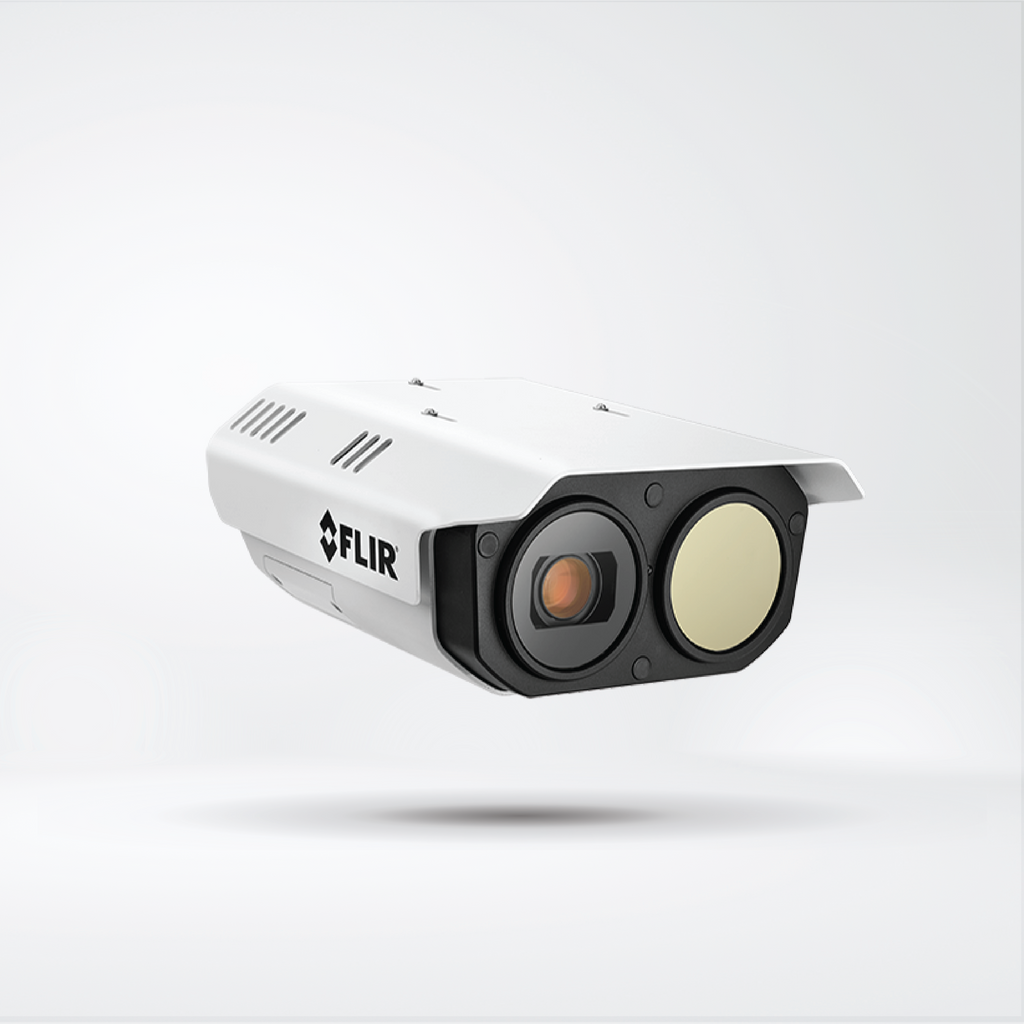

FH-Series R Multispectral Fixed Camera for Early Fire Detection

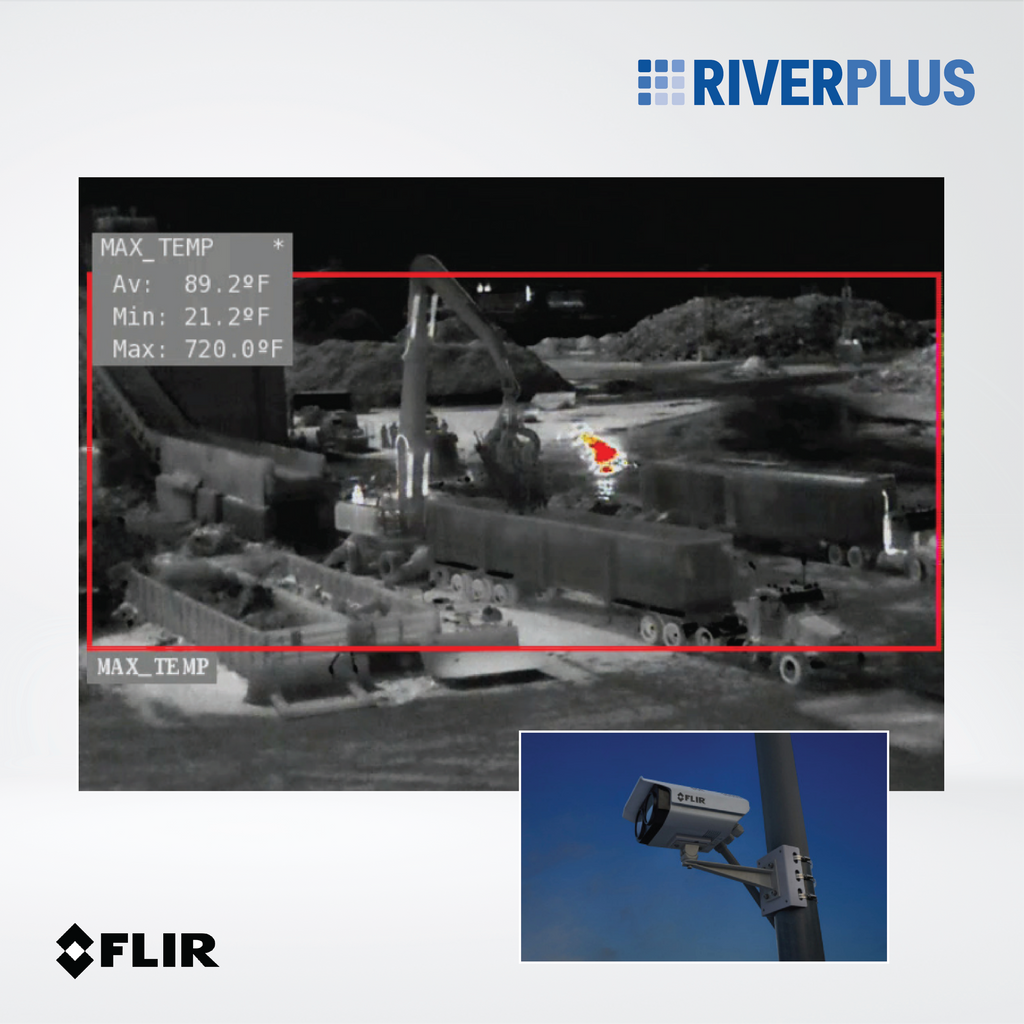

Flir FH-Series R multispectral fixed cameras integrate industry-leading thermal imaging with 4K visible imaging to provide rapid visual verification of hot spots in early fire detection applications. When a hot spot or temperature change is detected, the contactless temperature measurement is sent to the operator through a connected Video Management System (VMS) for instantaneous assessment and deployment of response tactics. Custom scheduling provides security personnel the flexibility to enable and disable alarms depending on business hours and seasonality. Combining the power of thermal hot-spot detection with intelligent vehicle detection, false alarms from hot exhaust pipes can be dramatically reduced.

Features

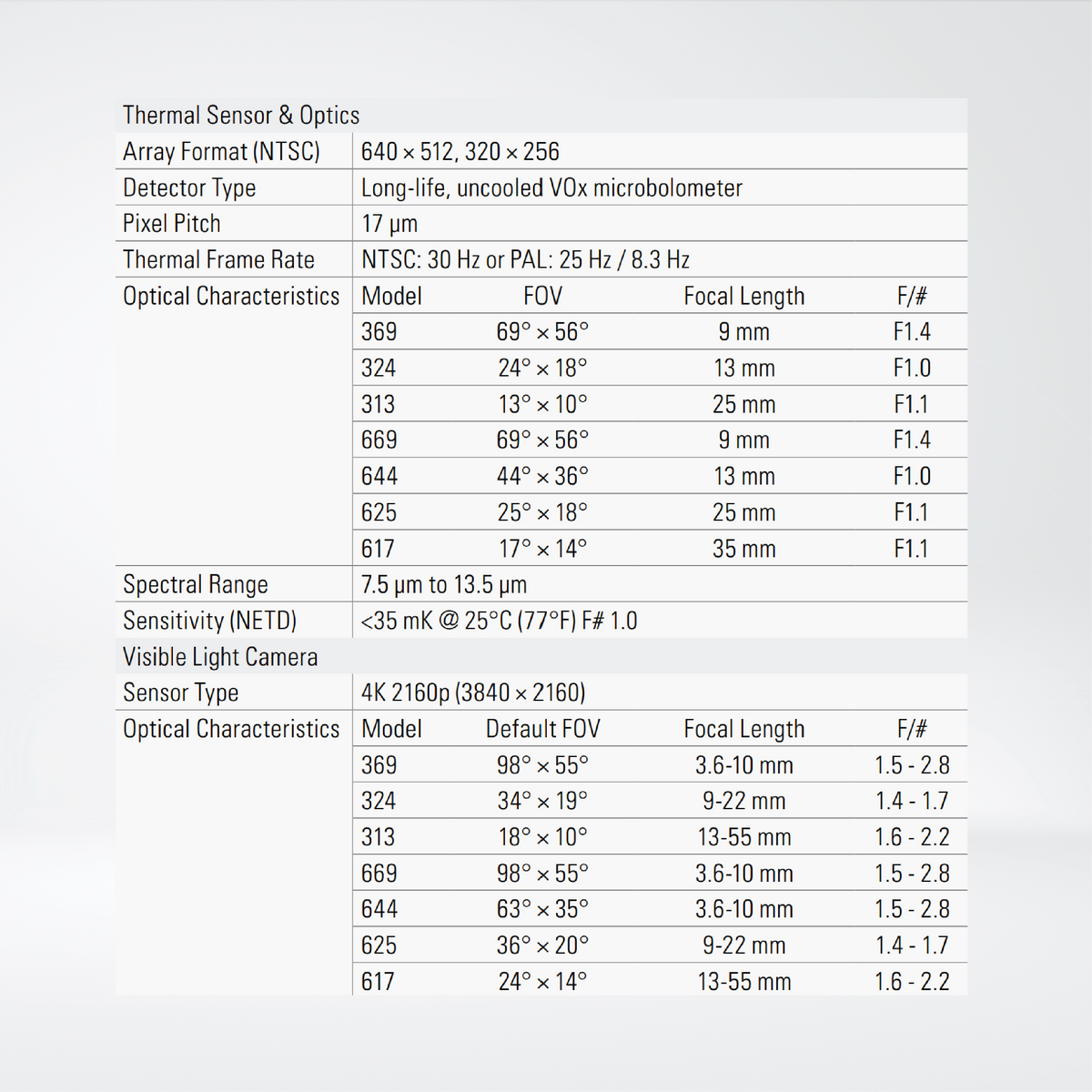

Product Variations

• FH-369 R — 320 × 256, 69° FOV
• FH-669 R — 640 × 512, 69° FOV
• FH-644 R — 640 × 512, 44° FOV
• FH-617 R — 640 × 512, 17° FOV
• FH-324 R — 320 × 256, 24° FOV
• FH-625 R — 640 × 512, 25° FOV
• FH-313 R — 320 × 256, 13° FOV

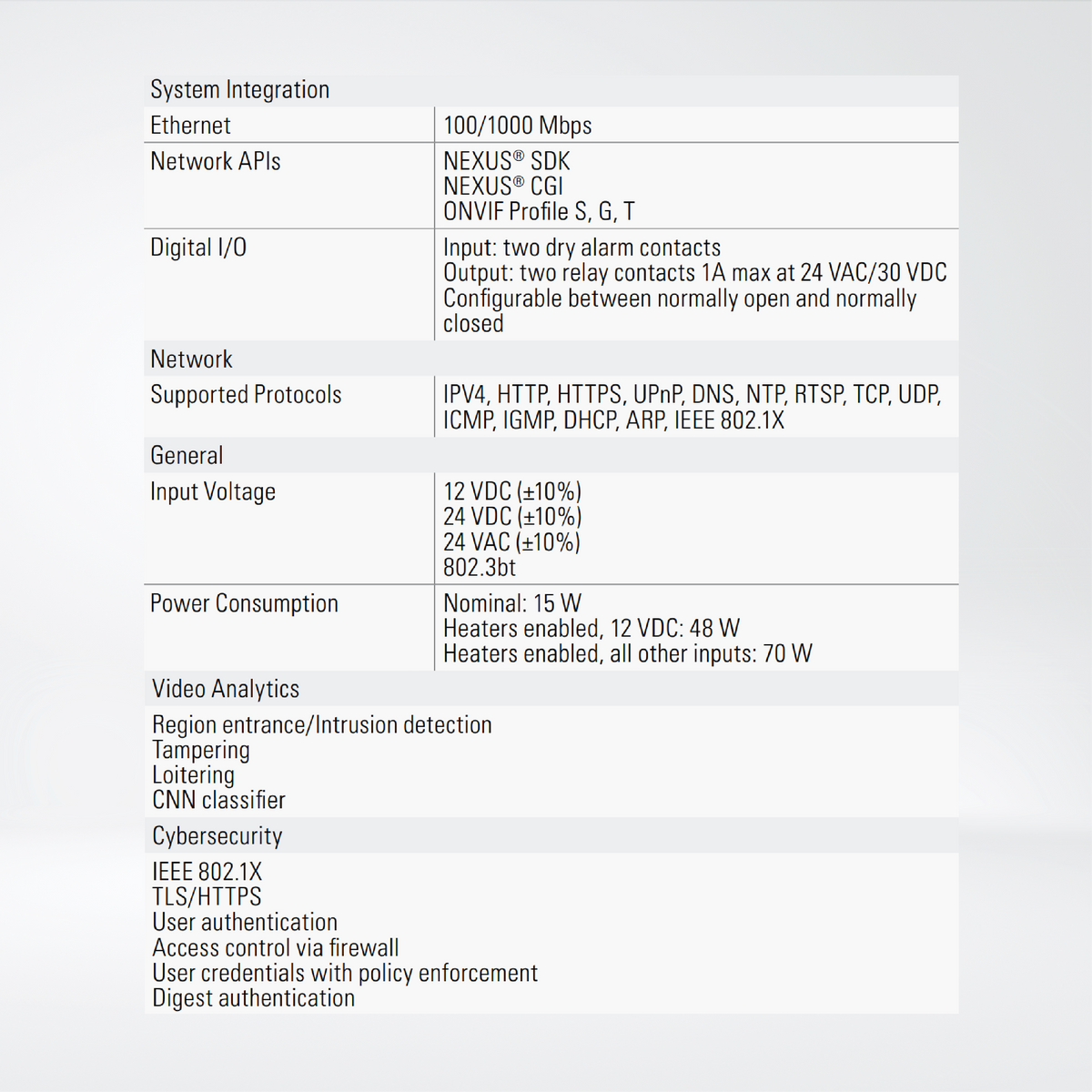

General

• Dimensions (L x W x H)
  314 x 233 x 124 mm/12.4" x 9.2" x 4.9"

• Power Consumption    Nominal: 15 W Heaters enabled, 12 VDC: 48 W Heaters enabled, all other inputs: 70 W

• Surge Immunity on AC Power Lines    EN 50130-4

• Surge Immunity on Signal Lines    EN 50130-4

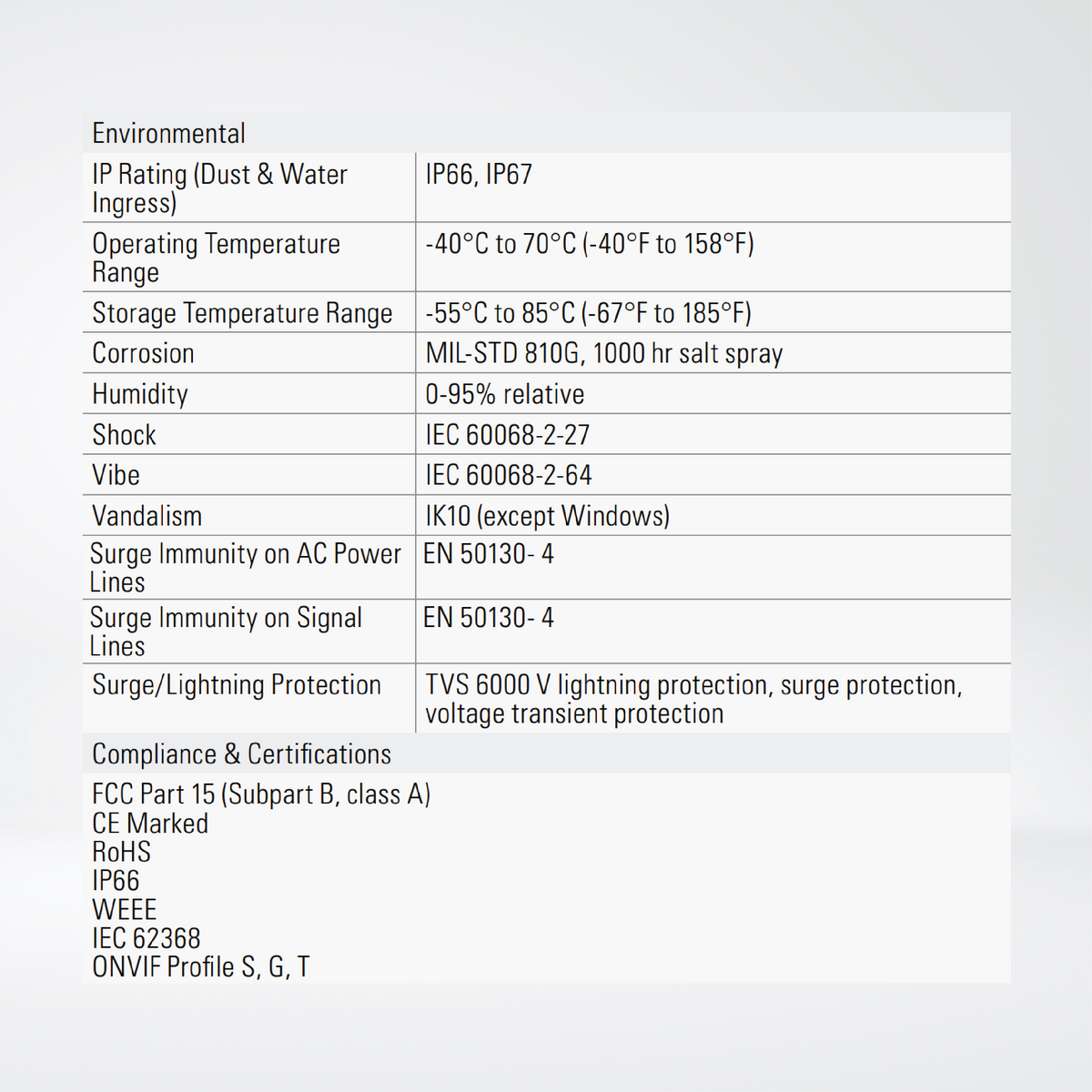

Environmental

• Humidity    0-95% relative humidity

• IP Rating (dust & water ingress)    IP66 & IP67

• Operating Temperature Range    -40°C to 70°C/-40°F to 158°F

• Shock    IEC 60068-2-27

• Storage Temperature Range    -50°C to 85°C/-58°F to 185°F

• Vibration    IEC 60068-2-64

Compliance & Certifications

• Approvals    FCC Part 15 (Subpart B, class A), CE Marked

• Certifications    IEC 62368

• Compliance    RoHS, WEEE

Measurement & Analysis

• Analytics Features
  Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier

• Analytics Management
  Web-based confguration and management, masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control

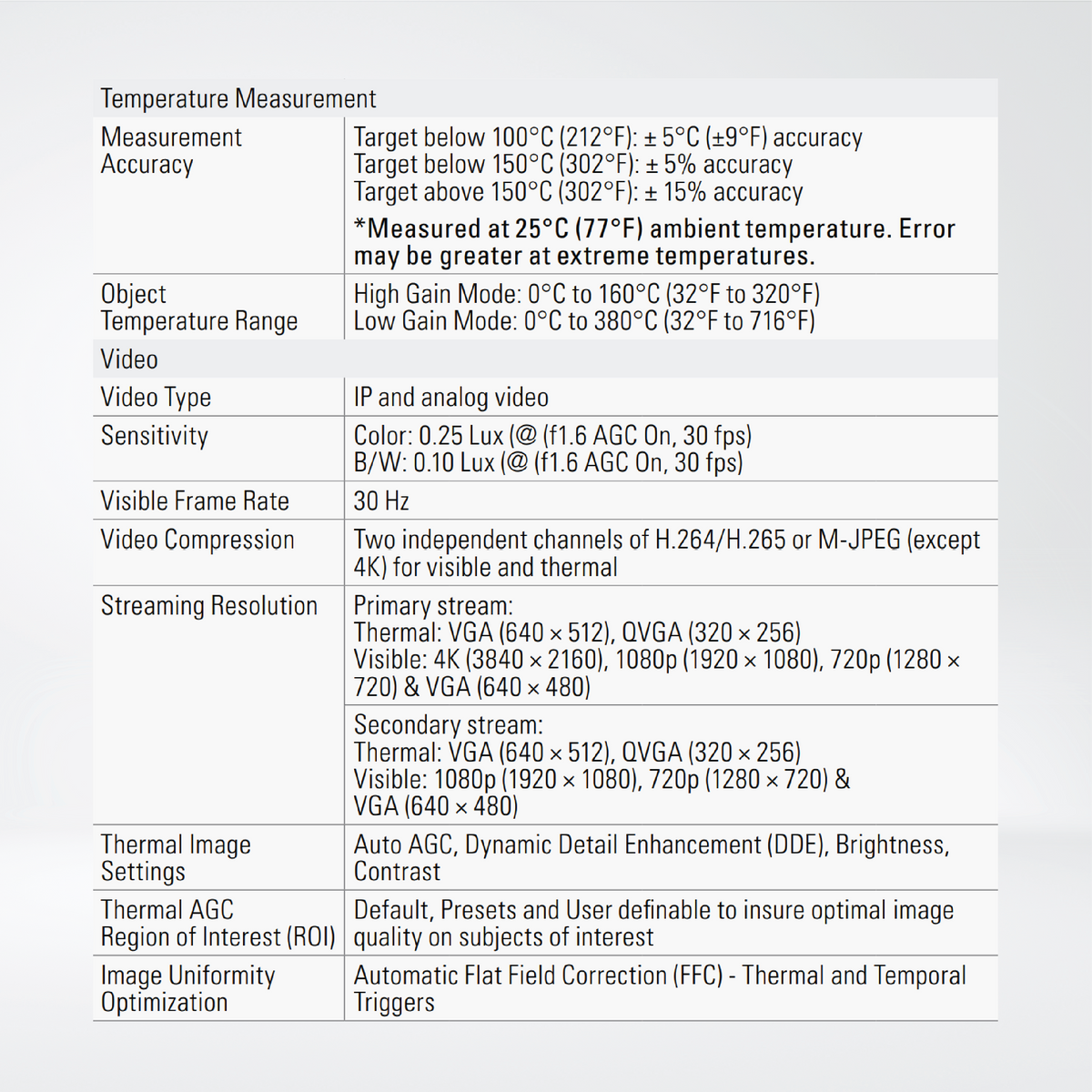

• Measurement Accuracy
  Target below 100 °C (212 °F): ± 5 °C (±9 °F) accuracy Target below 150 °C (302 °F): ± 5% accuracy Target above 150 °C (302 °F): ± 15% accuracy *Measured at 25°C ambient temperature. Error may be greater at extreme temperatures

• Object Temperature Range
  High Gain Mode: 0°C to 160°C (32°F to 320°F) Low Gain Mode: 0°C to 380°C (32°F to 716°F)
