Description
Lynx is a maximum value extension solution for high resolution 4K graphics requiring smooth video playback and audio de-embedding at a value price point.

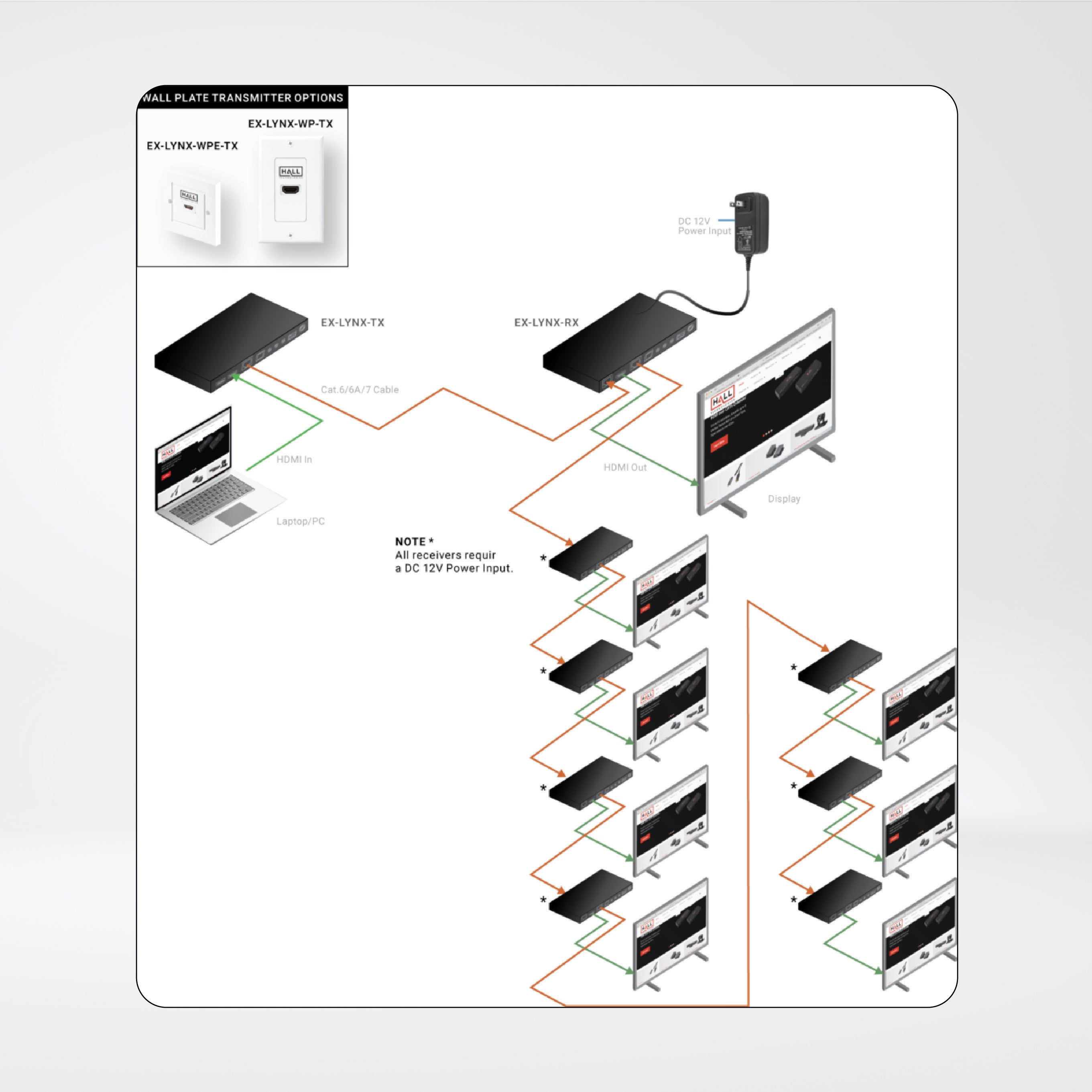

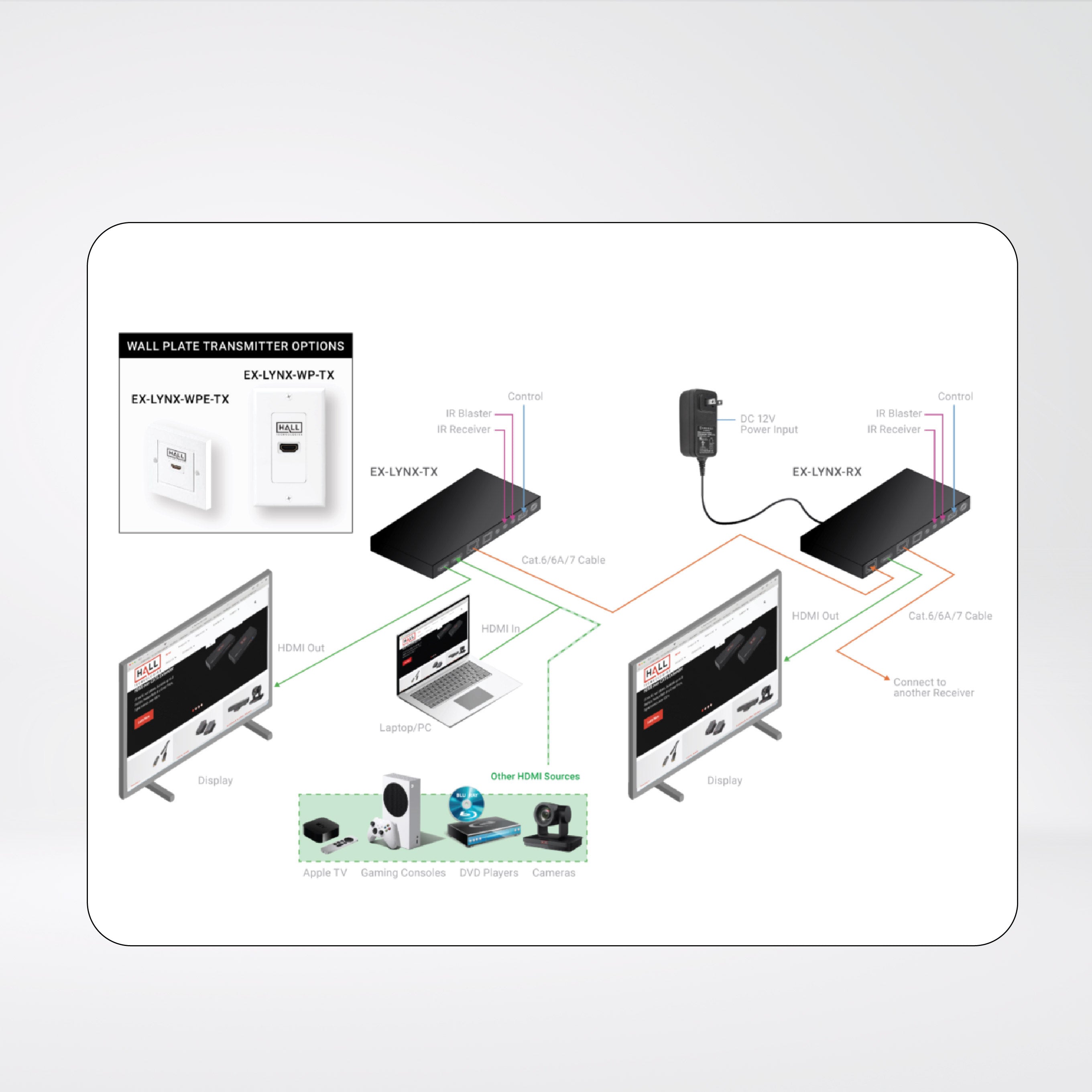

Cascade up to 8 receivers to scale functionality and maximize distribution distance.
Ideal Applications: K-12 & Higher Ed, meeting spaces of all sizes, hospitality, and digital signage applications for up to 8 displays.
Features

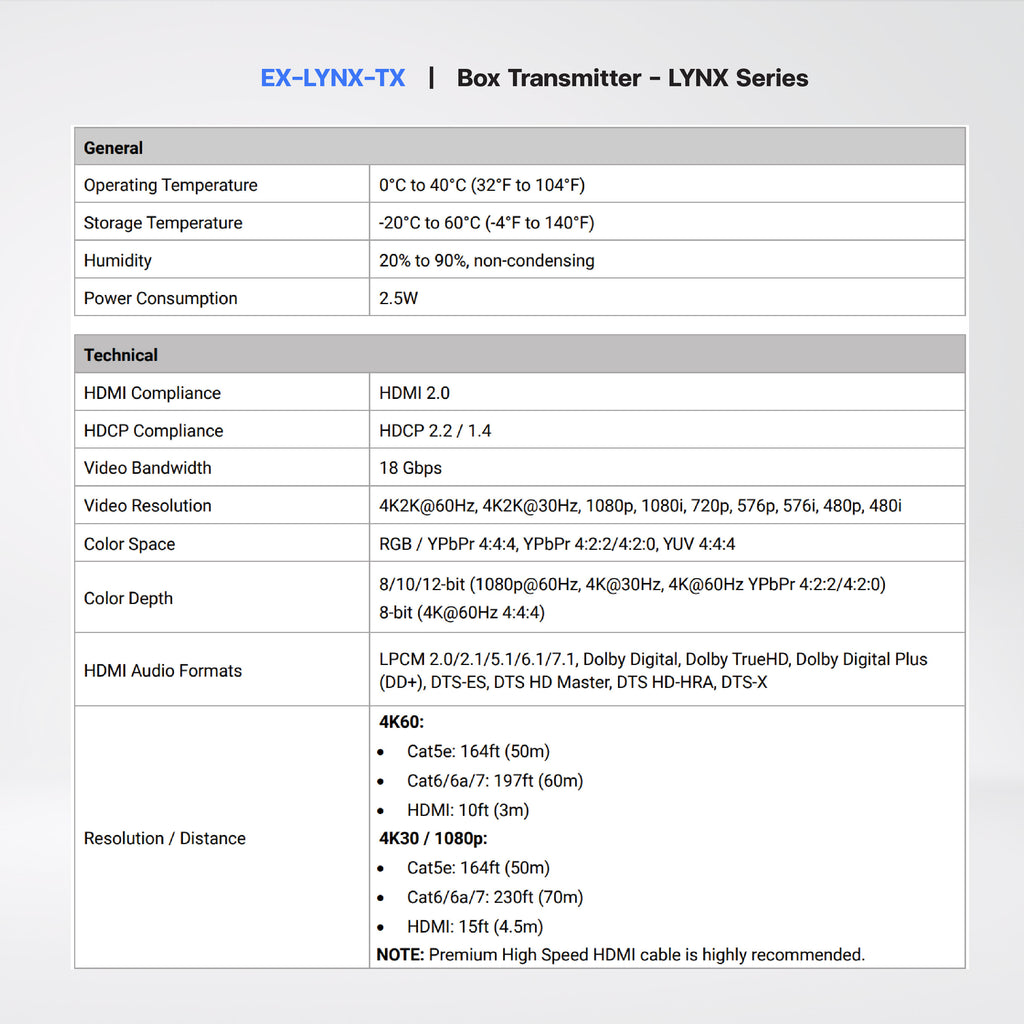

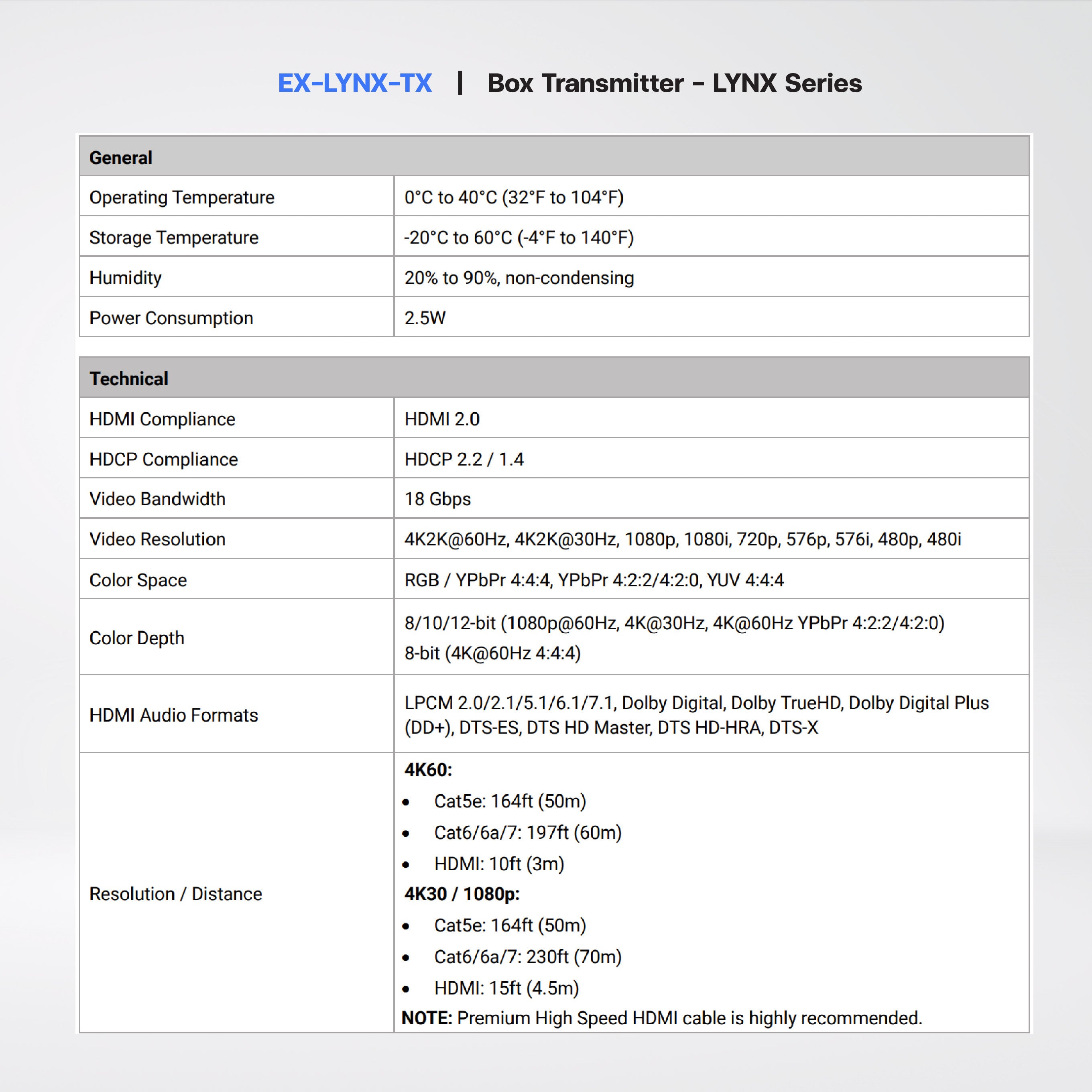

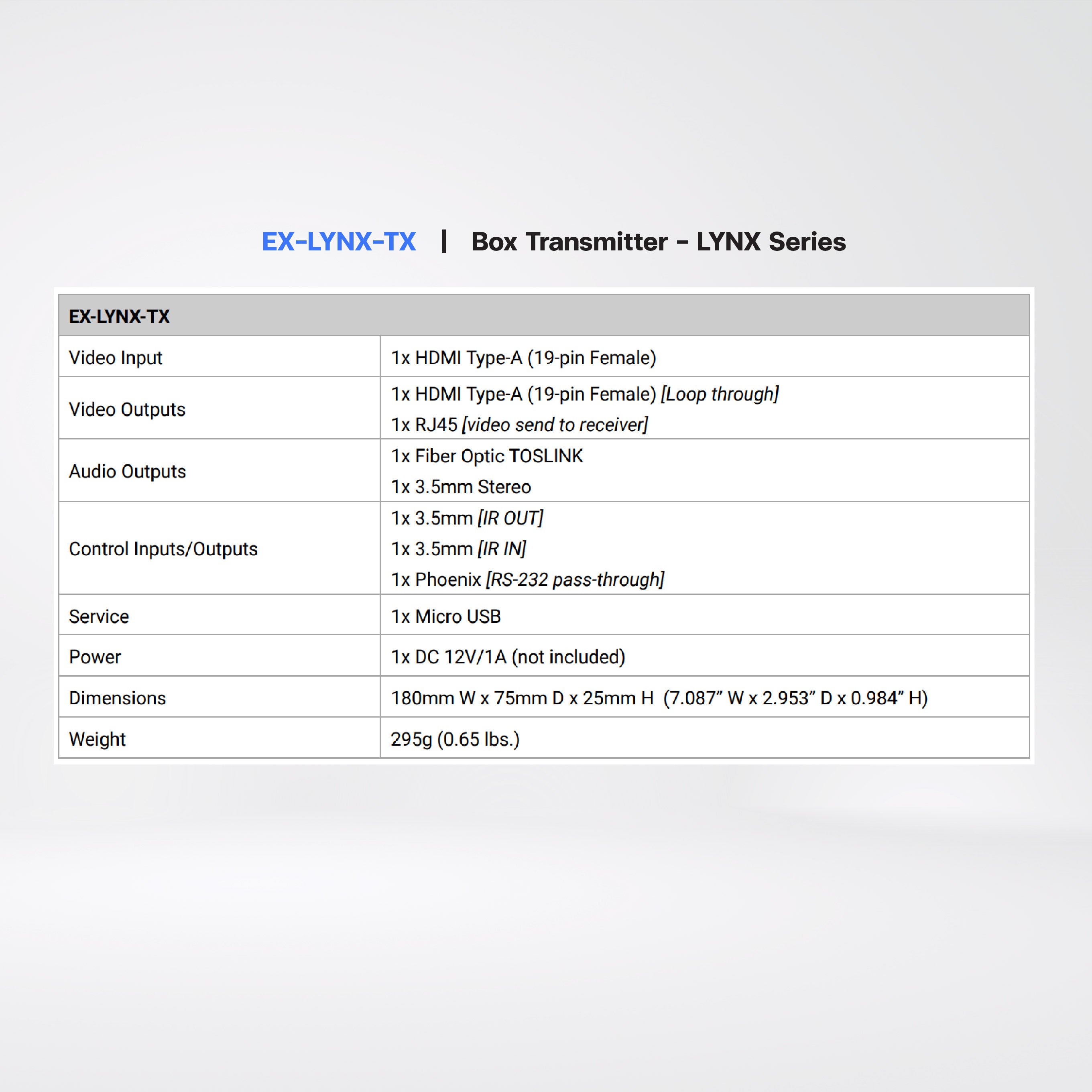

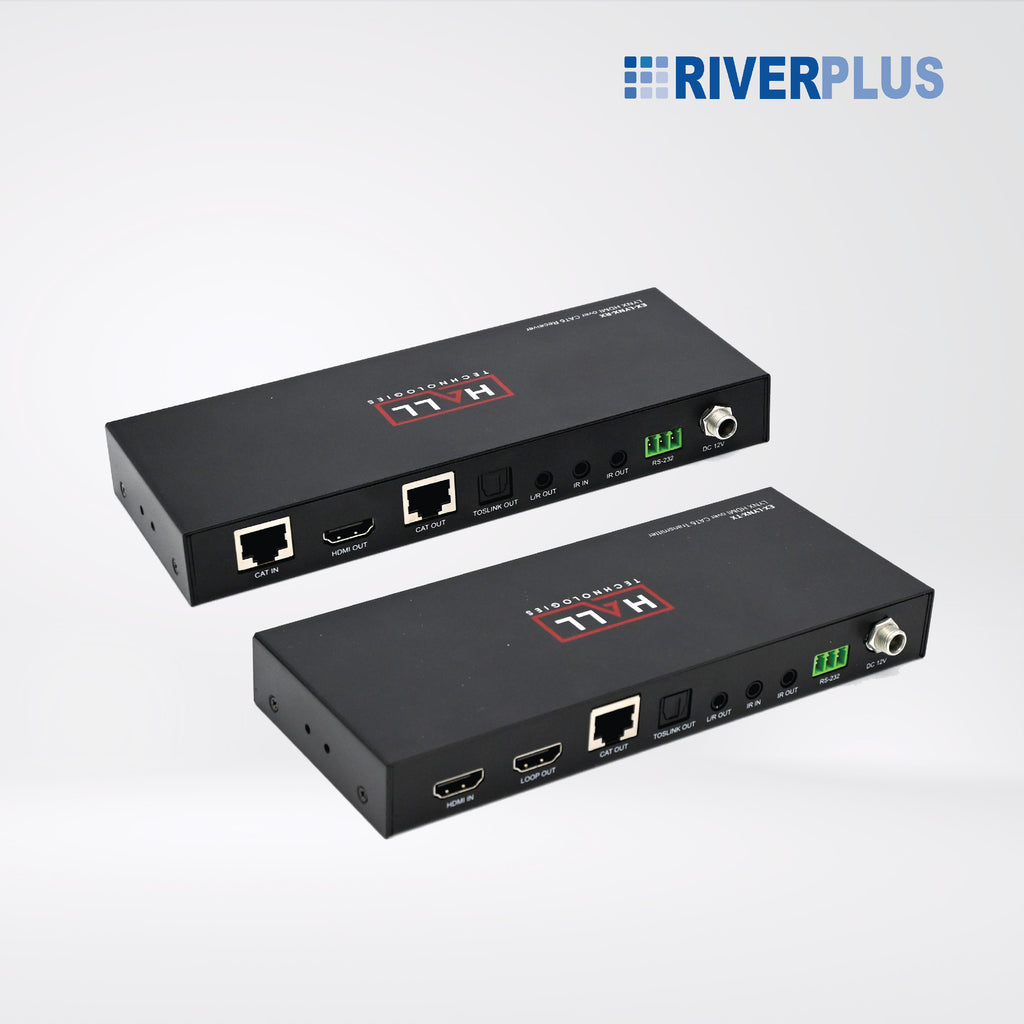

EX-LYNX-TX : Box Transmitter - LYNX Series
- INPUT: HDMI 2.0, HDCP 2.2 / HDCP 1.4
- 4k2k@60Hz 4:4:4 signal extends distance up to 60 meters over a single Cat6 cable
- Supports Ultra HD resolution 4K/2K@60Hz,4:4:4
- Supports HDR (High Dynamic Range)
- Bi-directional IR supported
- Supports Local Loop Output
- Note: Rs232 & IR only can be used between Transmitter and the first Receiver, if multiple Receivers are cascaded.
- Support for mixing EDID for better compatibility
- Offers simple and quick distribution for HDMI video signals – position your monitors wherever you wish
- Resolutions: 4K2K (60Hz), 4K2K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
- LED status display
- Max transfer rate: 18 Gbps
- Color depth: 12 bit
- Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
- Supports uncompressed audio signals such as LPCM
- Compact size, simple use and installation
- Supports PoC, function. This means either transmitter or receiver is powered by a 12v power adapter, the other device doesn’t need a power supply

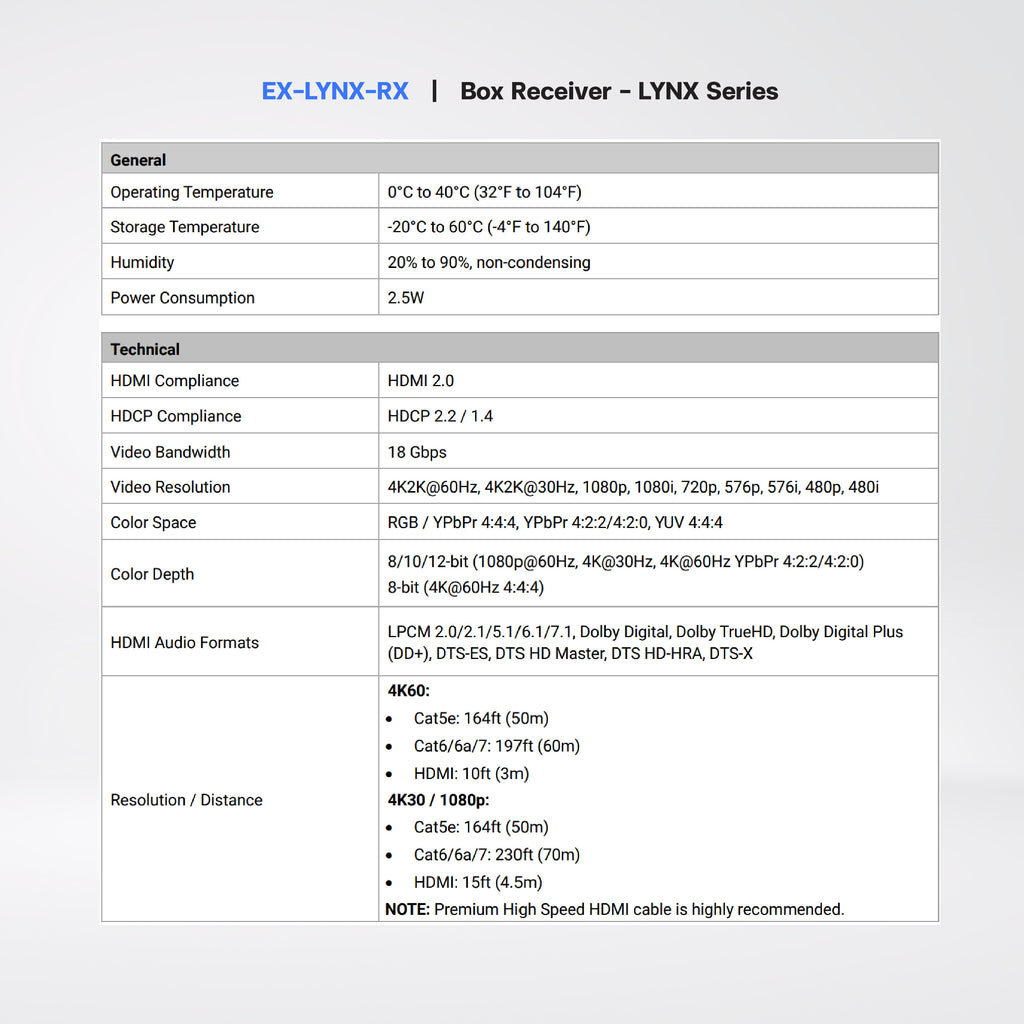

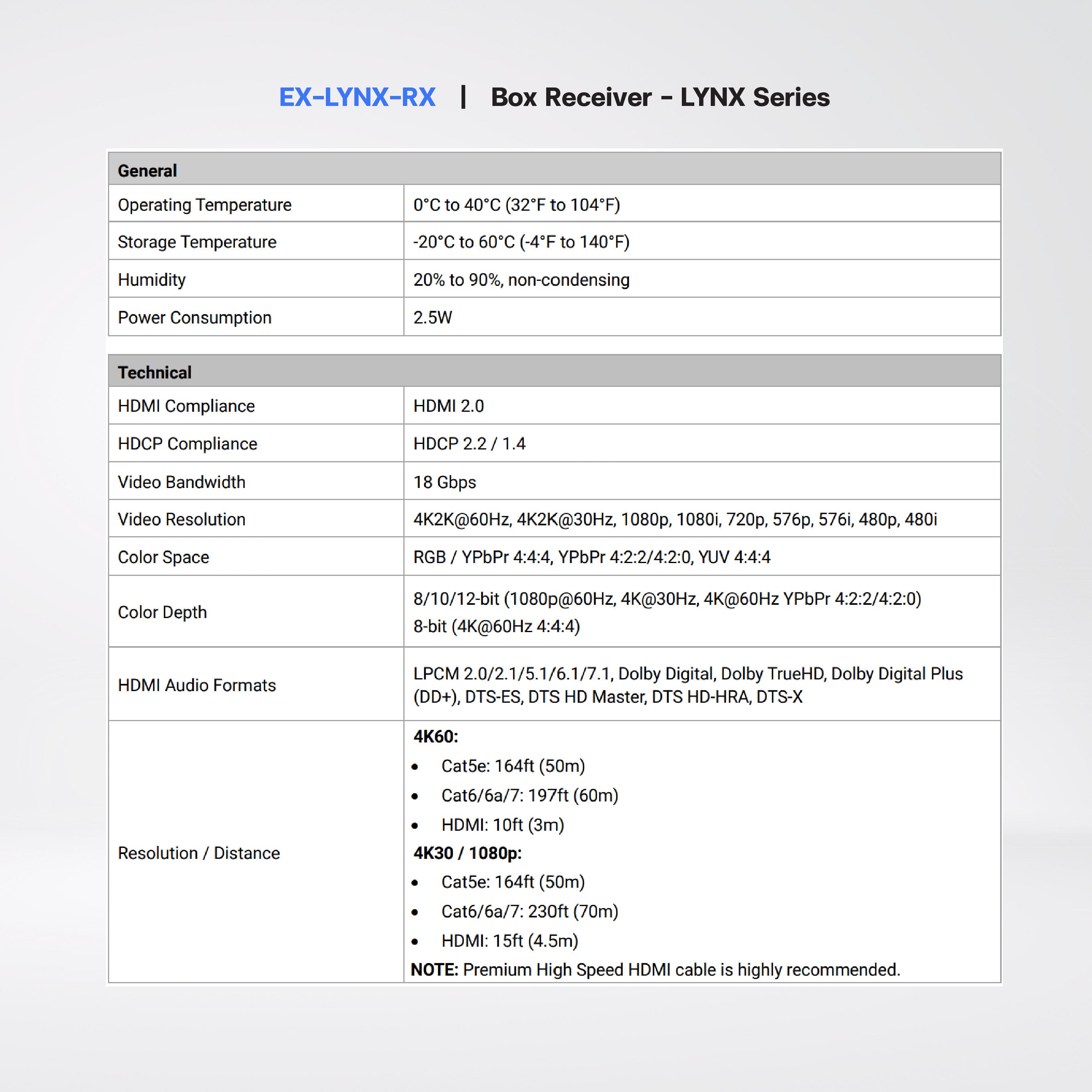

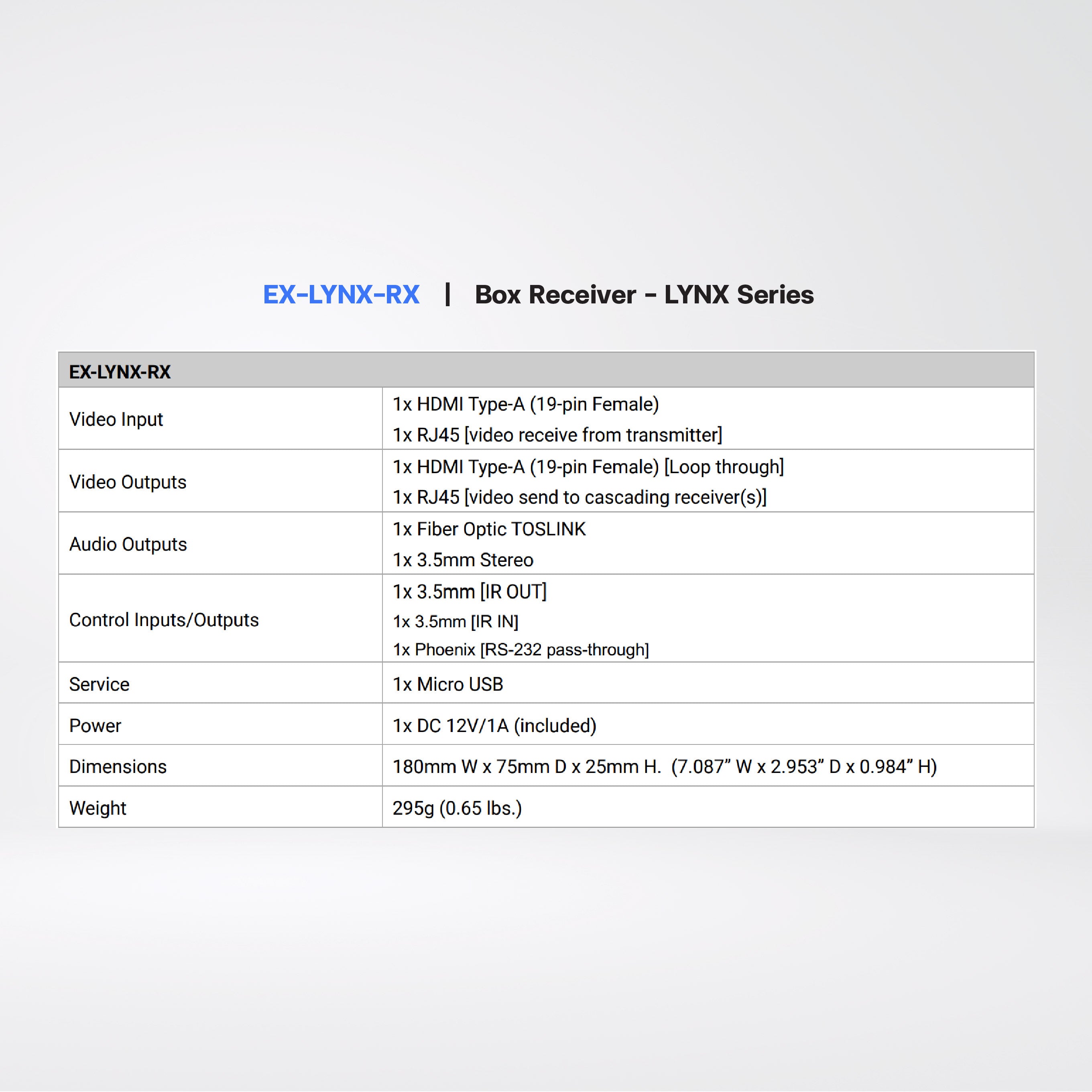

EX-LYNX-RX : Box Receiver - LYNX Series
- OUTPUT: HDMI 2.0, HDCP 2.2 / HDCP 1.4
- 4k2k@60Hz 4:4:4 signal extends distance up to 60 meters over a single Cat6 cable
- Supports Ultra HD resolution 4K/2K@60Hz,4:4:4
- Supports HDR (High Dynamic Range)
- Bi-directional IR supported
- Supports Local Loop Output and cascading VIA RJ45 CAT Port
- Note: Rs232 & IR only can be used between Transmitter and the first Receiver, if multiple Receivers are cascaded.
- Support for mixing EDID for better compatibility
- Offers simple and quick distribution for HDMI video signals – position your monitors wherever you wish
- Resolutions: 4K2K (60Hz), 4K2K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
- LED status display
- Max transfer rate: 18 Gbps
- Color depth: 12 bit
- Supports compressed audio signals, such as DTS digital, Dolby digital (including DTS-HD and Dolby True HD)
- Supports uncompressed audio signals such as LPCM
- Compact size, simple use and installation
- Supports PoC, function. This means either transmitter or receiver is powered by a 12v power adapter, the other device doesn’t need a power supply
Term and Condition
รับประกันสินค้า : 1 Year
