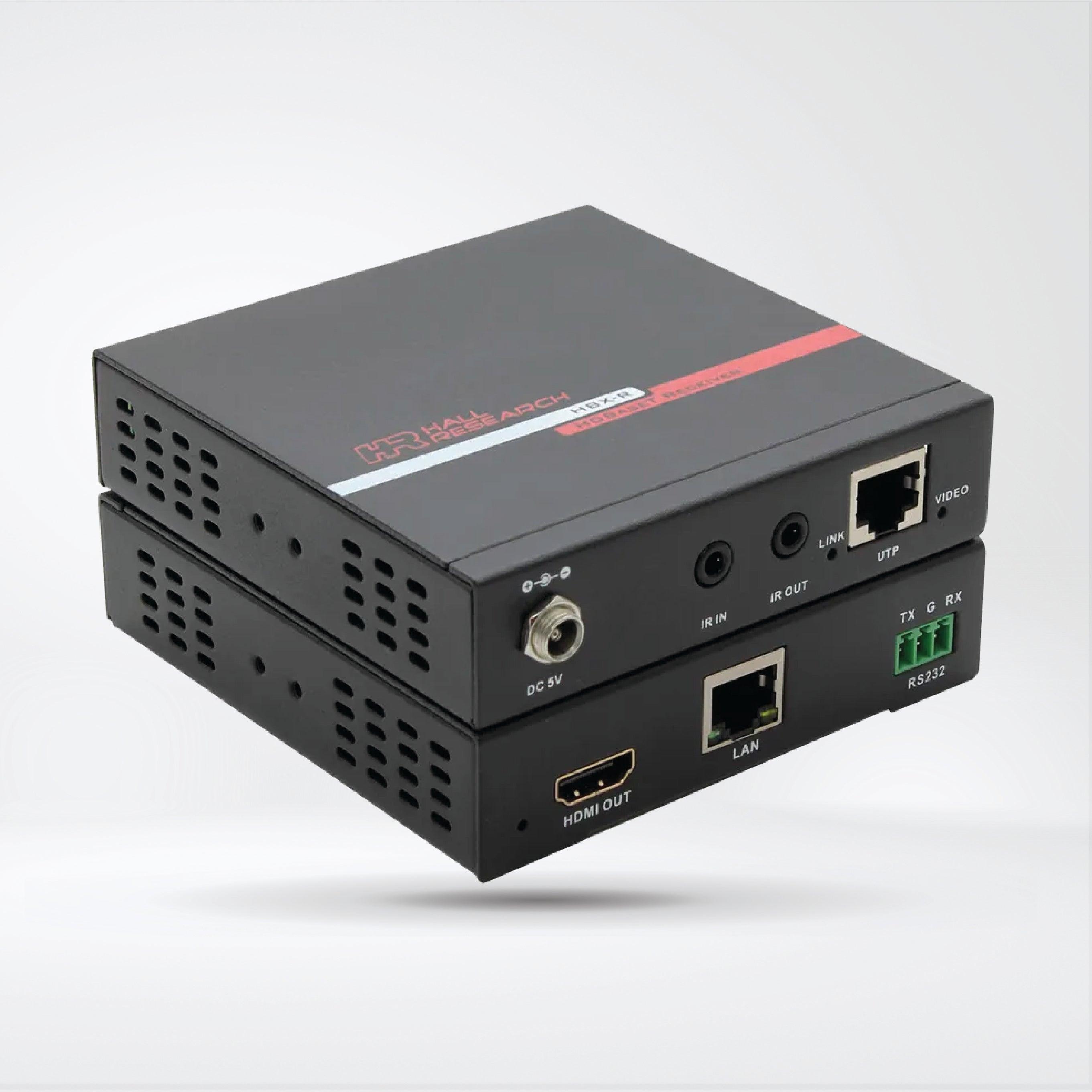

HBX-R HDMI Video Extender With Ultra-HD AV, IR, RS232 and Ethernet (Receiver)

This product is a Class A HDBaseT compliant Receiver that supports 100meter Cat6 range and is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.

Since the product uses the HDBaseT standard, video is extended pixel-by-pixel with no compression or latency. The extender supports all PC and HDTV Resolutions including 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves the modulation (carrier) frequency thereby providing compatibility to most standards.

Receiver includes a universal 5v power supply. IR emitter and IR detector cables are included.

*Not compatible with the ECHO Family of products*

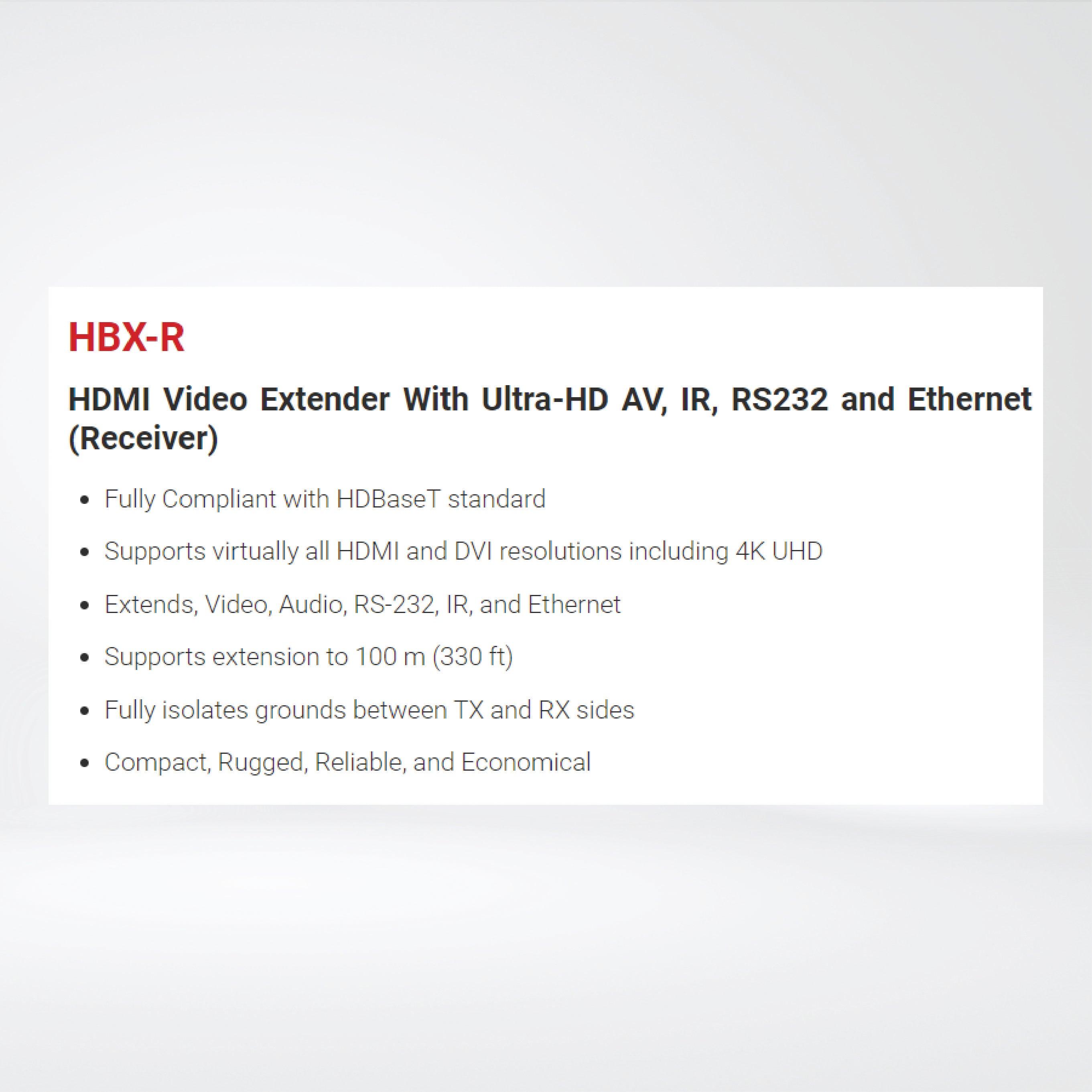

Features

• Fully Compliant with HDBaseT standard
• Supports virtually all HDMI and DVI resolutions including 4K UHD
• Extends, Video, Audio, RS-232, IR, and Ethernet
• Supports extension to 100 m (330 ft)
• Fully isolates grounds between TX and RX sides
• Compact, Rugged, Reliable, and Economical
• Plug and play, no configuration needed
• Receiver can be powered via PoC from senders that provide PoC such as HSM-44-BX Matrix Switch with HDBaseT outputs
