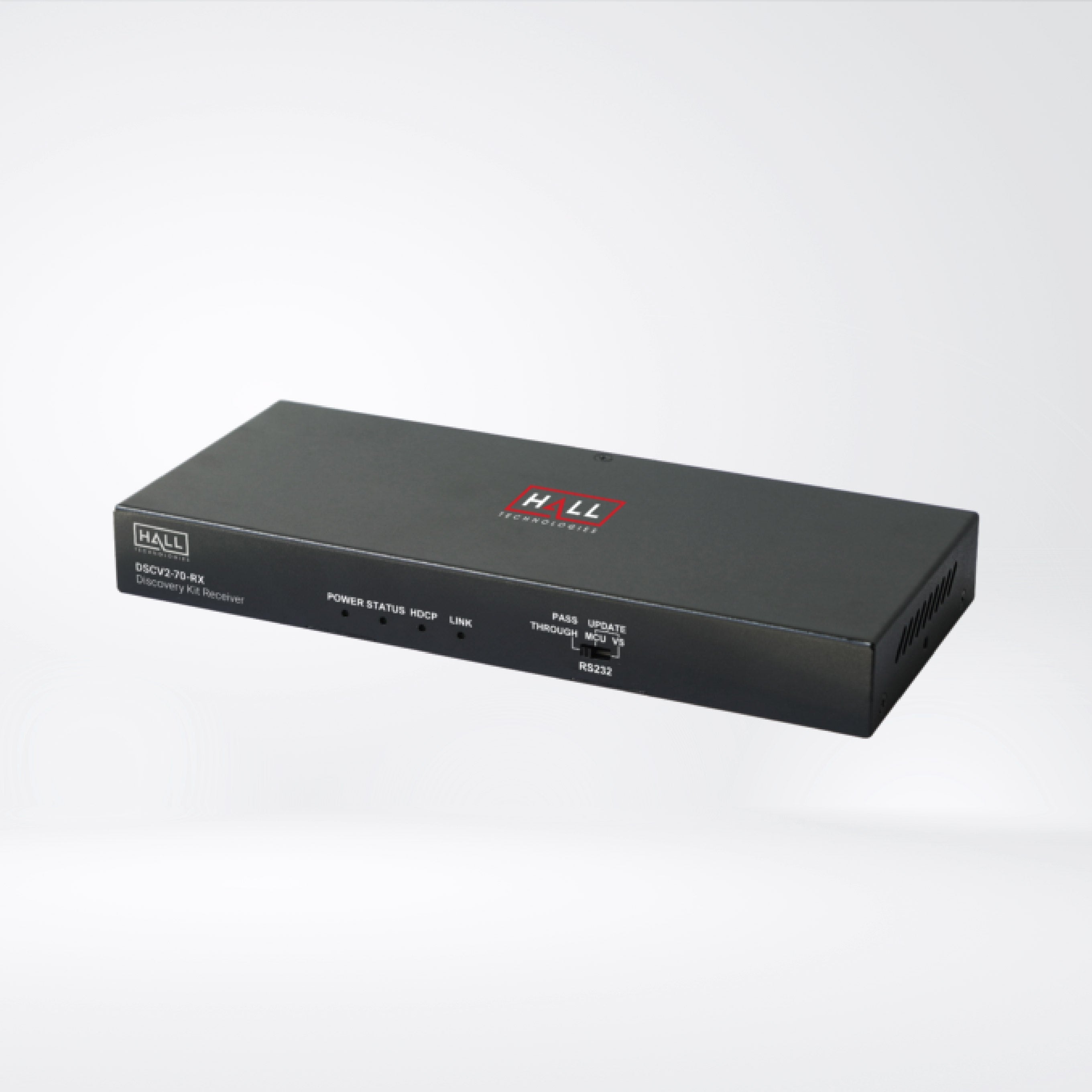

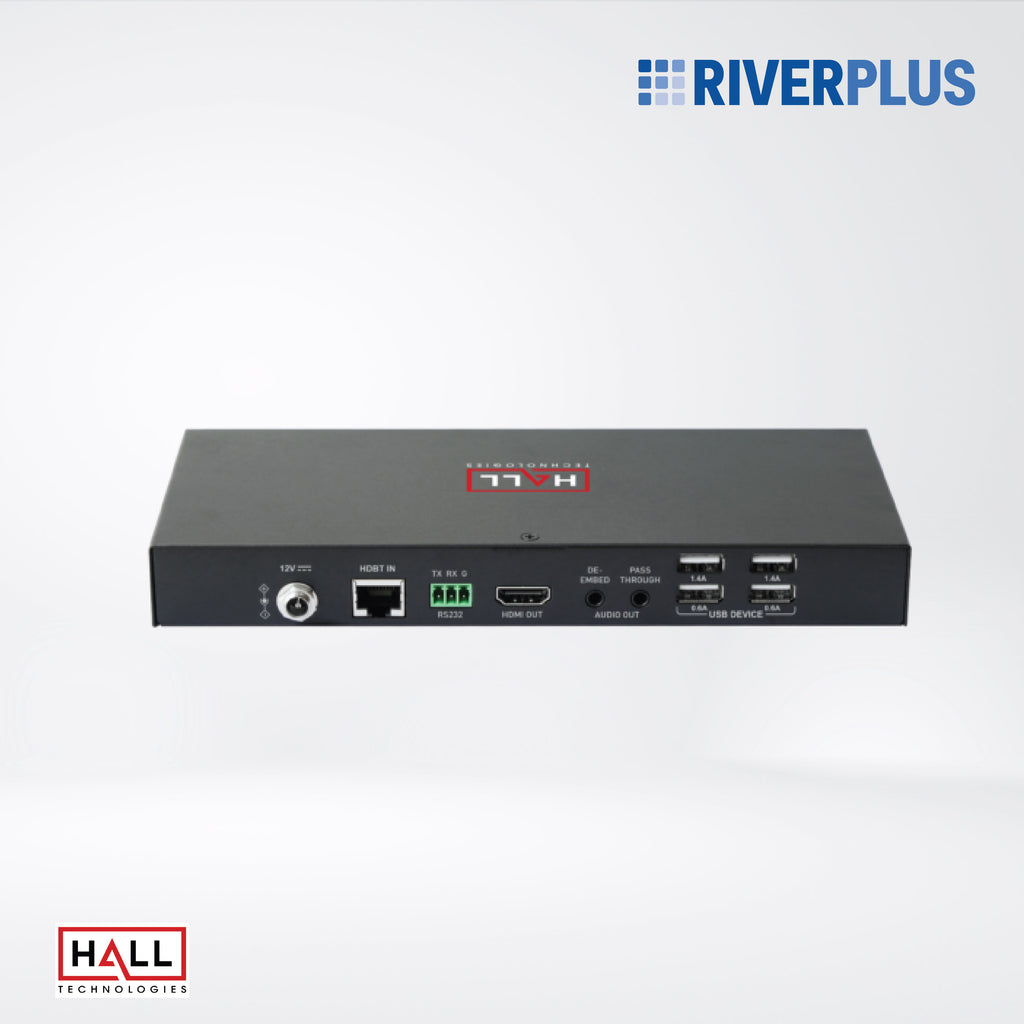

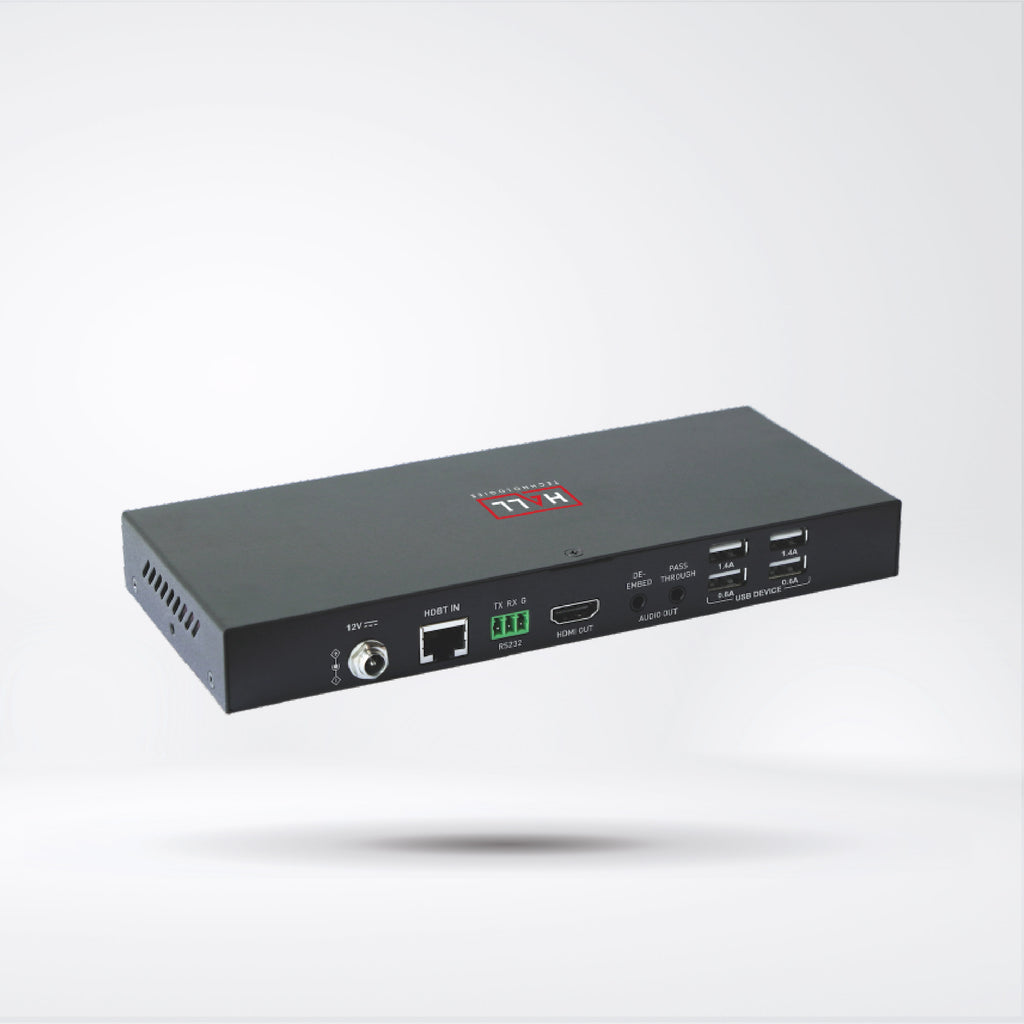

DSCV-70-RX HDBaseT 2.0 Receiver with USB and Audio De-embedding

DSCV-70-RX HDBaseT 2.0 Receiver with USB and Audio De-embedding

Supports USB 2.0 pass-through, providing a solution for users who need remote control of PC resources sources such as keyboard, mouse,  interactive display, or USB streaming devices over distance.

RS232 port allows bi-directional RS232 serial communication and firmware upgrade – functions can be set via DIP switch.

Features

• Simple and cost-effective HDBT 2.0 receiver.

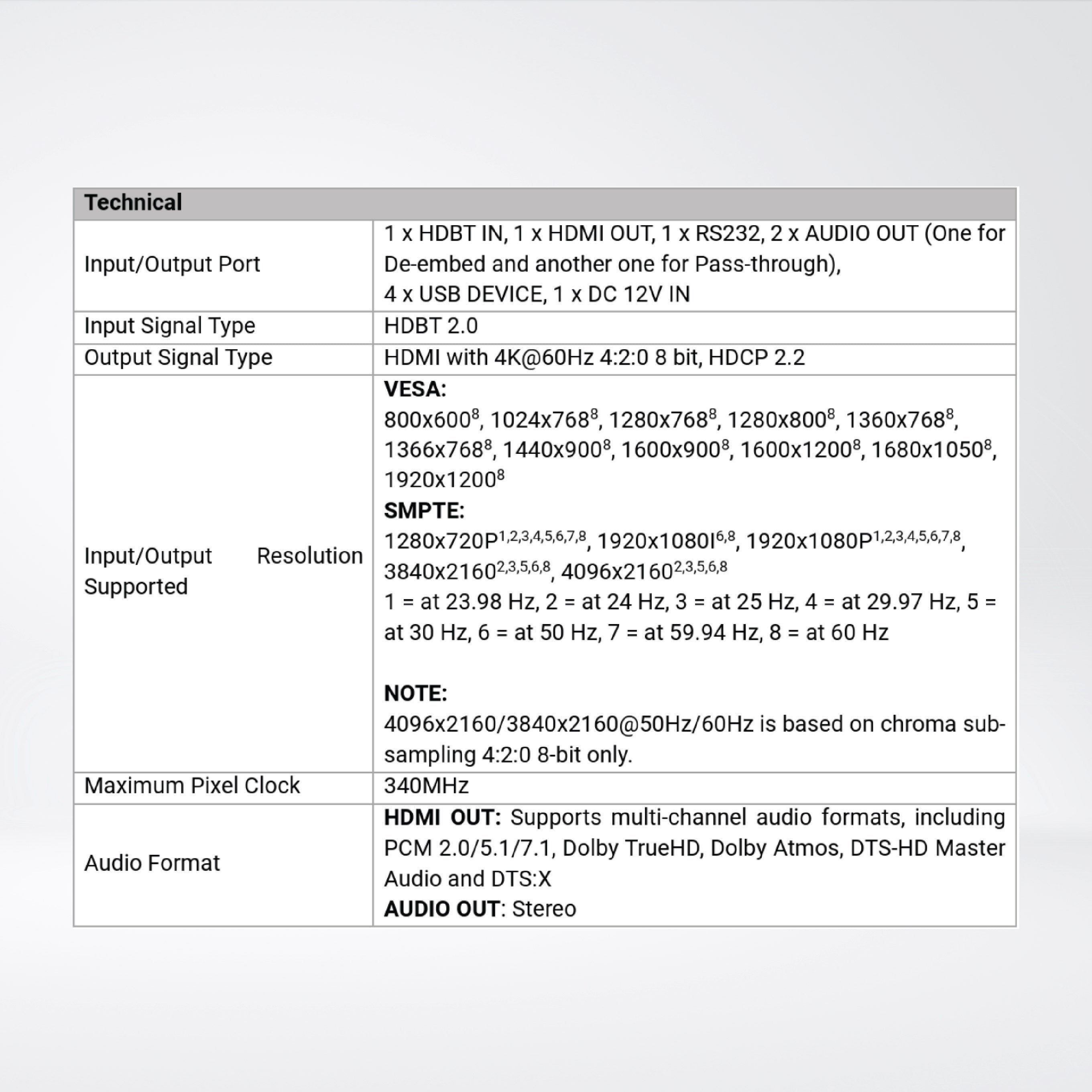

• HDMI 1.4 with 4K@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDCP 2.2 compliant.

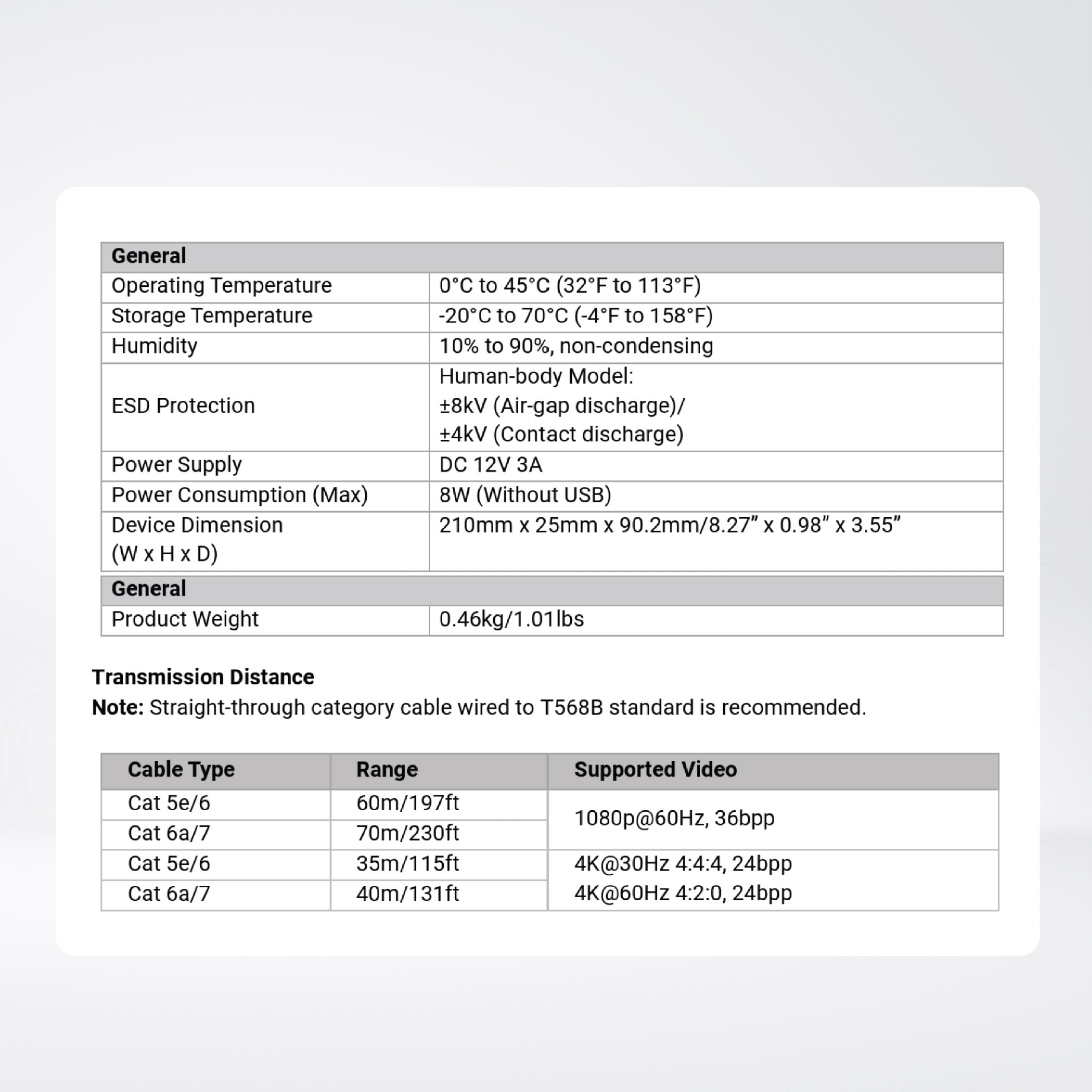

• Transmits 4K@60Hz (YUV 4:2:0) signal up to 40m/131ft and 1080P@60Hz signal up to 70m/230ft via a Cat 6a/7 cable.
• Transmits 4K@60Hz (YUV 4:2:0) signal up to 35m/115ft and 1080P@60Hz signal up to 60m/197ft via a Cat 5e/6 cable.
• Supports analog audio pass-through from transmitter to receiver.
• Supports analog audio de-embedding for HDMI output.
• High-speed USB 2.0 pass-through over HDBT.
• Provide two high-current USB device ports to connect high-power USB device.

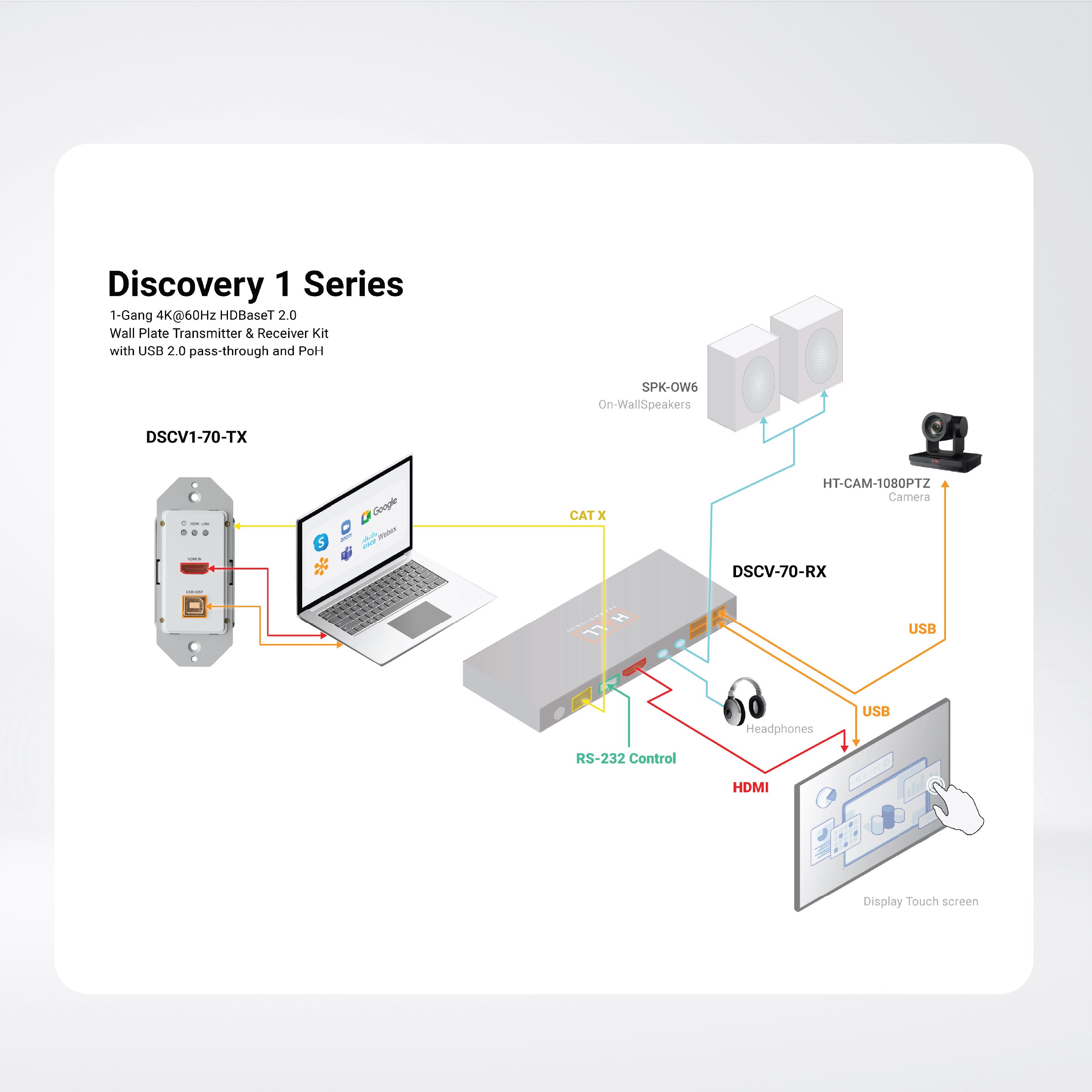

• Supports bi-directional RS232 serial communication to control a wall plate transmitter when paired with the wall-plate transmitter.
• Supports firmware upgrade through the RS232 port.
• Built-in PSE to power remote HDBT Wall plate transmitter with PD module.
