Description

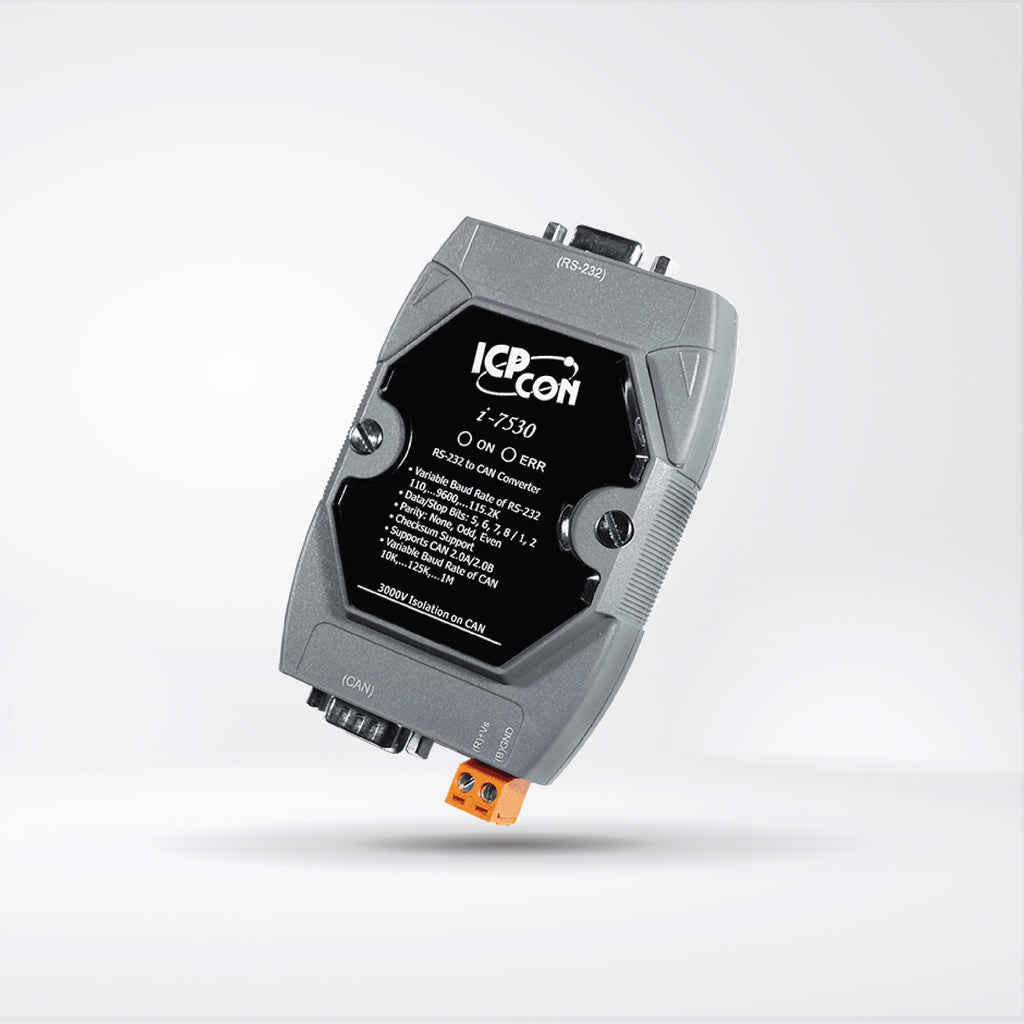

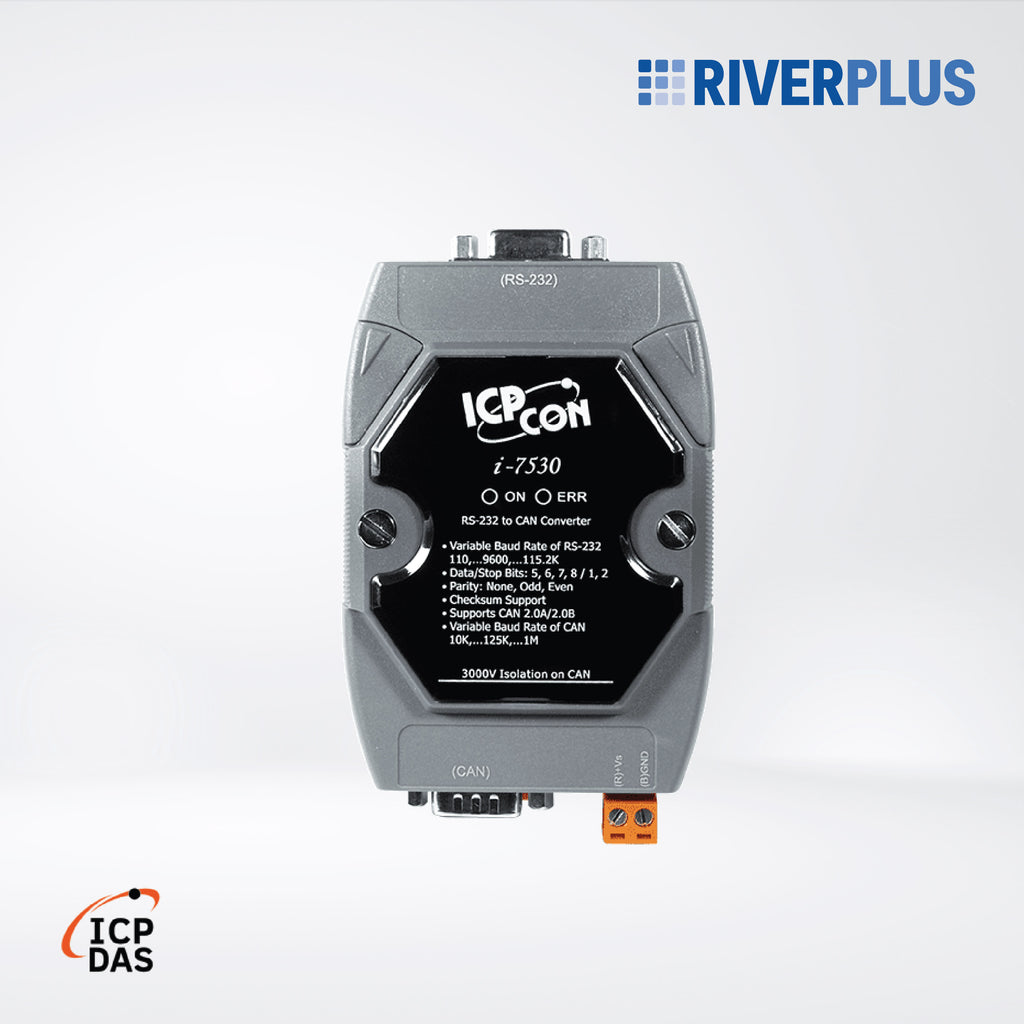

I-7530-G Intelligent RS-232 to CAN converter
Features
- Compatible with CAN specification 2.0A and 2.0B
- Fully compatible with ISO 11898-2 standard
- Jumper for 120 Ω terminal resistor
- Software configurable CAN and RS-232 communication parameters
- Power, data flow and error indicator for CAN and RS-232
- Watchdog inside

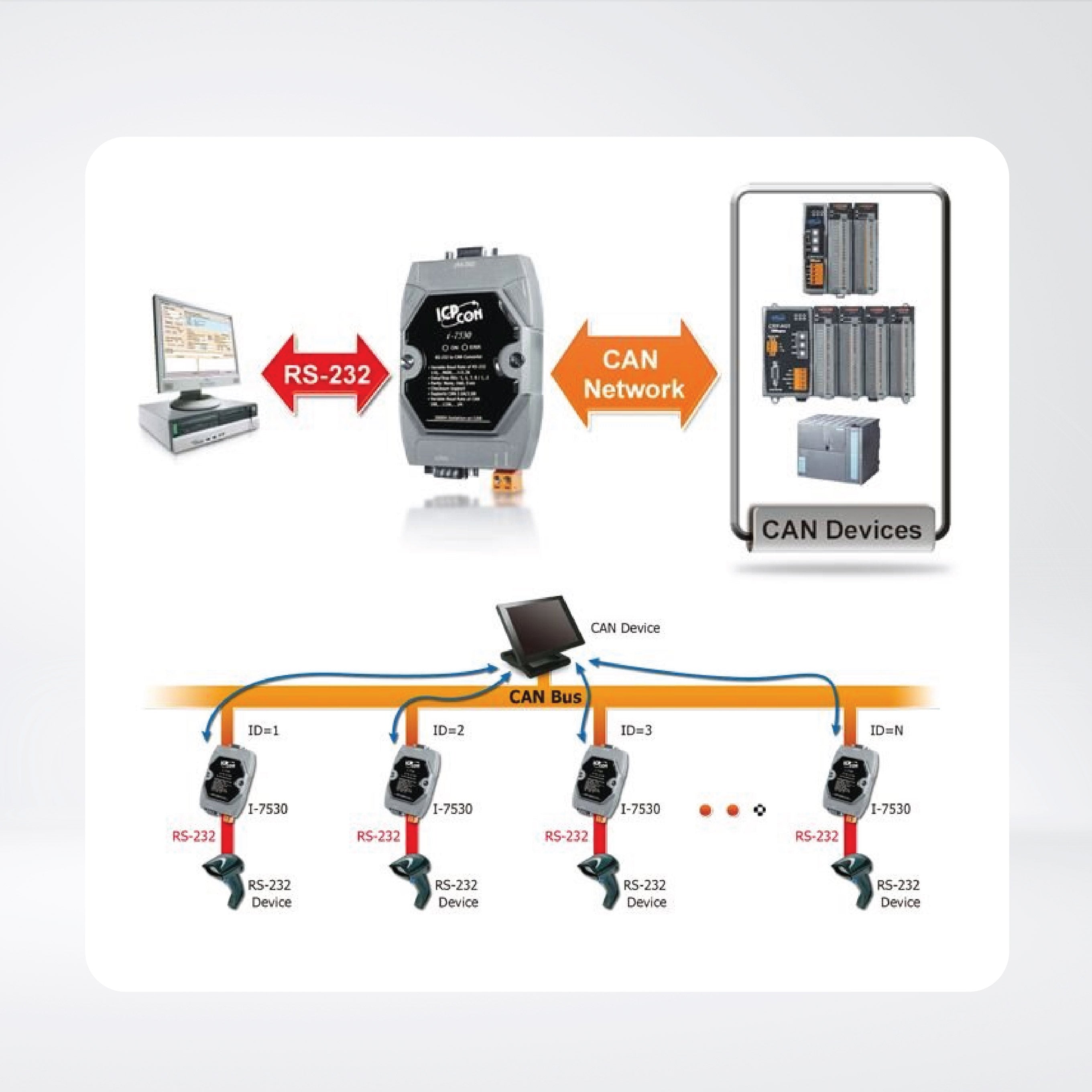

- Support transparent communication mode
- 1000 frames in CAN received buffer and 900 frames in RS-232 received buffer
- Full-duplex communication mode of RS-232 devices is not supported
