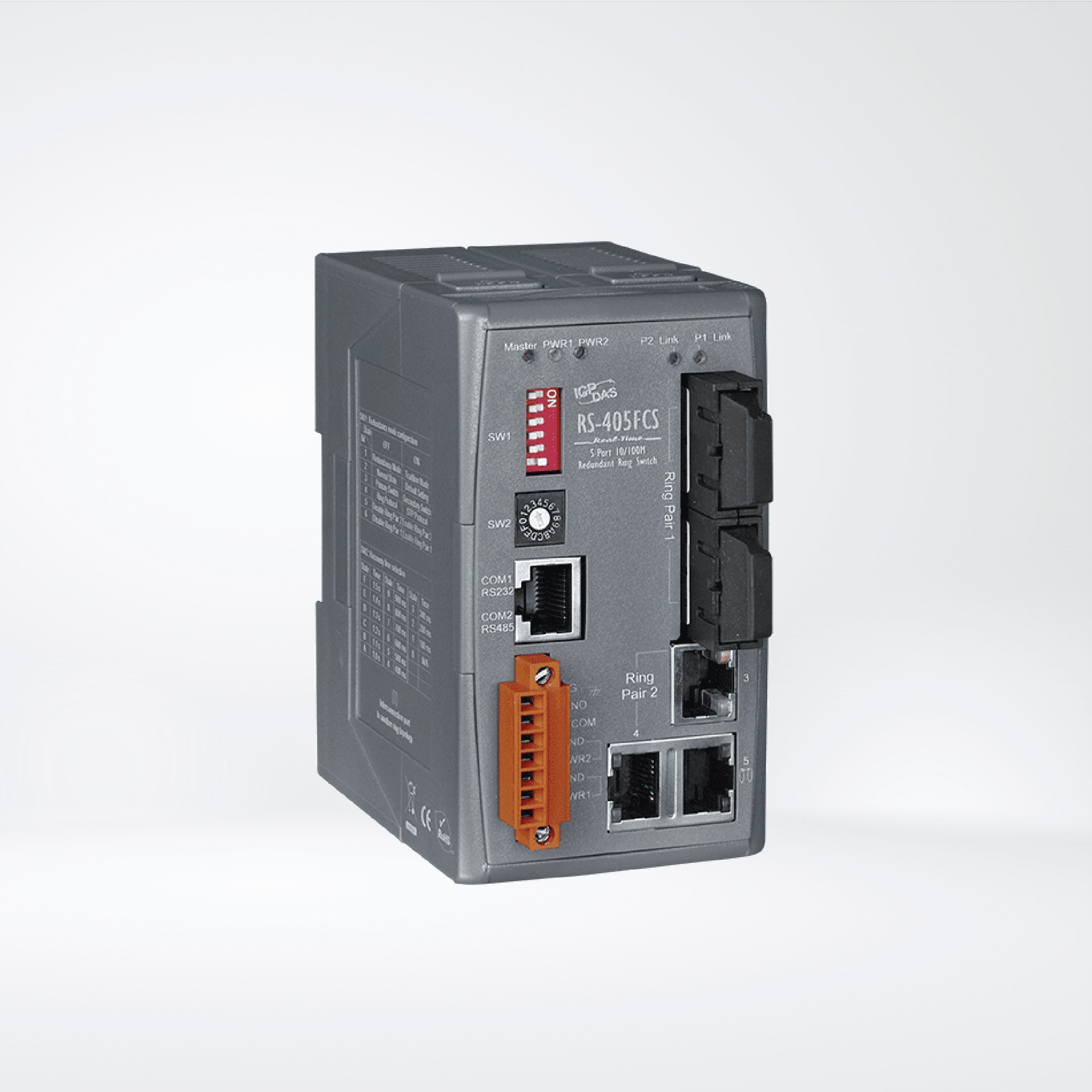

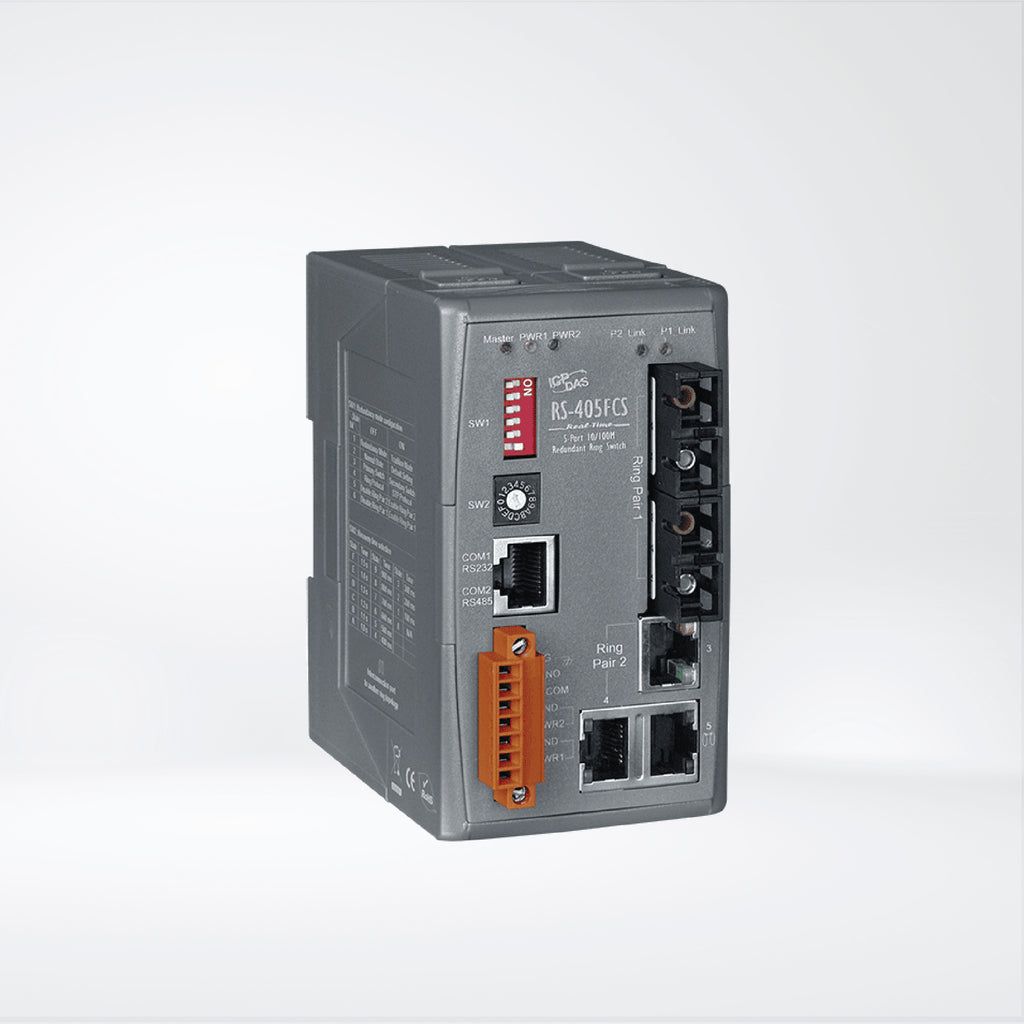

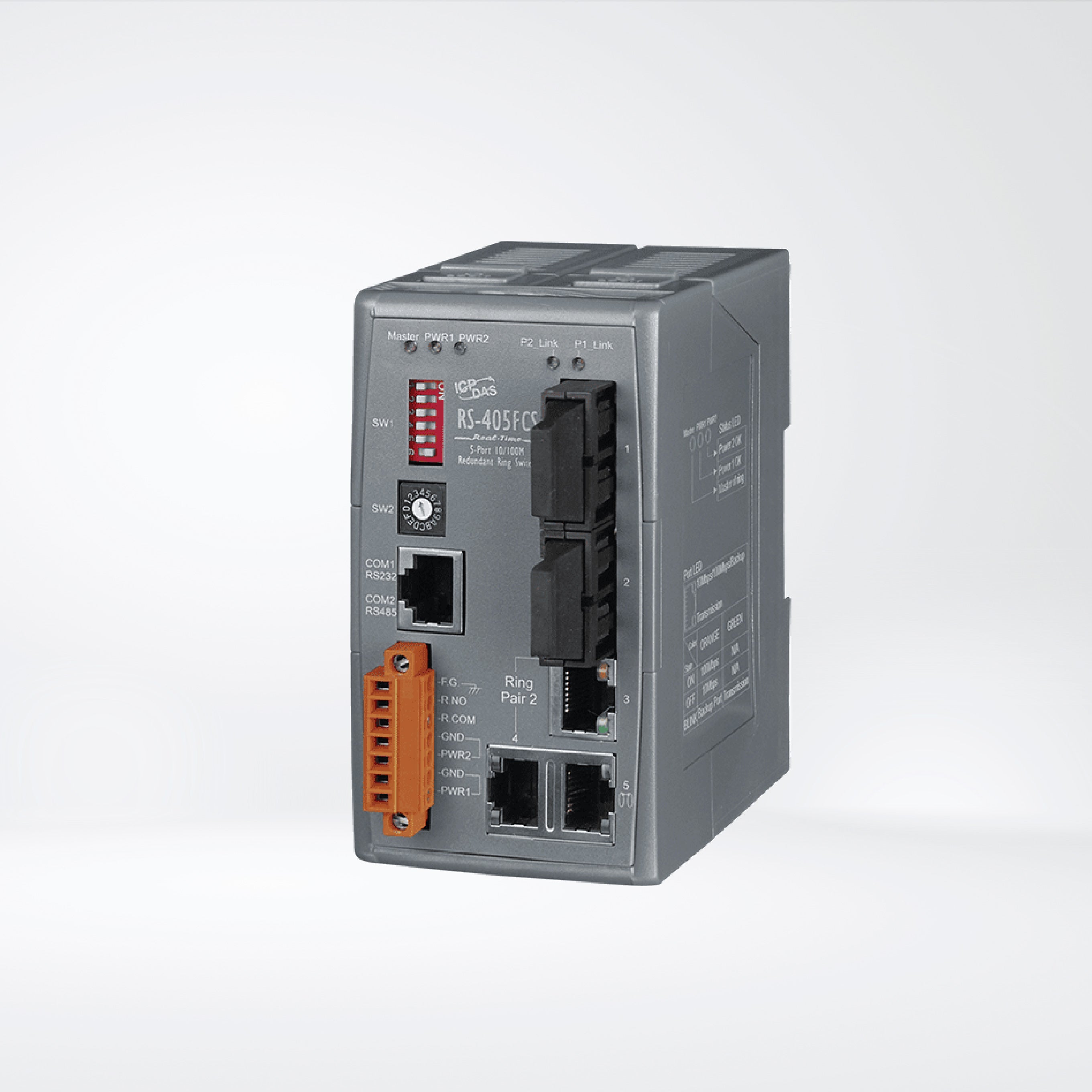

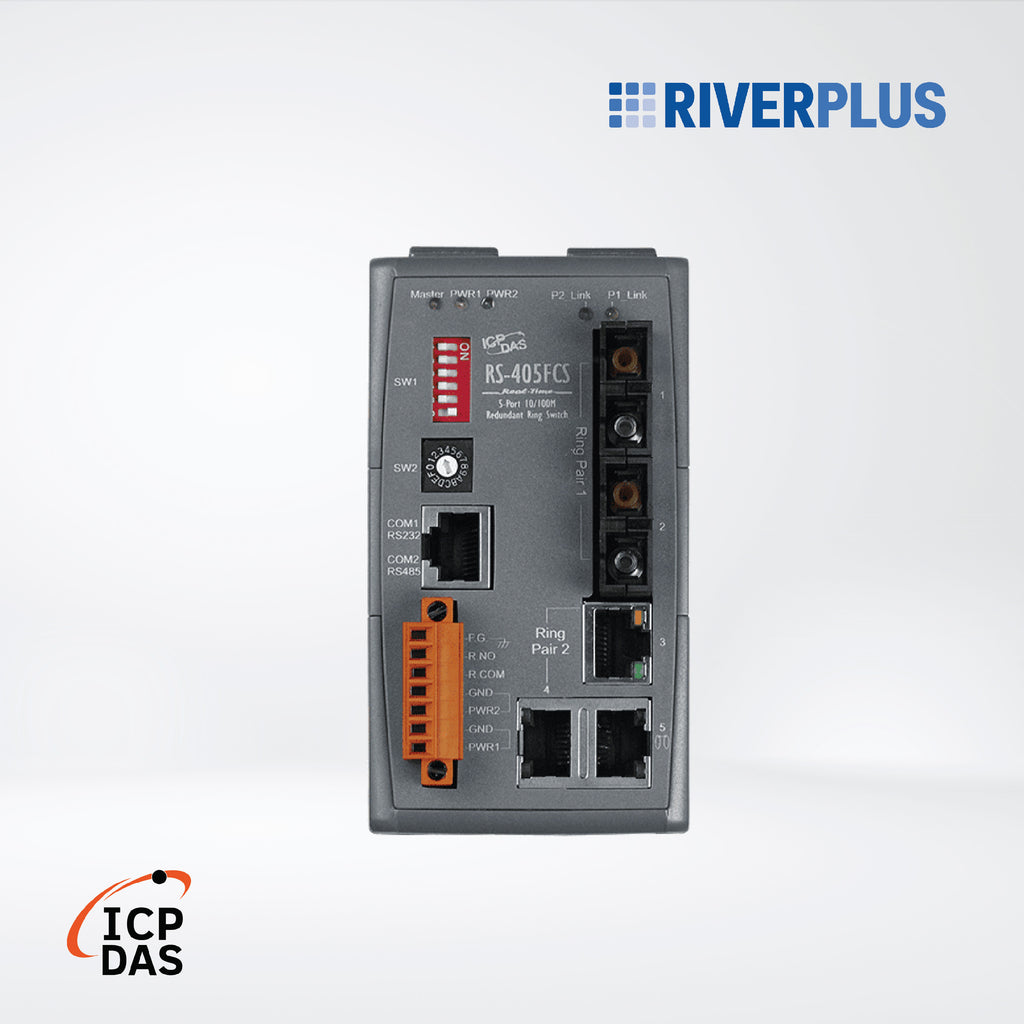

RS-405FCS 5-Port Real-time Redundant Ring Switch

RS-405FCS
5-Port Real-time Redundant Ring Switch with 2-Fiber Port (Single Mode, SC Connector)

Features

• Automatic MDI/MDI-X crossover for plug-and-play
• Each port supports both 10/100 Mbps speed auto negotiation
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• 3.2 Gbps high performance memory bandwidth
• Supports operating temperatures from 0°C ~ +70°C
• Redundant Power Inputs +10 VDC ~ +30 VDC
• Power failure alarm by relay output
• Modbus remote monitoring
• Supports Modbus OPC Server
• Store-and-forward architecture
• Built-in Cyber-Ring redundant technique
• Frame buffer memory: 512 Kbit
• 1024 MAC addresses
• Single-mode, SC Connector Fiber supports
• DIN-Rail
