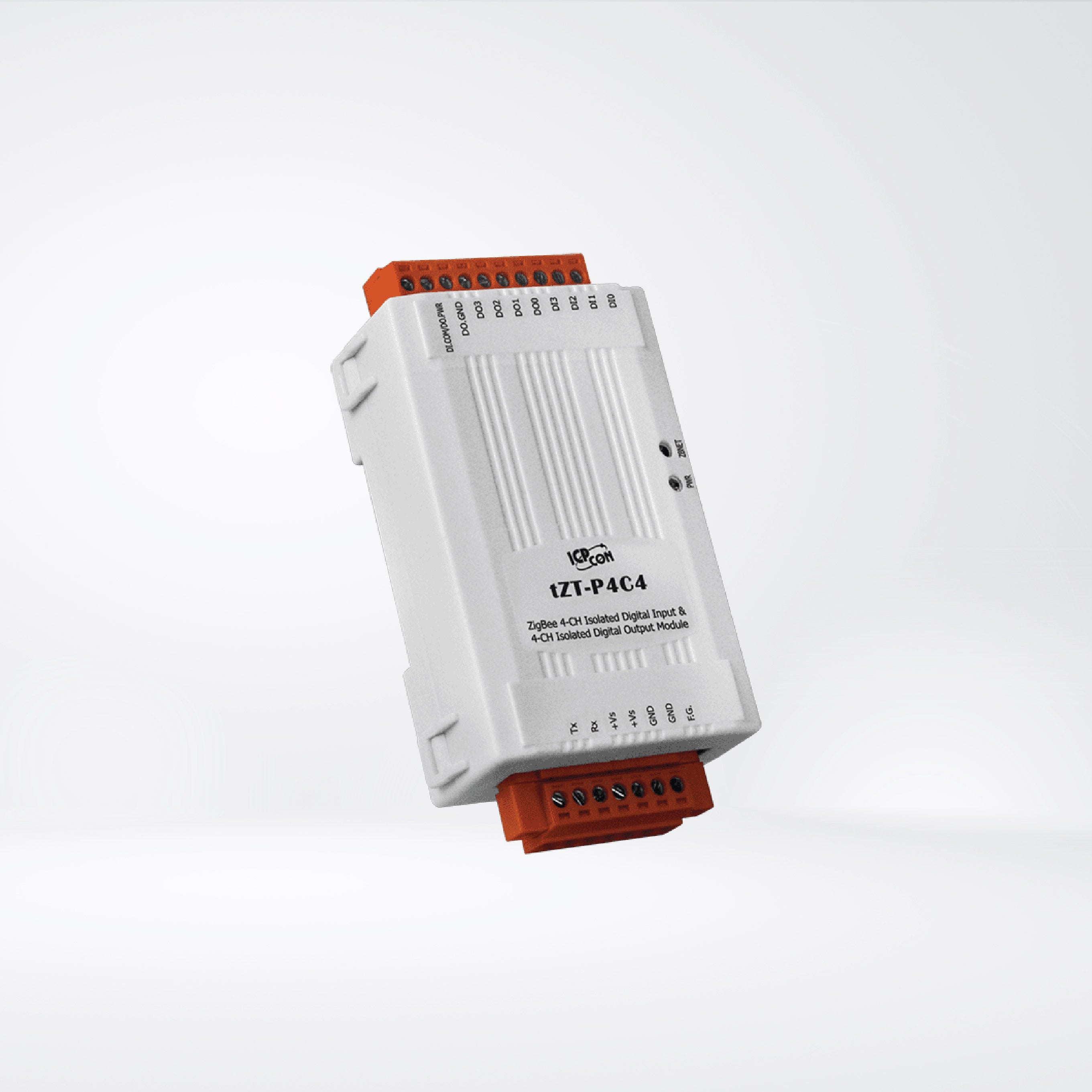

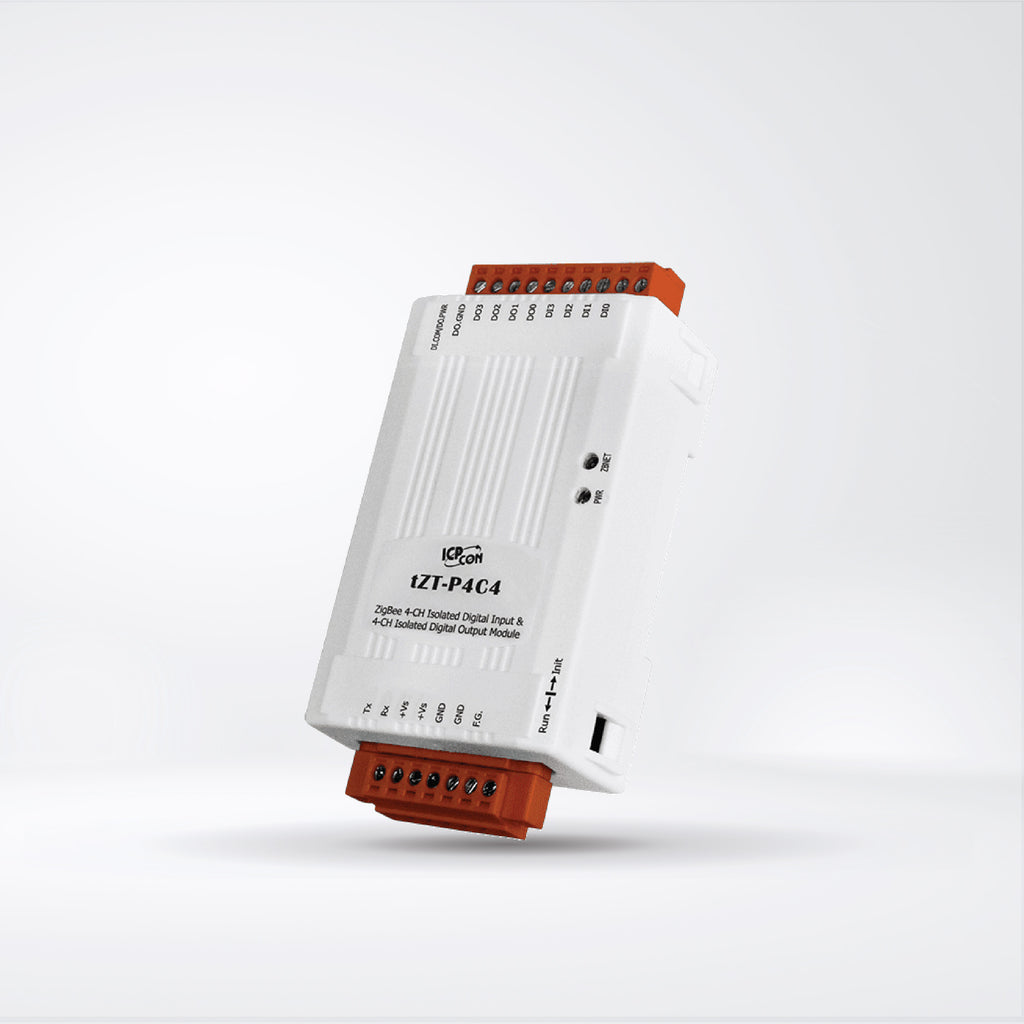

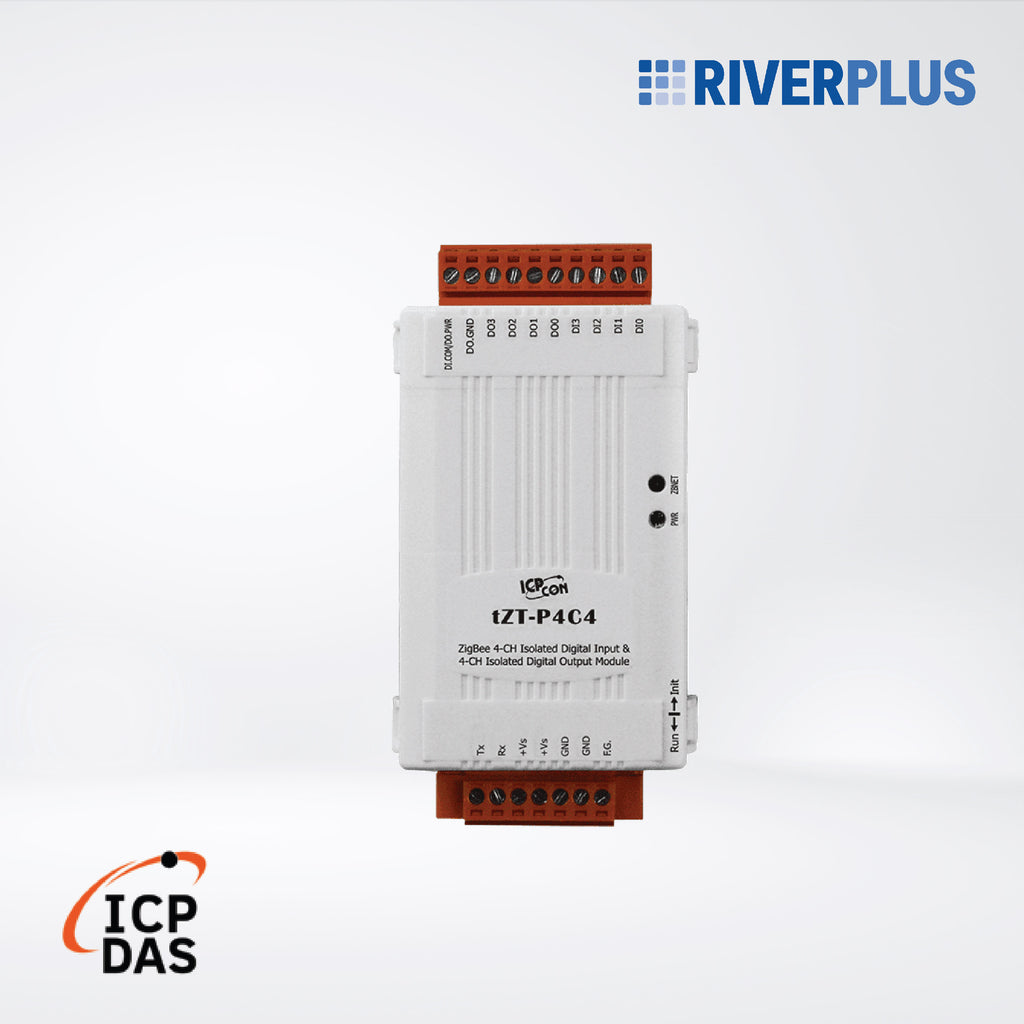

tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)
tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)
tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)
tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)
tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)
tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)
Roll over image to zoom in Click on image to zoom
tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)

tZT-P4C4 Tiny ZigBee Wireless 4-ch Isolated DI and 4-ch Isolated DO Module (ZigBee Router)

ICP DASSKU: TZT-P4C4-CR
No reviews
Price:
4,500.00 ฿

Shipping calculated at checkout

Stock:
In stock
We currently have: 19 in stock.

Description

Features

  • ISM 2.4 GHz Operating Frequency
  • Fully Compliant with 2.4G IEEE 802.15.4/ZigBee 2007 Pro Specifications
  • Wireless Transmission Range up to 300 m
  • Adjustable RF Transmission Output Power
  • GUI Configuration Software (Windows Version)
  • Supports AES-128 Encryption for the Wireless Communication (Passive)
  • Supports ZigBee Repeater Function
  • 4 Digital Input Channels and 4 Digital Output Channels
  • All Digital Input Channels can be used as 16-bit Counters
  • Sink-type Digital Output Channels with Overload Protection
  • Surge and ESD Protection
  • Configurable Power-on Value and Safe Value Settings
  • DIN-Rail Mountable

Term and Condition

ส่งสินค้า : สินค้ามีใน Stock ส่งภายใน 2-3 วันทำการ
รับประกันสินค้า : 1 Year

Download

Datasheet
Download
