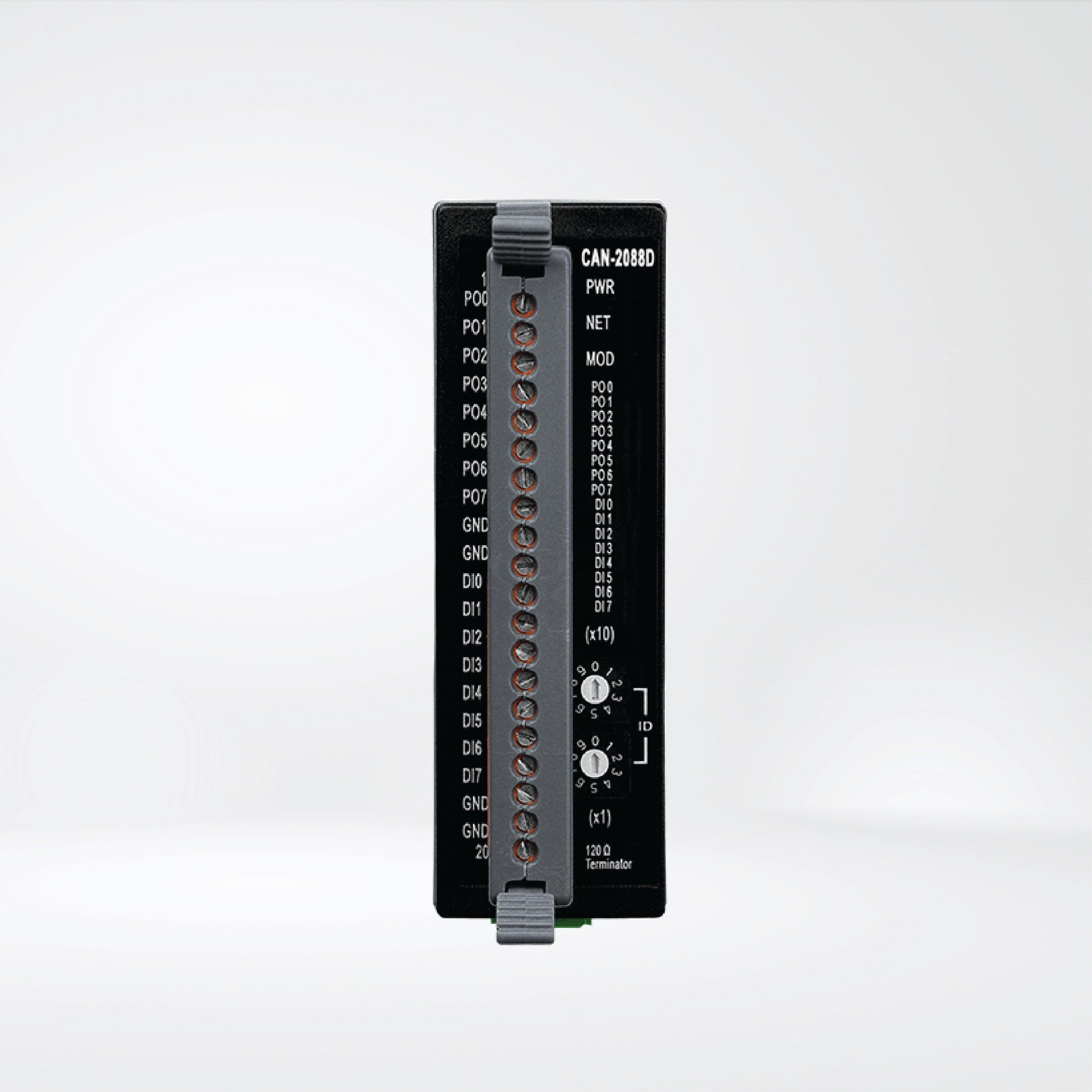

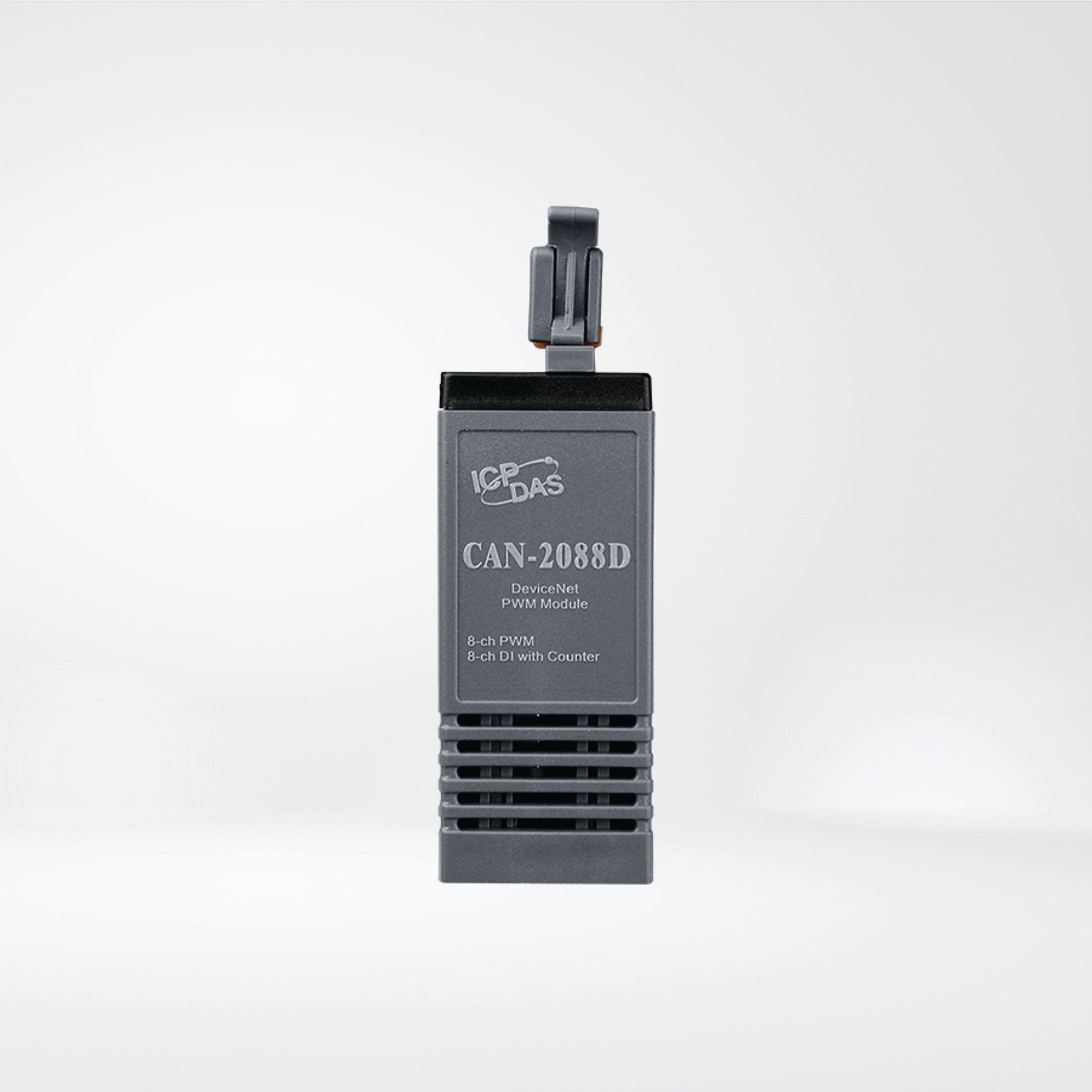

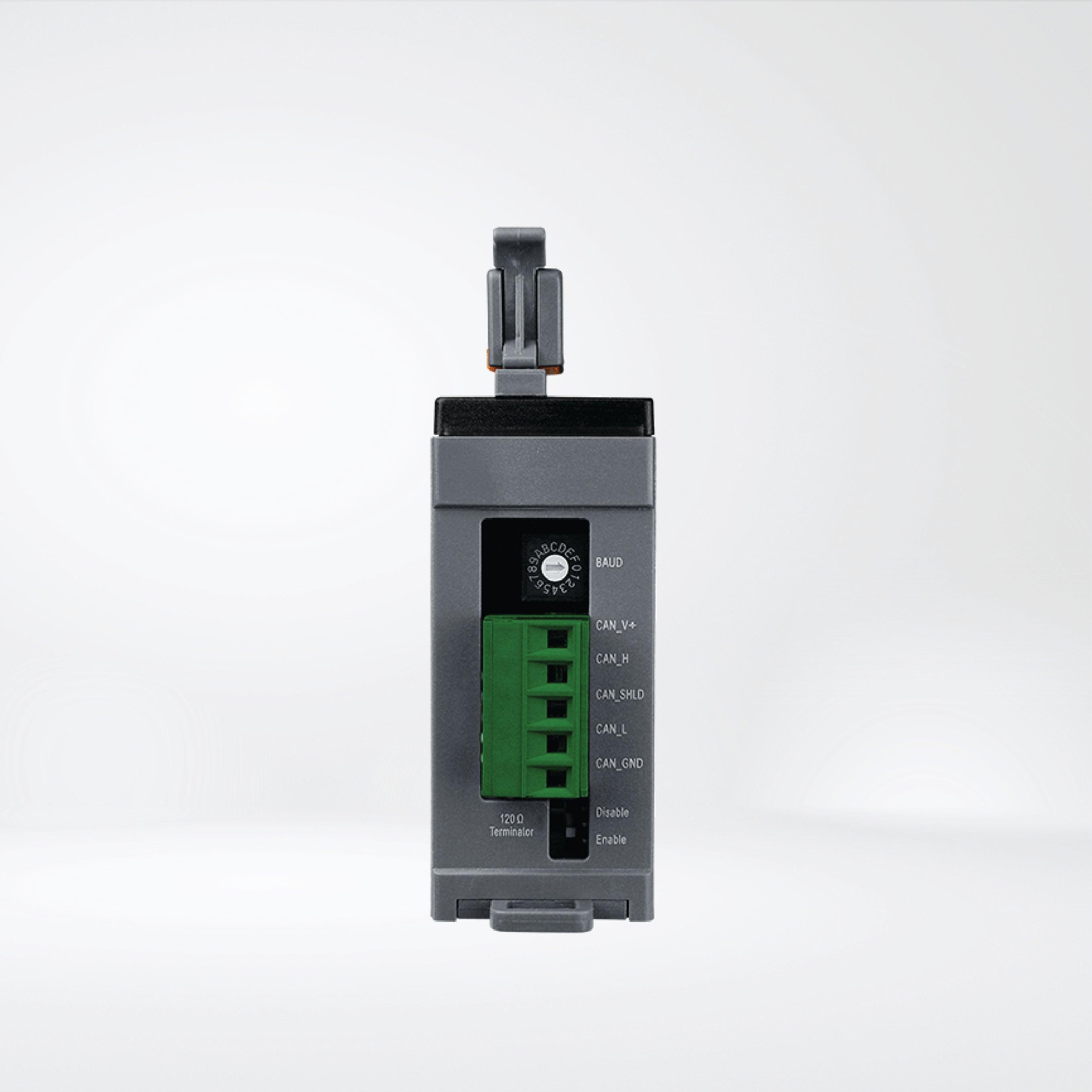

CAN-2088D DeviceNet Slave Module of 8-channel PWM Output, 8-channel High Speed Counter Input

Features

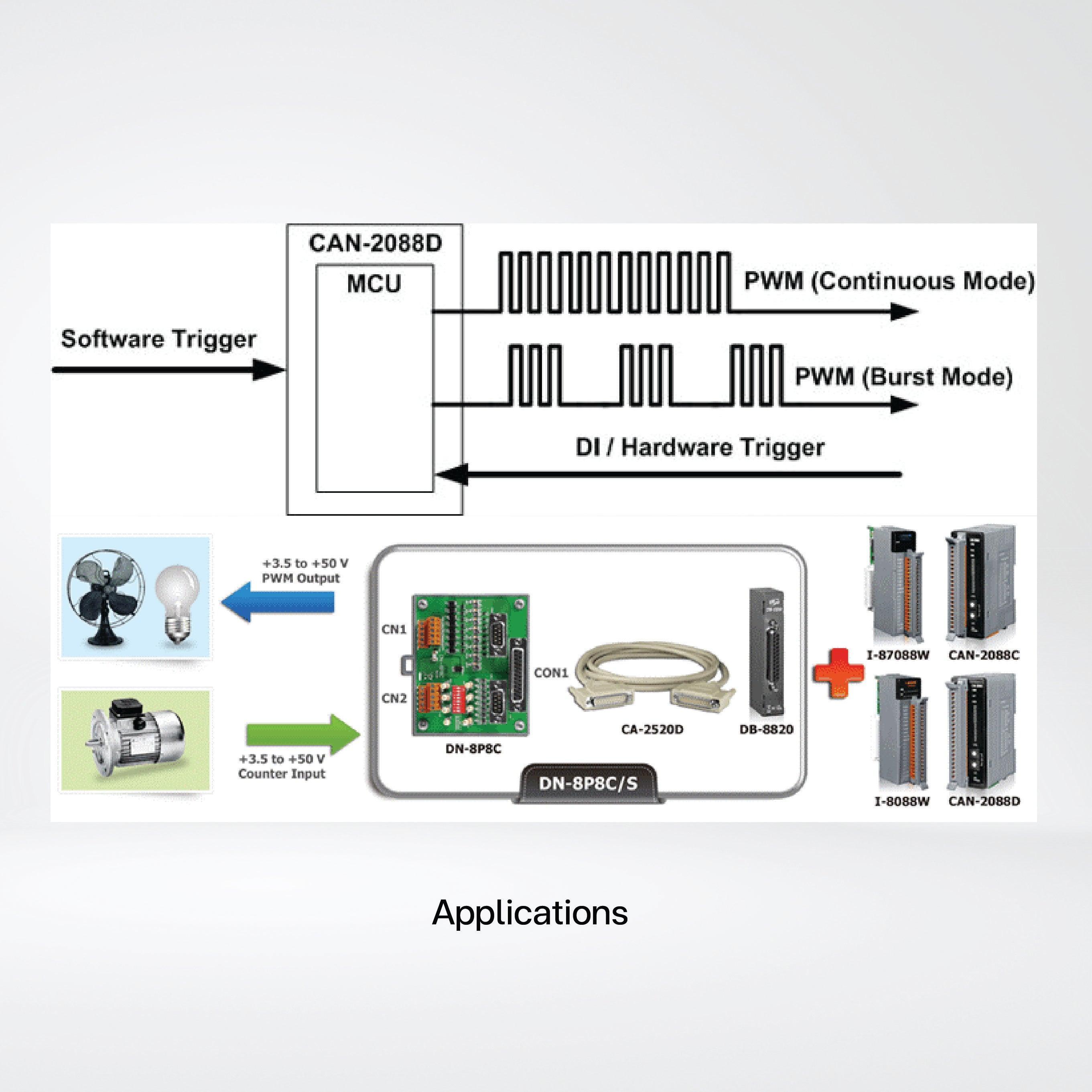

- Hardware-controlled PWM output
- PWM output frequency: 0.2 Hz ~ 500 kHz with 0.1%~99.9% duty cycle
- PWM Output Modes: software trigger / hardware trigger
- Trigger each PWM output individually or all PWM outputs synchronously
- Support Burst output mode and Continue output mode
- Provide 32-bit 500 kHz high-speed counter for each DIchannel

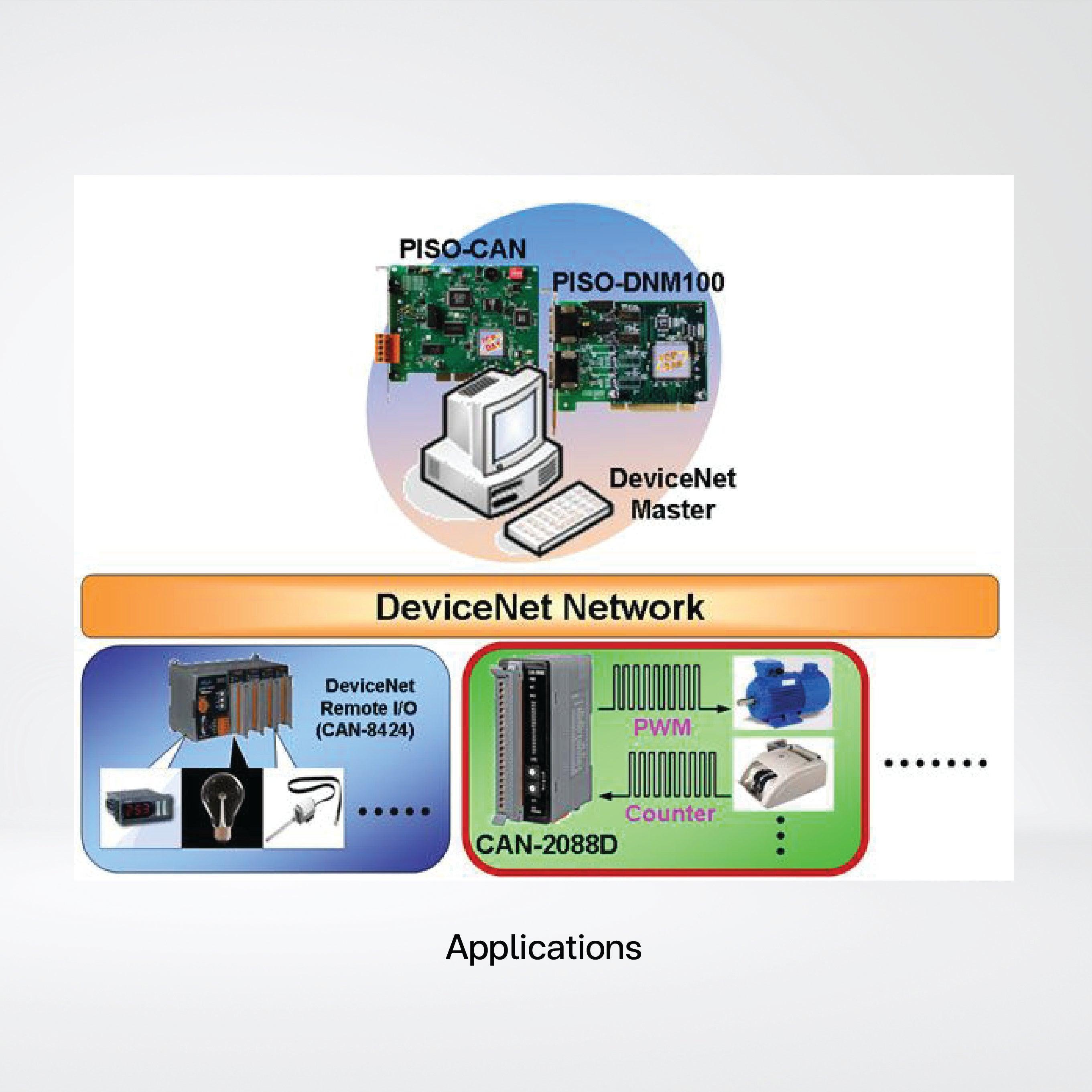

- Pass the validation of DeviceNet conformance test
- Provide EDS file for DeviceNet master interface
