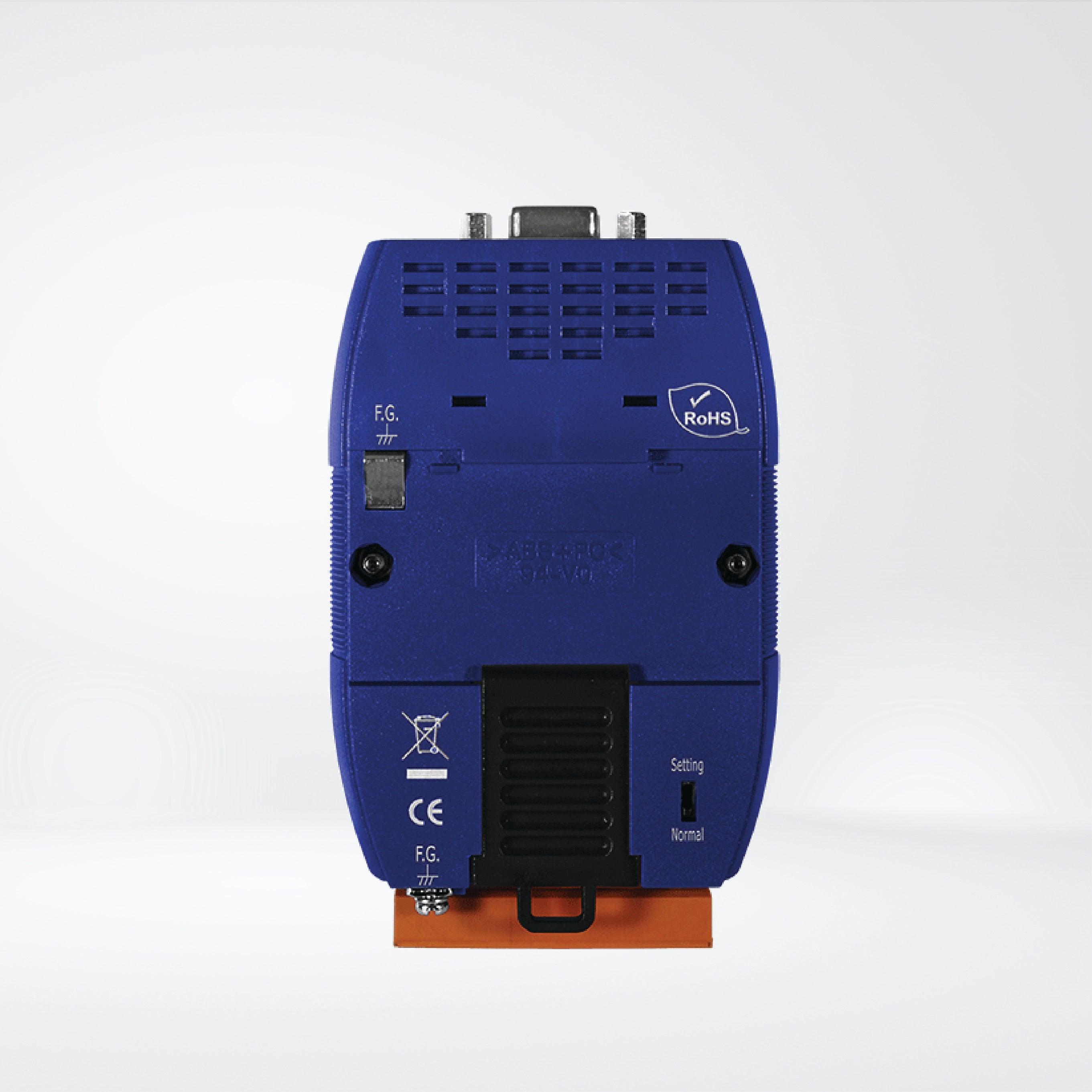

GW-7552-B PROFIBUS to Modbus RTU/ASCII Gateway

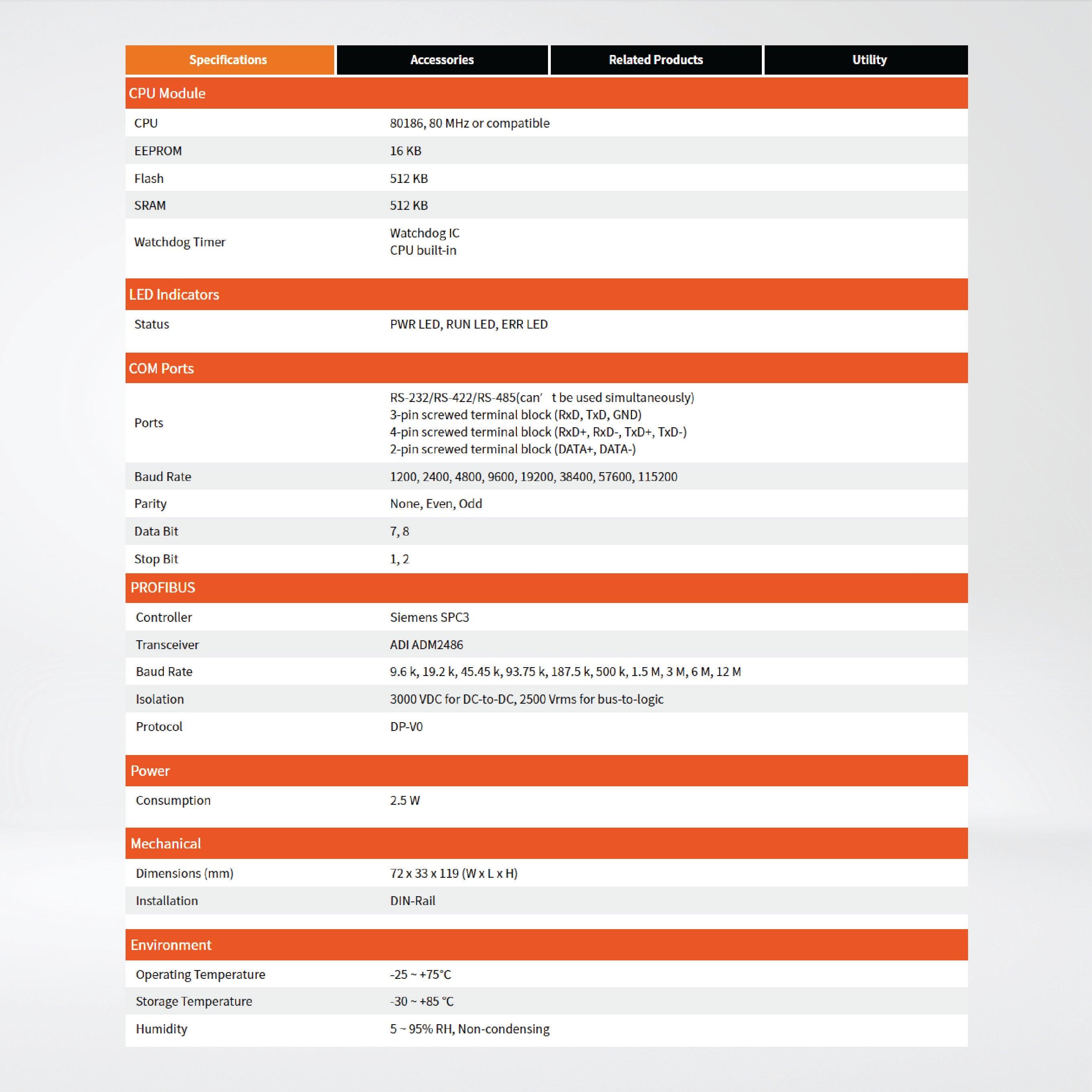

Features

- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Max Input Data Length : 132 Bytes
- Max Output Data Length : 131 Bytes
- Address Setting : 0~126 set by DIP switch
- Supports Modbus Mode : Master/Slave
- Supports Modbus Format : RTU/ASCII
- Hybrid COM 1 : RS-232/422/485 with “Self Tuner” inside
- Supports COM 1 Data Format : 7/8 data bits, No/Odd/Even parity, 1/2 stop bit
- Network Isolation Protection : High Speed iCoupler
- DC Isolation Protection : 3000VDC on PROFIBUS side
