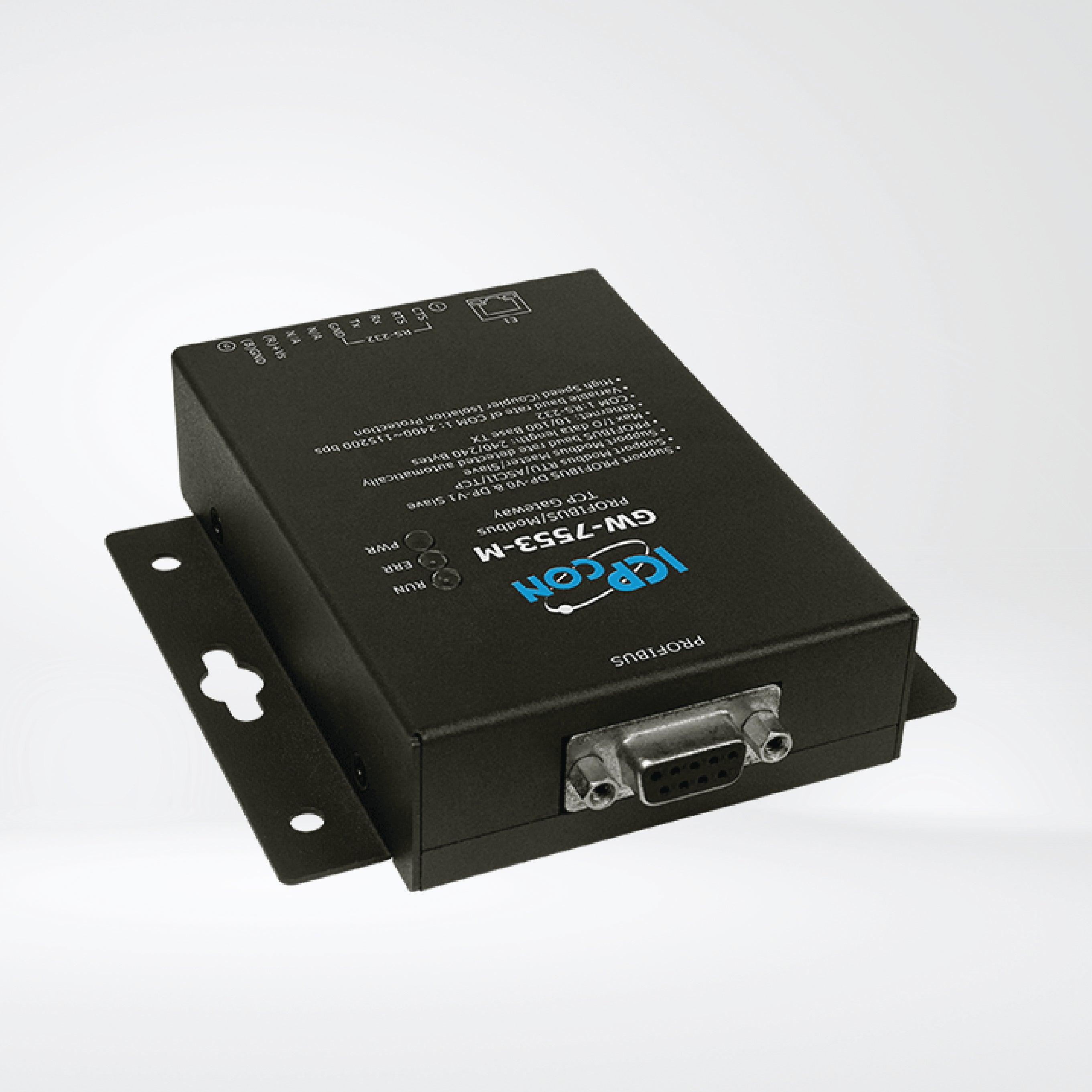

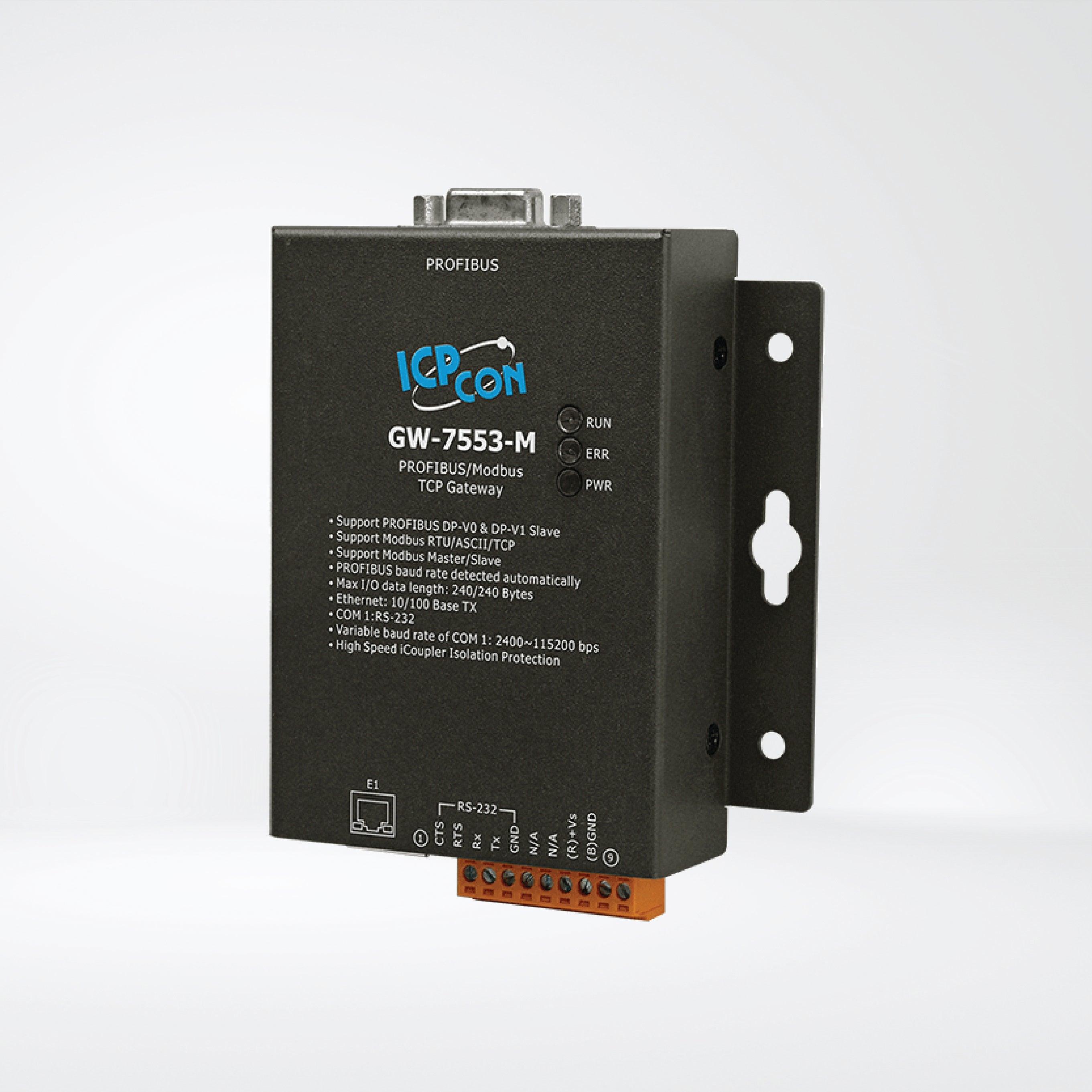

GW-7553-M PROFIBUS to Modbus TCP Gateway

Features

- Protocol & Hierarchy : DP-V0 & DP-V1 Slave
- Transmission Rate Setting : detected automatically
- Max Input Data Length : 240 Bytes
- Max Output Data Length : 240 Bytes
- Address Setting : 0~126 set by DIP switch or EEPROM
- Supports Modbus Mode : Master/Slave
- Supports Modbus Format : RTU/ASCII/TCP
- Supports COM 1 Data Format : 7/8 data bits, No/Odd/Even parity, 1/2 stop bit
- Network Isolation Protection : 2500 Vrms High Speed iCoupler
- DC Isolation Protection : 3000 VDC on PROFIBUS side
