iSN-101/S 1-channel Liquid Leak Detection Module with cables

iSN-101/S :

• 1-channel Liquid Leak Detection Module, Supports Modbus/RTU and DCON protocols (Wall mount) (RoHS)
• Includes 1m Liquid Leak Detection Cable and 3m Extended Cable

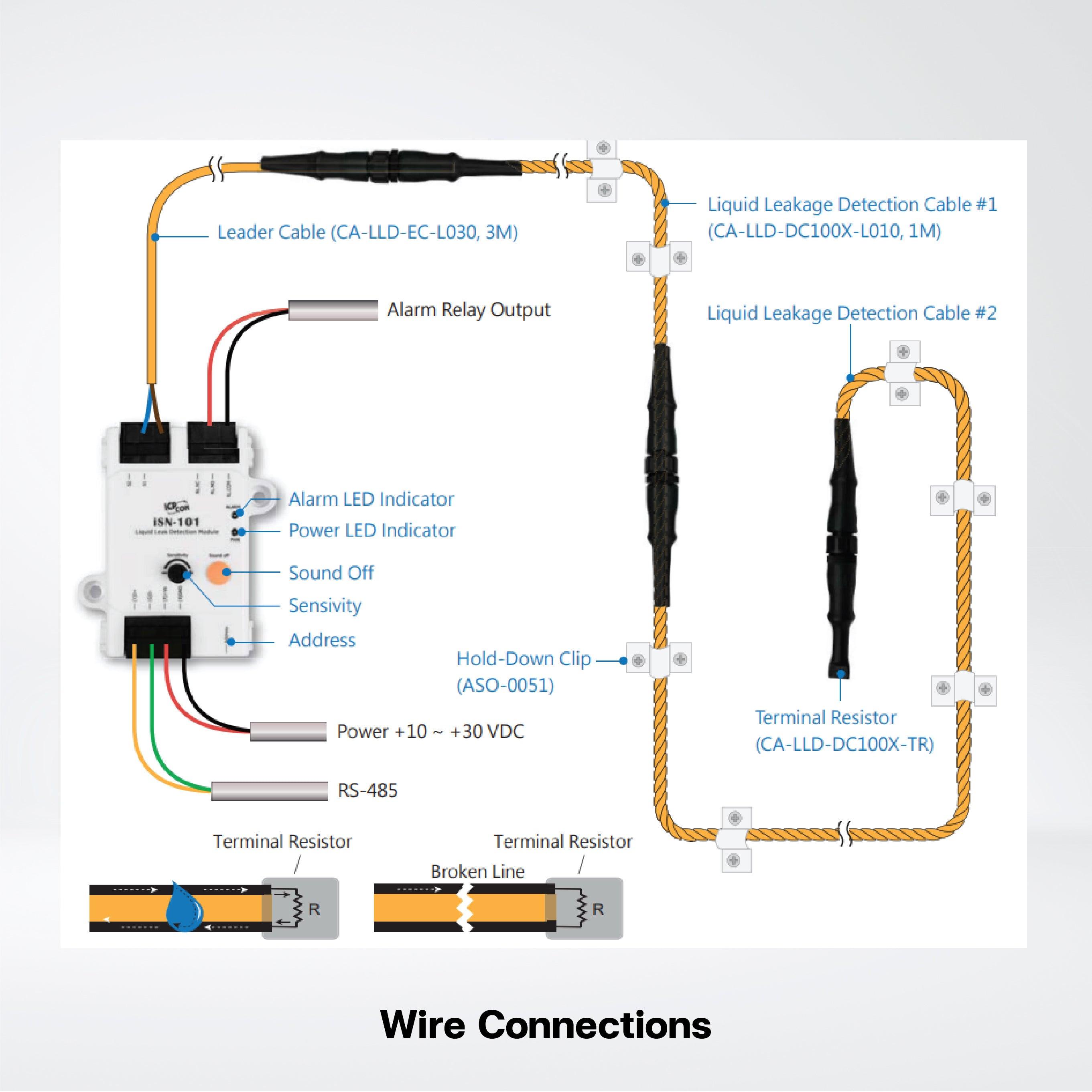

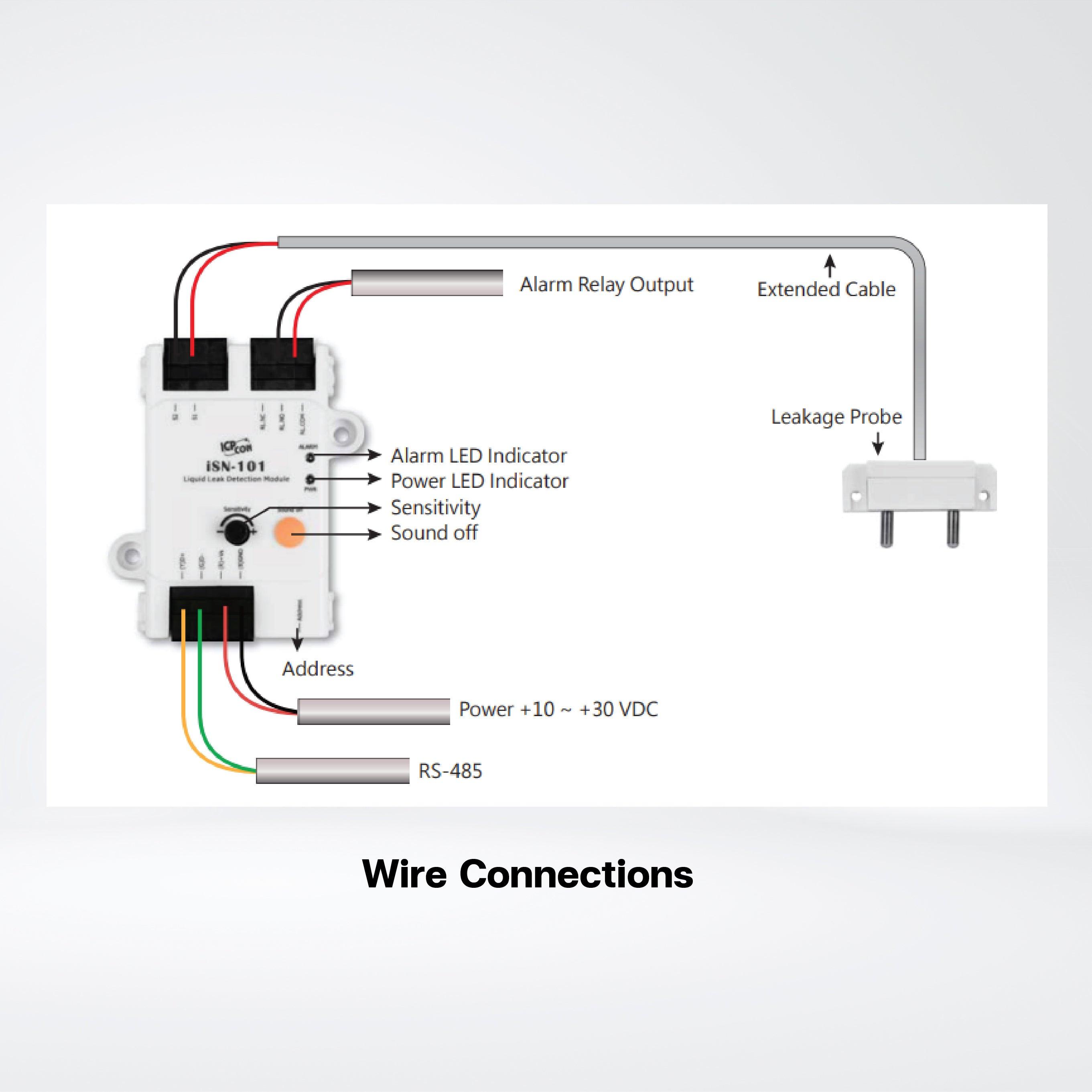

The iSN-101 Liquid Leak Detection Module is a low-cost intelligent liquid leak detection device that can be used to directly control Relay Output. No additional conversion module is needed and the iSN-101 can be easily integrated with a variety of monitoring systems to achieve remote alarm and remote device control. The iSN-101 Liquid Leak Detection module can be used to monitor double-core leader cable lengths of up to 500 meters, and can be used with both the extended cable and its included liquid leak detection cable. If liquid is detected, the controller immediately activates the output relay - the normally open, normally closed passive output signal . The module can be easily integrated with other collection hosts connected to the network. The iSN-101 is suitable for real-time leak detection in critical locations, such as computer room base stations, warehouses, libraries, museums and industrial sites, and also for air handling equipment, refrigeration units, liquid containers, or pump tanks, etc., where there is a need to monitor any leakage of the equipment.

When required, communication with the iSN-101 can be programmed based on the Modbus RTU protocol, with the added benefi t that different addresses can be confi gured via hardware to allow for Modbus RTU communication.

Features

• 1-ch Liquid Leak Detection
• Liquid Leakage detection triggers and audible alarm
• A mute button to silence the audible alarm
• Two LED indicators to display the status of the power and the alarm
• Relay Output for Liquid Leakage Alarm
• Liquid Leak Detection Cable and Leader Cable can be up to 500 meters
• Sensitivity adjustable
• Supports the DCON and the Modbus RTU Protocols
• Mounting : Wall Mount
