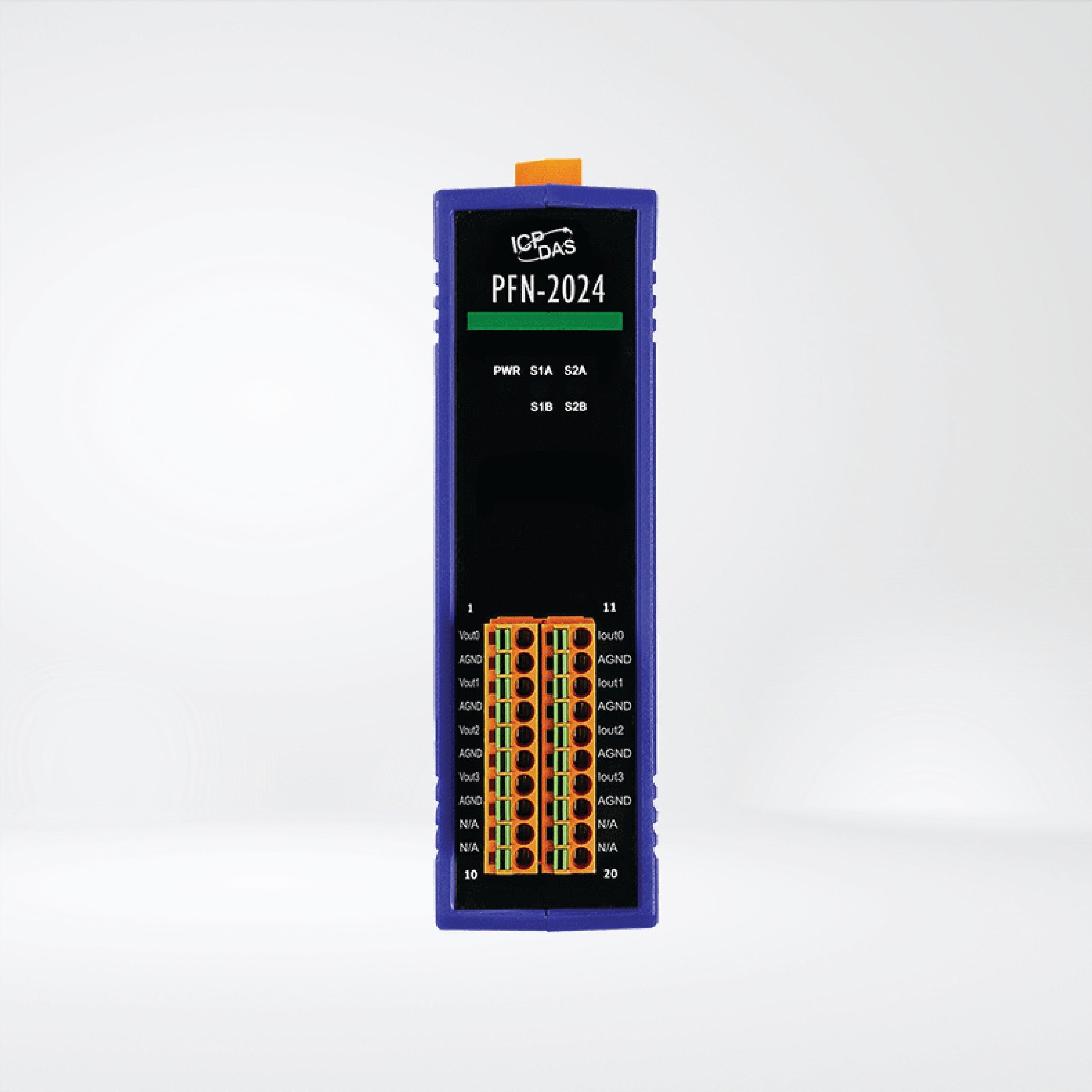

PFN-2024 PROFINET I/O Module (4-channel Isolated Analog Output Module)

Features

- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- 16-bits resolution DAC
- Output Range: 0~20mA, 4~20mA, 0~10V, +/-10V, 0~5V, +/-5V
- 4 kV Contact ESD protection for any terminal
