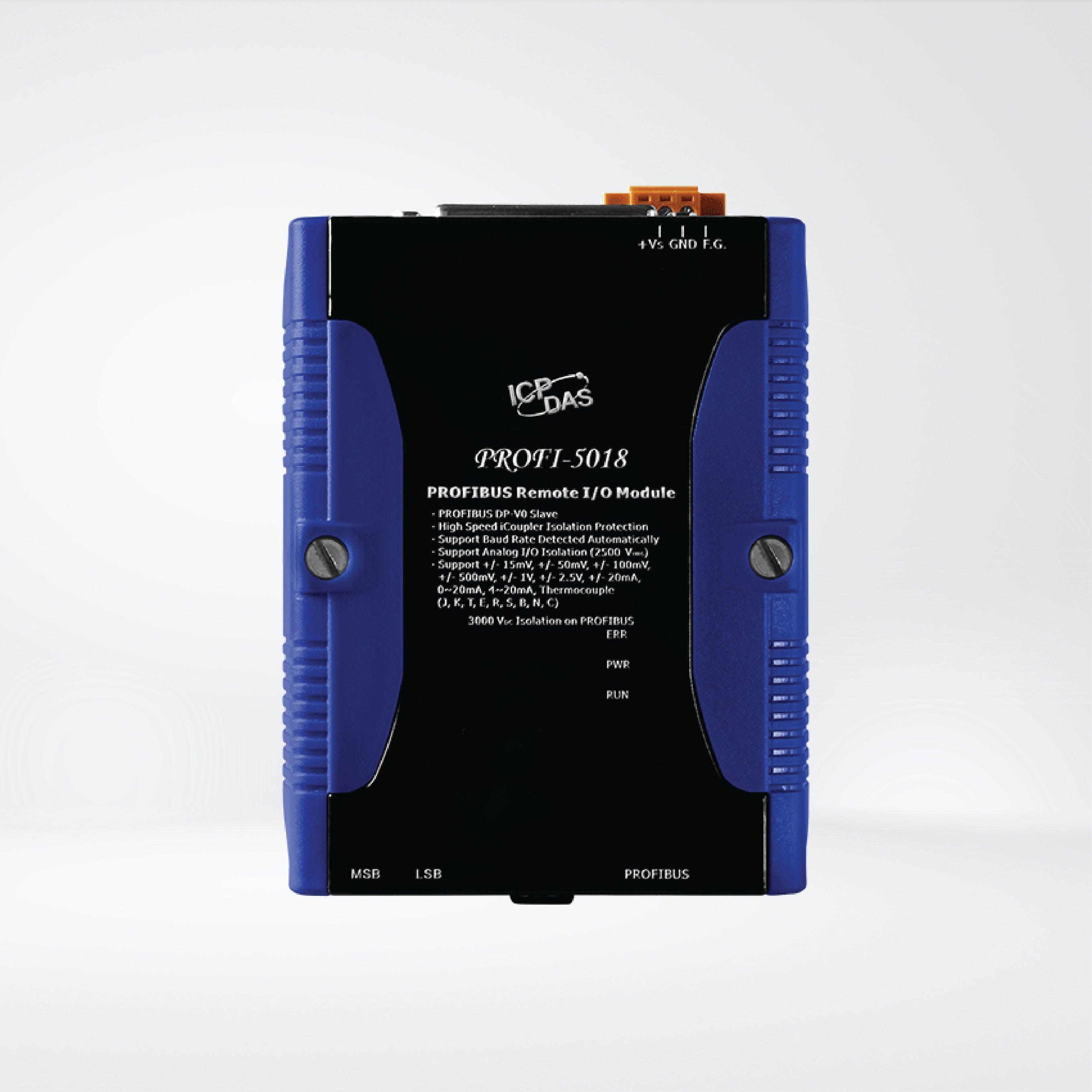

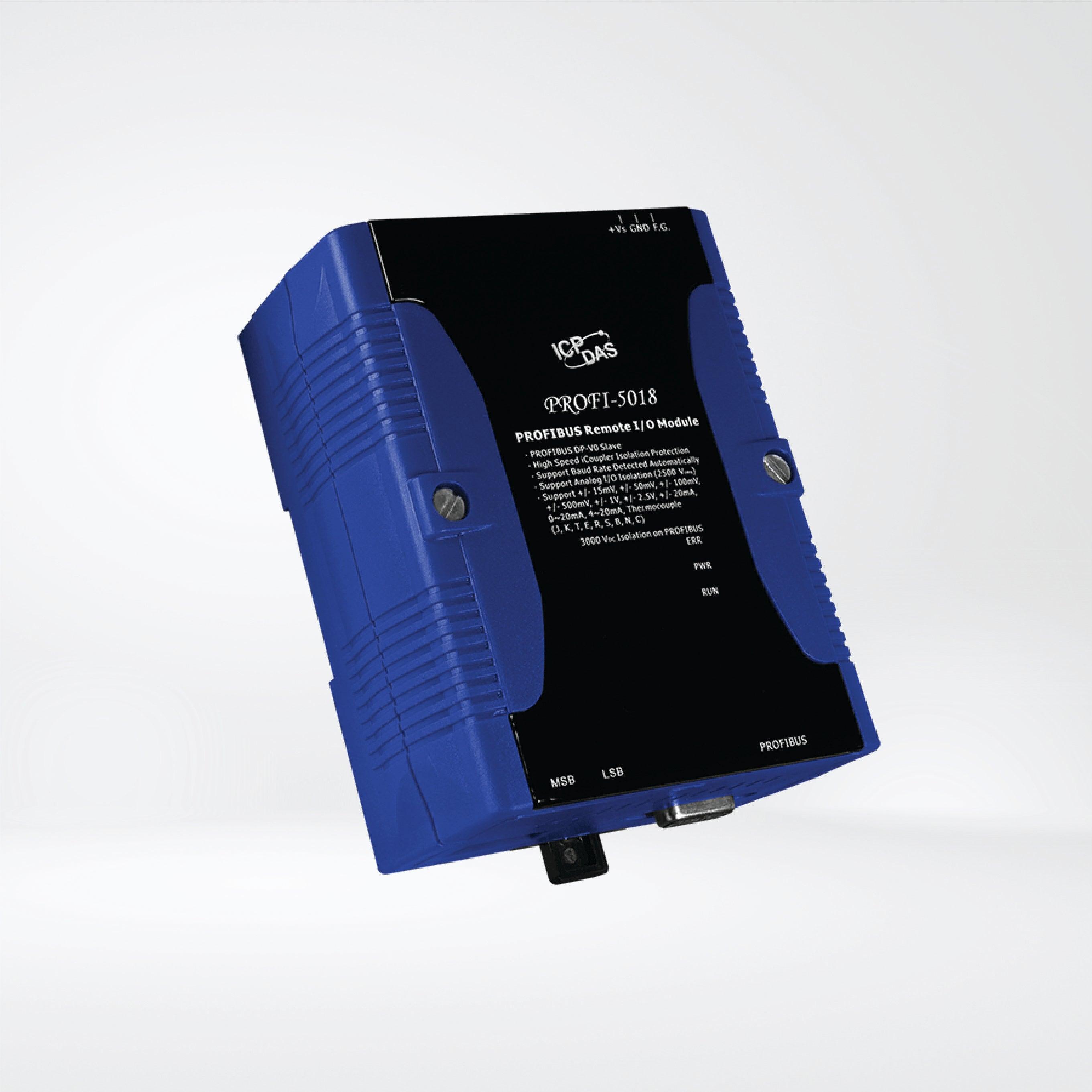

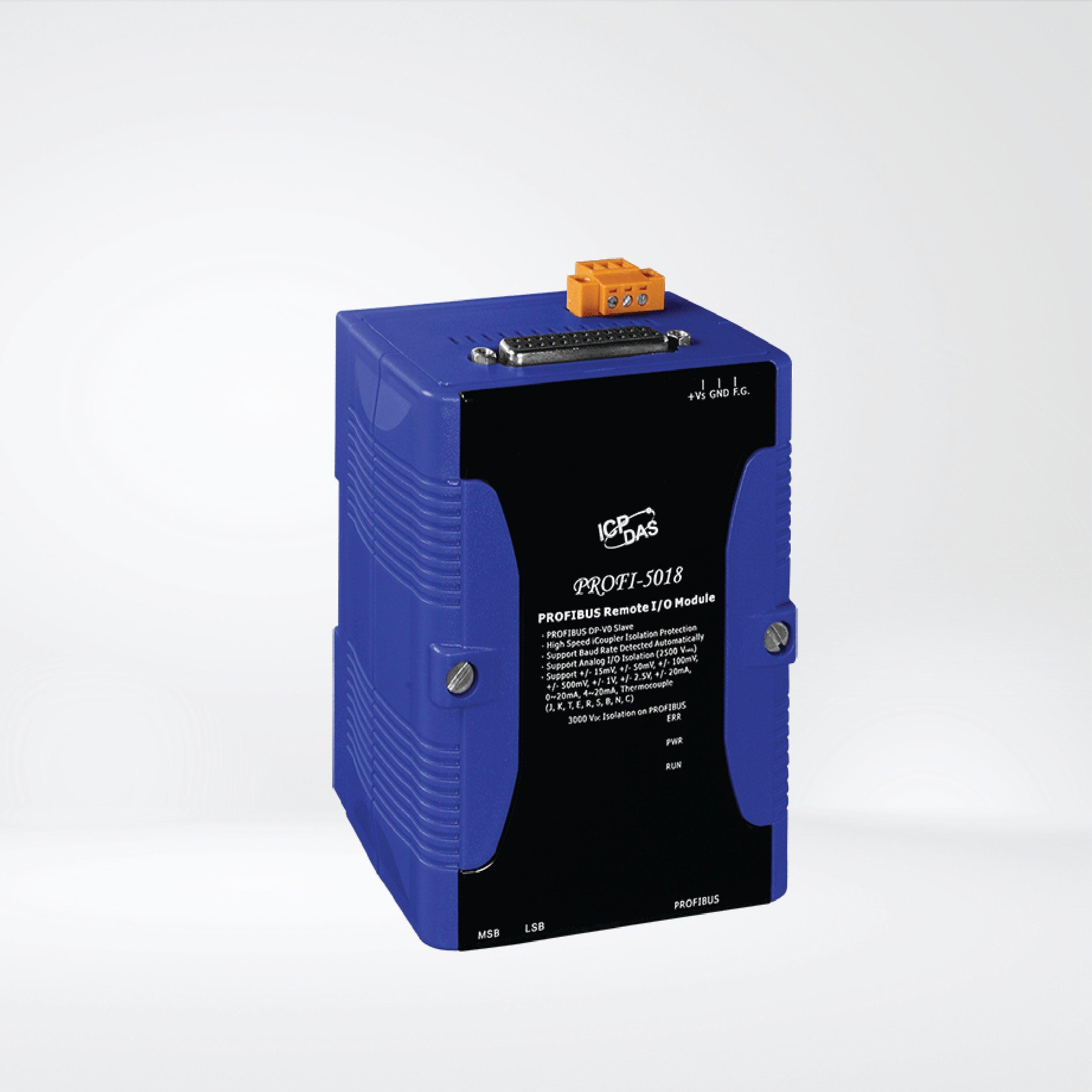

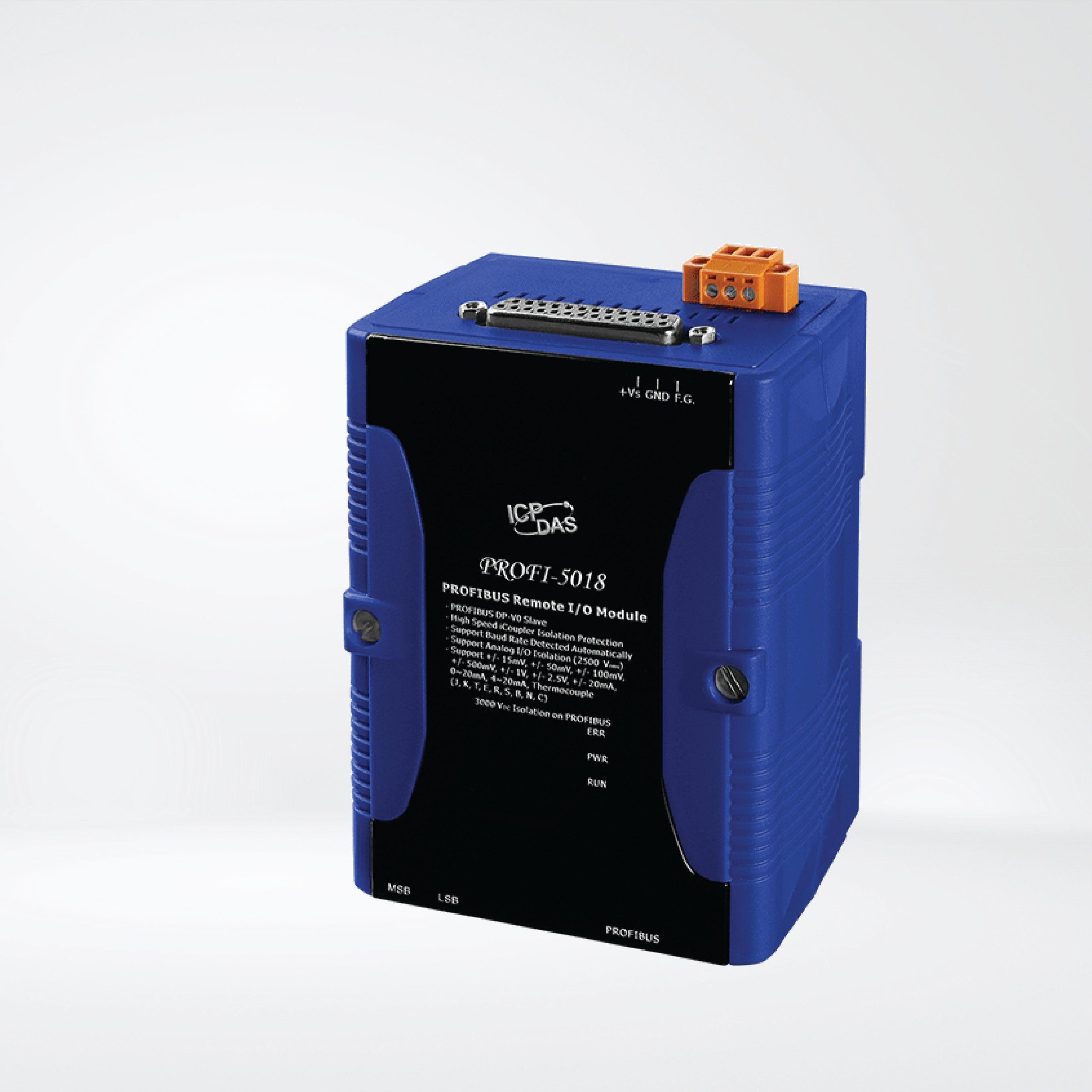

PROFI-5018/S PROFIBUS Remote I/O Module (10-channel Thermocouple Input )

Features

- PROFIBUS Remote I/O Module (10-channel Thermocouple Input with High Voltage Protection)
- Protocol & Hierarchy : DP-V0 Slave
- Transmission Rate Setting : detected automatically
- Address Setting : Address 0~126 set by rotary switches or SSA Telegram
- I/O modules Configuration : Configured by GSD file
- Network Isolation Protection : High Speed iCoupler
- 4KV ESD Protection : Contact for each terminal
