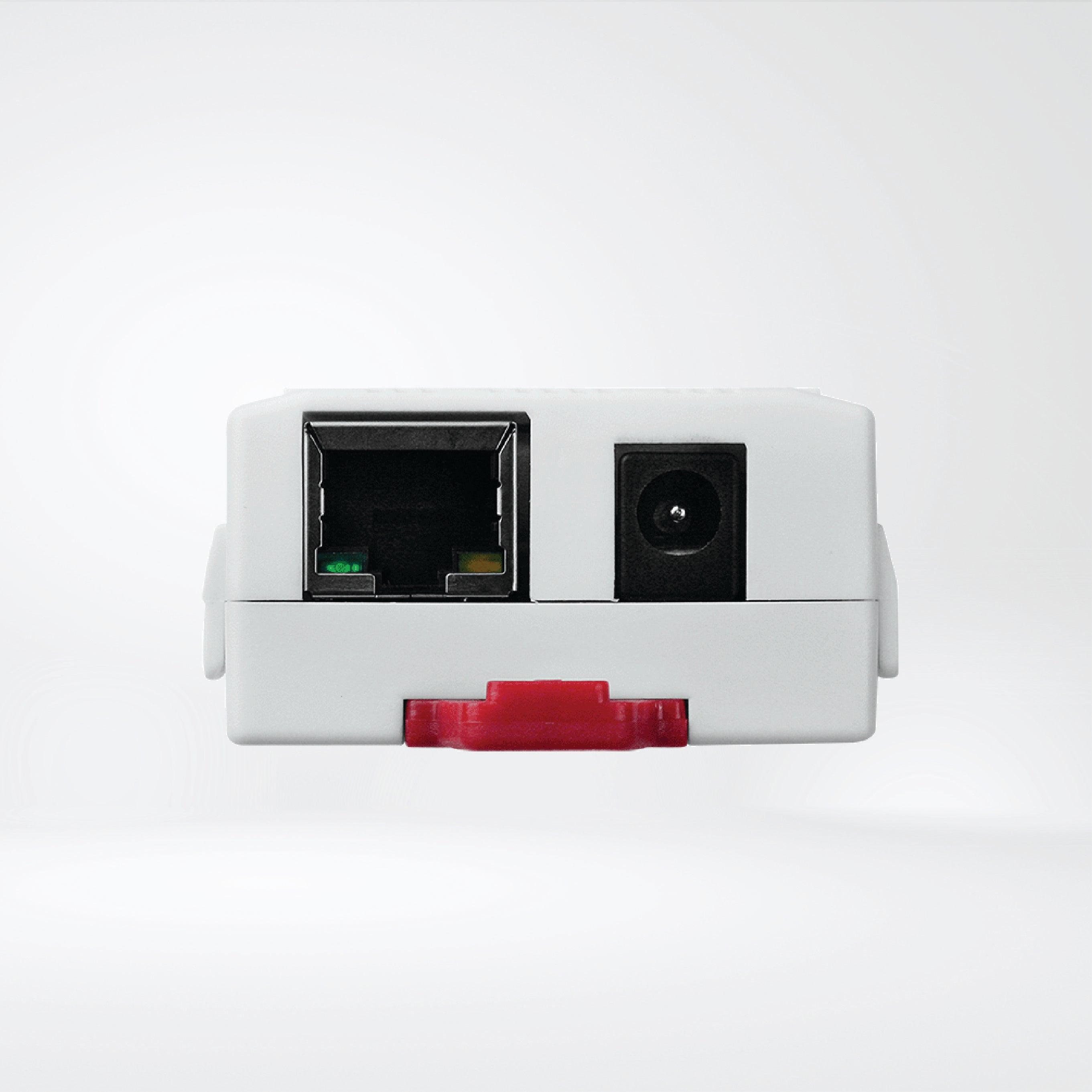

tGW-725i Tiny Modbus/TCP to RTU/ASCII Gateway with PoE and 2-port Isolated RS-485

Features

- Supports Modbus TCP/UDP master and slave
- Supports Modbus RTU/ASCII master and slave
- Max. TCP connections (masters) per serial port: 32
- Read-cache ensures faster Modbus TCP/UDP response
- Supports UDP responder for device discovery (UDP Search)
- Static IP or DHCP network configuration
- Tiny Web server for configuration (HTTP)
- Allows automatic RS-485 direction control

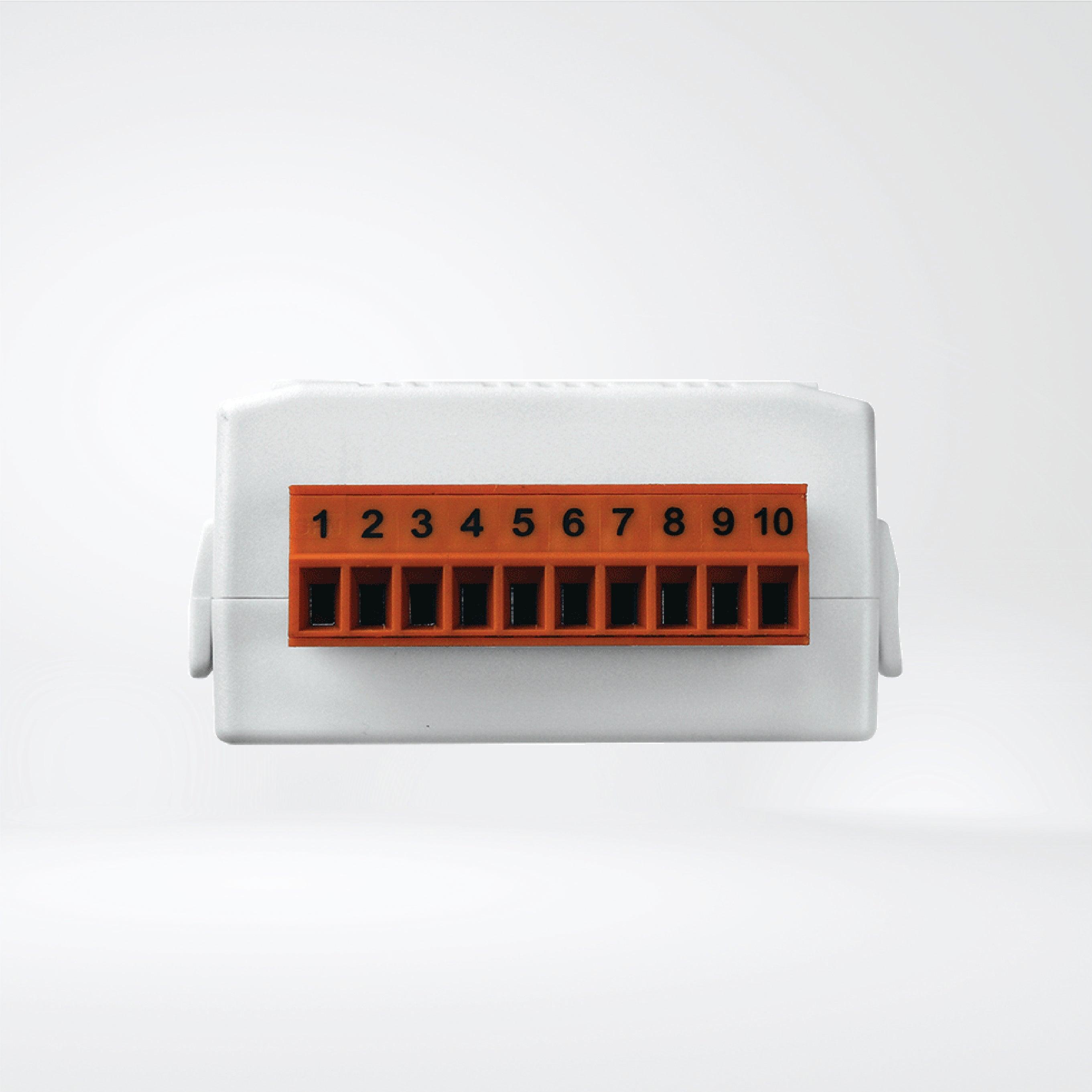

- Terminal block connector for easy wiring
- Cost-effective Modbus gateway
