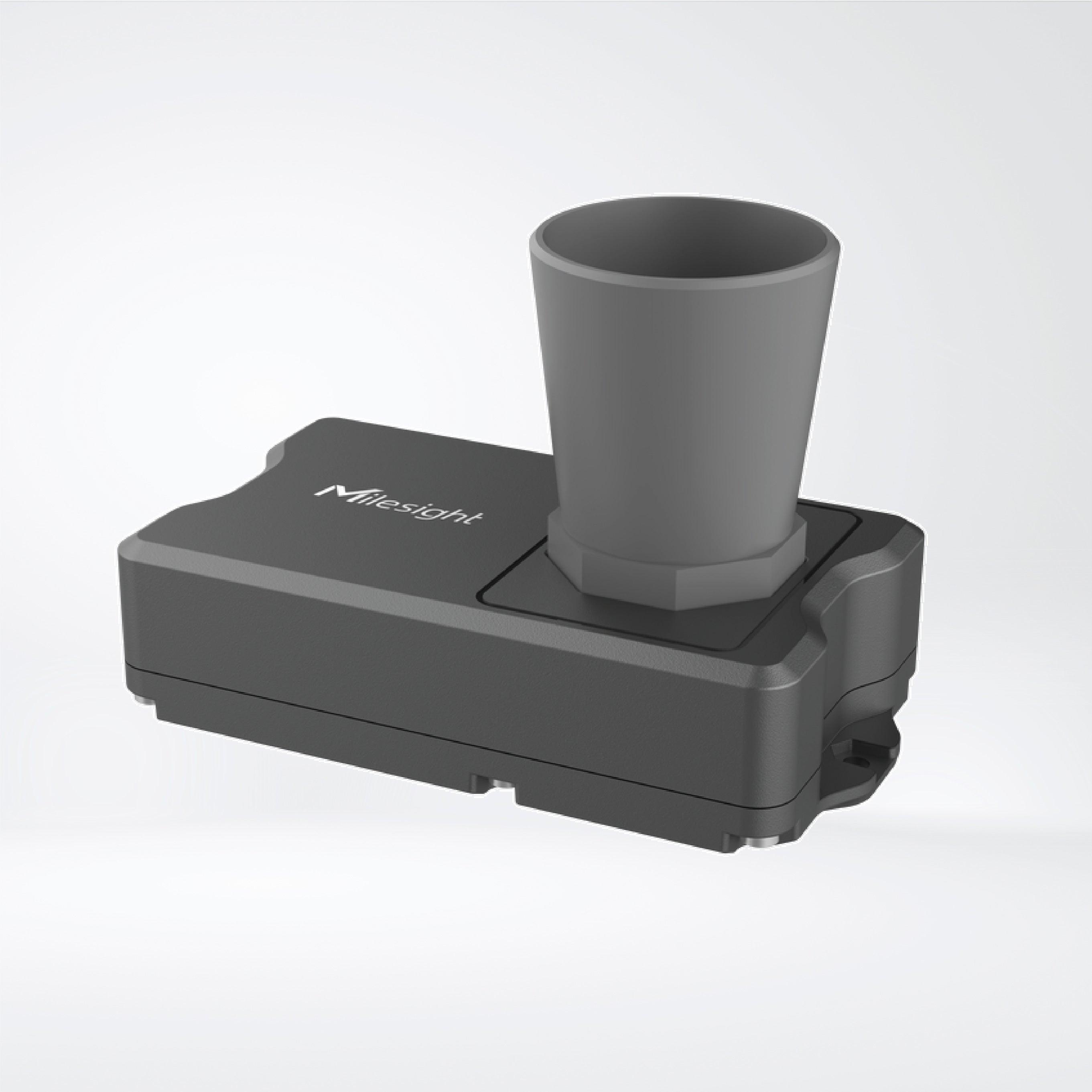

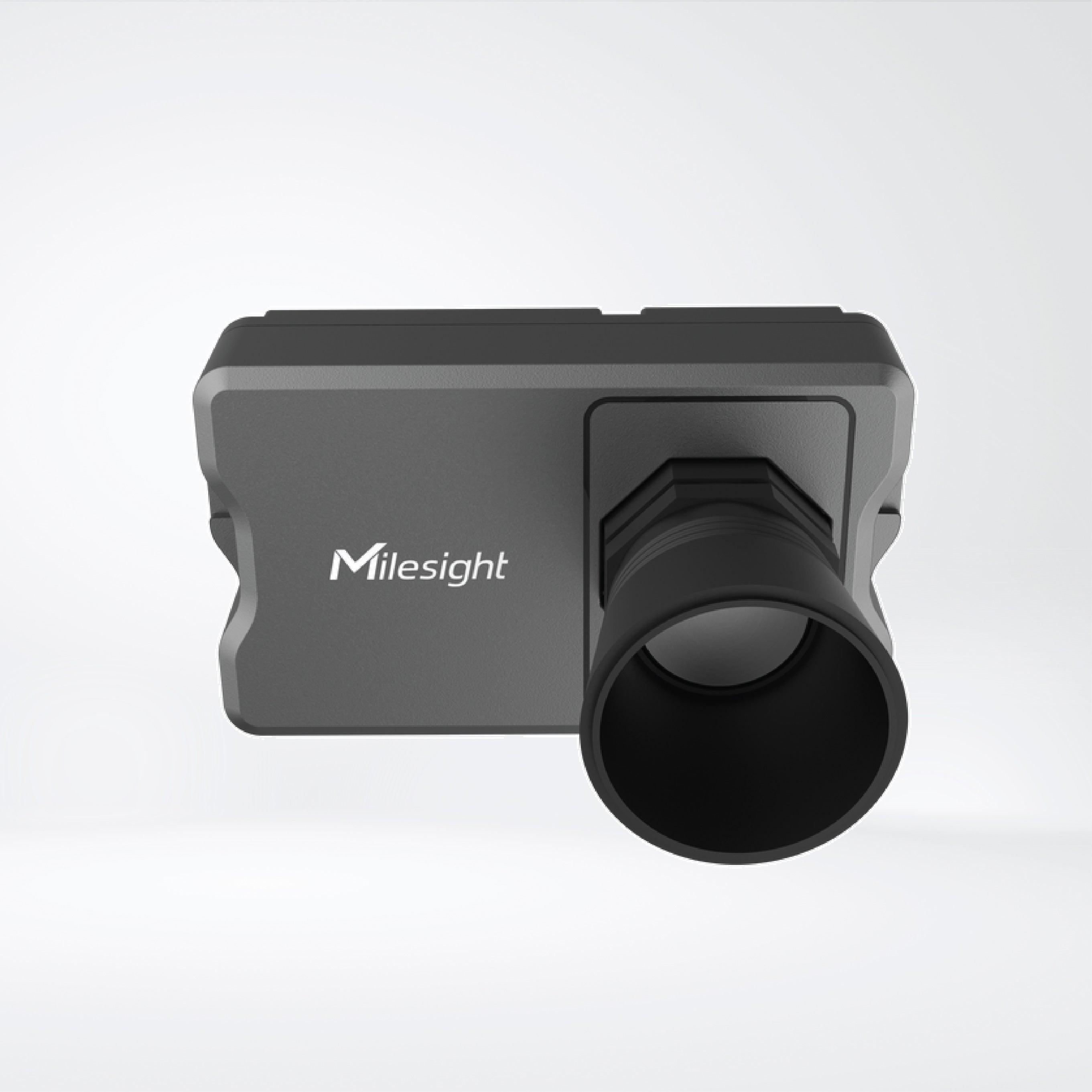

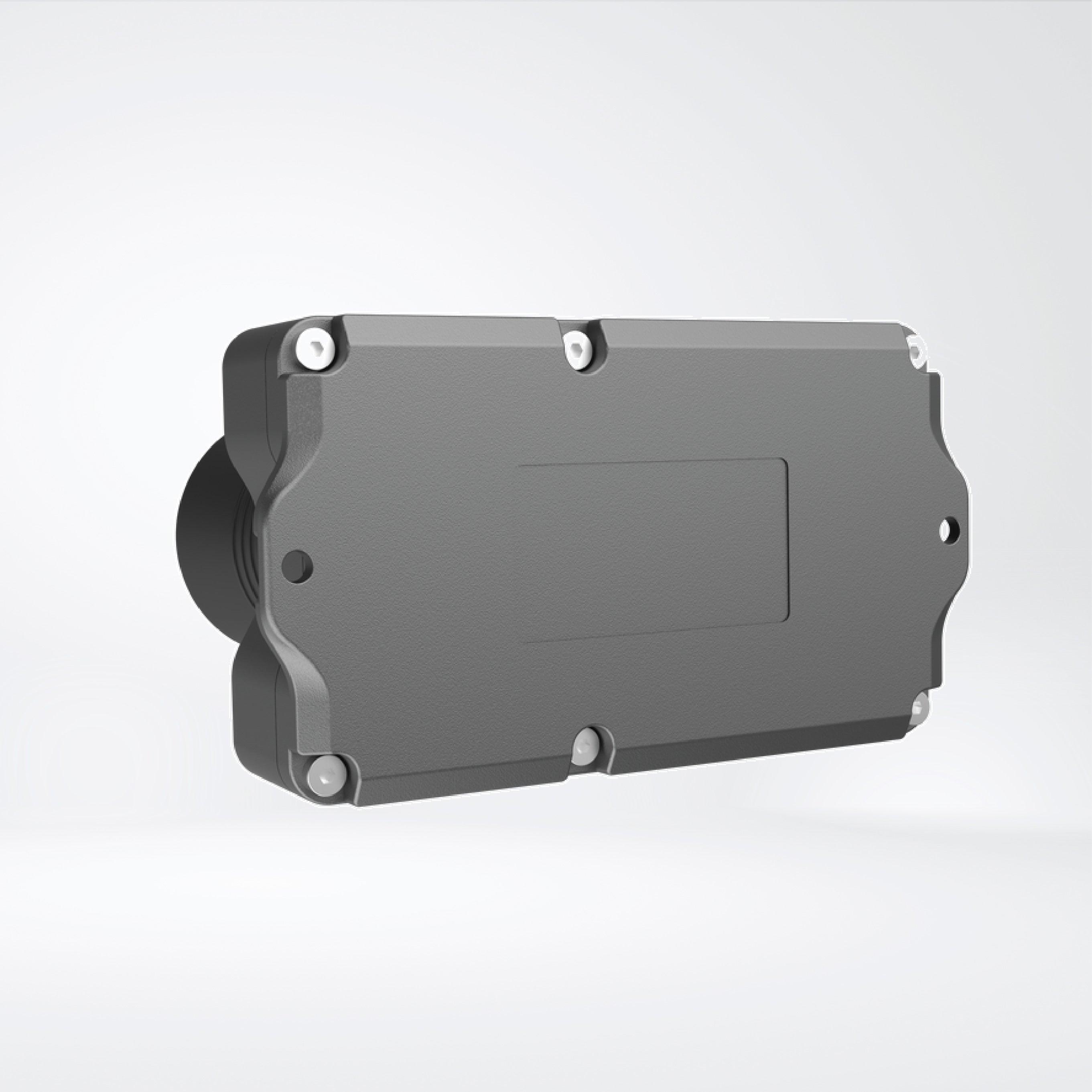

EM400-UDL Ultrasonic Distance Sensor

EM400-UDL, as the versatile product among EM400 series, offering three versions - Standard, Pro, and Snow Level with varying detection range, resolution, and accuracy, is designed to cater to the demands of professional applications. Equipped with prolonged battery life and robust IP67 rated enclosure, EM400-UDL is the perfect fit for professional and demanding applications. Additionally, its availability in both LoRaWAN^® and NB-loT versions allows for a variety of application scenarios.

Features

• LoRaWAN^® and NB-loT Versions for Broader Applications

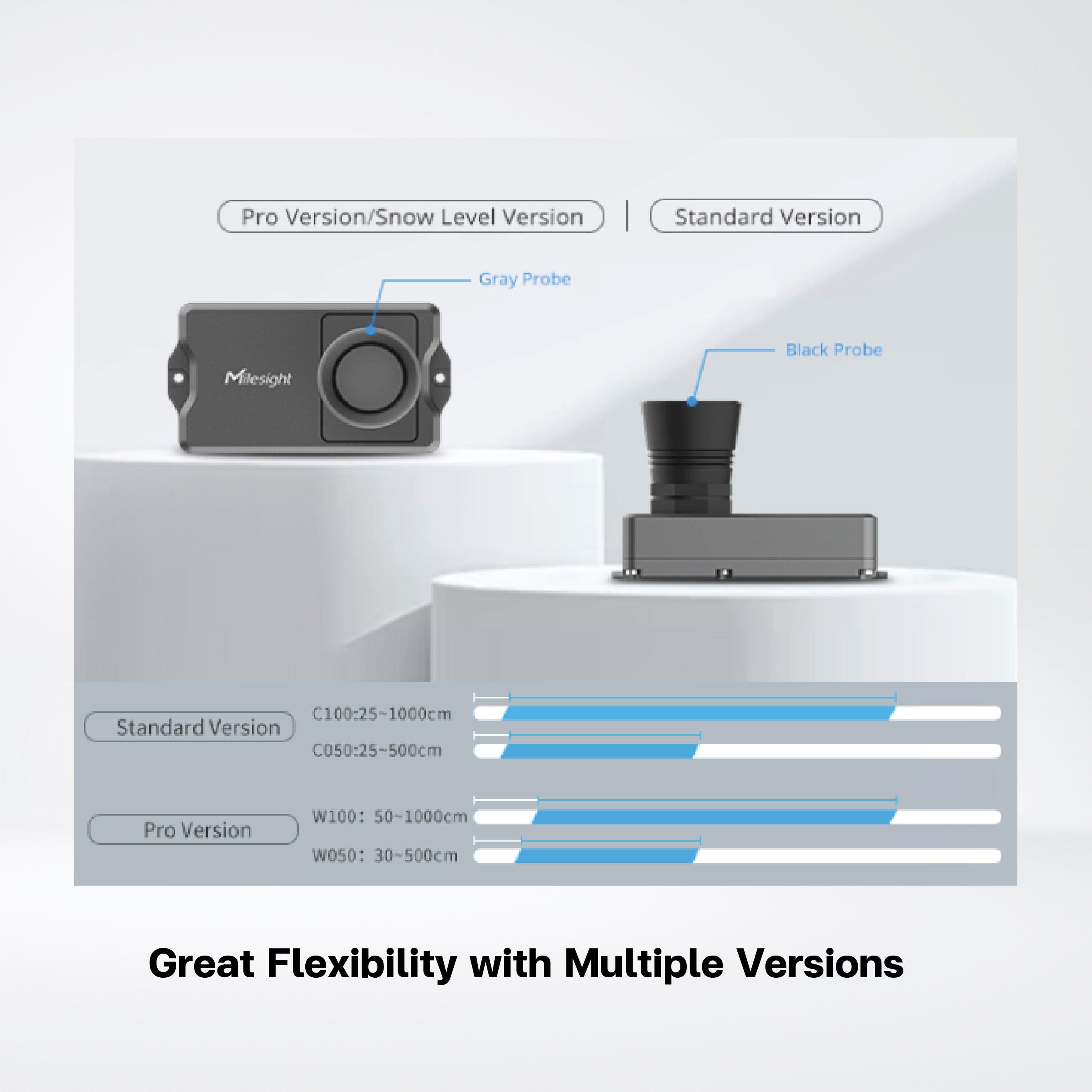

• Great Flexibility with Multiple Versions

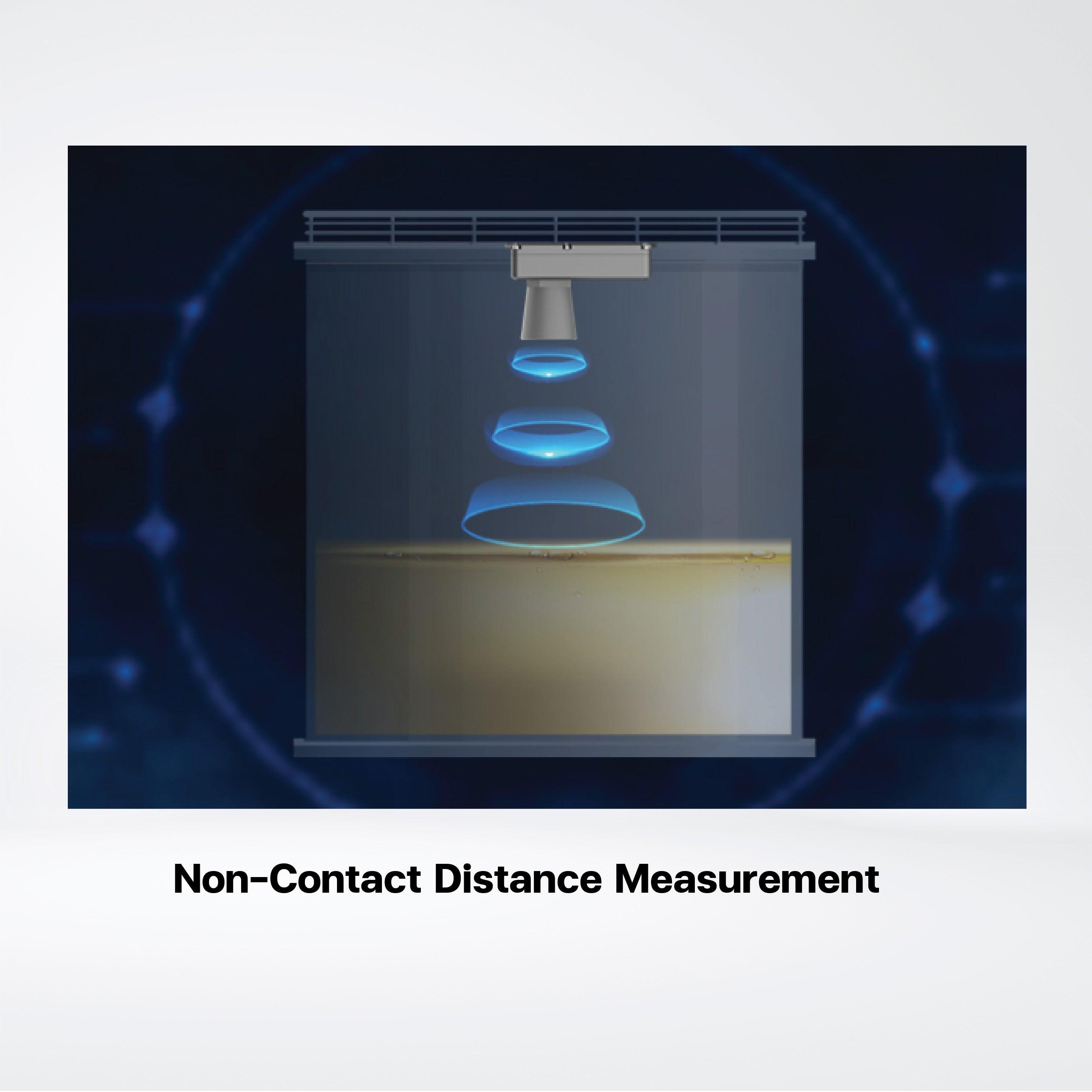

• Non-Contact Distance Measurement

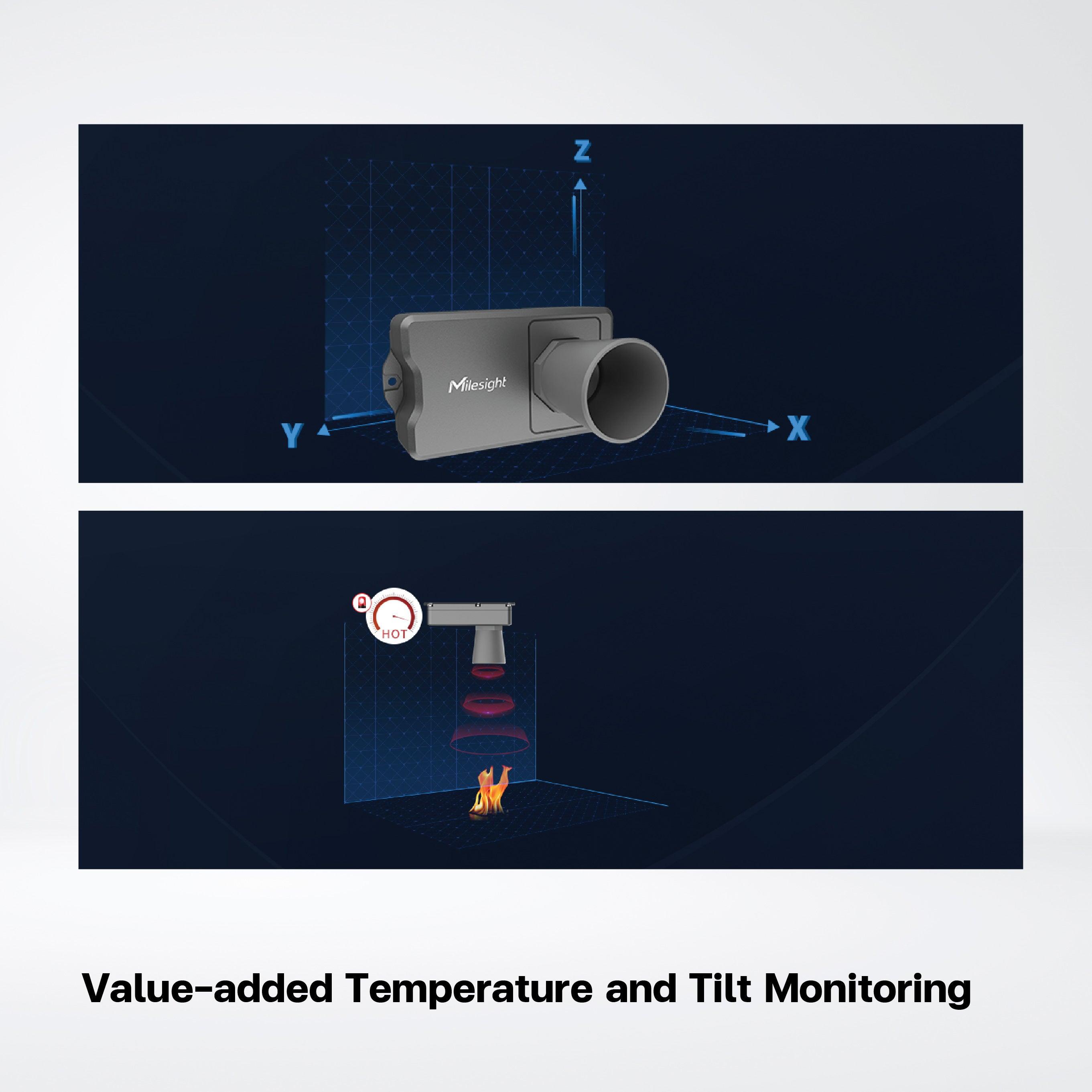

• Value-added Temperature and Tilt Monitoring

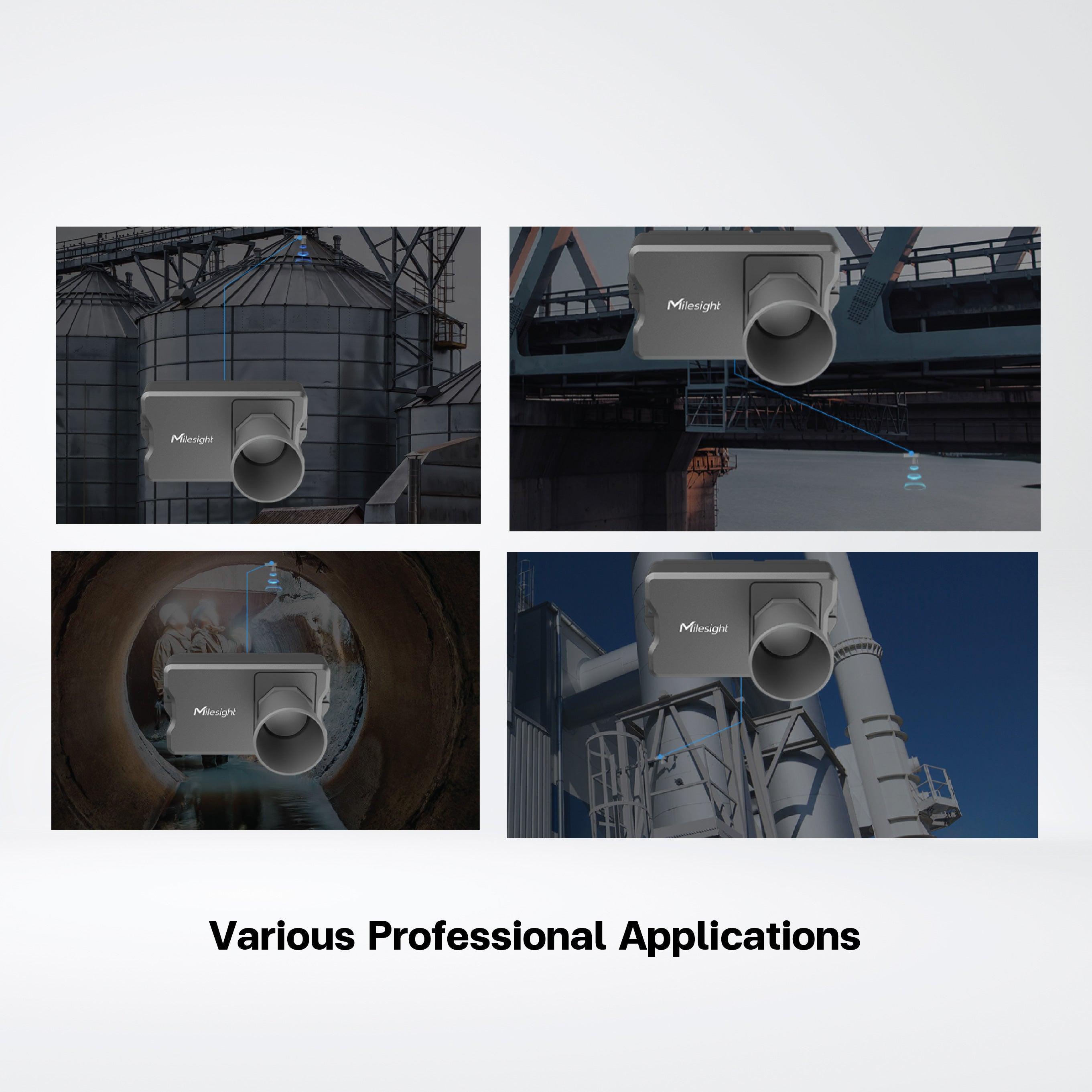

• Various Professional Applications
• Long-Lasting Battery Life of up to 10 Years

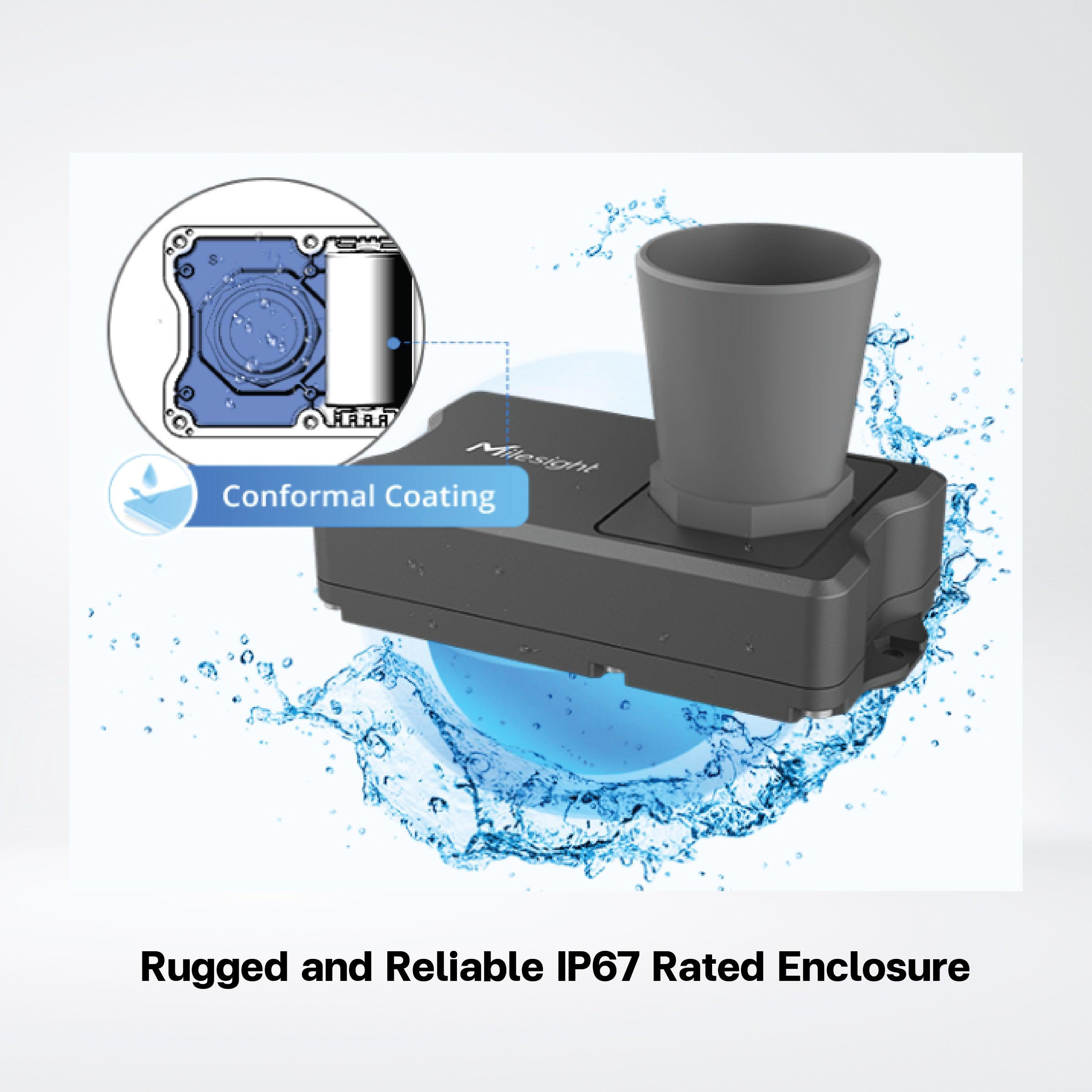

• Rugged and Reliable IP67 Rated Enclosure
• Positioning Function Enabled by GNSS Modules (NB-loT version)

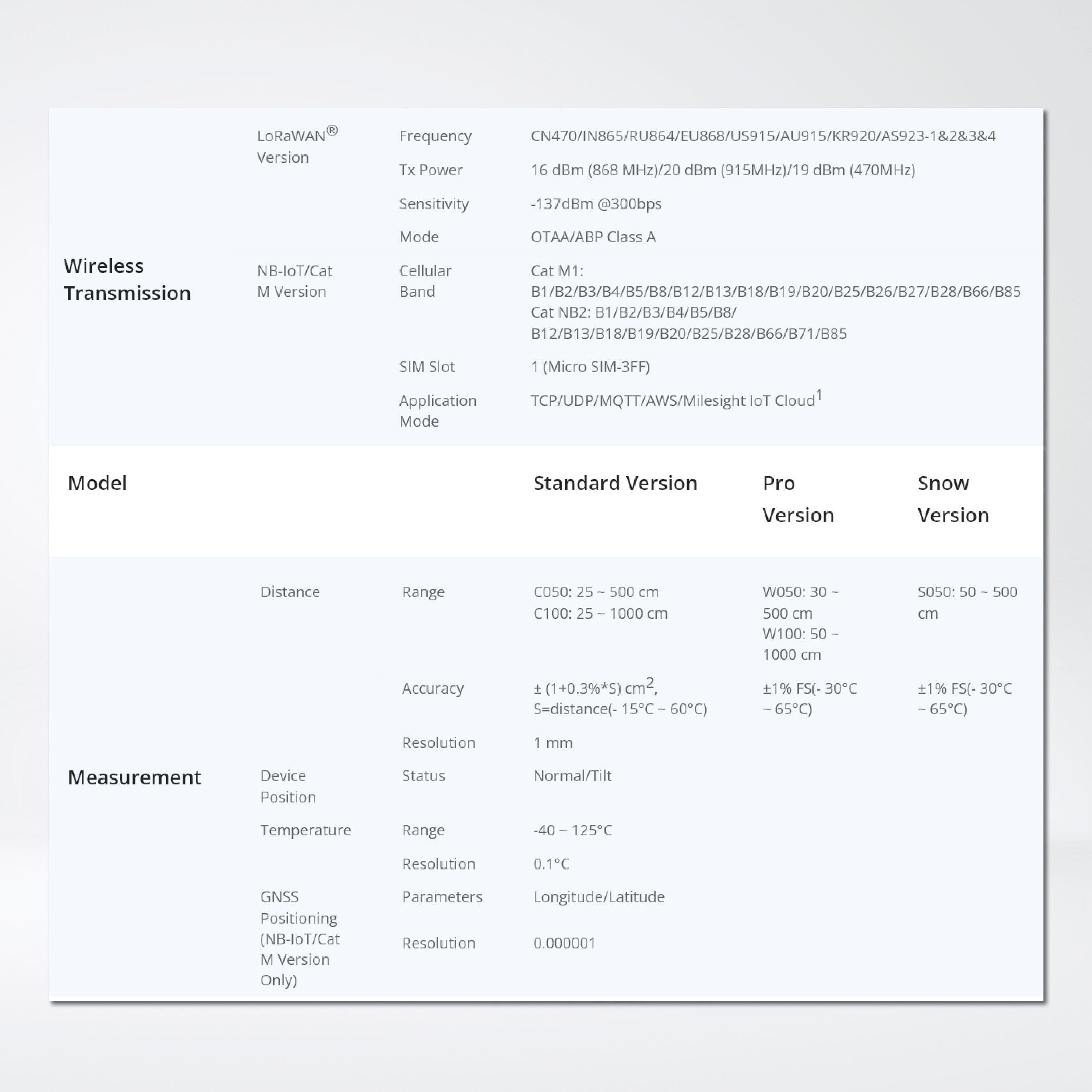

1. EM400-UDL-915M-W050
   Distance Range : 30 ~ 500 cm
   Accuracy : ±1% FS(- 30°C ~ 65°C)

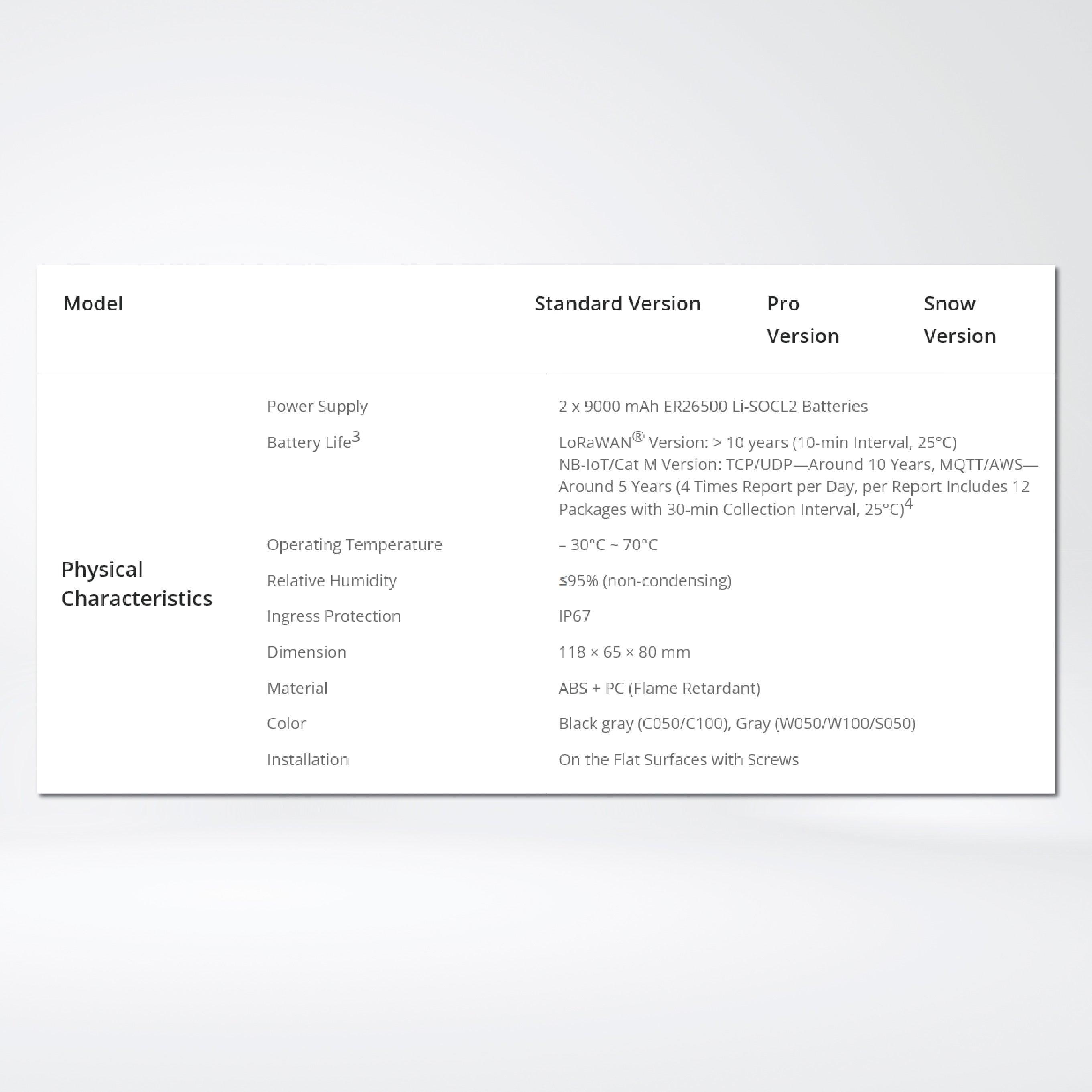

   Power Supply : 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
   Temperature Range : -40 ~ 125°C

2. EM400-UDL-915M-W100
   Distance Range : 50 ~ 1000 cm
   Accuracy : ±1% FS(- 30°C ~ 65°C)
   Power Supply : 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
   Temperature Range : -40 ~ 125°C

3. EM400-UDL-915M-C050
   Distance Range : 25 ~ 500 cm
   Accuracy : ± (1+0.3%*S) cm², S=distance(- 15°C ~ 60°C)
   Power Supply : 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
   Temperature Range : -40 ~ 125°C

4. EM400-UDL-915M-C100
   Distance Range : 25 ~ 1000 cm
   Accuracy : ± (1+0.3%*S) cm², S=distance(- 15°C ~ 60°C)
   Power Supply : 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
   Temperature Range : -40 ~ 125°C
