Description
Features
- Industrial Grade Design for Harsh Environment
- Rugged And Pocket-Sized Design
- Embedded Python SDK for Secondary Development
- Ultra-High Protection System

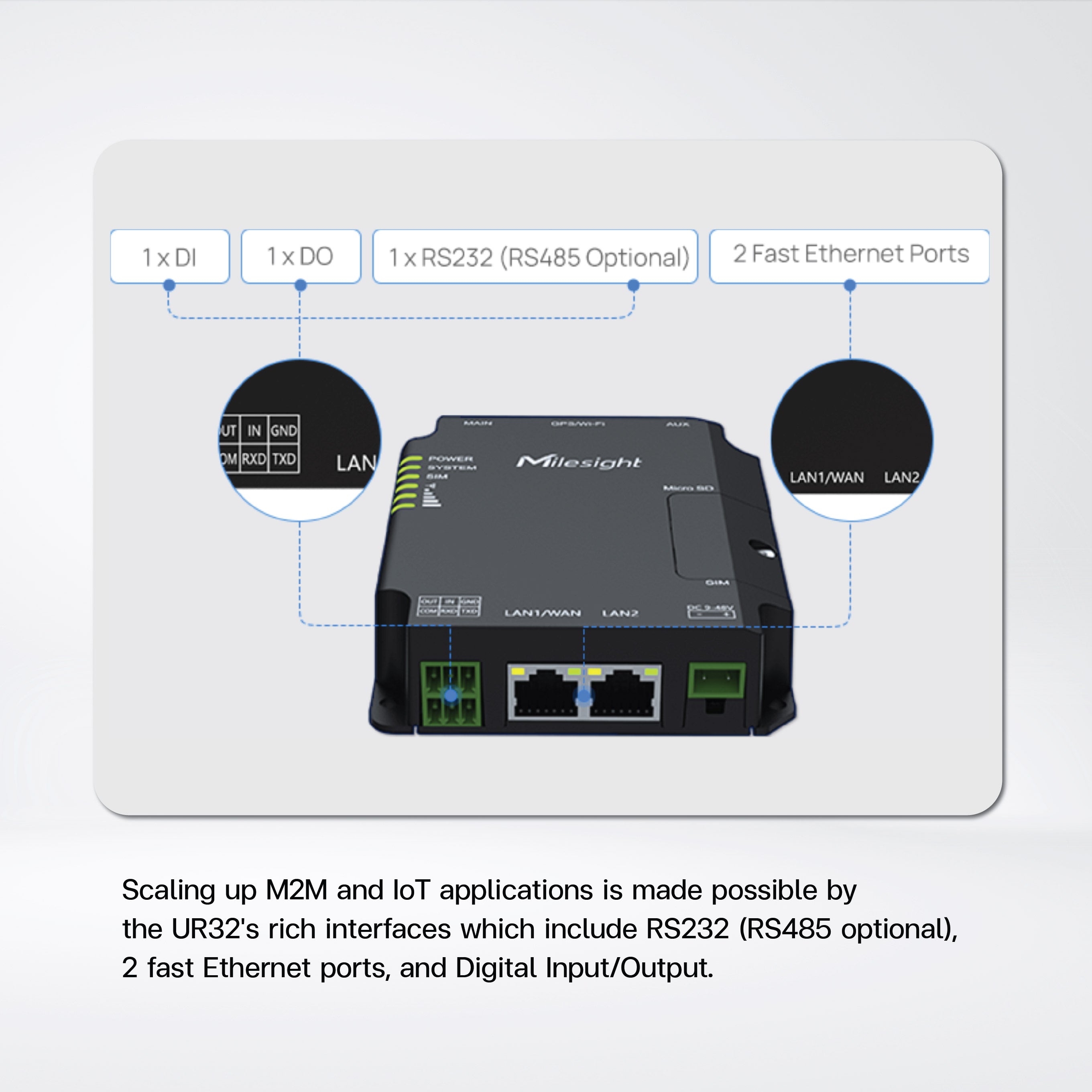

- Rich Interfaces for Multiple Applications
- Stable Cellular, Ethernet, and Wi-Fi Transmission
- Open VPN Tunnel and Various Protocols (Including DLMS/Modbus)
- Remote Management on Milesight VPN and Device Hub
-

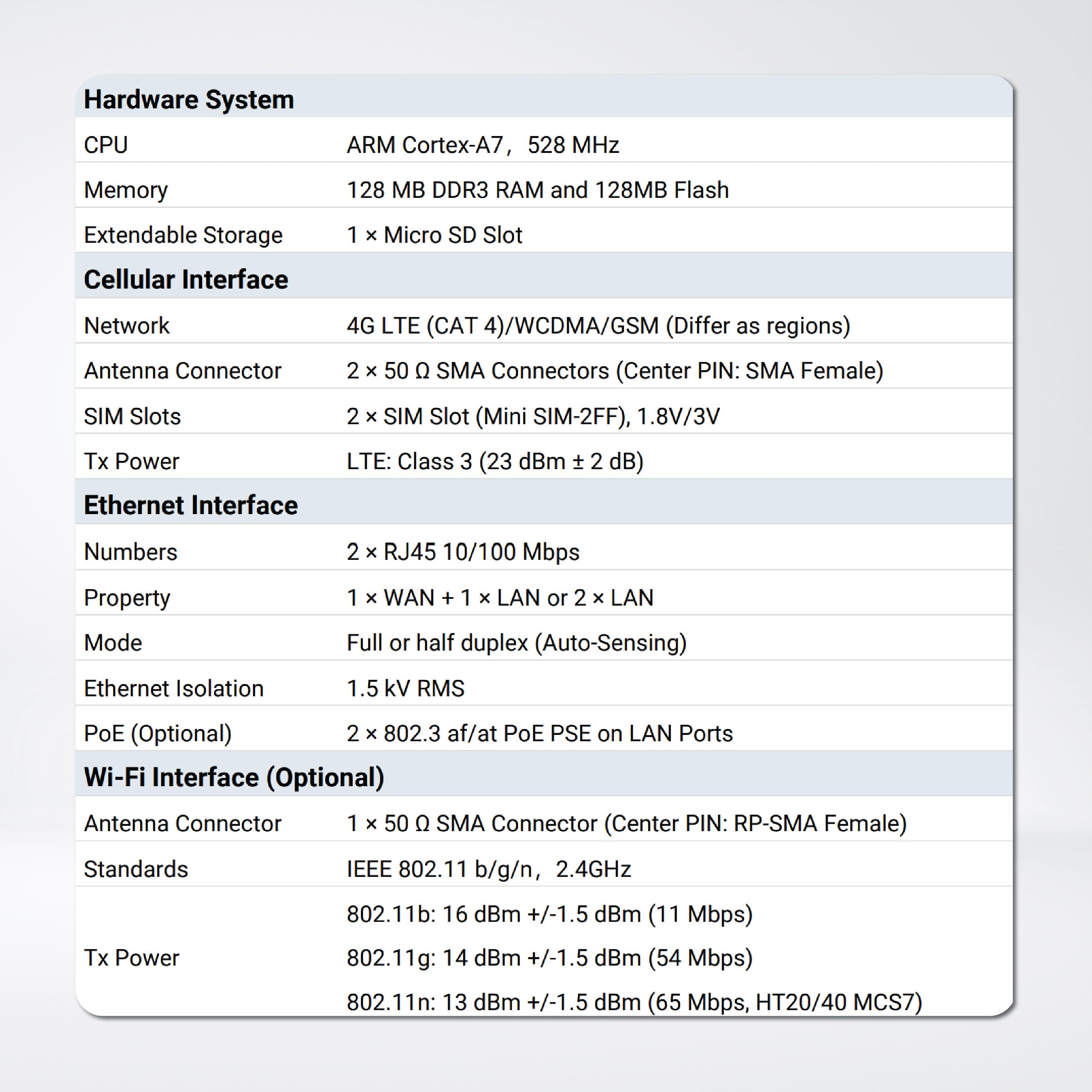

Hardware System
CPU : ARM Cortex-A7,528 MHz
Memory : 128 MB DDR3 RAM and 128MB Flash
Extendable Storage : 1 × Micro SD Slot -
Cellular Interface
Network : 4G LTE (CAT 4)/WCDMA/GSM (Differ as regions)
Antenna Connector :2 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slots : 2 × SIM Slot (Mini SIM-2FF), 1.8V/3V
Tx Power : LTE: Class 3 (23 dBm ± 2 dB) -
Ethernet Interface
Numbers : 2 × RJ45 10/100 Mbps
Property : 1 × WAN + 1 × LAN or 2 × LAN
Mode : Full or half duplex (Auto-Sensing)
Ethernet Isolation : 1.5 kV RMS
PoE (Optional) : 2 × 802.3 af/at PoE PSE on LAN Ports -
Wi-Fi Interface (Optional)
Antenna Connector : 1 × 50 Ω SMA Connector (Center PIN: RP-SMA Female)
Standards : IEEE 802.11 b/g/n,2.4GHz
Tx Power :
- 802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
- 802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
- 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7) -

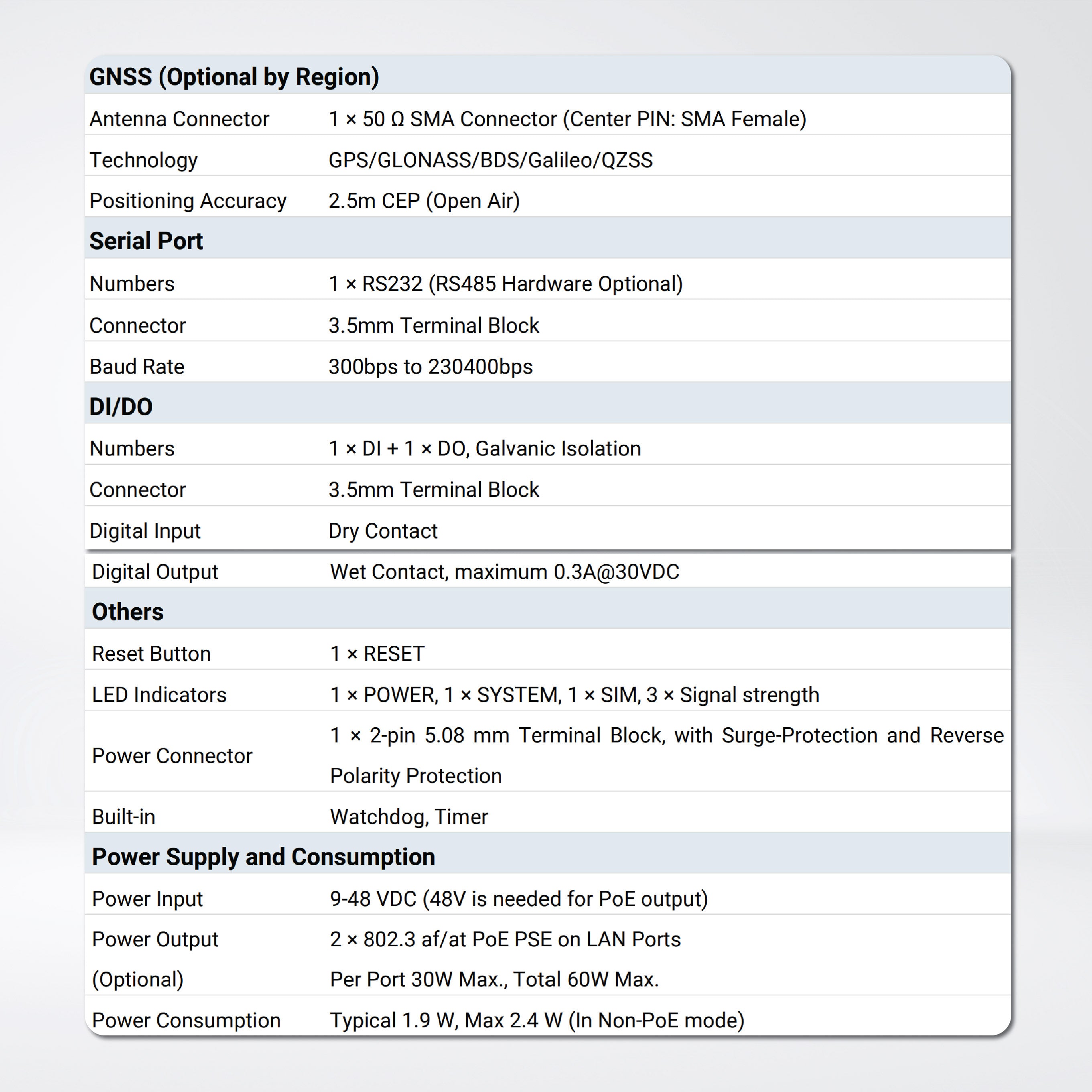

GNSS (Optional by Region)
Antenna Connector : 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Technology : GPS/GLONASS/BDS/Galileo/QZSS
Positioning Accuracy : 2.5m CEP (Open Air) -
Serial Port
Numbers : 1 × RS232 (RS485 Hardware Optional)
Connector : 3.5mm Terminal Block
Baud Rate : 300bps to 230400bps
