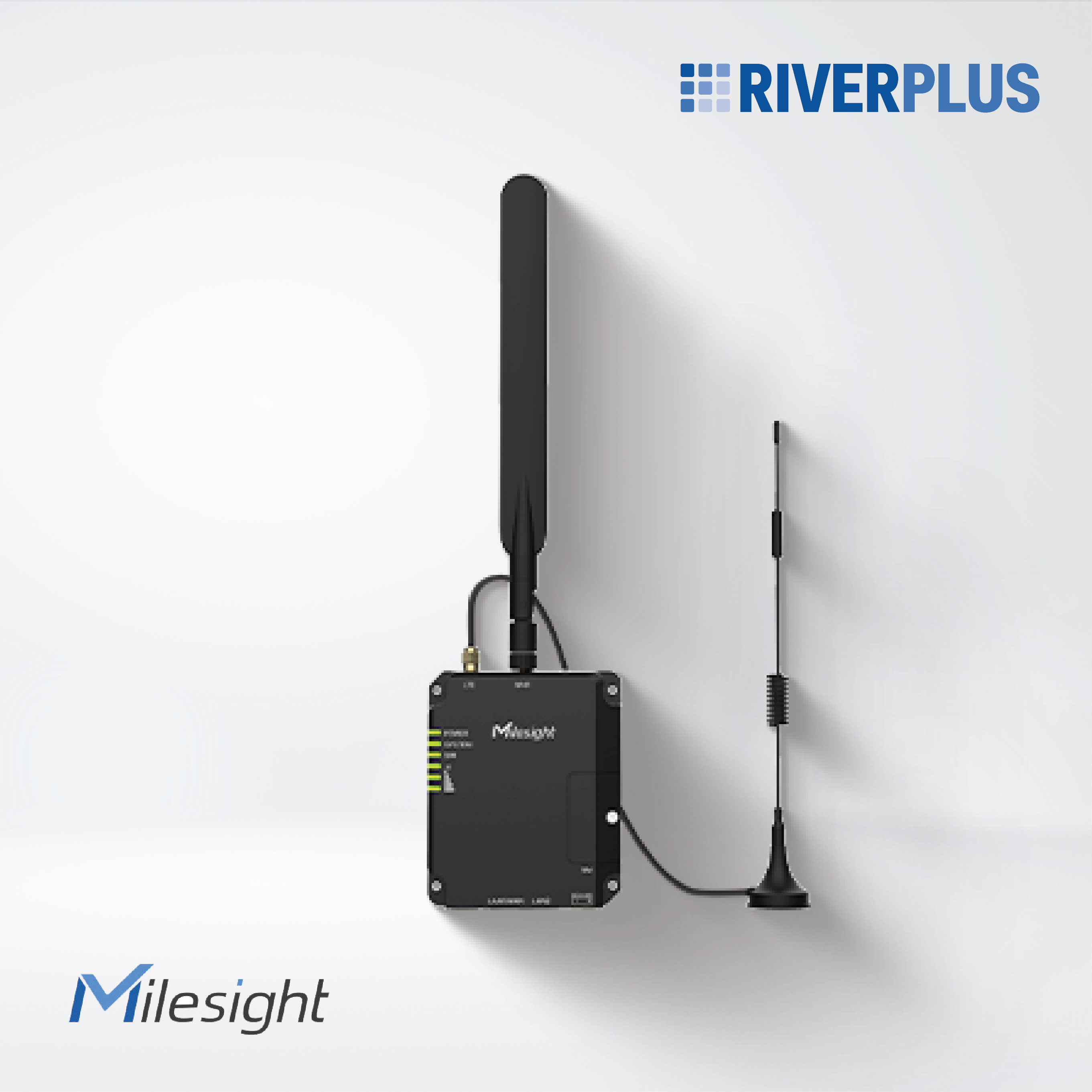

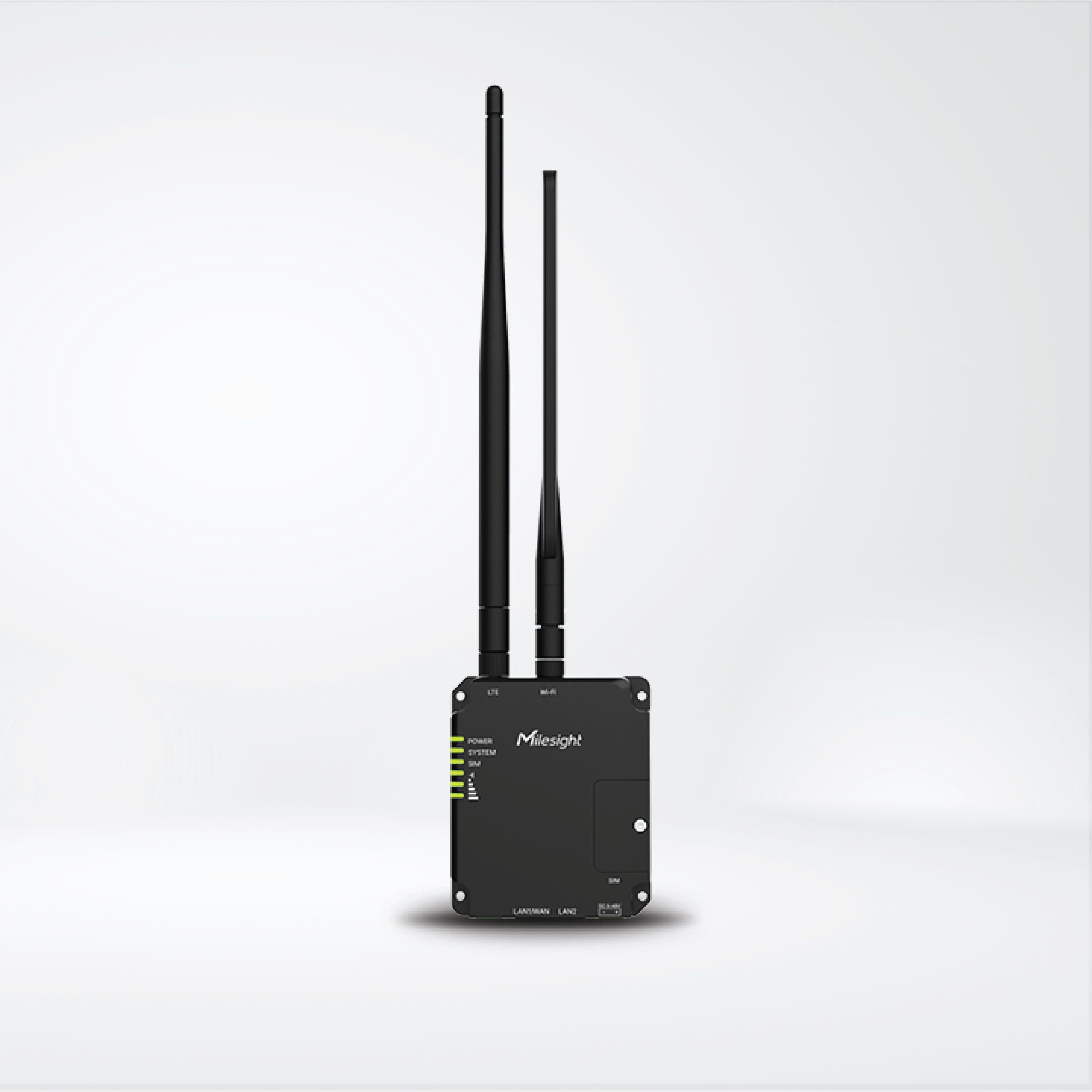

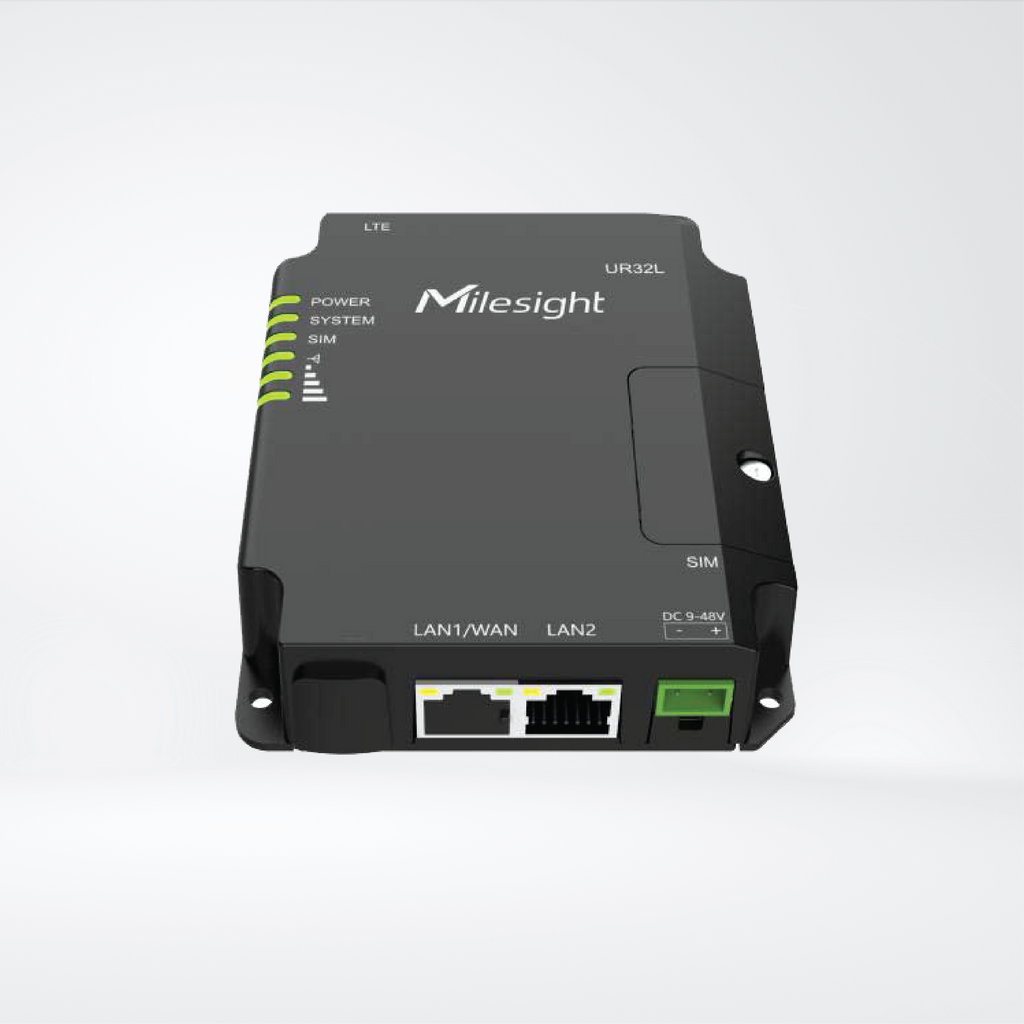

UR32S Tailored for CCTV Surveillance

UR32S is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported make this drop-in connectivity a great help for operators in maximizing uptime. UR32S also has 2 fast Ethernet ports, which delivers users an uninterrupted internet access.

Integrating watchdog and multi-link failover detection, UR32S provides stable communications. Combining Milesight Development Platform, DeviceHub and MilesightVPN, UR32S can help you manage network easily and efficiently.

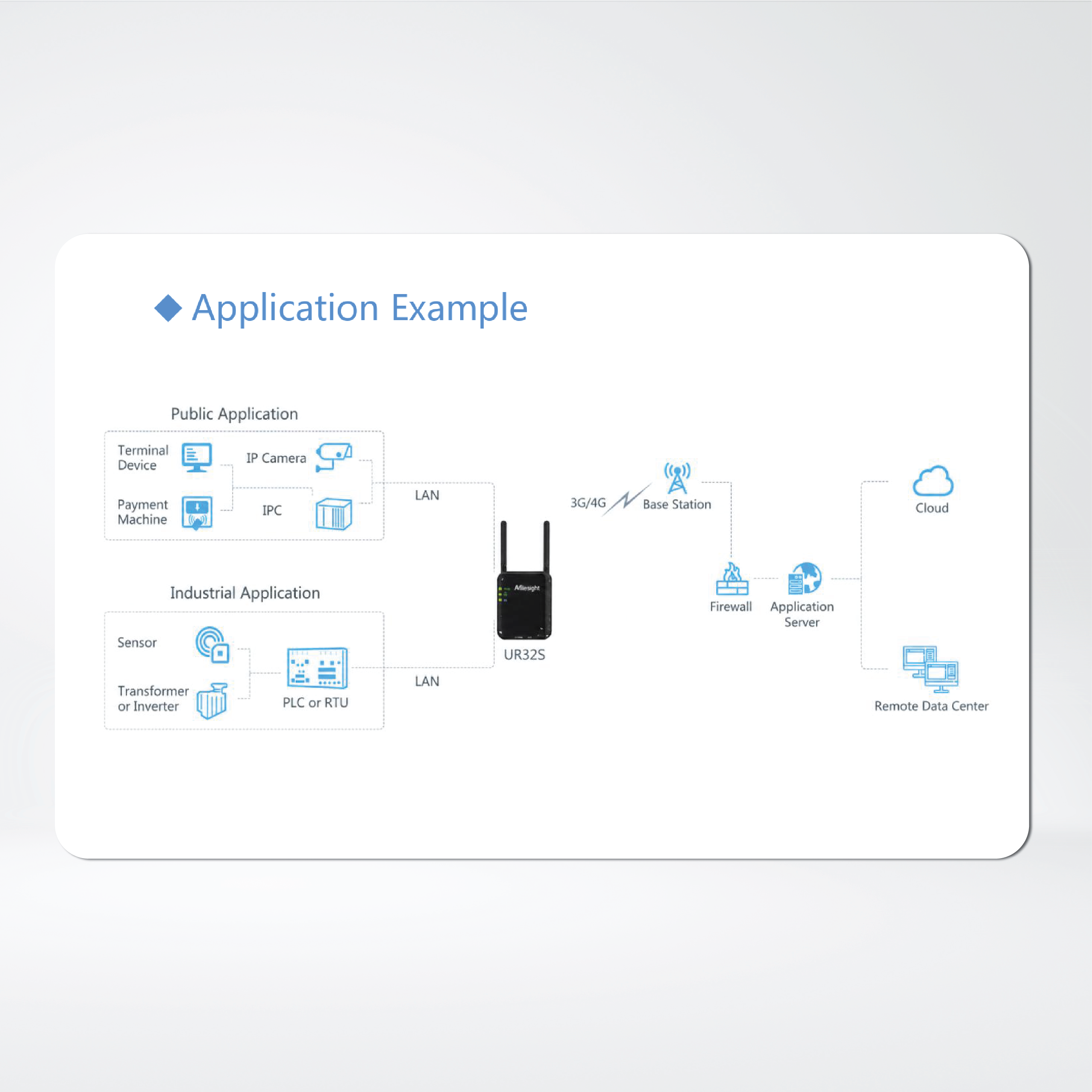

Easy deployment and comprehensive remote device management makes UR32S versatile in most of IoT/M2M applications.

Features

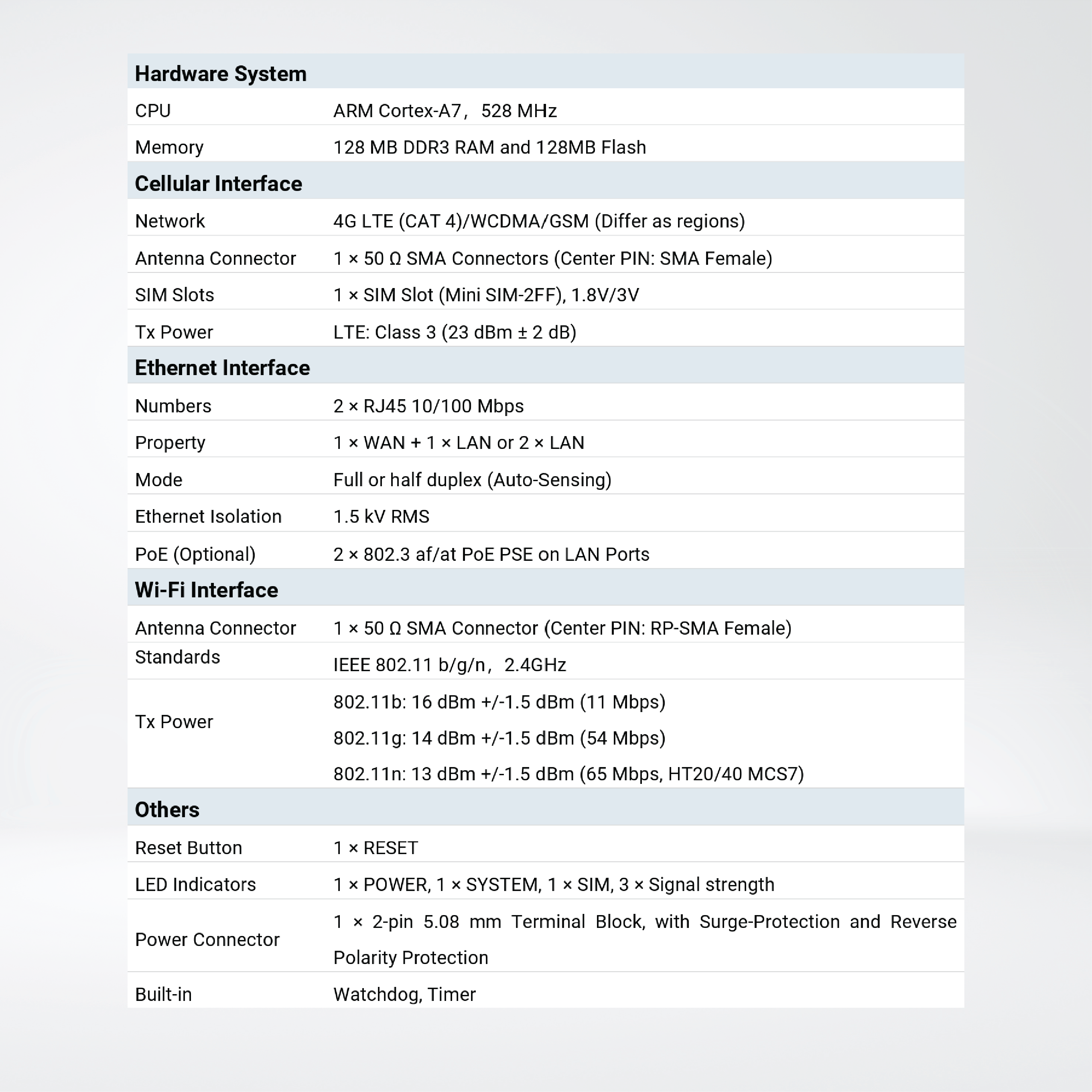

• Hardware System
  CPU    ARM Cortex-A7,528 MHz
  Memory    128 MB DDR3 RAM and 128MB Flash


• Cellular Interface

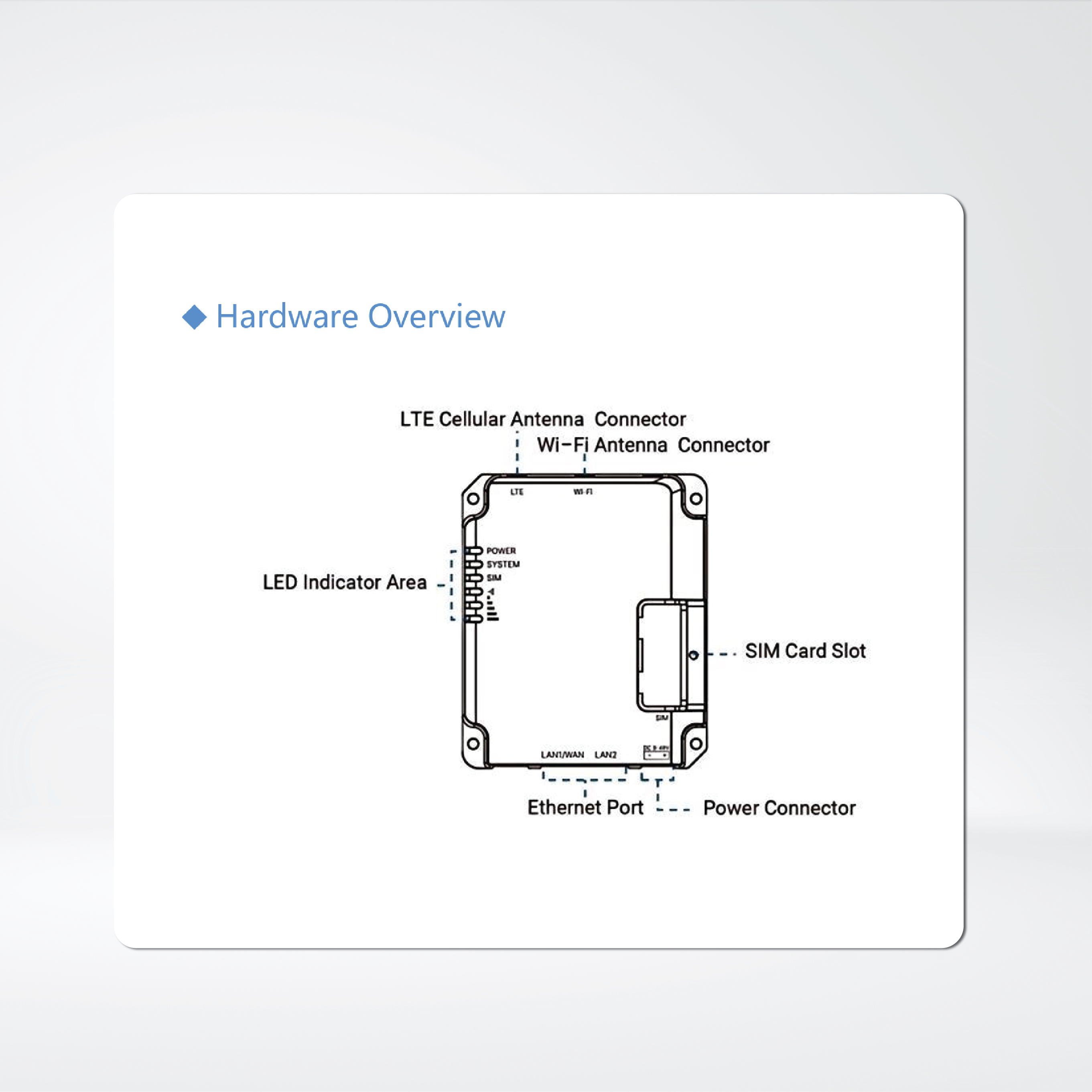

  Antenna Connector    1×50Ω SMA Connector (Center PIN: SMA Female)
  SIM Slots    1 (Mini SIM-2FF)

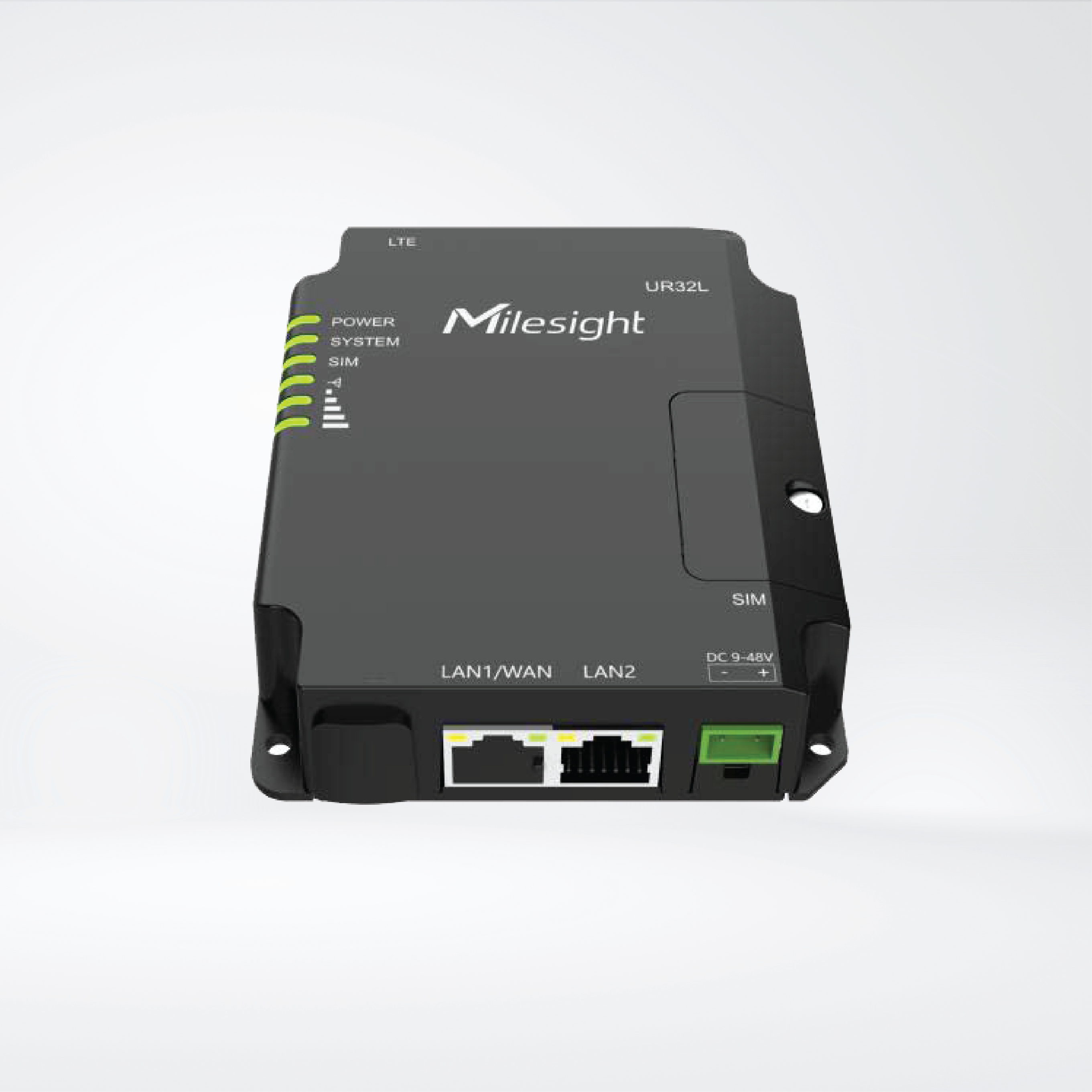

• Ethernet Interface
  Numbers    2 × 10/100 Mbps
  Property    1 × WAN + 1 × LAN (Default) or 2 × LAN
  Mode    Full or half duplex (Auto-Sensing)
  PoE    2 × 802.3 af/at PoE PSE on LAN Ports (Optional)


• Wi-Fi Interface
  Antenna Connector    1×50Ω SMA Connector (Center PIN: RP-SMA Female)
  Standards    IEEE 802.11 b/g/n,2.4GHz
  Tx Power
  - 802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
  - 802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
  - 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
  Modes    AP or Client mode
  Security    WPA/WPA2 authentication, WEP/TKIP/AES encryption


• Others
  Reset Button    1 × RESET
  LED Indicators    1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
  Built-in    Watchdog, Timer

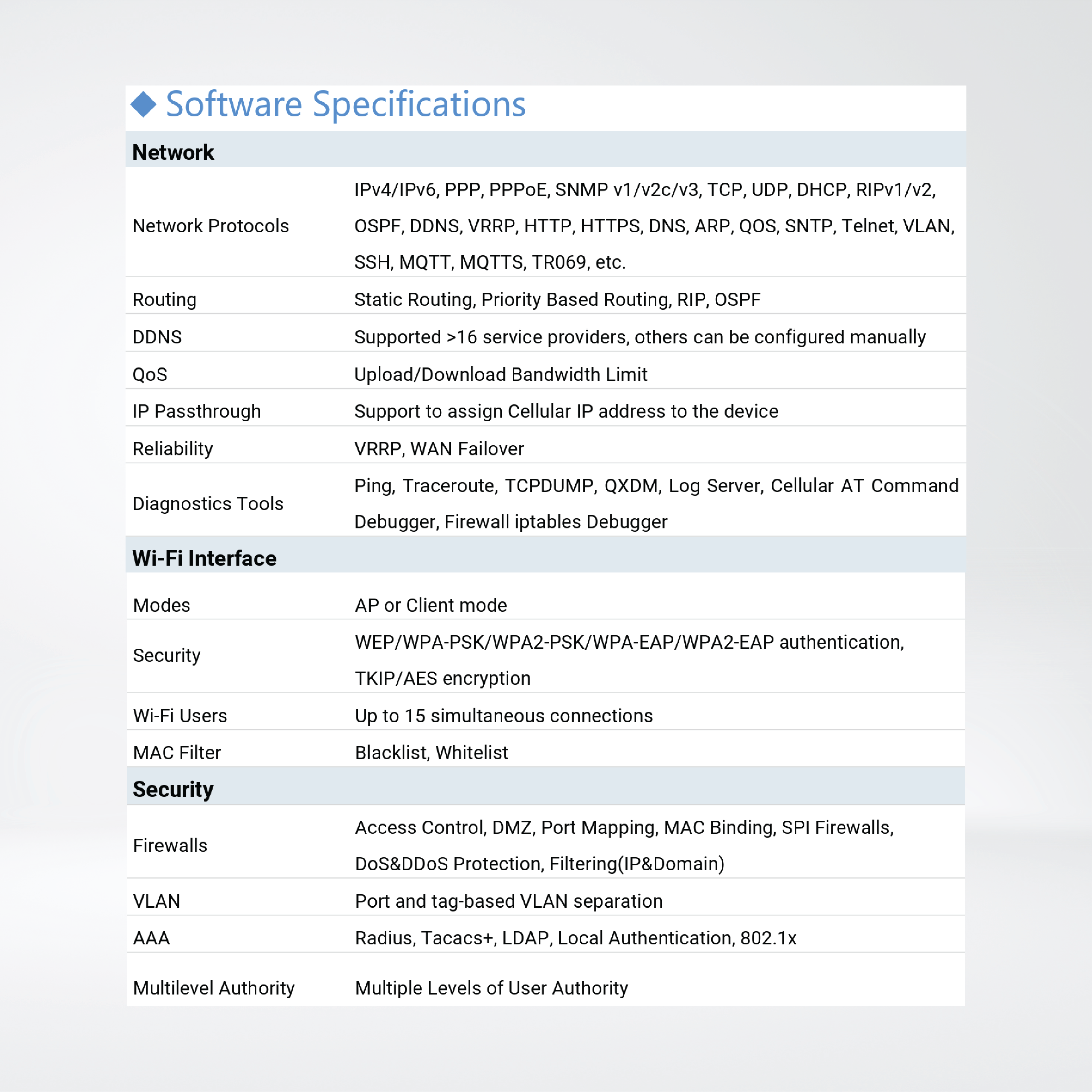

• Software
  - Network Protocols    IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, FRP, etc.

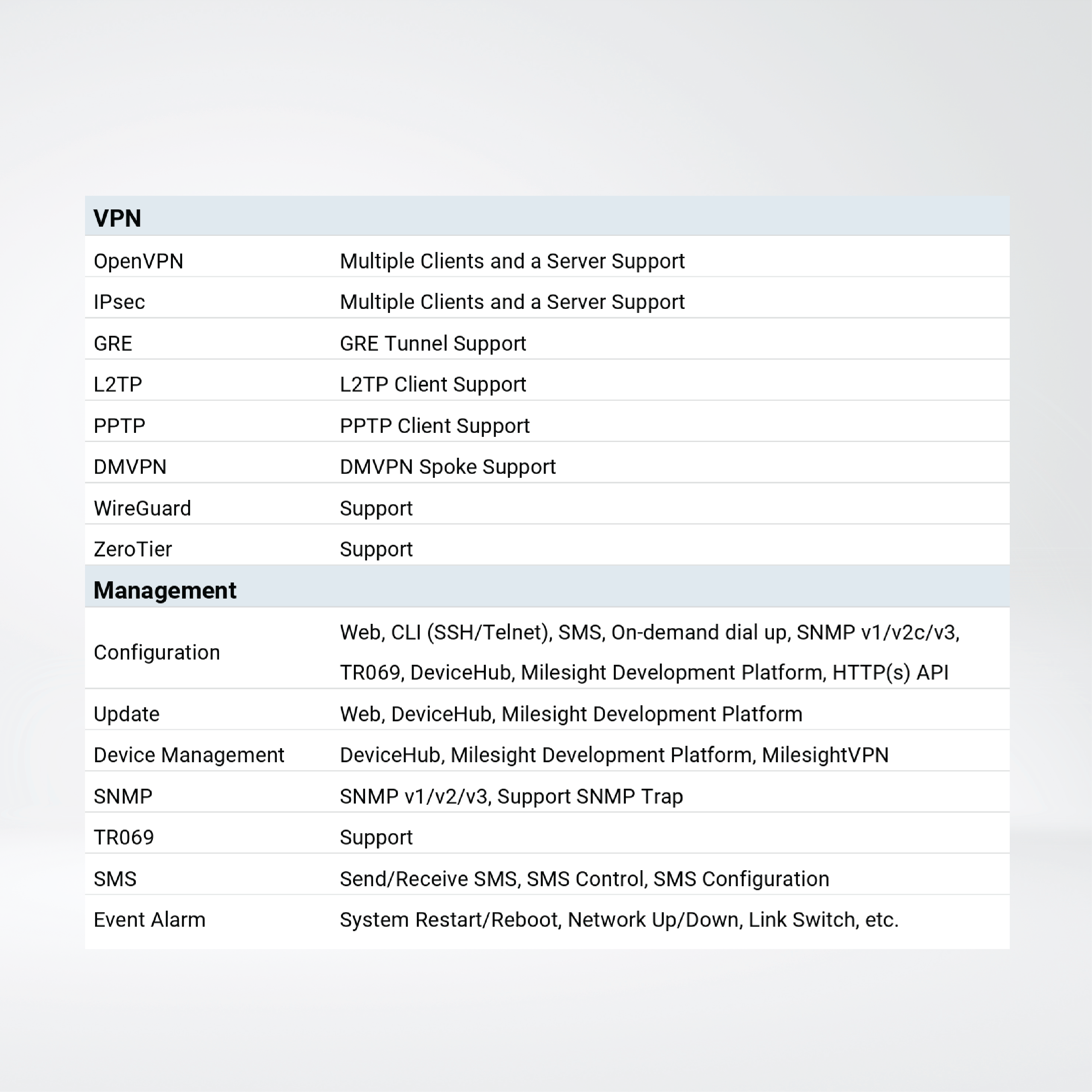

  - VPN    DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
  - Security    Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls,
  DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
  - Management    Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub
  - AAA    Radius, Tacacs+, LDAP, Local Authentication
  - Multilevel Authority    Multiple Levels of User Authority
  - Reliability    VRRP, WAN Failover

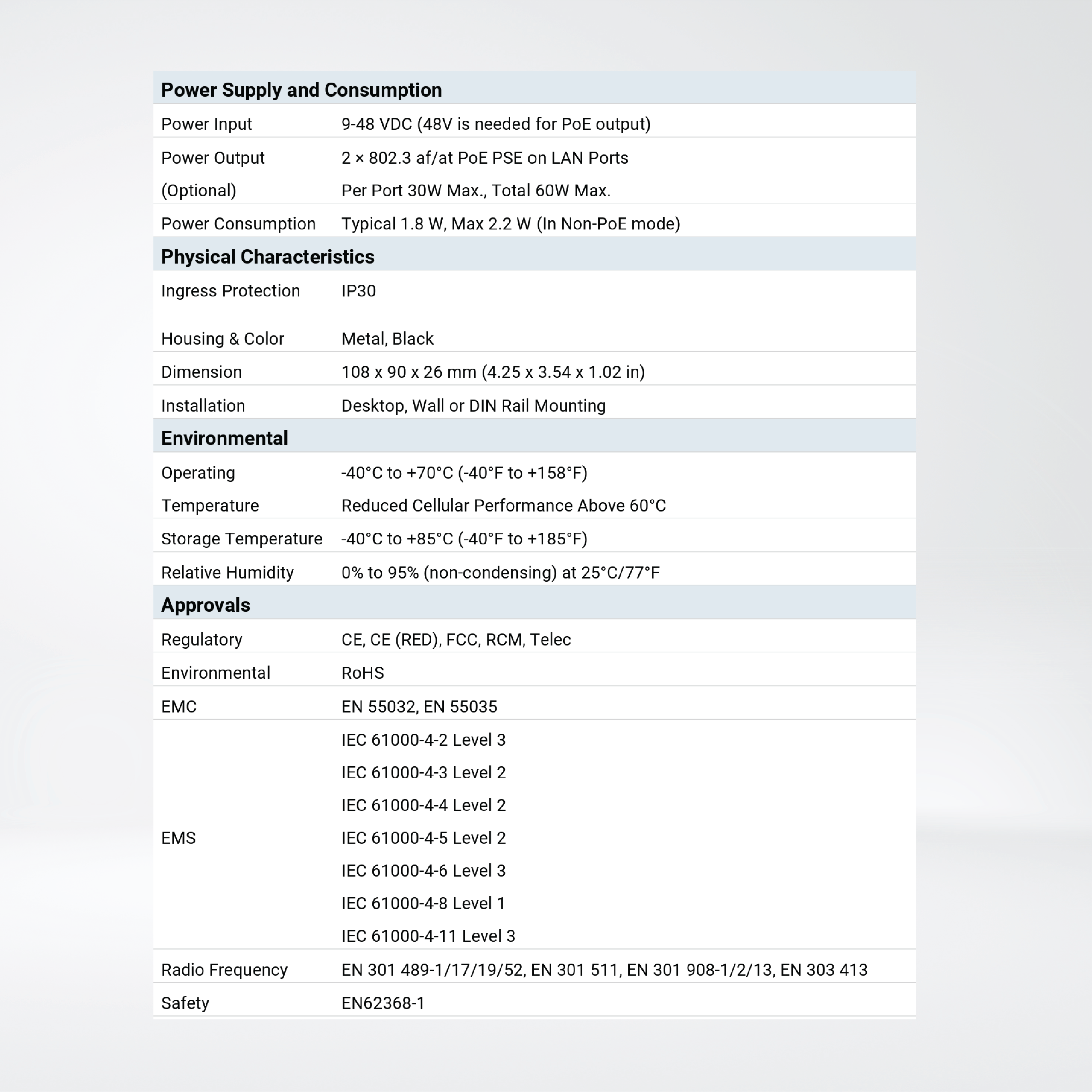

• Power Supply and Consumption
  Power Connector    2-pin 5.08 mm Terminal Block
  Input Voltage    9-48 VDC, with Surge-Protection and Reverse Polarity Protection
  Power Consumption    Typical 1.8 W, Max 2.2 W (In Non-PoE mode)


• Physical Characteristics
  Ingress Protection    IP30
  Housing    Metal

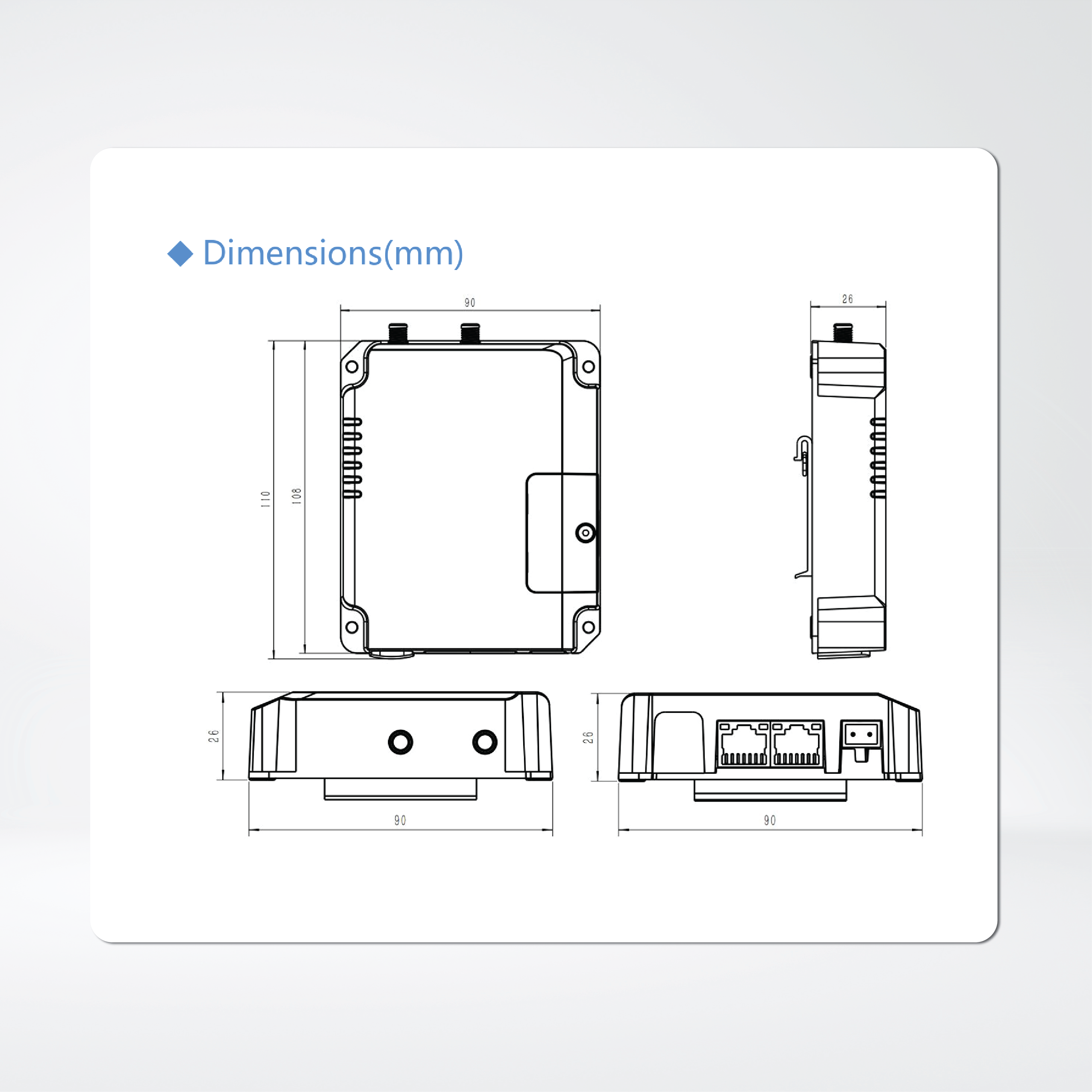

  Dimension    108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
  Installation    Desktop, Wall or DIN Rail Mounting


• Environmental
  Operating Temperature    -40°C to +70°C (-40℉ to +158℉)
  Storage Temperature    -40°C to +85°C (-40℉ to +185℉)
  Ethernet Isolation    1.5 kV RMS
  Relative Humidity    0% to 95% (non-condensing) at 25°C/77℉
