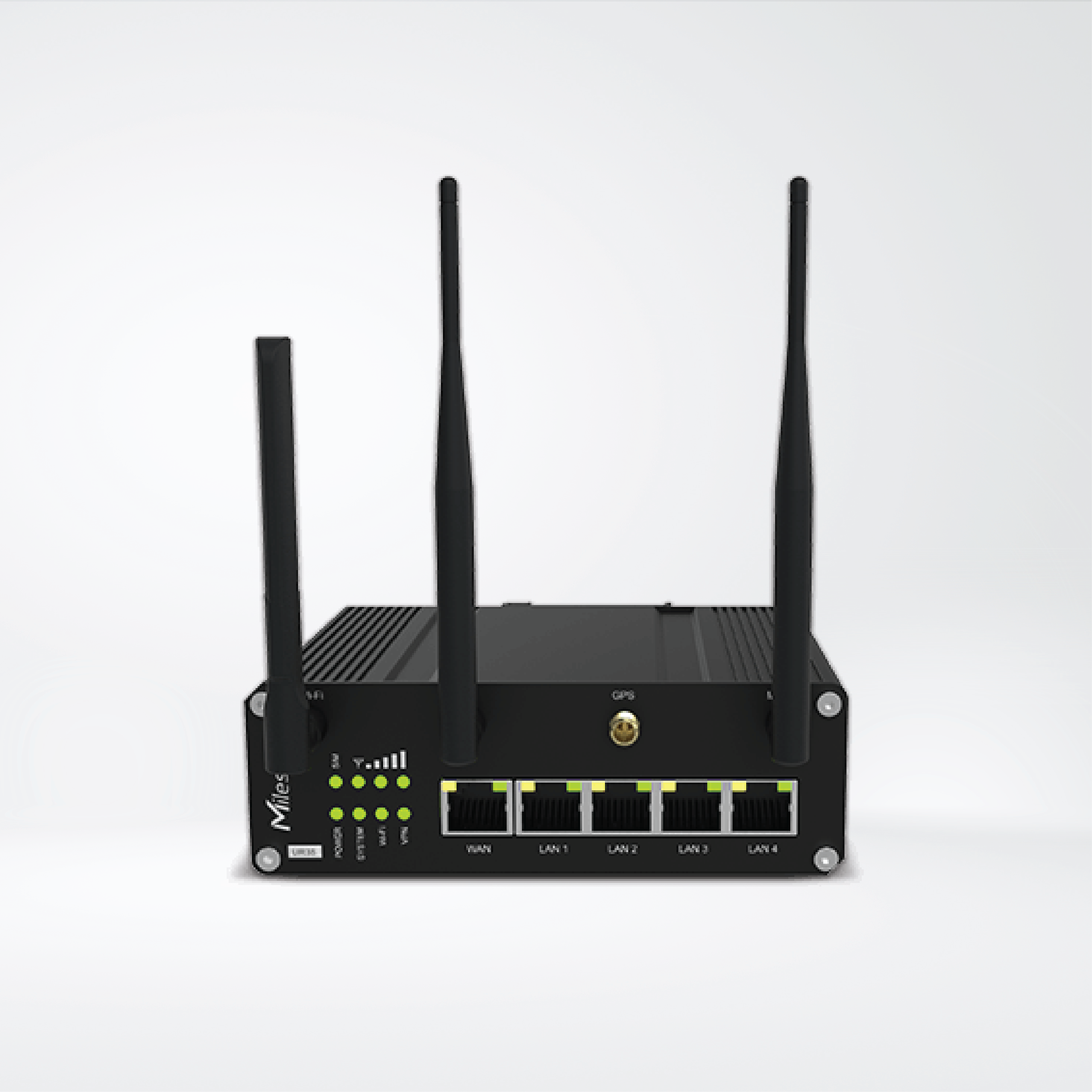

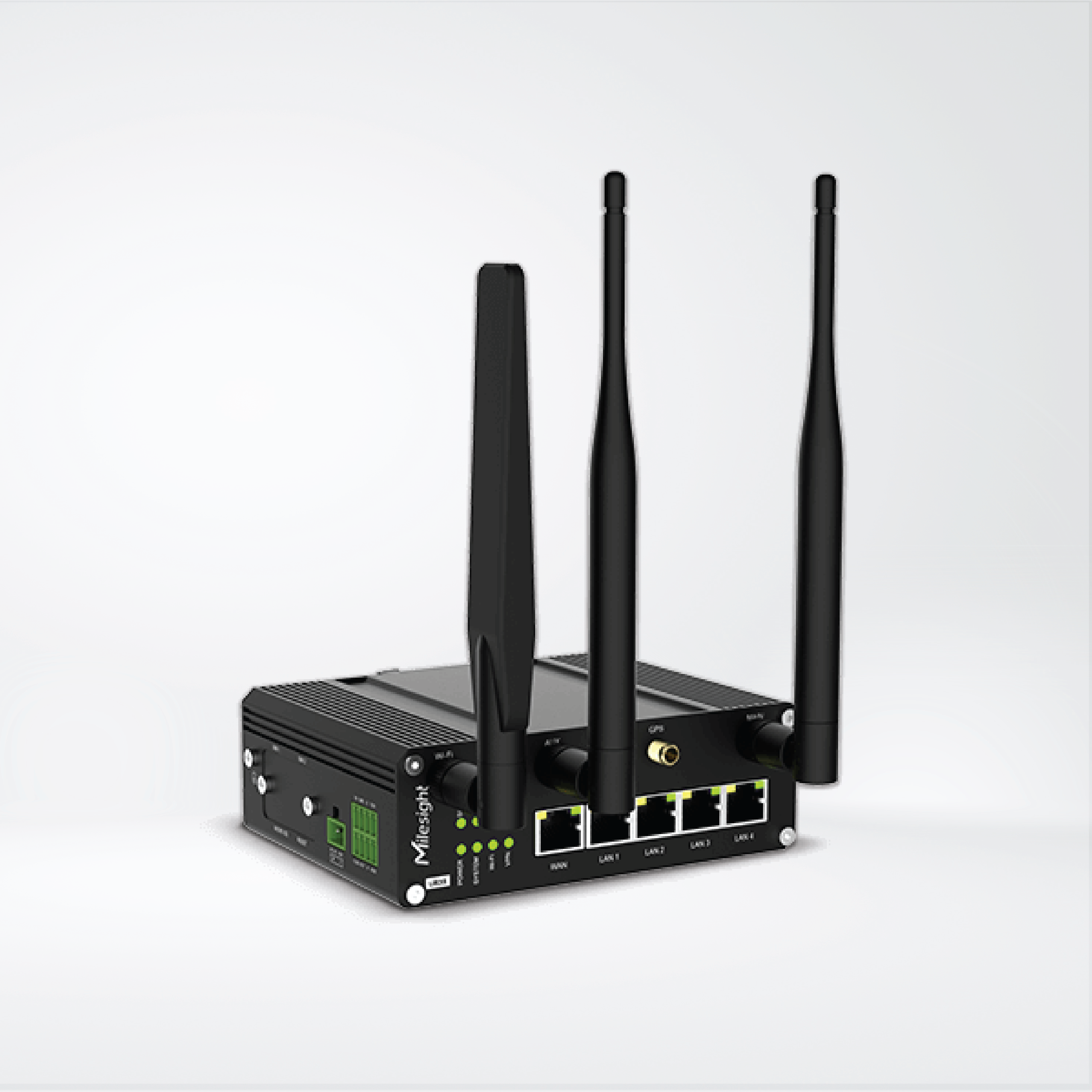

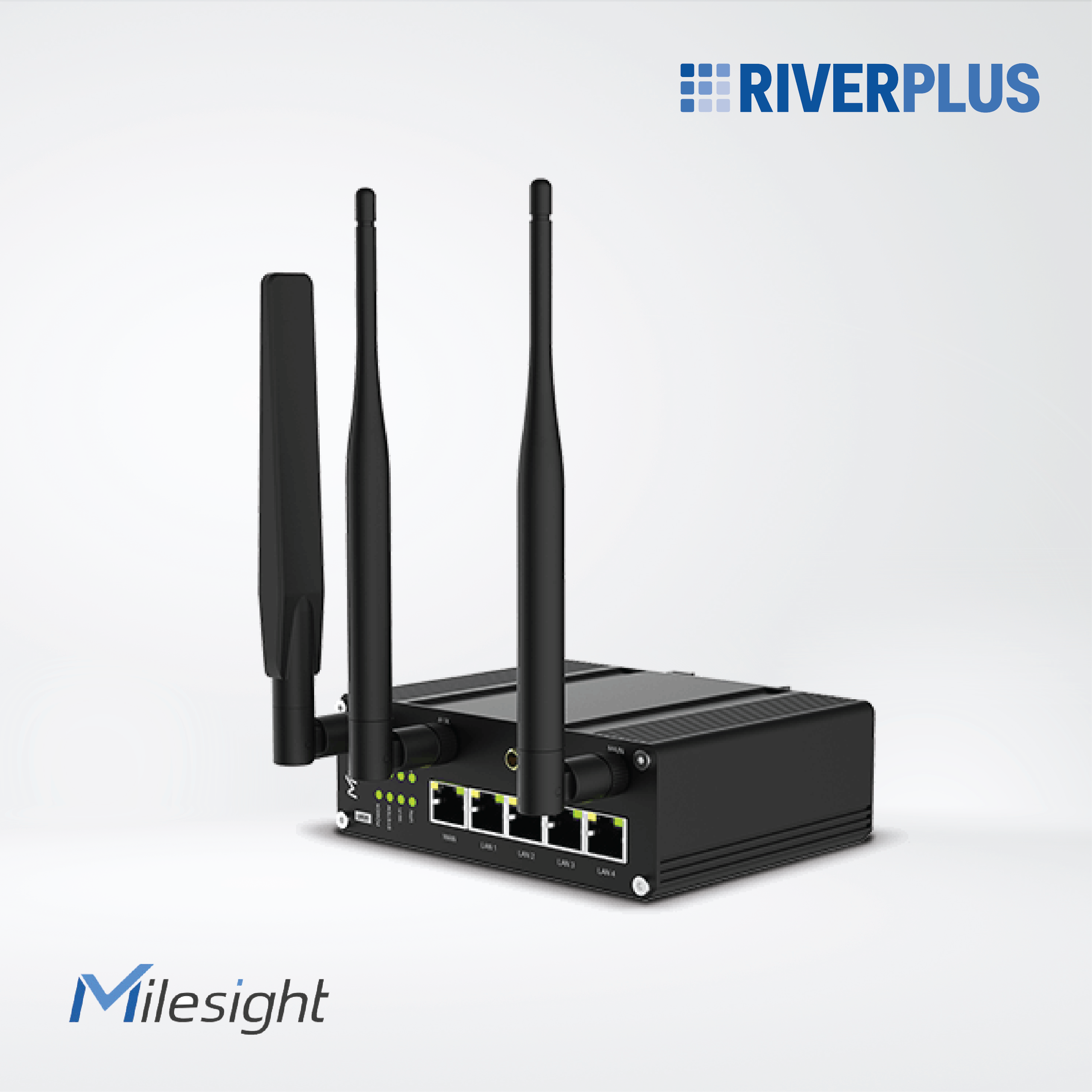

UR35 Dual SIM PoE/Wi-Fi Industrial 4G Router

UR35 is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported make this drop-in connectivity a great help for operators in maximizing uptime. Integrating embedded cellular modem and dual SIM function, the UR35 provides 3G/4G cellular network with maximum 150 Mbps download and 50 Mbps uplink, it also has 5 fast Ethernet ports and supports Wi-Fi that compliance with 802.11b/g/n standard. All these capabilities deliver users an uninterrupted internet access. Easy deployment and comprehensive remote device management makes UR35 versatile in most of IoT/M2M applications.

Features

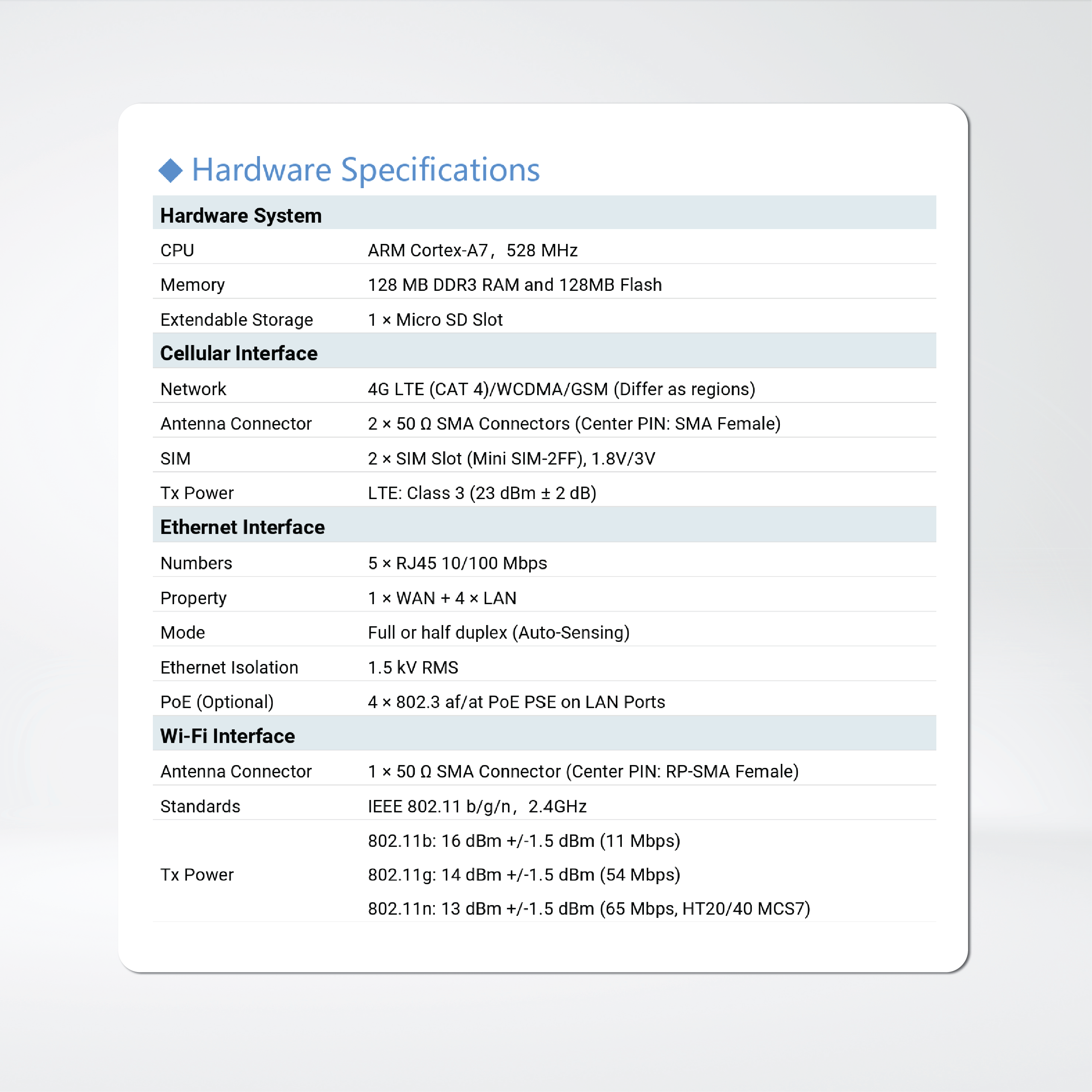

Hardware Specification

Hardware System

• CPU    ARM Cortex-A7,528 MHz
• Memory    128 MB DDR3 RAM and 128MB Flash
• Extendable Storage    1 × Micro SD Slot

Cellular Interface

• Network    4G LTE (CAT 4)/WCDMA/GSM (Differ as regions)
• Antenna Connector    2 × 50 Ω SMA Connectors (Center PIN: SMA Female)
• SIM    2 × SIM Slot (Mini SIM-2FF), 1.8V/3V
• Tx Power    LTE: Class 3 (23 dBm ± 2 dB)

Ethernet Interface

• Numbers    5 × RJ45 10/100 Mbps
• Property    1 × WAN + 4 × LAN
• Mode    Full or half duplex (Auto-Sensing)
• Ethernet Isolation    1.5 kV RMS
• PoE (Optional)    4 × 802.3 af/at PoE PSE on LAN Ports

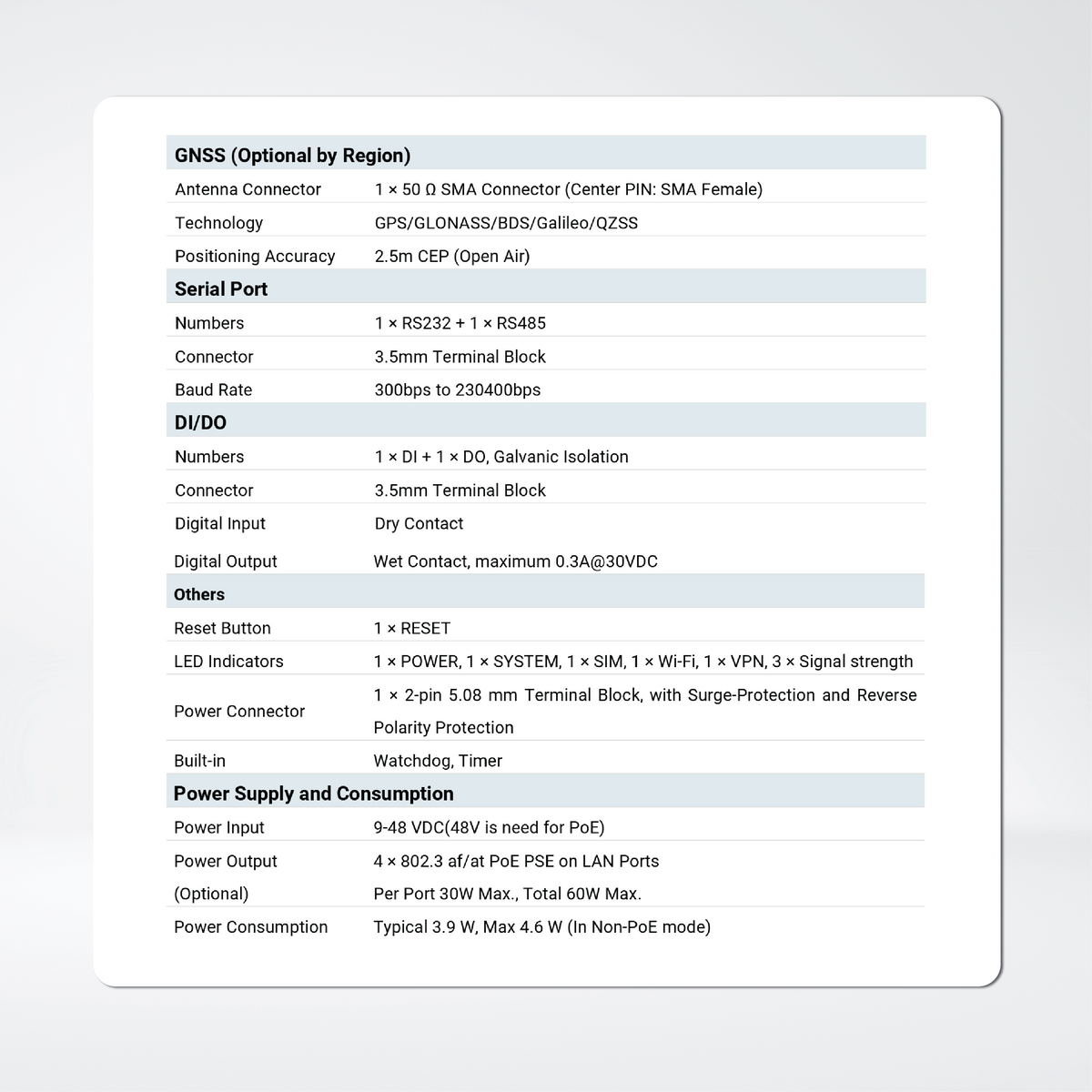

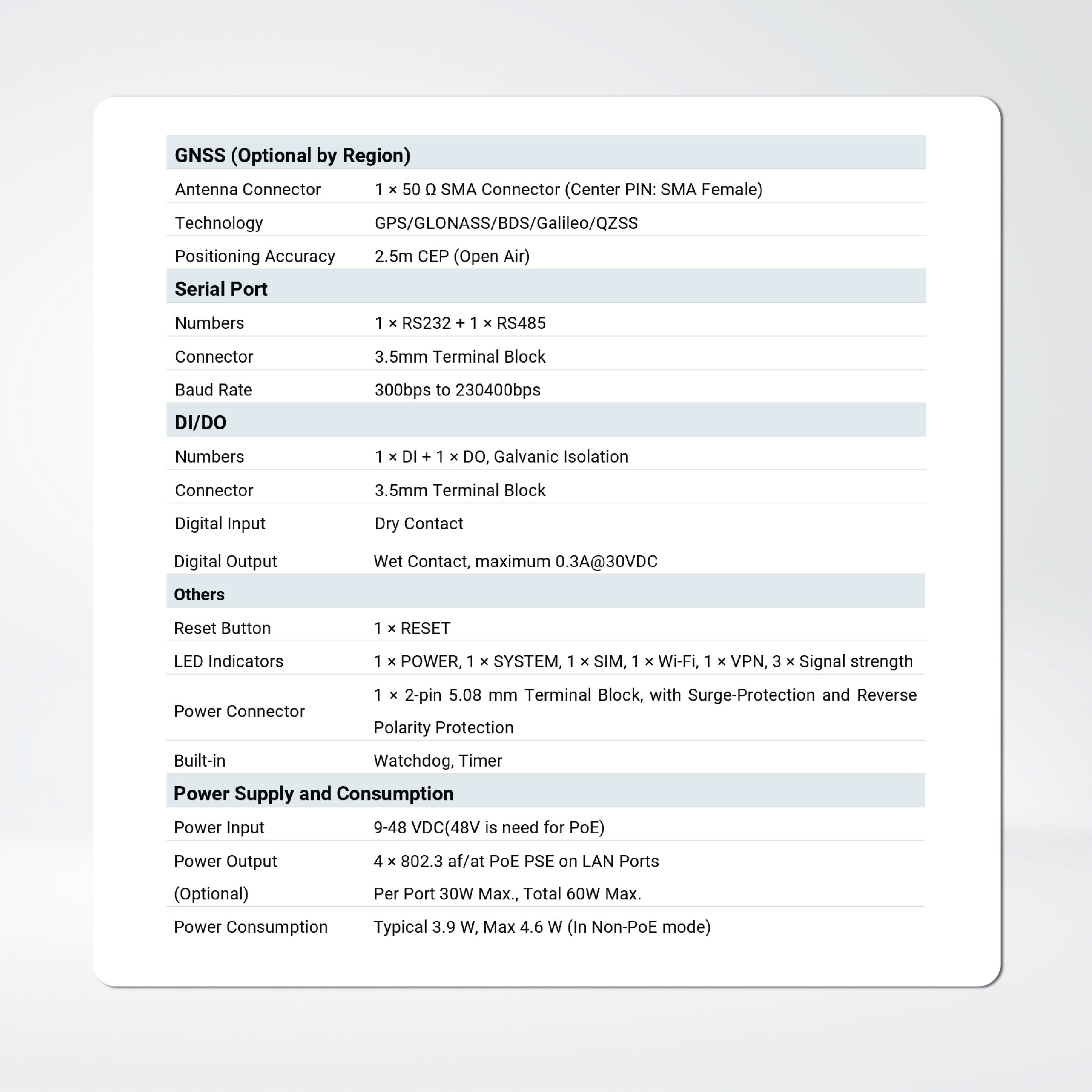

Serial Port

• Numbers    1 × RS232 + 1 × RS485
• Connector    3.5mm Terminal Block
• Baud Rate    300bps to 230400bps

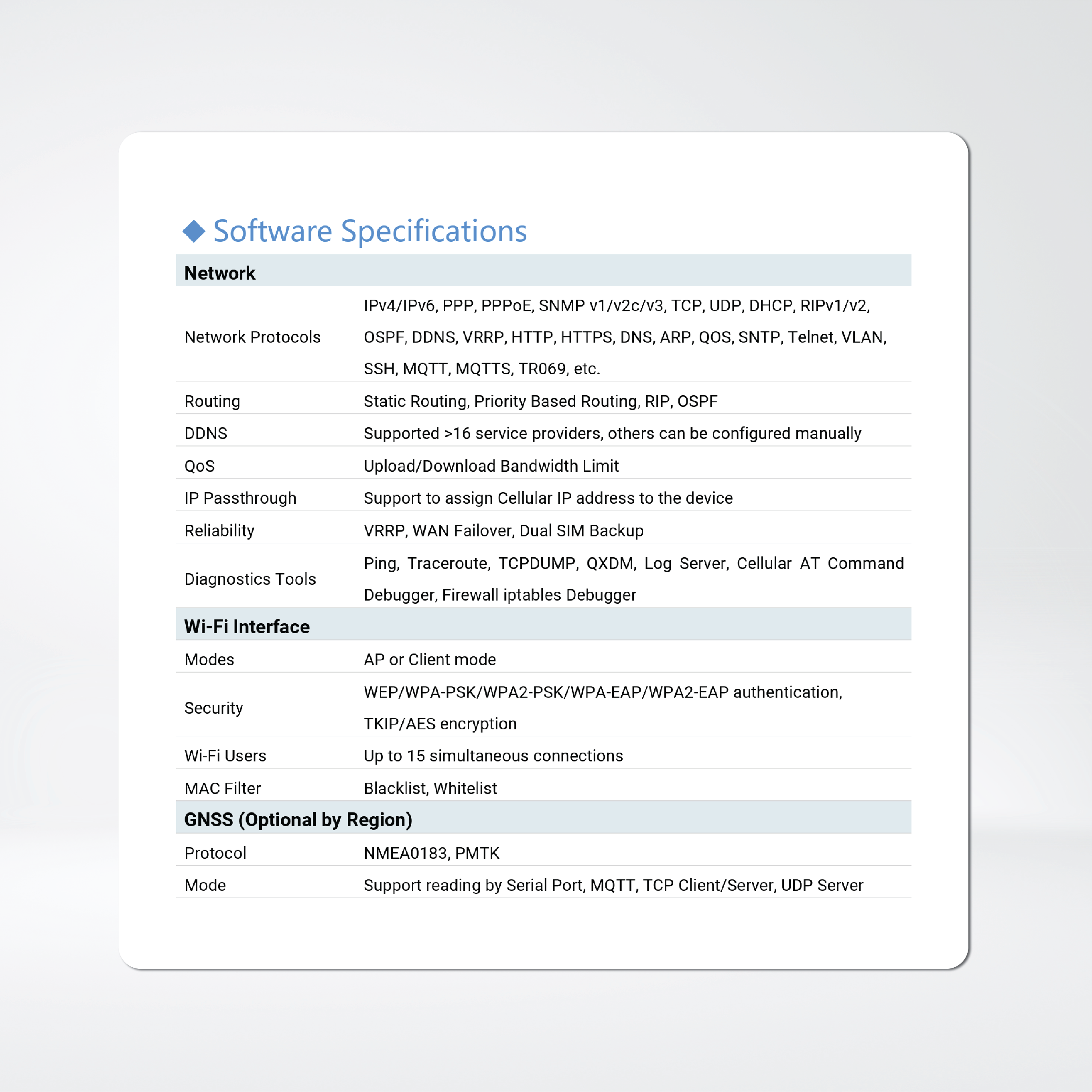

Software Specifications

Network

• Network Protocols
  IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, MQTT, MQTTS, TR069, etc.
• Routing    Static Routing, Priority Based Routing, RIP, OSPF

• DDNS    Supported >16 service providers, others can be configured manually

• QoS    Upload/Download Bandwidth Limit

• IP Passthrough    Support to assign WAN IP address to the device on LAN

• Reliability    VRRP, WAN Failover, Dual SIM Backup

• Diagnostics Tools    Ping, Traceroute, TCPDUMP, QXDM, Log Server, Cellular AT Command Debugger, Firewall iptables Debugger

Wi-Fi Interface (Optional)

• Modes    AP or Client mode
• Security    WEP/WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP authentication, TKIP/AES encryption

• Wi-Fi Users    Up to 15 simultaneous connections

• MAC Filter    Blacklist, Whitelist
