Description
Powered by the latest generation of Intel® Pentium processor N3710 Quad Core, 1.6GHz (formerly codenamed "Braswell "), NISE 106 presents intelligent PC-based controller and IOT gateway for factory automation. Up to 8G DDR3L memory, The NISE 106 support operating temperature from -10°C to 60°C with typical DC input 9~30V. The NISE 106 has high integration ability with optional mini-PCIe module and 4 x COM ports which makes it a reliable connection with devices in factory automation applications, IOT applications (with optional GbE LAN, Wi-Fi, 3.5G/4G LTE module) and communication applications (with optional GPIO, RS232/422/485). NISE 106 is definitely the top choice for M2M intelligent system as a factory automation controller and gateway.
Features
- Onboard Intel® Pentium® processor N3710 Quad Core, 1.6GHz

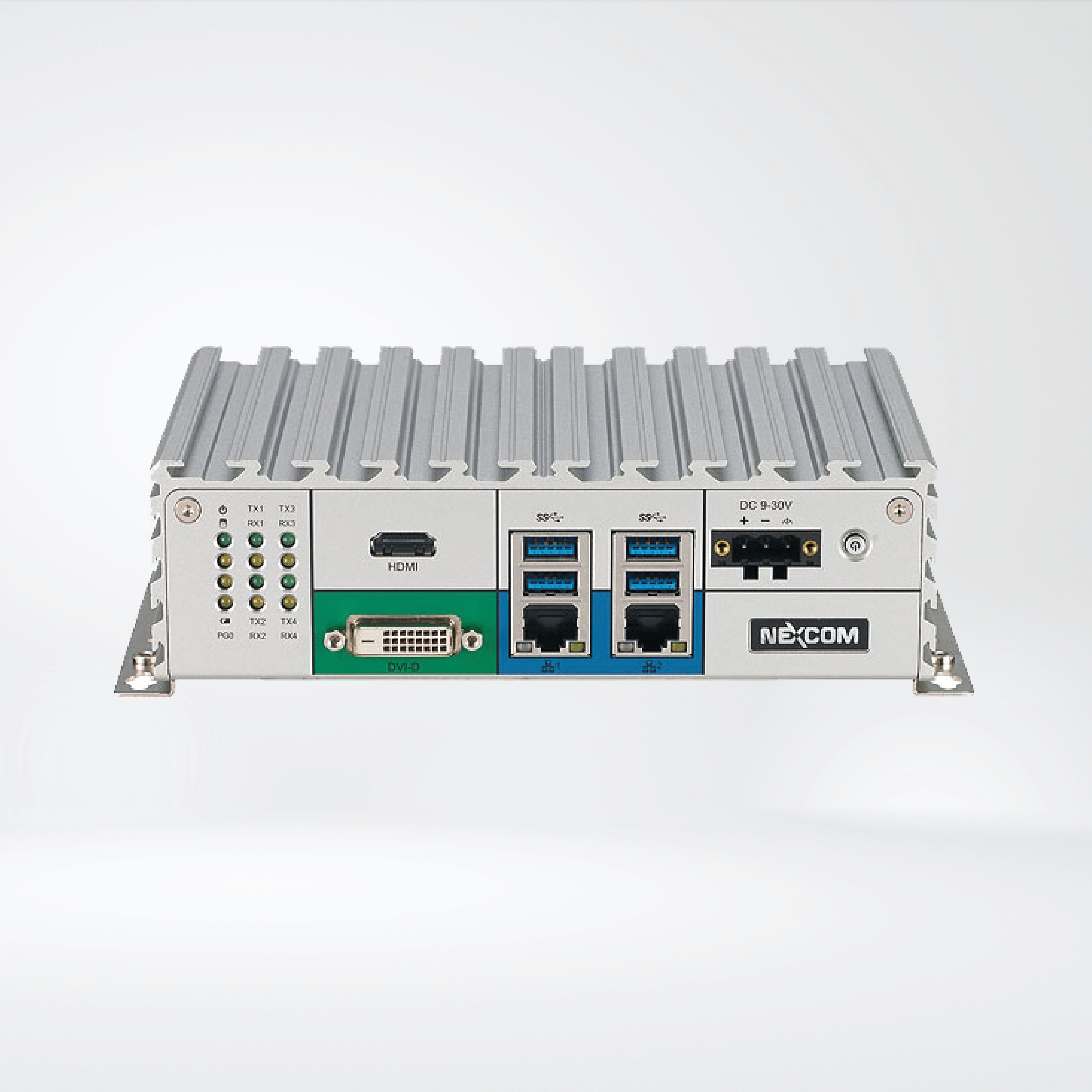

- 3 x display output: 1 x HDMI display + 1 x DVI-D + 1 x DP port
- 2 x Intel® I210AT GbE LAN ports; Support WoL, Teaming and PXE
- 4 x USB 3.0

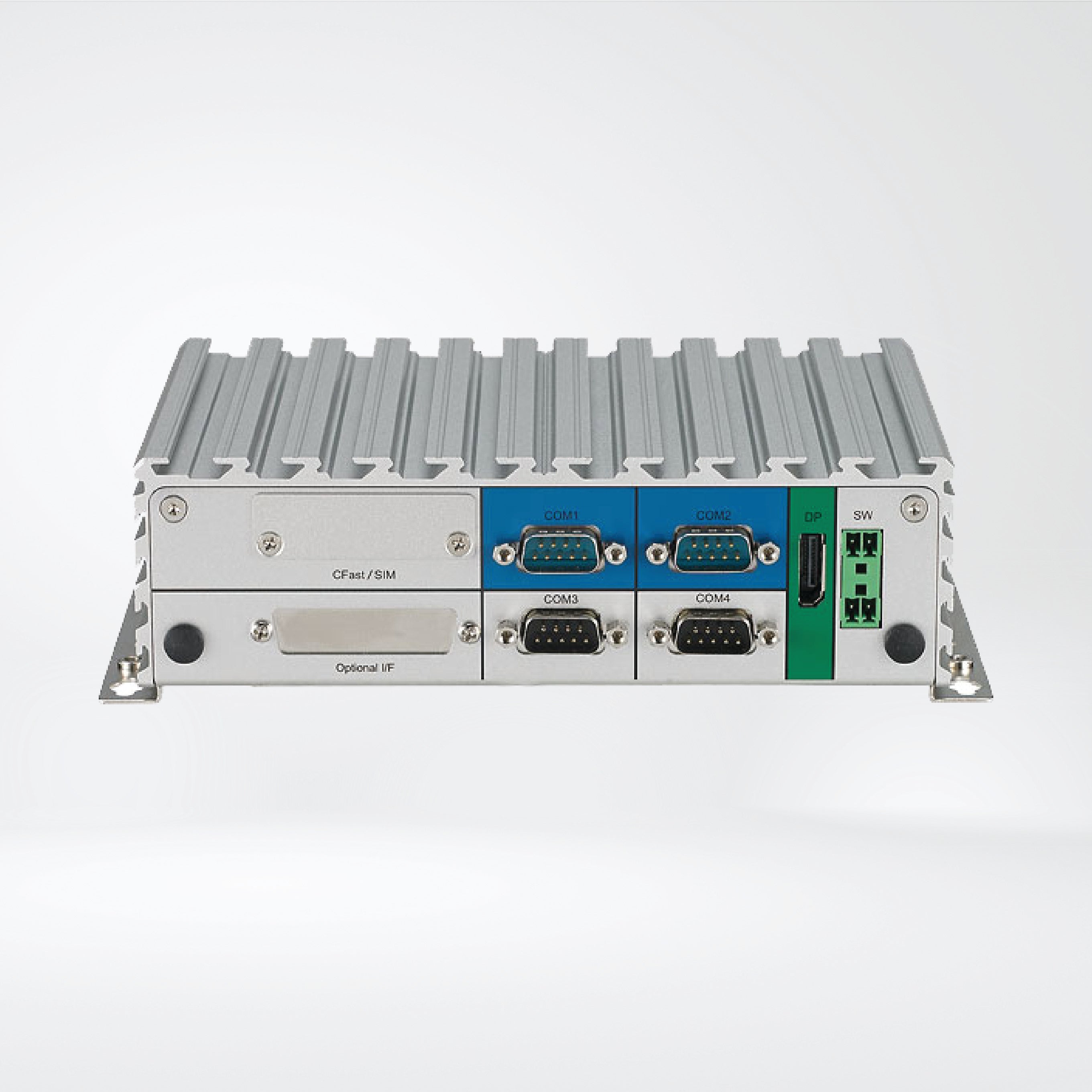

- 2 x DB9 for RS232/422/485, 2 x DB9 for RS232
- 1 x optional interface for optional Wi-Fi/3.5G/LTE modules
- Support -10°C to 60°C extended operating temperature
- Support 9~30V DC input
Term and Condition
รับประกันสินค้า : 1 Year
