H2 Series Flagship Video Splicing Processor , Software Video Wall Controller (Free)

H Series is NovaStar’s flagship all-in-one video splicing processor, designed specifically for fine-pitch LED applications. It is the first All-in-One splicer and controller in the industry, which greatly simplifies system integration. With the leading image processing technology in the industry, H series can give you an astonishing visual effect, truly making it the perfect solution for fine-pitch LED applications.

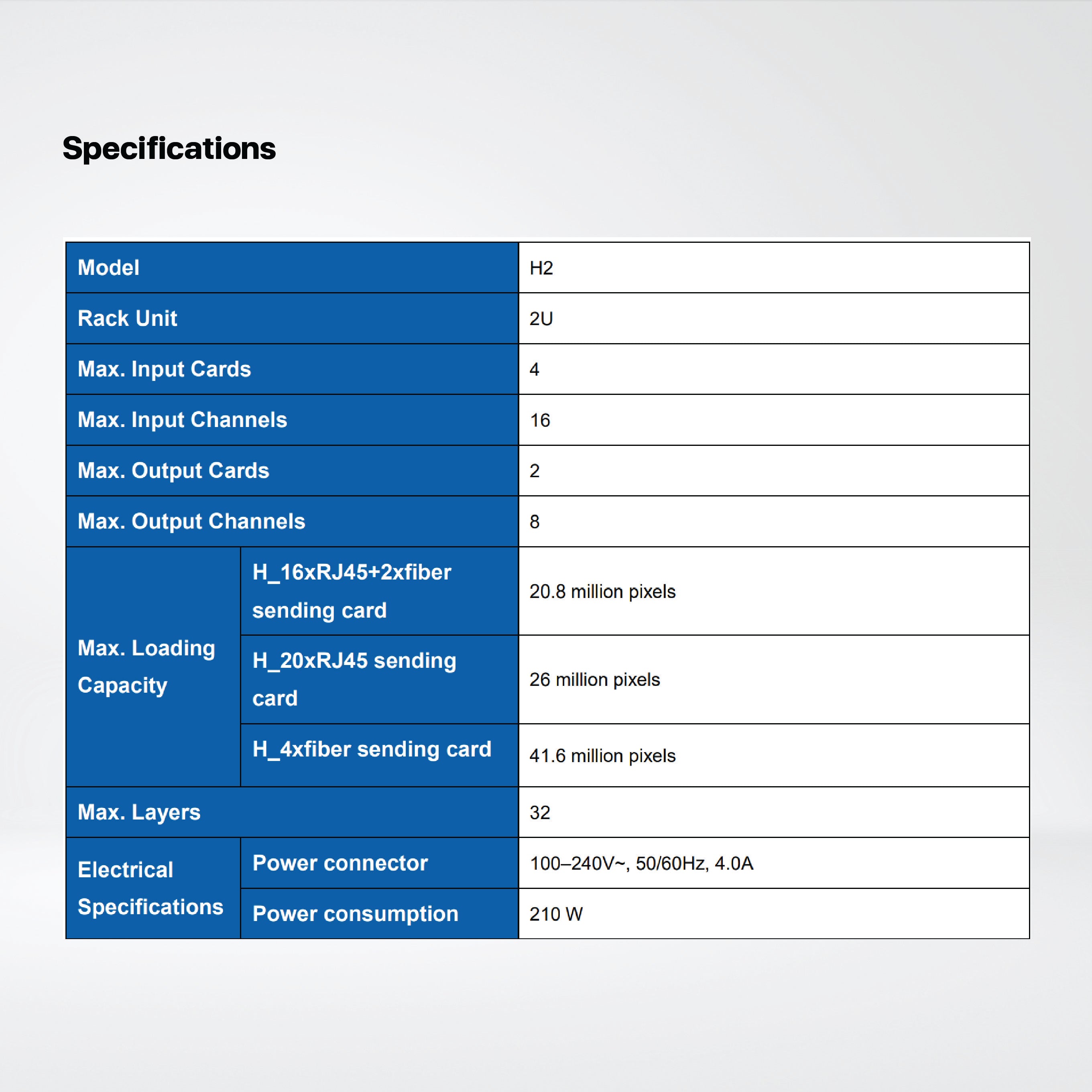

Features

• Software Video Wall Controller (Free)
• Model H2
• Rack Unit 2U
• Max. Input Cards 4
  Max. Input Channels 16
• Max. Output Cards 2
  Max. Output Channels 8
• Electrical Specifications :
  Power connector 100–240V~, 50/60Hz, 4.0A
  Power consumption 210 W

Oftion :

NovaStar H2 8 input  8 output
NovaStar H2 4 input  8 output
NovaStar H2 4 input  4 output
