Description
Soil temperature affects plant growth indirectly by affecting water and nutrient uptake as well as root growth. At a constant moisture content, a decrease in temperature results in a decrease in water and nutrient uptake. At low temperatures, transport from the root to the shoot and vice versa is reduced. Therefore a real-time data of soil temperature and moisture is vital for soil management. ES101SM sends measured data through Modbus RS485 output to IoT gateway, and IoT gateway collects all sensor data to the cloud platform for real-time information.
Optional IoT Router and Cloud Platform - ThingsMaster
Optional IoT Router and Cloud Platform - ThingsMaster
- Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
- Real-time online monitoring, analysis, reporting
- Remote cloud security and visual management

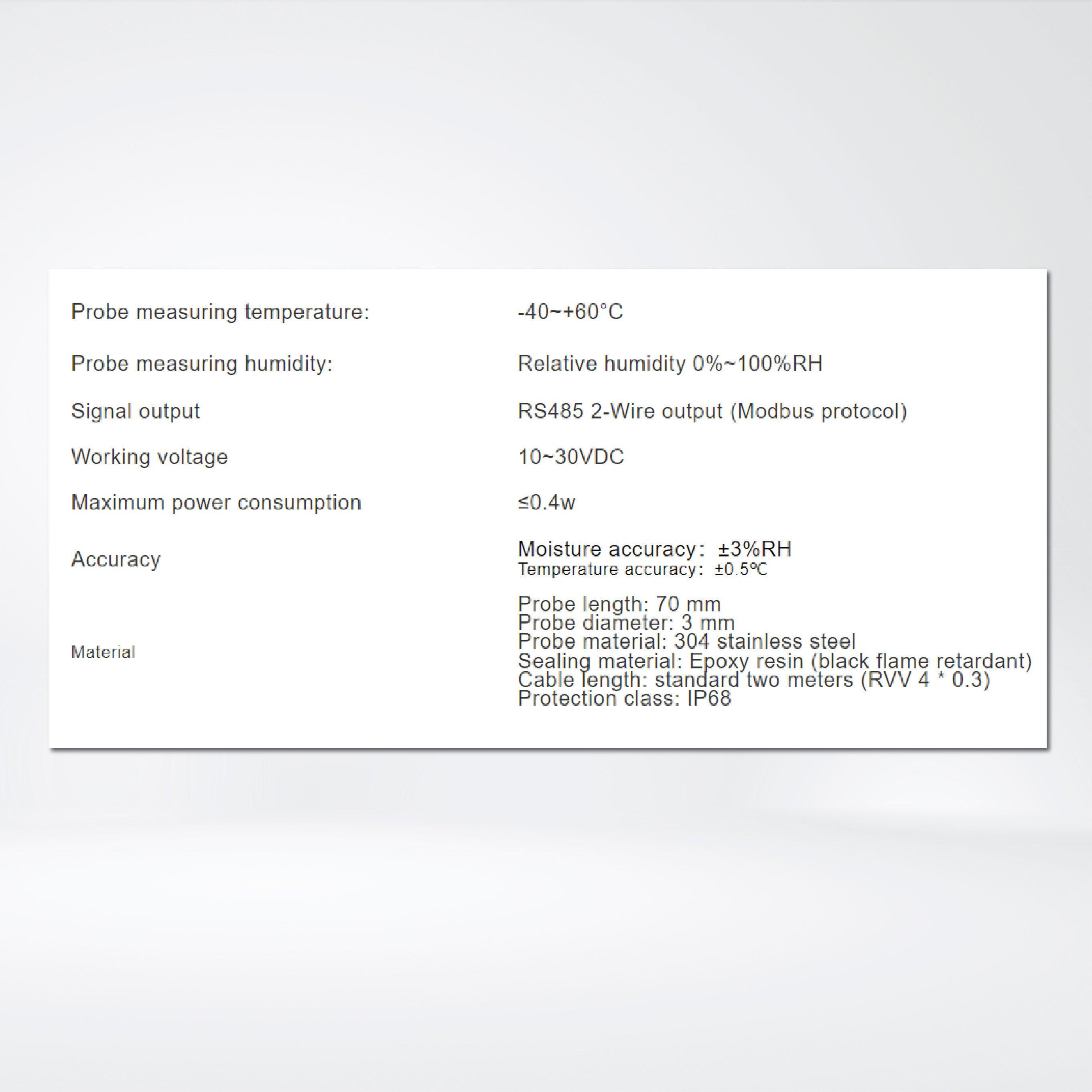

Features
- Probe measuring temperature: -40~+60°C
- Probe measuring humidity: Relative humidity 0%~100%RH
- Signal output RS485 2-Wire output (Modbus protocol)
- Working voltage 10~30VDC
- Maximum power consumption ≤0.4w
-
Accuracy : Moisture accuracy：±3%RH
Temperature accuracy：±0.5℃ -
Material :
Probe length: 70 mm
Probe diameter: 3 mm
Probe material: 304 stainless steel
Sealing material: Epoxy resin (black flame retardant)
Cable length: standard two meters (RVV 4 * 0.3)
Protection class: IP68
Term and Condition
ส่งสินค้า : By Order 4-6 สัปดาห์
รับประกันสินค้า : 1 Year
รับประกันสินค้า : 1 Year
