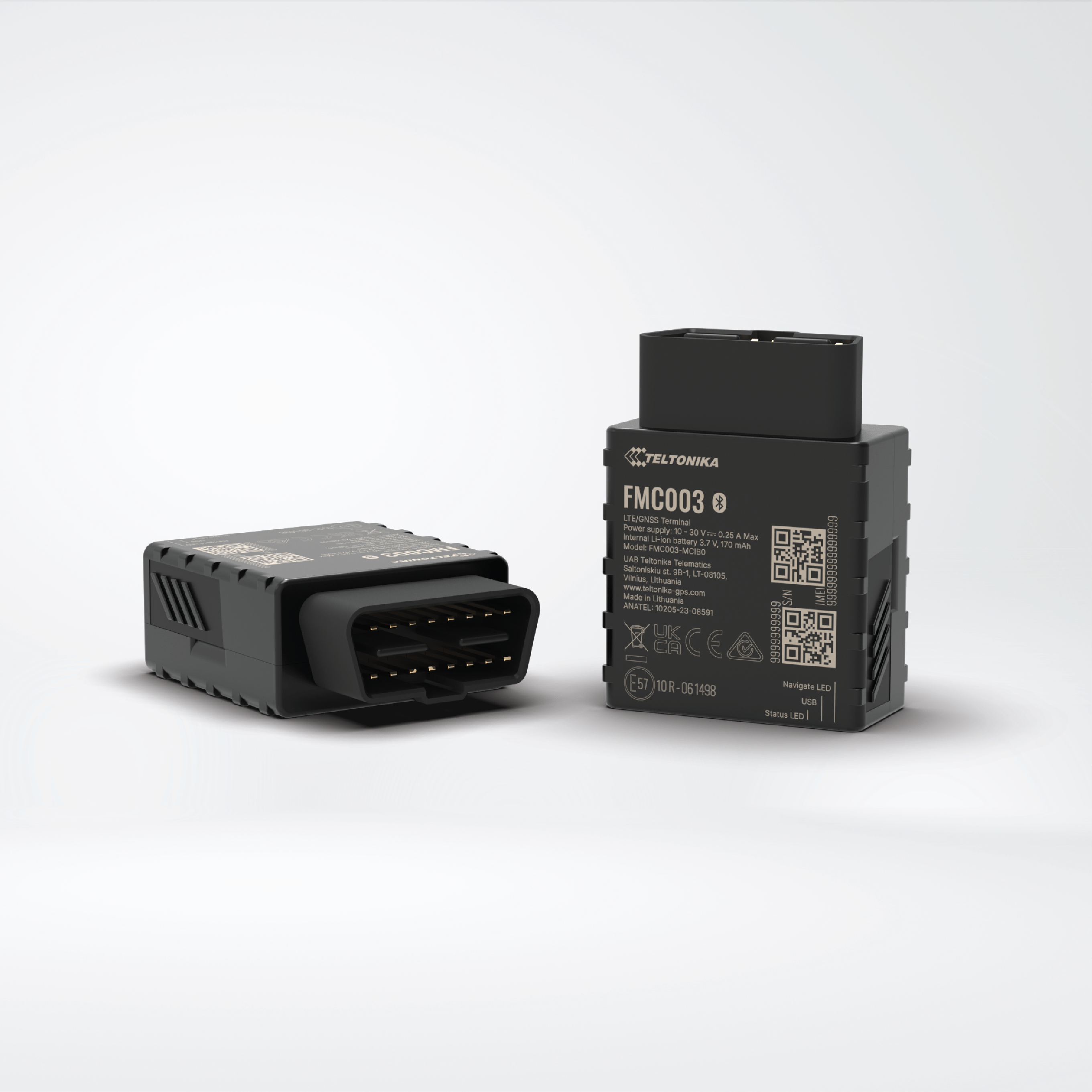

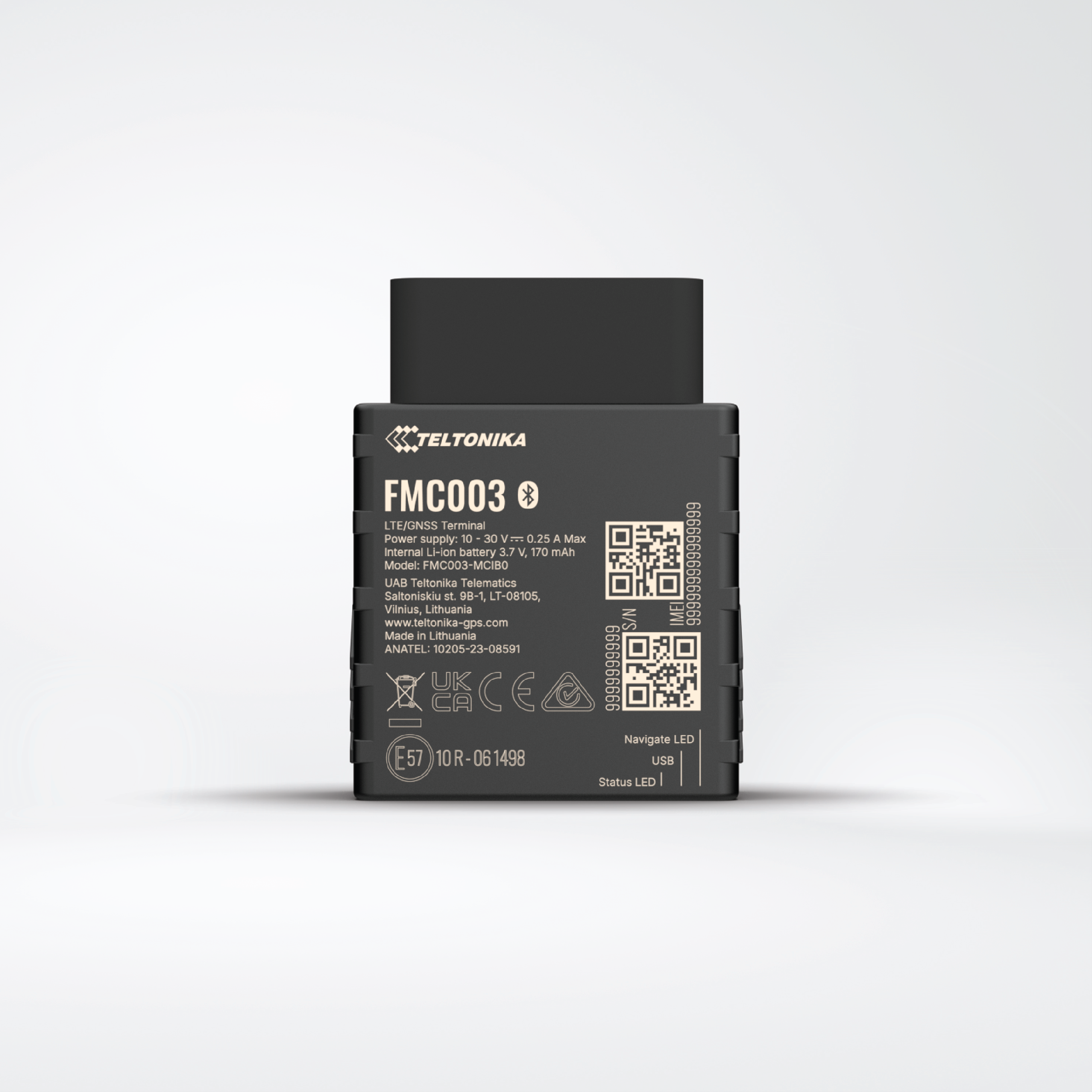

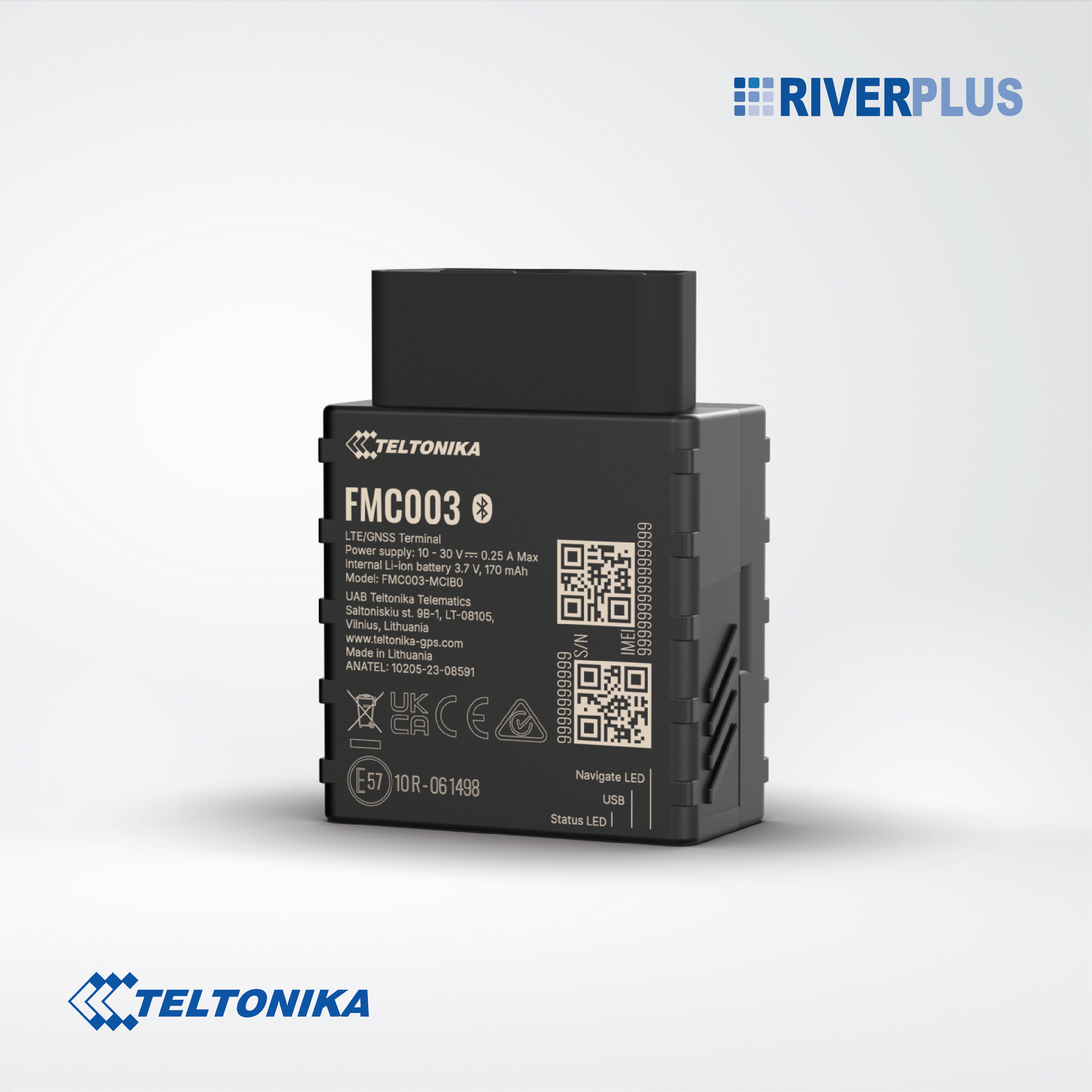

FMC003 4G LTE Cat 1 tracker with OBD OEM data reading

Save 1,735.00 ฿
TeltonikaSKU: FMC003
No reviews

Price:
Sale price3,590.00 ฿ Regular price5,325.00 ฿

Shipping calculated at checkout

Stock:
Re-stocking soon
The product is out stock

Description

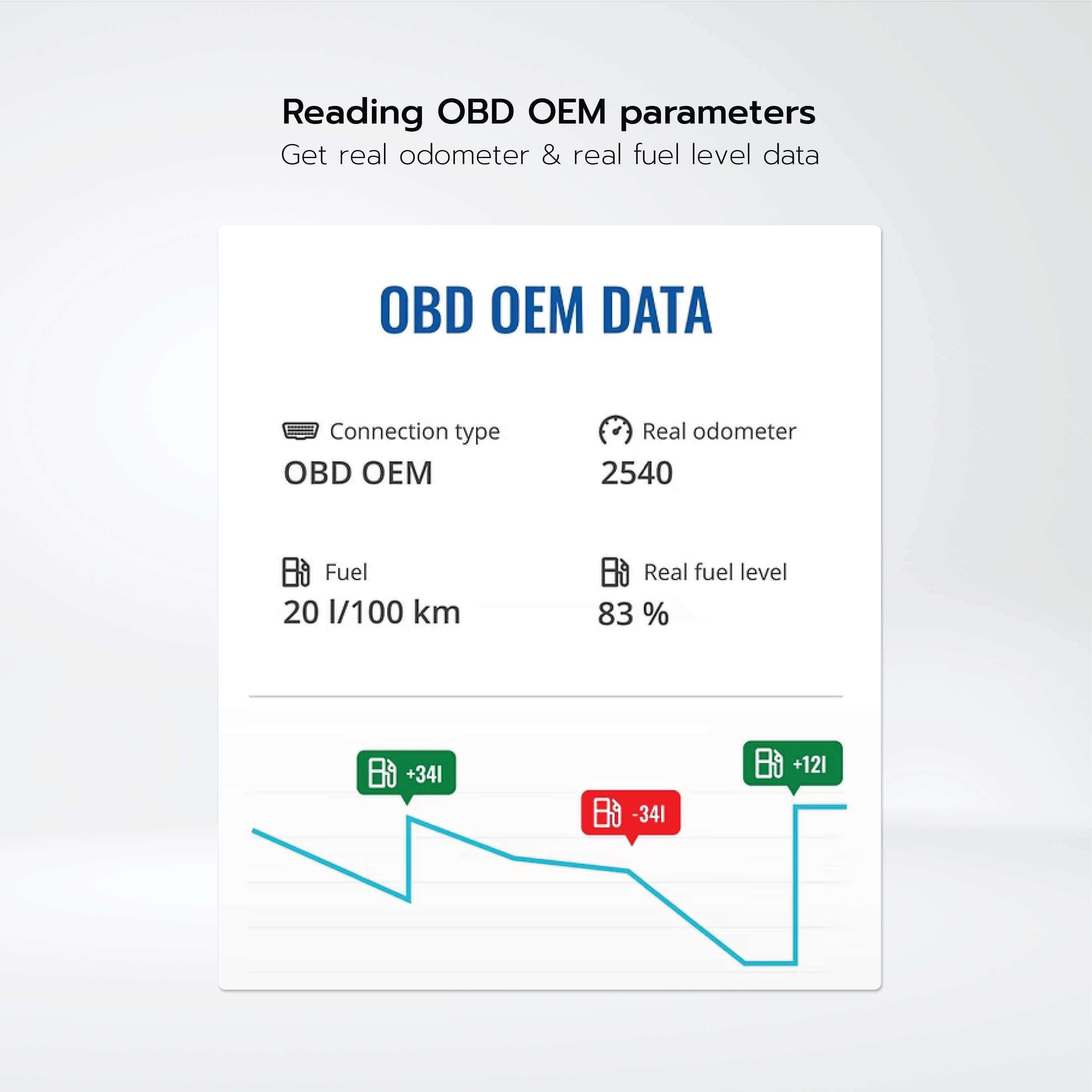

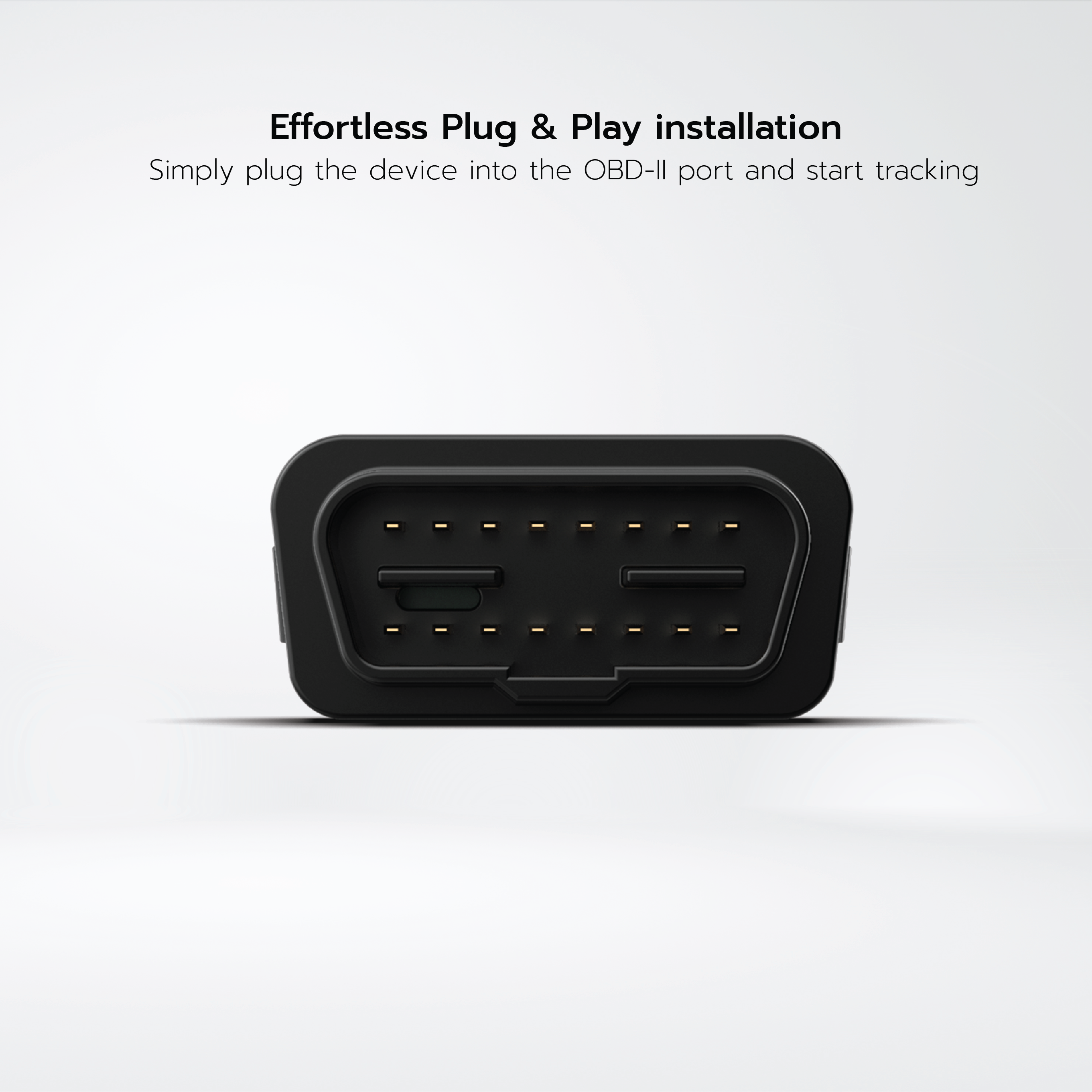

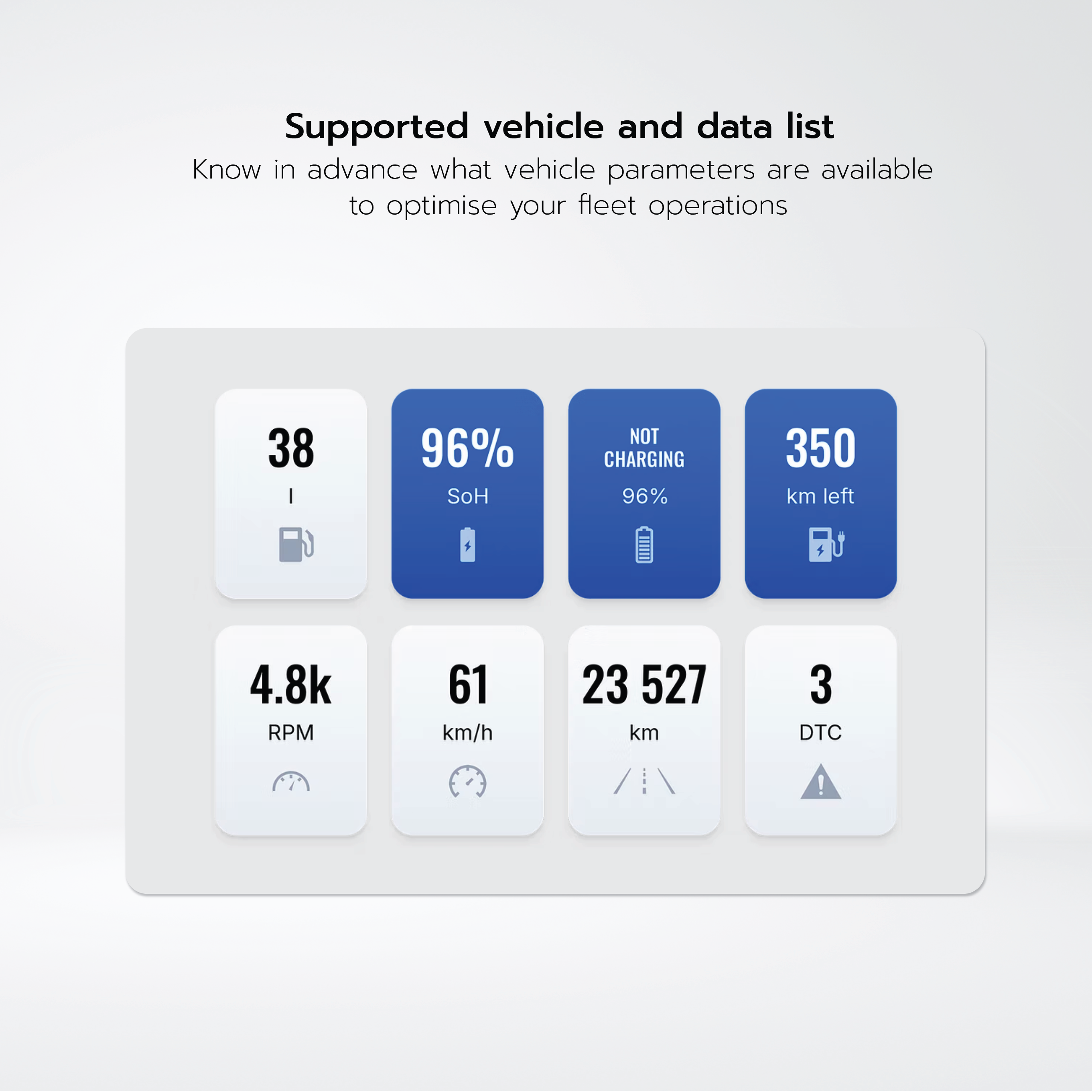

FMC003 is a small plug and play device with LTE CAT 1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMC003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you do not need to guess no more, now you know what data can be read from a specific vehicle. It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. Device supports various BLE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth which expands its already rich set of features

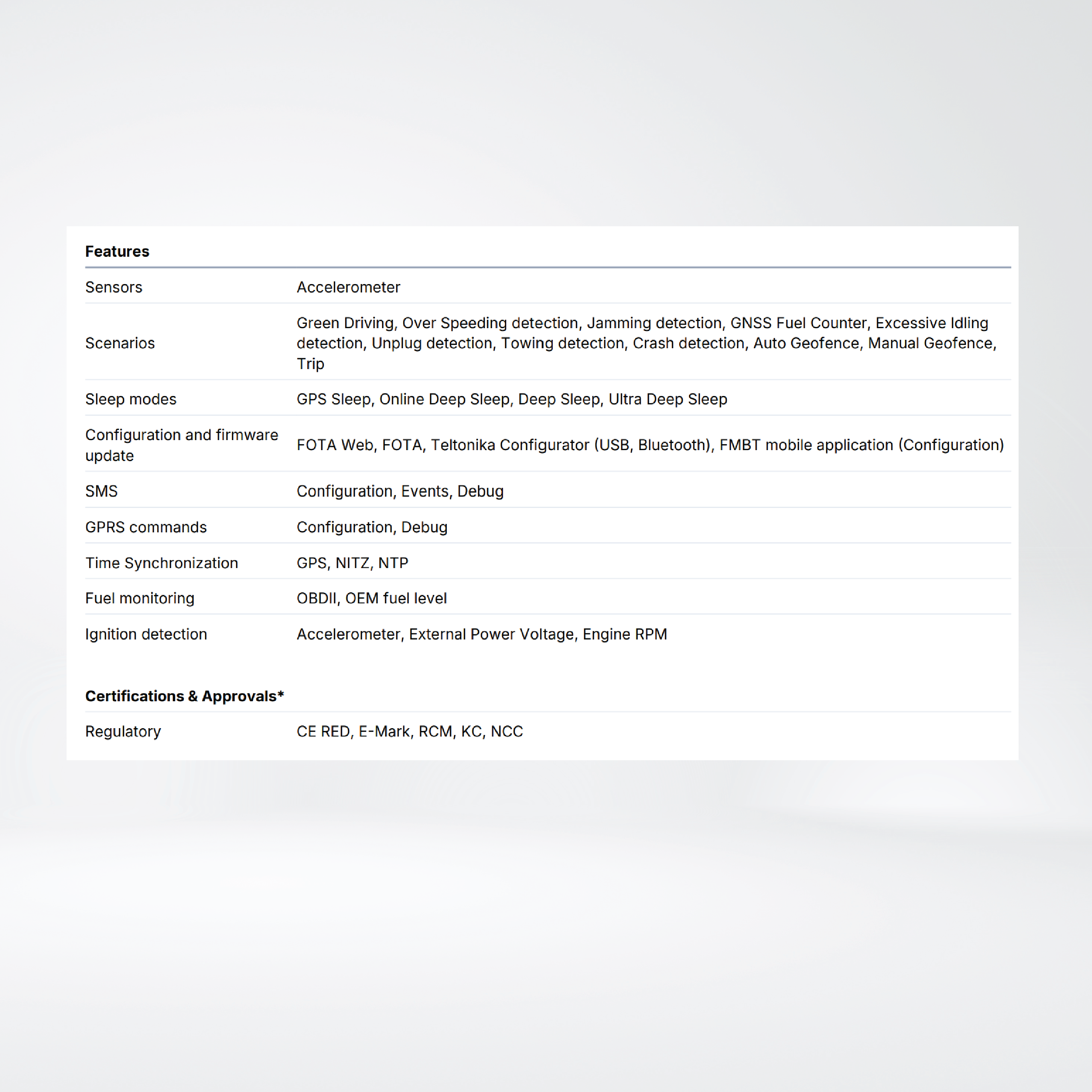

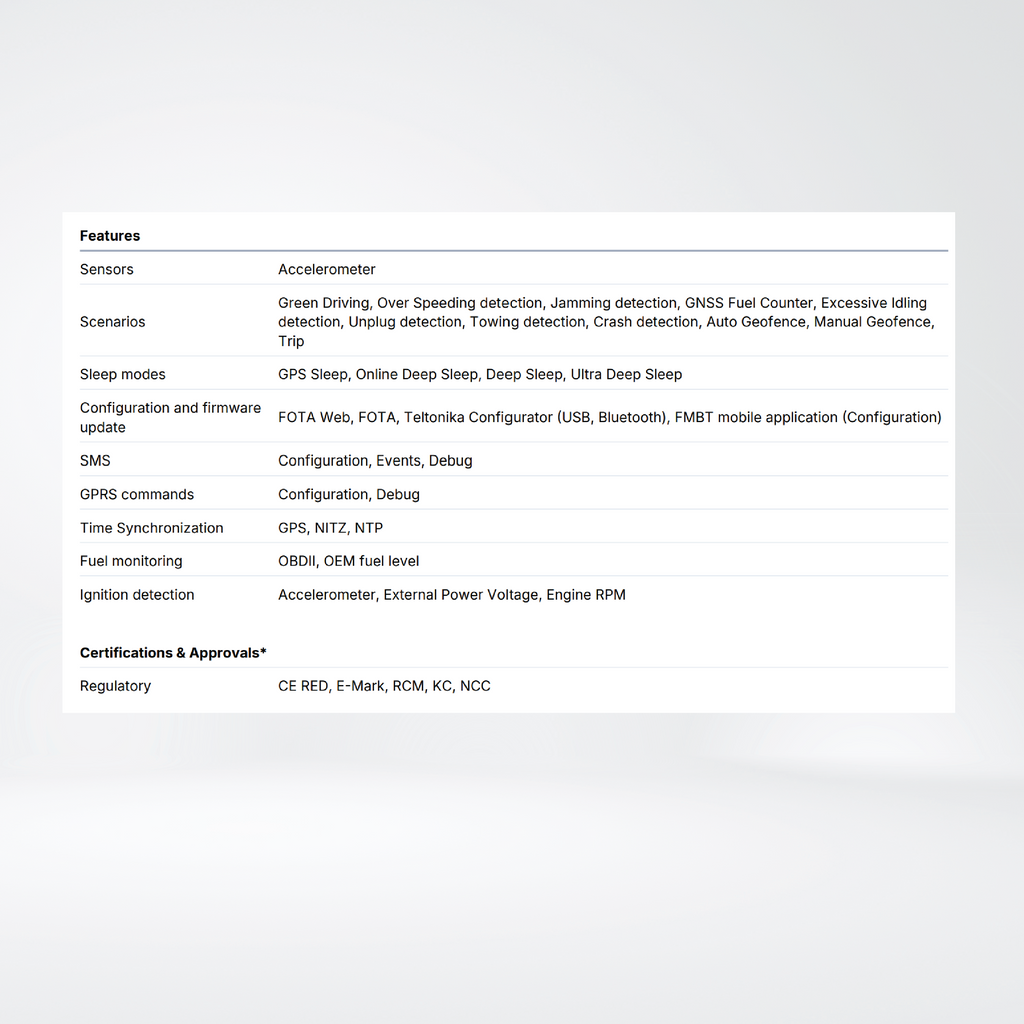

Features

  • Sensors
    Accelerometer
  • Scenarios
    Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
  • Sleep modes
    GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
  • Configuration and firmware update
    FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth®)
  • SMS
    Configuration, Events, Debug
  • GPRS commands
    Configuration, Debug
  • Time Synchronization
    GNSS, NITZ, NTP
  • Fuel monitoring
    OBDII, OEM fuel level
  • Ignition detection
    Accelerometer, External Power Voltage, Engine RPM

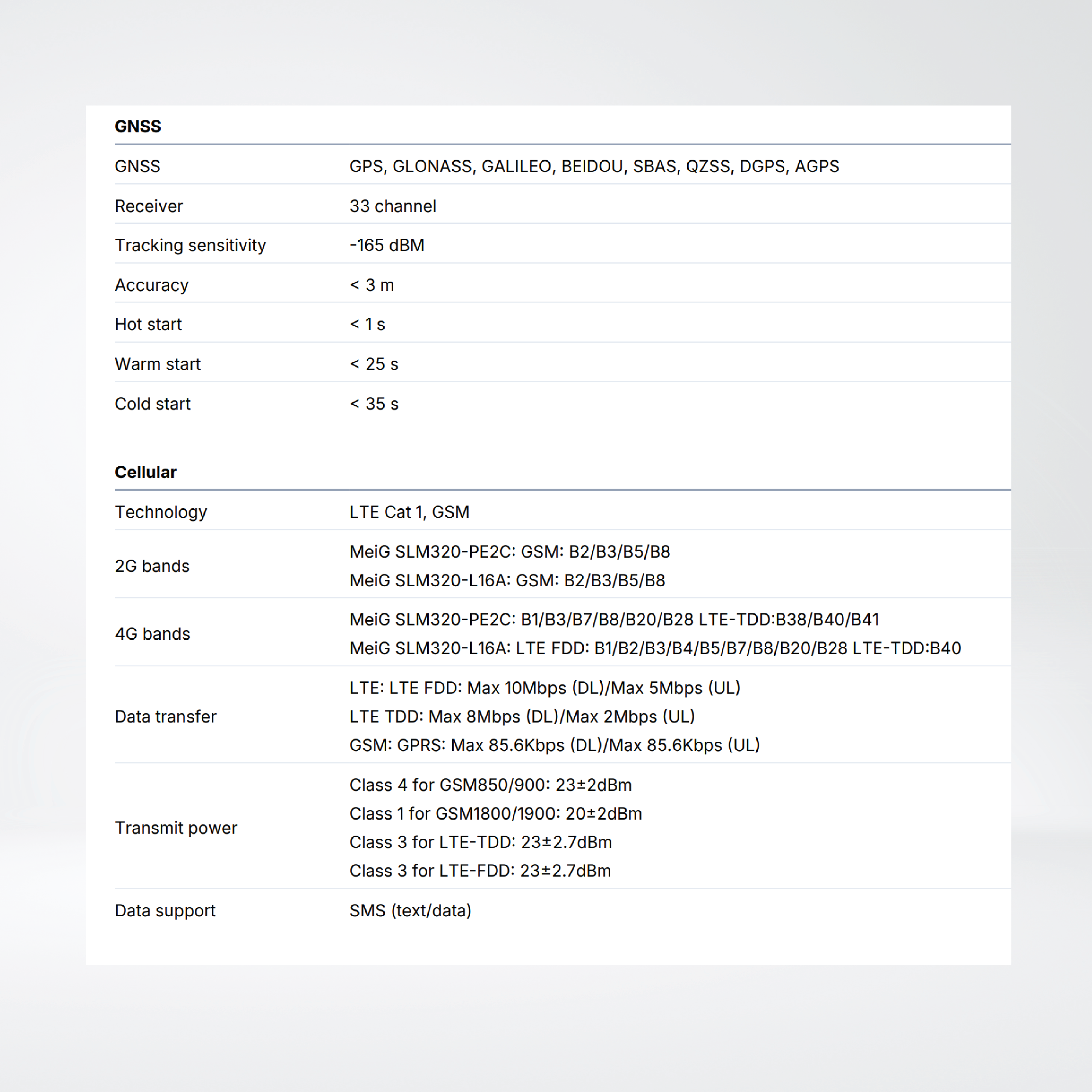

GNSS

  • GNSS    GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
  • Receiver
    33 tracking channels
    99 acquisition channels
  • Tracking sensitivity  -165 dBM
  • Position Accuracy  < 2.5 m CEP
  • Velocity Accuracy  < 0.1 m/s (within +/- 15% error)
  • Hot start  < 1 s
  • Warm start  < 25 s
  • Cold start  < 35 s

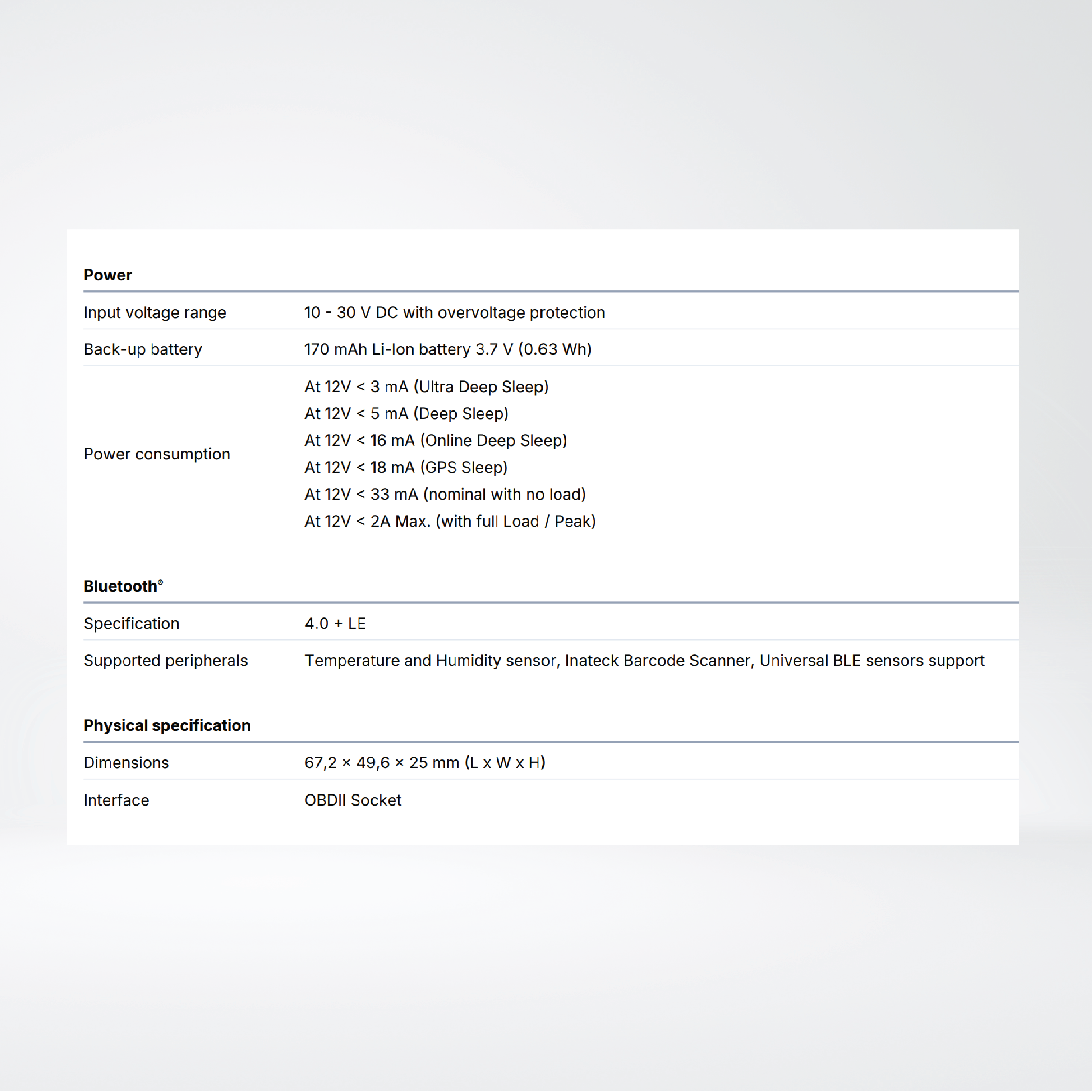

Bluetooth® Technology

  • Specification 4.0 + LE
  • Supported peripherals
    Temperature and Humidity sensor, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support

Certification & approvals

  • Regulatory  CE/RED, UKCA, E-Mark, EAC, RoHS, REACH, CITC, Anatel, RCM, SDPPI POSTEL, SIRIM QAS

Term and Condition

รับประกันสินค้า : 1 Year
