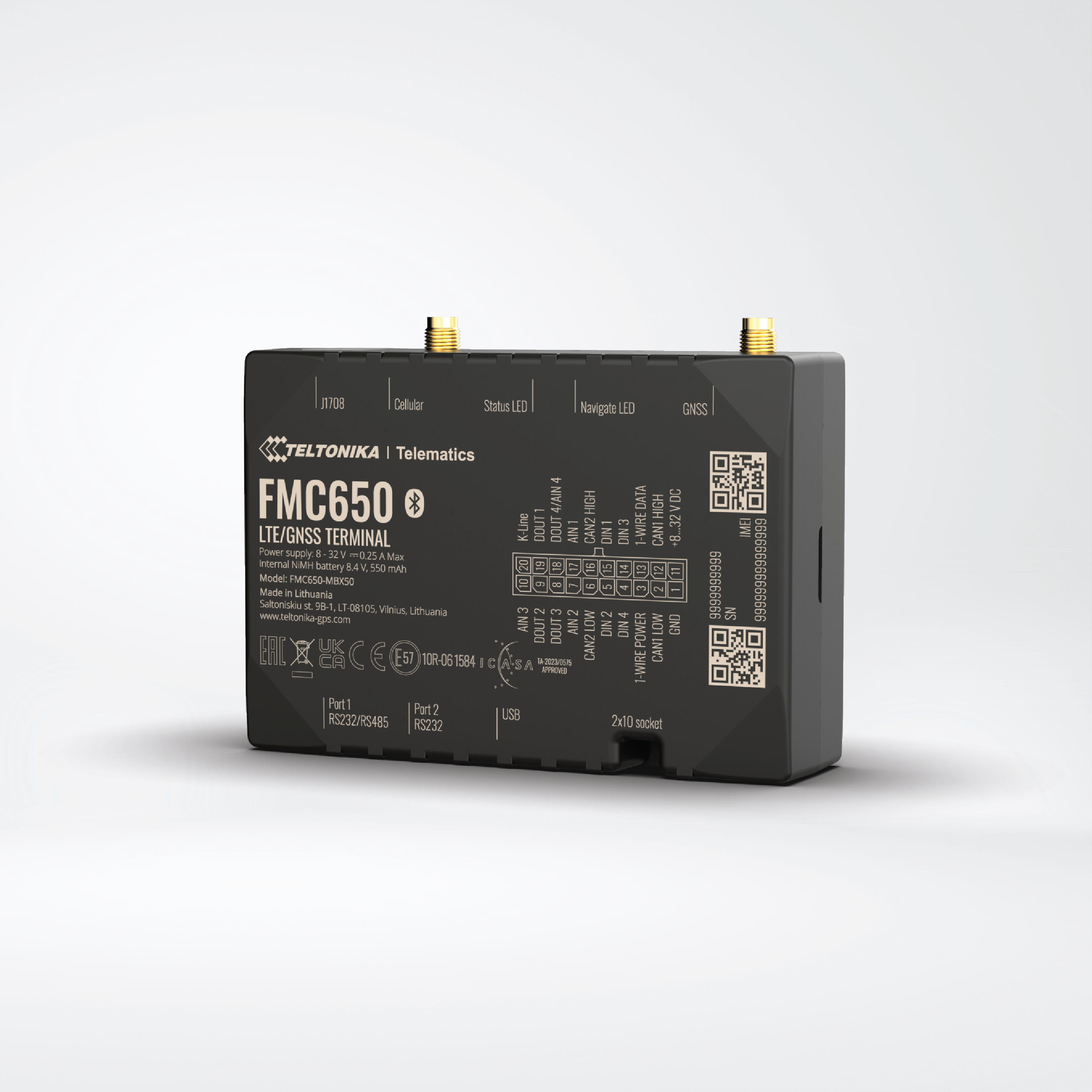

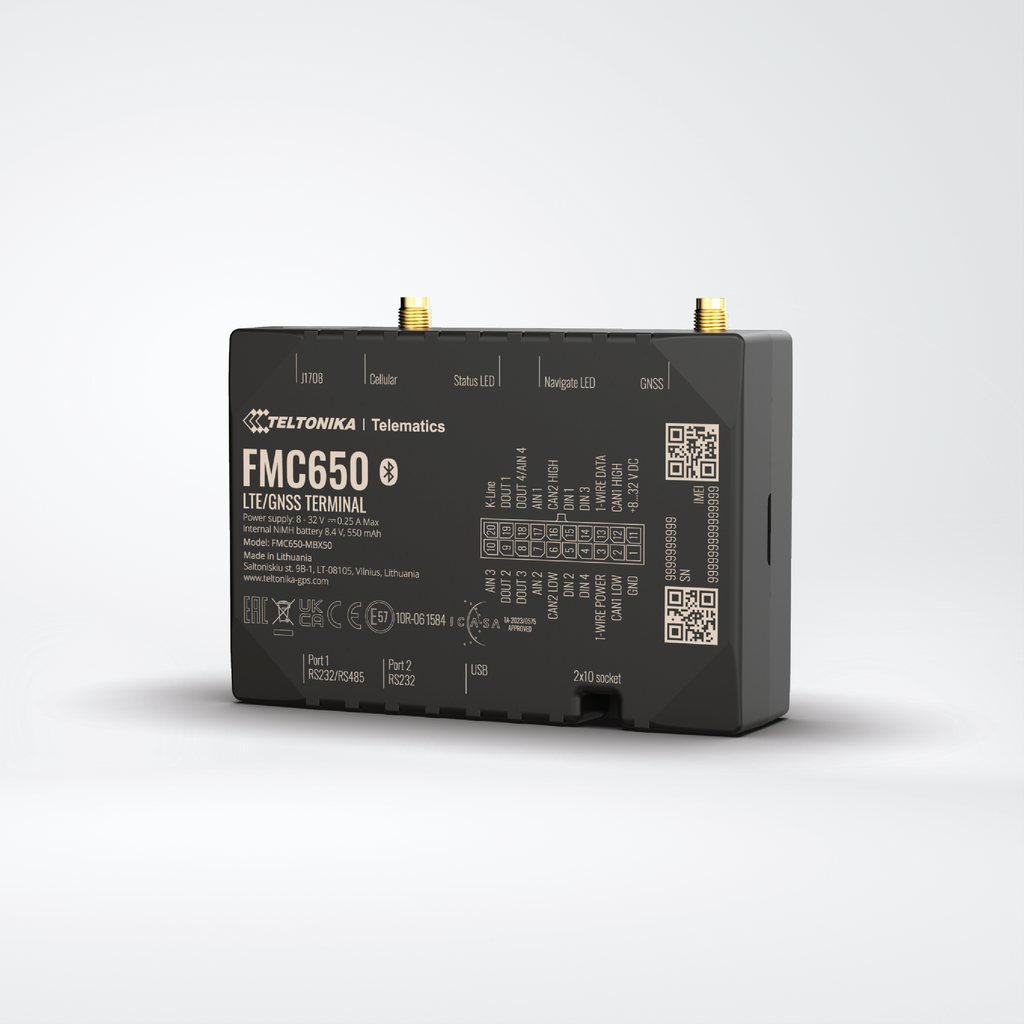

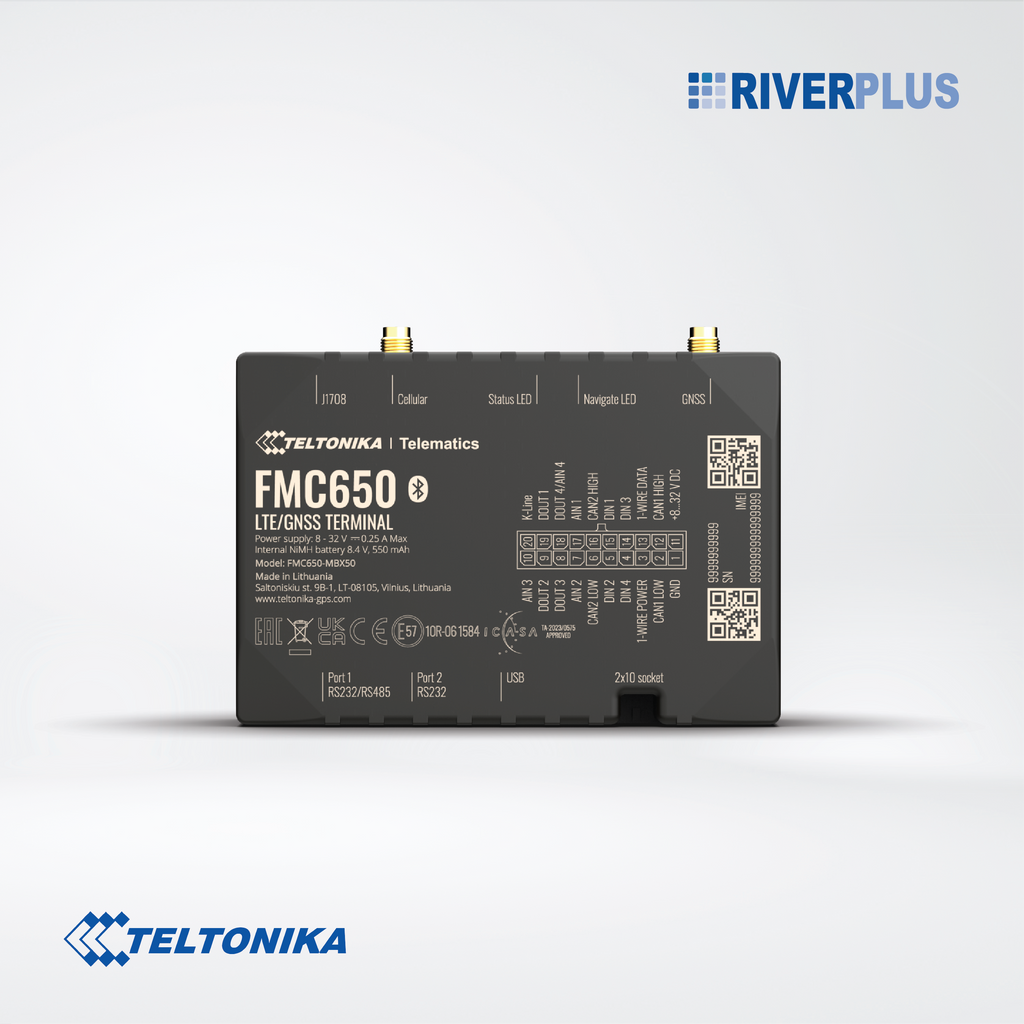

FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas
Roll over image to zoom in Click on image to zoom
FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennasFMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas

FMC650 4G LTE Cat 1 tracker for advanced applications with high capacity backup battery and external antennas

Save 2,300.00 ฿
TeltonikaSKU: FMC650
No reviews
Price:
4,750.00 ฿ 7,050.00 ฿

Shipping calculated at checkout

Stock:
Re-stocking soon
The product is out stock

Description

Features

  • Sensors Accelerometer
  • Scenarios Green/Eco Driving, Over Speeding detection, Jamming detection, Excessive Idling detection, Towing detection, Crash detection, Immobilizer, iButton Read Notification

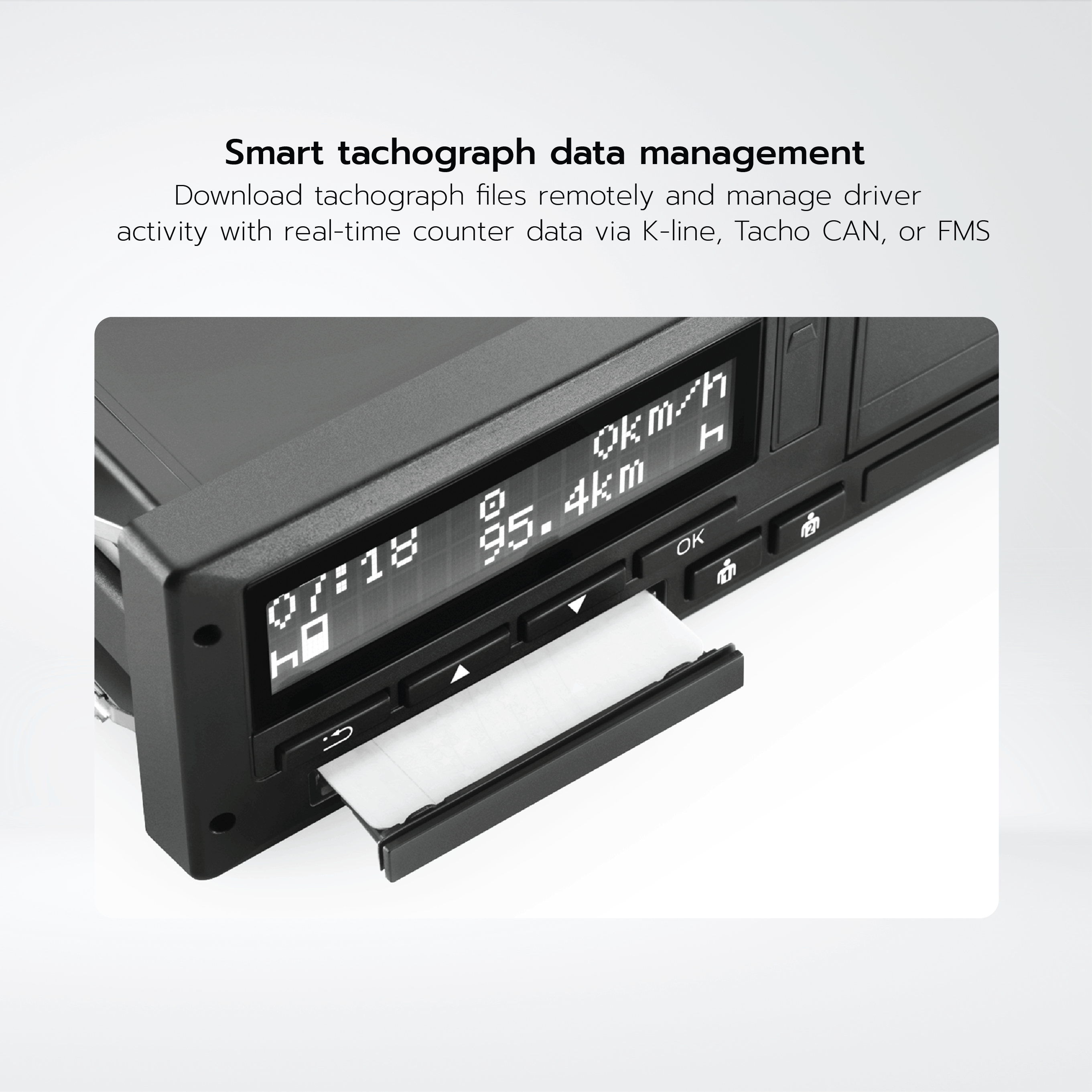

  • Functionalities Auto Geofencing, Manual Geofencing, Trip detection, Odometer, DDD download and Tacho online data, Offline tracking
  • Supported peripherals Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, Temperature 1-Wire, LV-CAN200, CAN FMS (J1939, J1708), K-line data, Continental tire pressure measurement sensor, Iridium SBD (Iridium Edge/TSM232), Carrier freezer, Log Mode, NMEA, TCP ASCII/Binary, Temperature and humidity sensor, Universal BLE® sensors support
  • Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep
  • Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator
  • SMS Configuration, Events, DOUT control, Debug
  • GPRS commands Configuration, DOUT control, Debug
  • Time Synchronization GNSS, NITZ, NTP
  • Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor
  • Ignition detection Digital Input, Accelerometer, External Power Voltage
  • RS232 Modes Log Mode, NMEA, LLS, LCD, RFIH HID/MF7, Garmin FMI, TCP ASCII/Binary
  • RS485 Modes LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, Ultrasonic level sensor

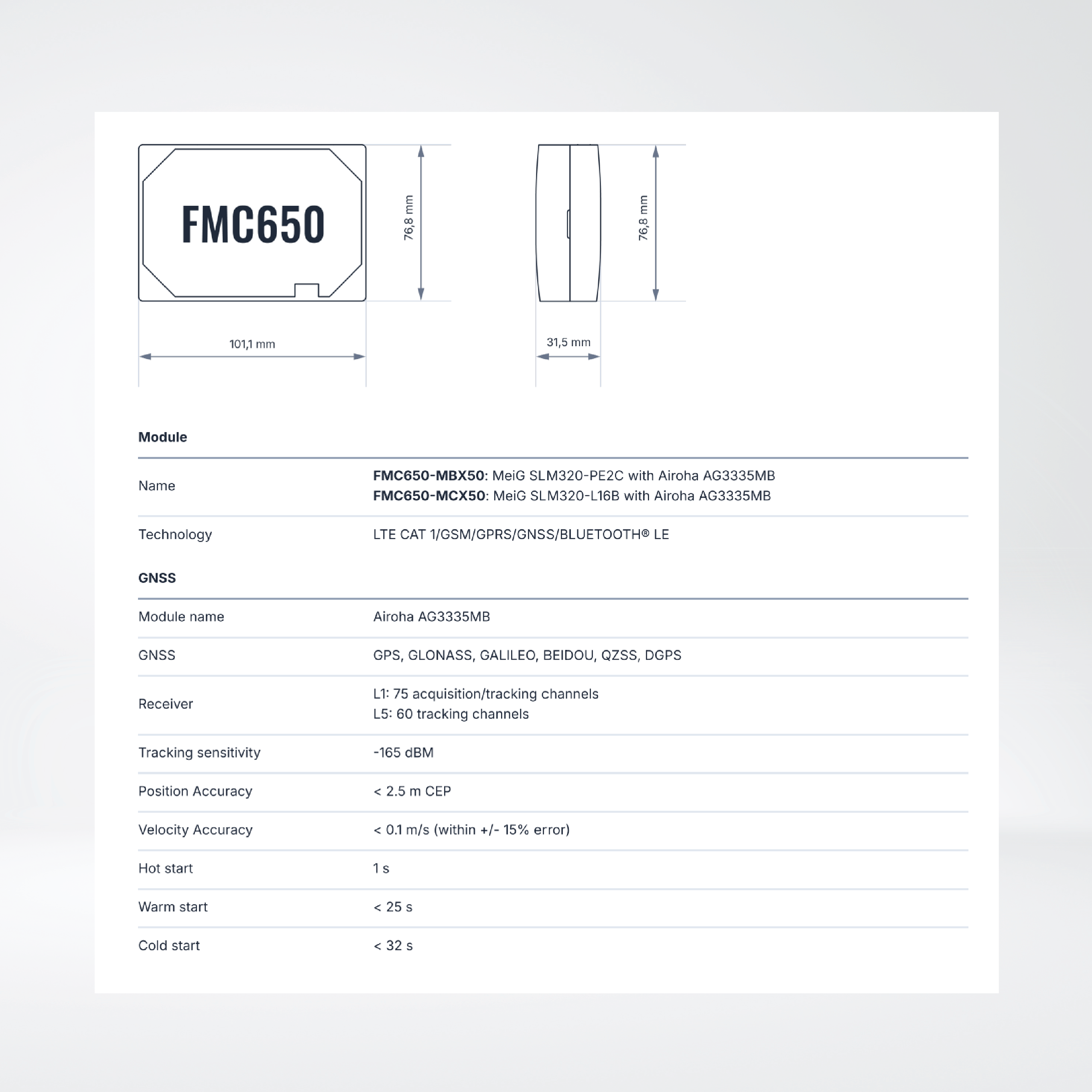

GNSS

  • Module name Airoha AG3335MB
  • GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, DGPS
  • Receiver
    L1: 75 acquisition/tracking channels
    L5: 60 tracking channels
  • Tracking sensitivity -165 dBM
  • Position Accuracy < 2.5 m CEP
  • Velocity Accuracy < 0.1 m/s (within +/- 15% error)
  • Hot start 1 s
  • Warm start < 25 s
  • Cold start < 32 s

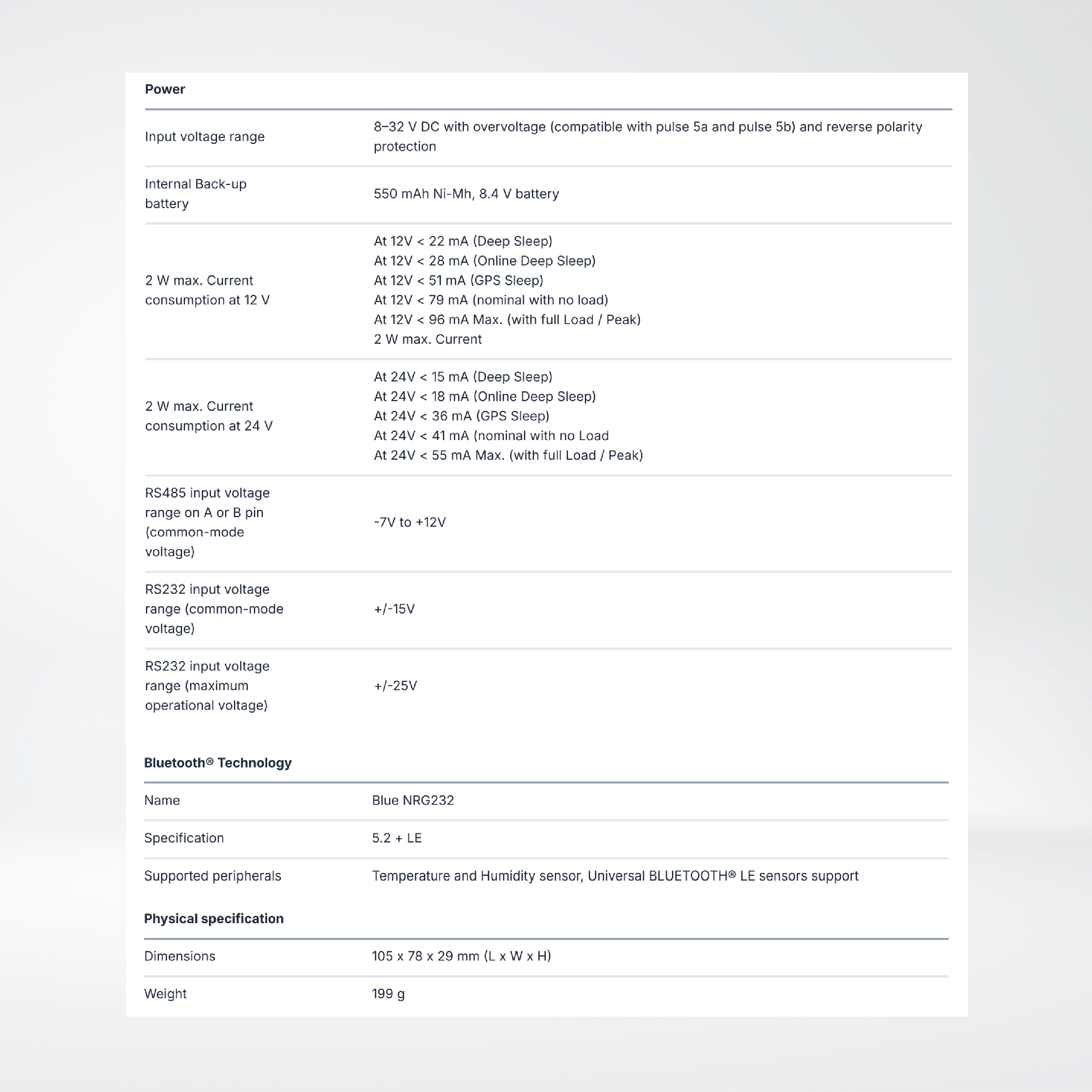

Power

  • Input voltage range  8–32 V DC with overvoltage (compatible with pulse 5a and pulse 5b) and reverse polarity protection

Bluetooth® Technology

  • Name Blue NRG232
  • Specification 5.2 + LE
  • Supported peripherals Temperature and Humidity sensor, Universal BLUETOOTH® LE sensors support

    Term and Condition

    รับประกันสินค้า : 1 Year

    Download

    Datasheet
    Download

    Files
    QM-FMC650.pdf
