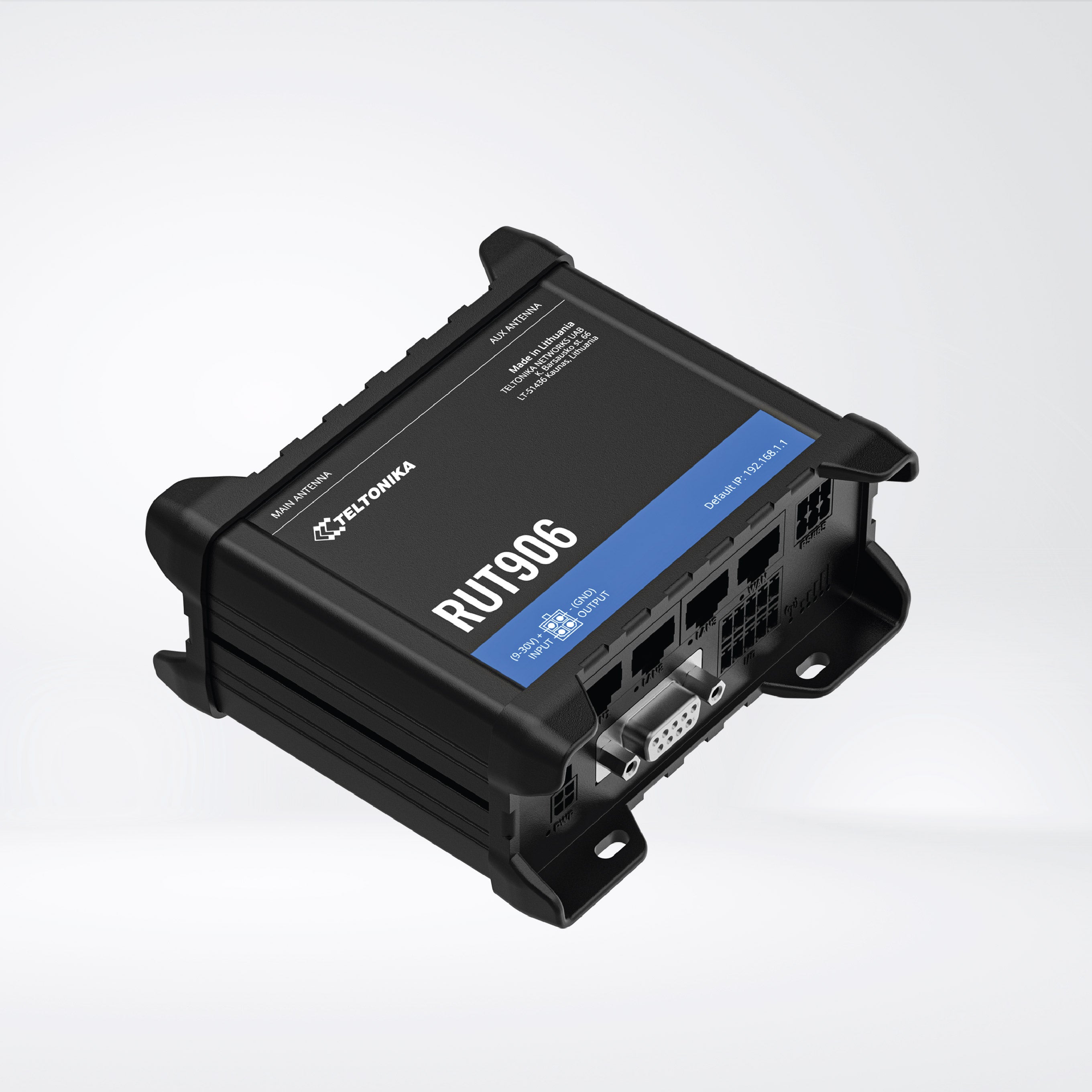

RUT906 4G LTE RS232/RS485 Router

Cellular 4G router for industrial IoT applications, supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet, and more. This cellular router is equipped with GNSS and failsafe features such as Dual SIM, auto-failover, and backup WAN.

Features

HARDWARE

• Mobile : 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• CPU :  Mediatek, 580 MHz, MIPS 24KEc
• Memory : 128 MB, DDR2
• Storage : 16 MB, SPI Flash
• Powering options : 4-pin industrial DC power socket, 9 - 30 VDC
• SIM : 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
• SD Card : Micro SD (internal)
• Antenna connectors : 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
• Ethernet : 4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN
• Wi-Fi : IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• GNSS : GPS, GLONASS, BeiDou, Galileo and QZSS
• Inputs/Outputs : 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector

• Serial 1 x RS232, 1 x RS485
• Other 1 x USB host
• Status LEDs 1 x bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• Operating temperature : -40 °C to 75 °C
• Housing : Aluminium housing, plastic panels
• Dimensions (W x H x D) 109.5 x 50 x 100 mm
• Weight 295 g

SOFTWARE

• Operating system : RutOS (OpenWrt based Linux OS)
• Mobile features : Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits
• Network features : Routing, Failover, Firewall, DHCP, DDNS, QoS / SQM, Load Balancing, VoIP passthrough, Connection monitoring, SSHFS
• Monitoring and Management : WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, BACnet, DNP3, OPC UA, MODBUS, RMS
• VPN and tunneling : OpenVPN, IPsec, GRE, PPTP, L2TP, L2TPv3, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions : RMS, FOTA, Azure IoT Hub, Cumulocity - Cloud of Things, ThingWorx
• Wireless Connectivity Features : Fast roaming (802.11r), Relayd
• Hotspot : External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• GNSS : NMEA forwarding, NTRIP, AVL, Geofencing
