Description

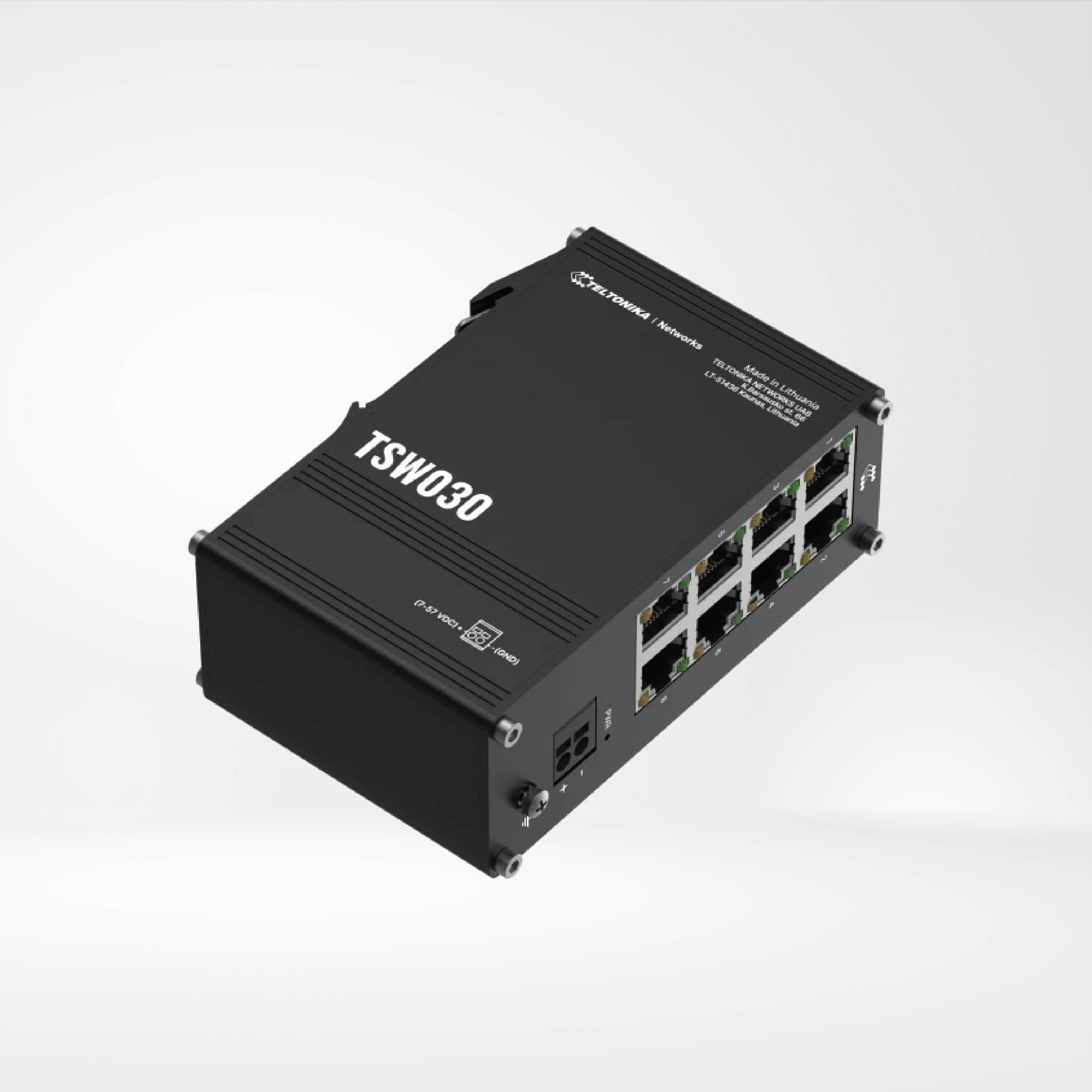

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.
Features

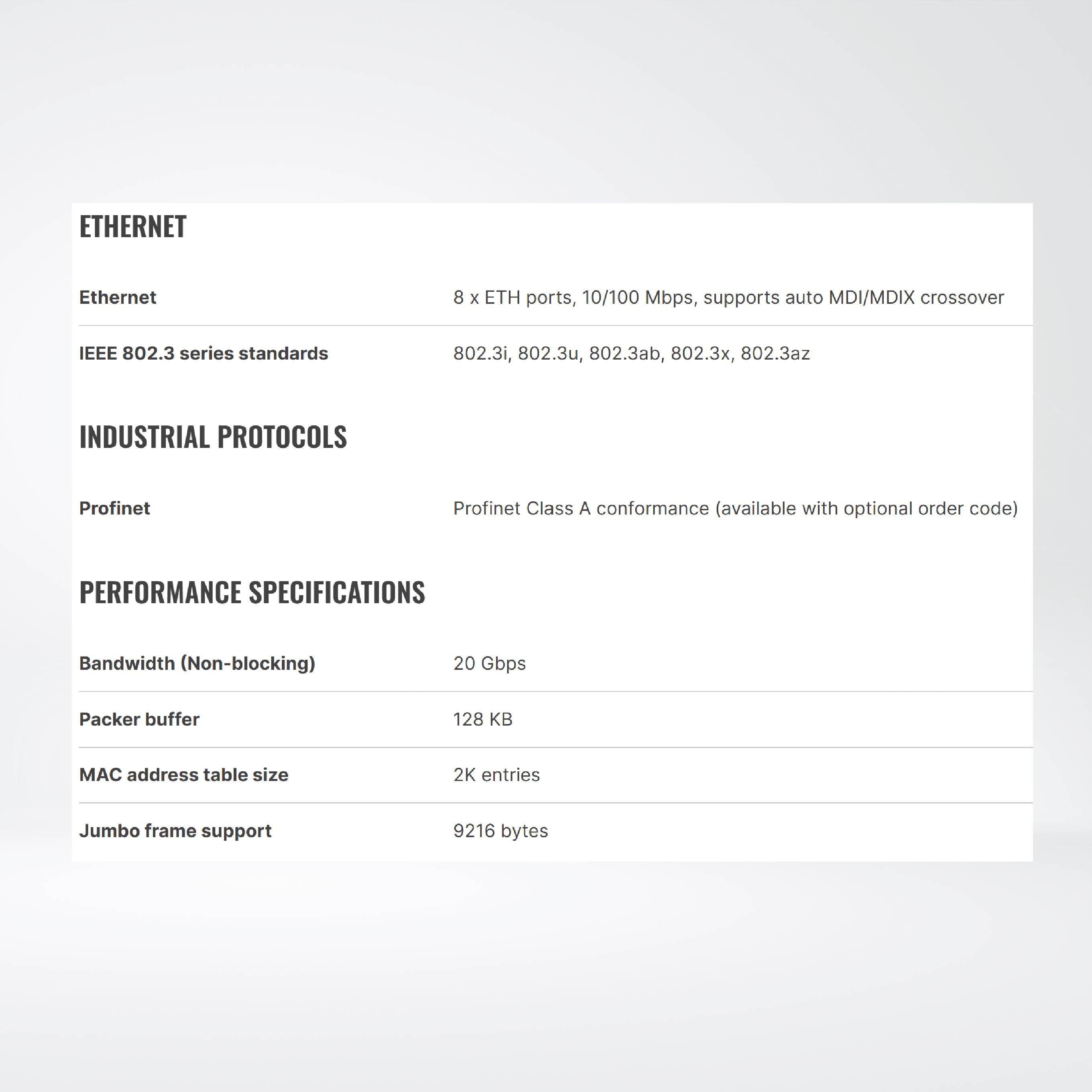

- Ethernet : 8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
- IEEE 802.3 series standards : 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
- Profinet : Profinet Class A conformance (available with optional order code)
-
Performance Specifications
Bandwidth (Non-blocking) 20 Gbps
Packer buffer 128 KB
MAC address table size 2K entries
Jumbo frame support 9216 bytes-

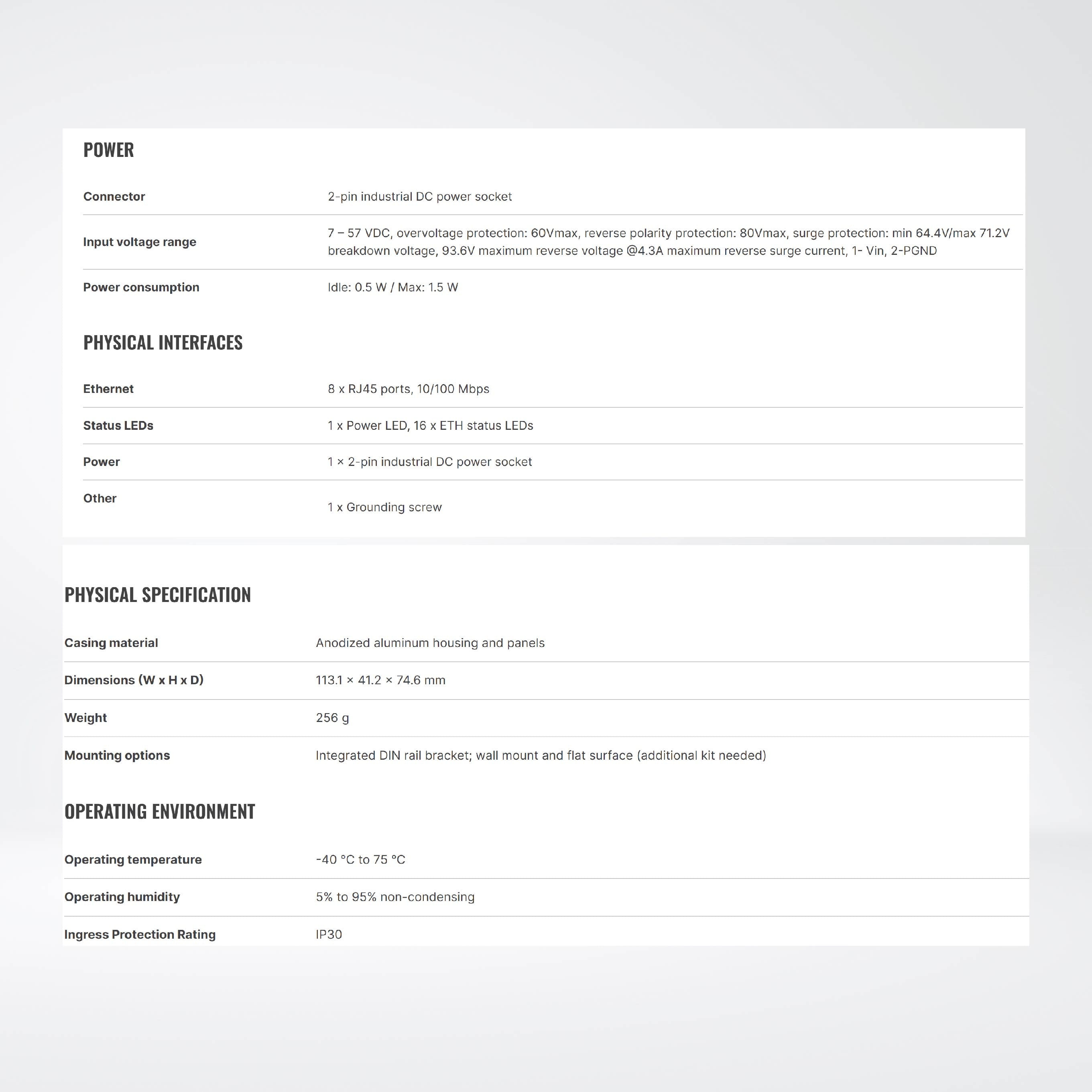

Connector : 2-pin industrial DC power socket
Input voltage range : 7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Power consumption : Idle: 0.5 W / Max: 1.5 W
-
