ES101NH3 - 50ppm | 100ppm | 500ppm Outdoor Ammonia NH3 Sensor

ES101-NH3 is an intergraded out-door sensor box for Ammonia NH3 monitoring. The monitoring data could be access through RS-485 interface by Modbus protocol. The ammonia sensor is designed with rapid response time and can withstand heavy interference. By the compensation algorithm and multi-stage standard gas calibration, it can achieve high precision, high repeatability and high stability. The IP65 outdoor enclosure is suitable for agricultural greenhouses, farms, pesticide manufacturers, chemical plants and other applications that require real-time monitoring and control of ammonia.

Outdoor Protective Design

• Prevent direct ultraviolet radiation to the sensors
• Avoid rapid aging of sensors under harsh environmental conditions such as strong winds, rain, and snow
• The sensor parts are ventilated for truly sensing the changes in external detection parameters
• Single or multiple parameters both can use small shutter, small size, lightweight and easy to install

Optional IoT Router and Cloud Platform - ThingsMaster

• Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
• Real-time online monitoring, analysis, reporting
• Remote cloud security and visual management

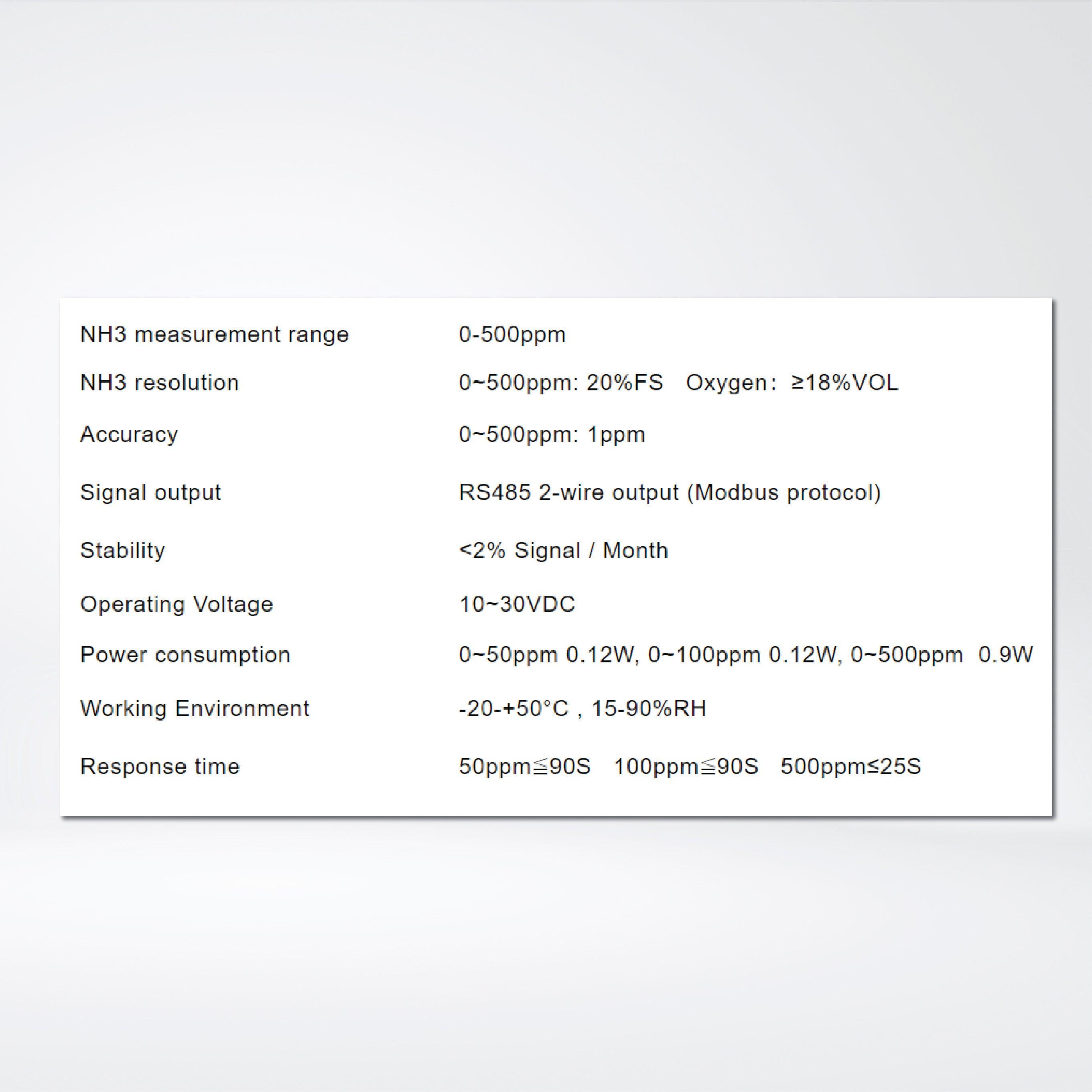

Features

• NH3 measurement range 0-500ppm
• NH3 resolution 0~500ppm: 20%FS Oxygen：≥18%VOL
• Accuracy 0~500ppm: 1ppm
• Signal output RS485 2-wire output (Modbus protocol)
• Stability <2% Signal / Month
• Operating Voltage 10~30VDC
• Power consumption 0~50ppm 0.12W, 0~100ppm 0.12W, 0~500ppm 0.9W
• Working Environment -20-+50°C , 15-90%RH
• Response time 50ppm≦90S 100ppm≦90S 500ppm≤25S
