ES101O3 - 10 Outdoor Ozon O3 Sensor

ES101O3 is an Outdoor Ozon O3 Sensor for air quality monitoring.

Outdoor Protective Design

• Prevent direct ultraviolet radiation to the sensors
• Avoid rapid aging of sensors under harsh environmental conditions such as strong winds, rain, and snow
• The sensor parts are ventilated for truly sensing the changes in external detection parameters
• Single or multiple parameters both can use small shutter, small size, lightweight and easy to install

Optional IoT Router and Cloud Platform - ThingsMaster

• Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
• Real-time online monitoring, analysis, reporting
• Remote cloud security and visual management

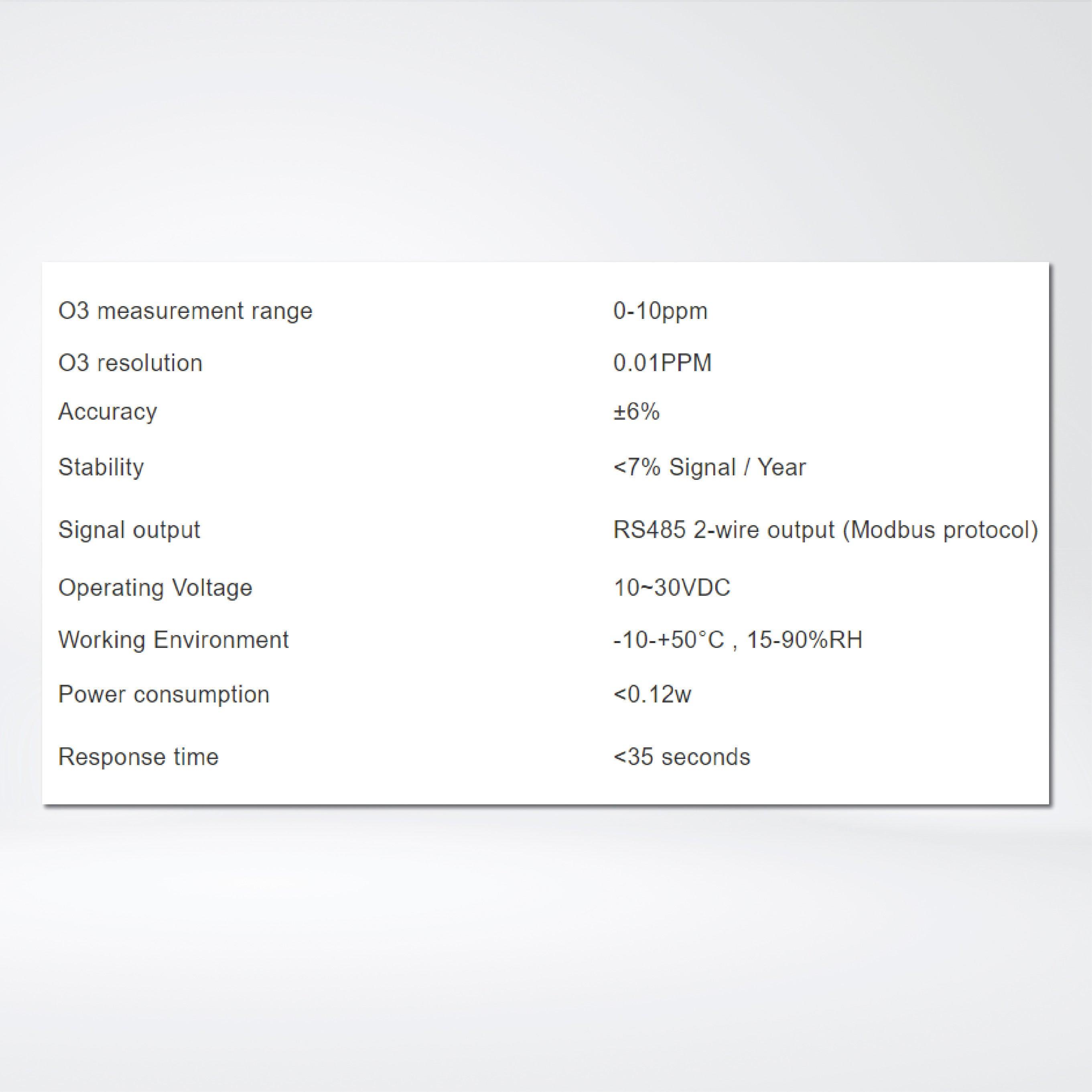

Features

• O3 measurement range 0-10ppm
• O3 resolution 0.01PPM
• Accuracy ±6%
• Stability <7% Signal / Year
• Signal output RS485 2-wire output (Modbus protocol)
• Operating Voltage 10~30VDC
• Working Environment -10-+50°C , 15-90%RH
• Power consumption <0.12w
• Response time <35 seconds
