Description
The Water Quality Sensors can be applied in general water treatment, sewage treatment, aquaculture, surface water monitoring, environmental protection engineering, cooling tower circulating water, beverage, and food, industrial sewage discharge monitoring, etc.
WS102-TDS is a smart water quality analysis Total Dissolved Solid sensor, which can be used to detect and distinguish pure water, mountain spring water, mineralized water, purified water, tap water, sewage, etc.
At the same time built-in temperature detection, measuring range 0 ~ 60 LC. The sensor supports analog 4-20mA and RS-485 (ModBus RTU) for user application , and 2 types of thread for different installation.
Optional IoT Router and Cloud Platform - ThingsMaster
WS102-TDS is a smart water quality analysis Total Dissolved Solid sensor, which can be used to detect and distinguish pure water, mountain spring water, mineralized water, purified water, tap water, sewage, etc.
At the same time built-in temperature detection, measuring range 0 ~ 60 LC. The sensor supports analog 4-20mA and RS-485 (ModBus RTU) for user application , and 2 types of thread for different installation.
Optional IoT Router and Cloud Platform - ThingsMaster
- Support Modbus to connect optional NBIoT Gateway WR222 for one or many sensors
- Real-time online monitoring, analysis, reporting
- Remote cloud security and visual management
Features

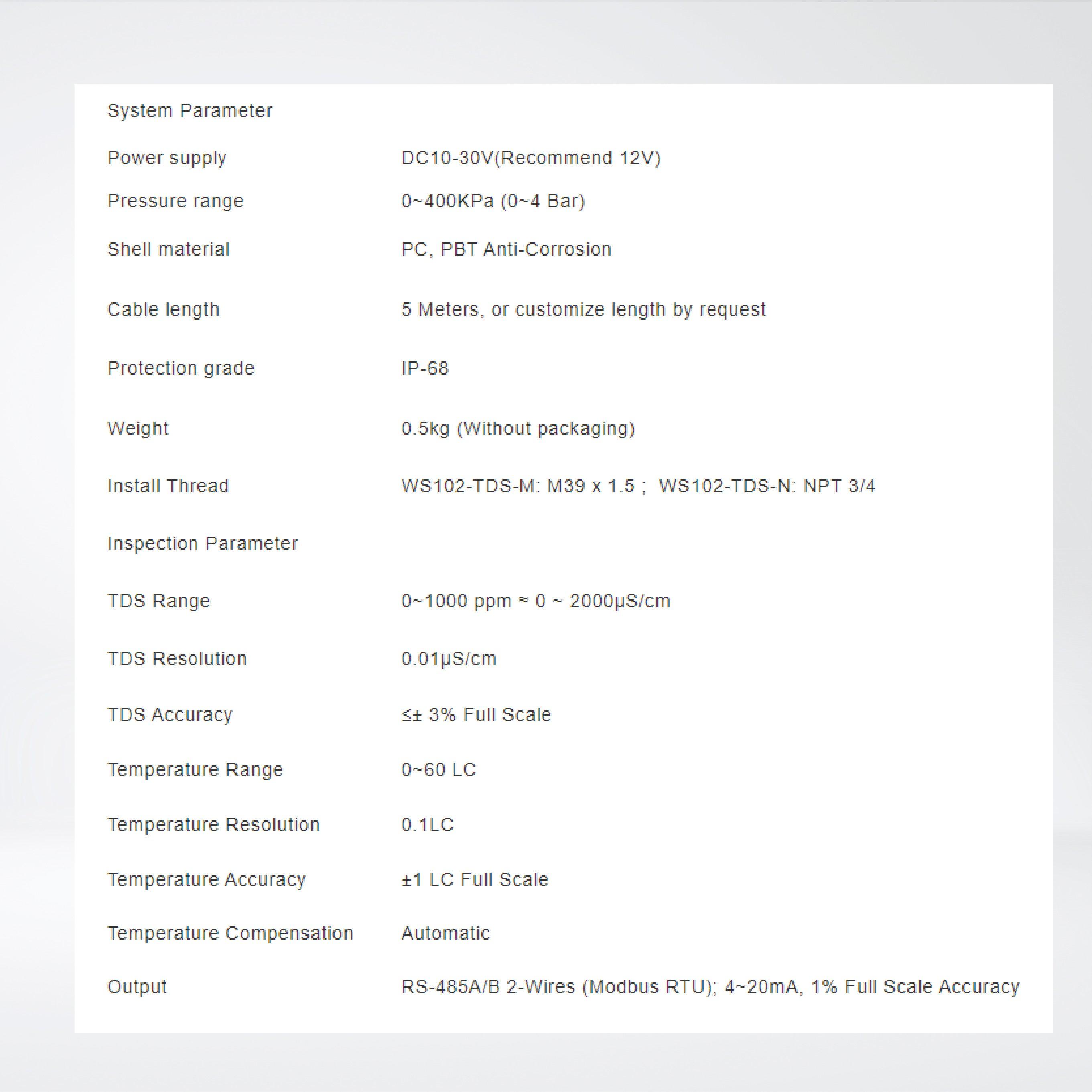

- System Parameter
- Power supply DC10-30V(Recommend 12V)
- Pressure range 0~400KPa (0~4 Bar)
- Shell material PC, PBT Anti-Corrosion
- Cable length 5 Meters, or customize length by request
- Protection grade IP-68
- Weight 0.5kg (Without packaging)
- Install Thread WS102-TDS-M: M39 x 1.5 ; WS102-TDS-N: NPT 3/4
- TDS Range 0~1000 ppm ≈ 0 ~ 2000μS/cm
- TDS Resolution 0.01μS/cm
- TDS Accuracy ≤± 3% Full Scale
- Temperature Range 0~60 LC
- Temperature Resolution 0.1LC
- Temperature Accuracy ±1 LC Full Scale
- Temperature Compensation Automatic
- Output RS-485A/B 2-Wires (Modbus RTU); 4~20mA, 1% Full Scale Accuracy

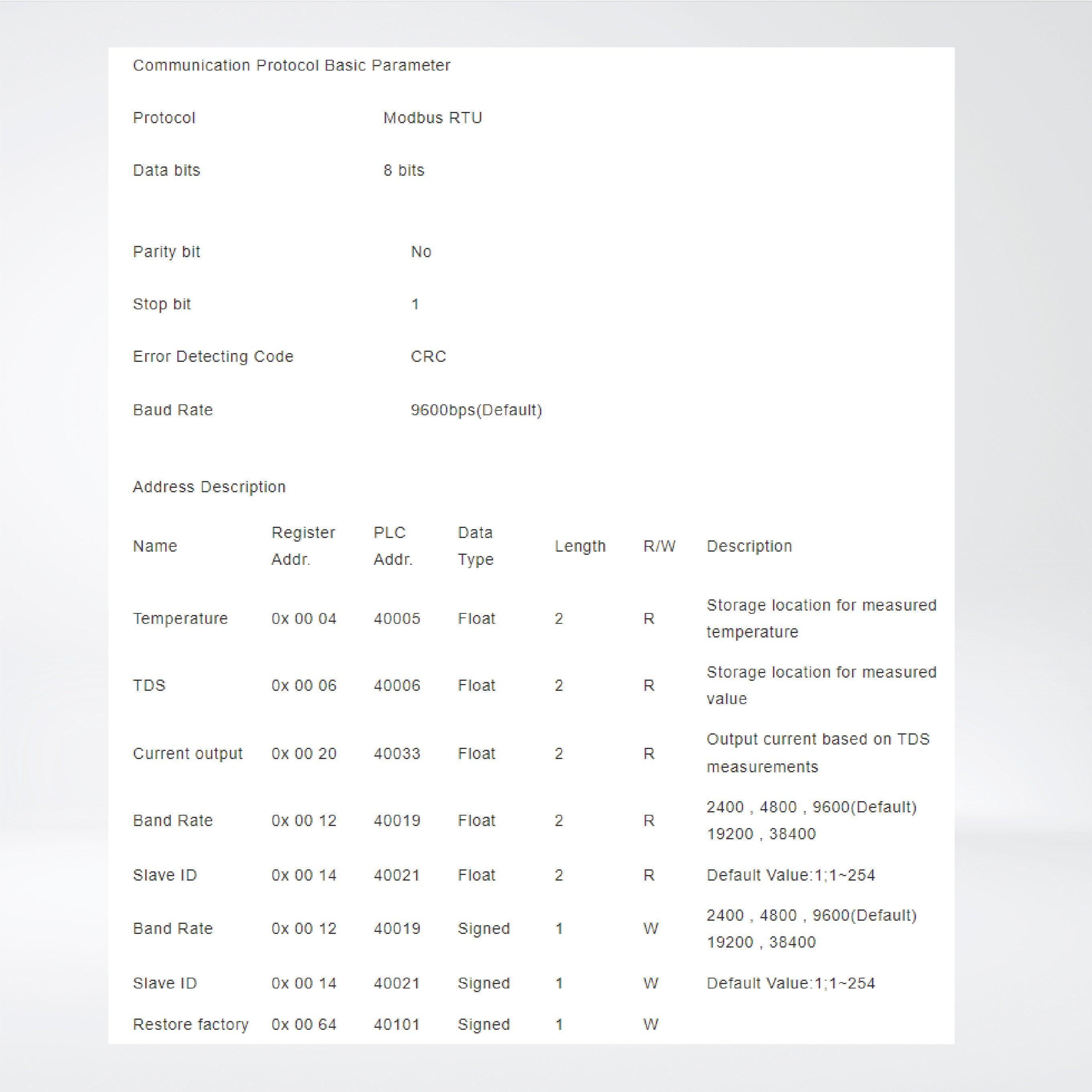

- Protocol Modbus RTU
- Data bits 8 bits
