AD1072-24F 72W/3A DIN-Rail 24 VDC power supply with universal 100~240VAC/120~370VDC input
AD1072-24F 72W/3A DIN-Rail 24 VDC power supply with universal 100~240VAC/120~370VDC input
AD1072-24F 72W/3A DIN-Rail 24 VDC power supply with universal 100~240VAC/120~370VDC input
Roll over image to zoom in Click on image to zoom
AD1072-24F 72W/3A DIN-Rail 24 VDC power supply with universal 100~240VAC/120~370VDC inputAD1072-24F 72W/3A DIN-Rail 24 VDC power supply with universal 100~240VAC/120~370VDC inputAD1072-24F 72W/3A DIN-Rail 24 VDC power supply with universal 100~240VAC/120~370VDC input

AD1072-24F 72W/3A DIN-Rail 24 VDC power supply with universal 100~240VAC/120~370VDC input

ATOPSKU: AD1072-24F
No reviews
Price:
1,500.00 ฿

Shipping calculated at checkout

Stock:
In stock
We currently have: 3 in stock.

Description

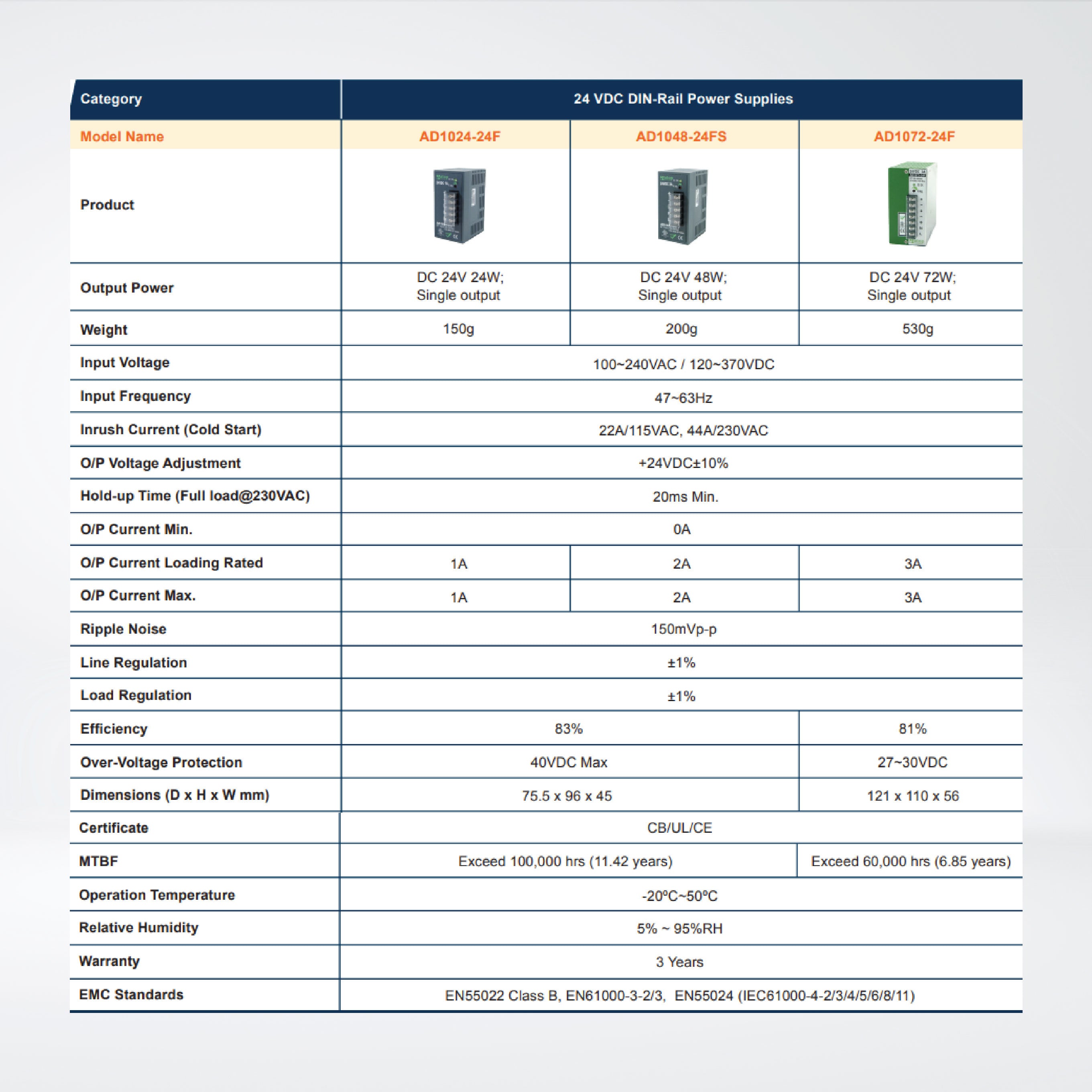

Features

  • Output Power : DC 24V 72W; Single output
  • Weight : 530g
  • Input Voltage : 100~240VAC / 120~370VDC
  • Input Frequency : 47~63Hz
  • Inrush Current (Cold Start) :  22A/115VAC, 44A/230VAC
  • O/P Voltage Adjustment :   +24VDC±10%
  • Hold-up Time (Full load@230VAC) :   20ms Min.
  • O/P Current Min. : 0A
  • Ripple Noise : 150mVp-p
  • Line Regulation : ±1%
  • Load Regulation : ±1%
  • Operation Temperature  : -20ºC~50ºC



Term and Condition

รับประกันสินค้า : 1 Year

Download

Datasheet
