SF63-TB-DB-1Fm-ST-2 Serial to Fiber Media Converter, 2 km

Features

- Supports Multi-mode 2KM, Single-mode 30KM

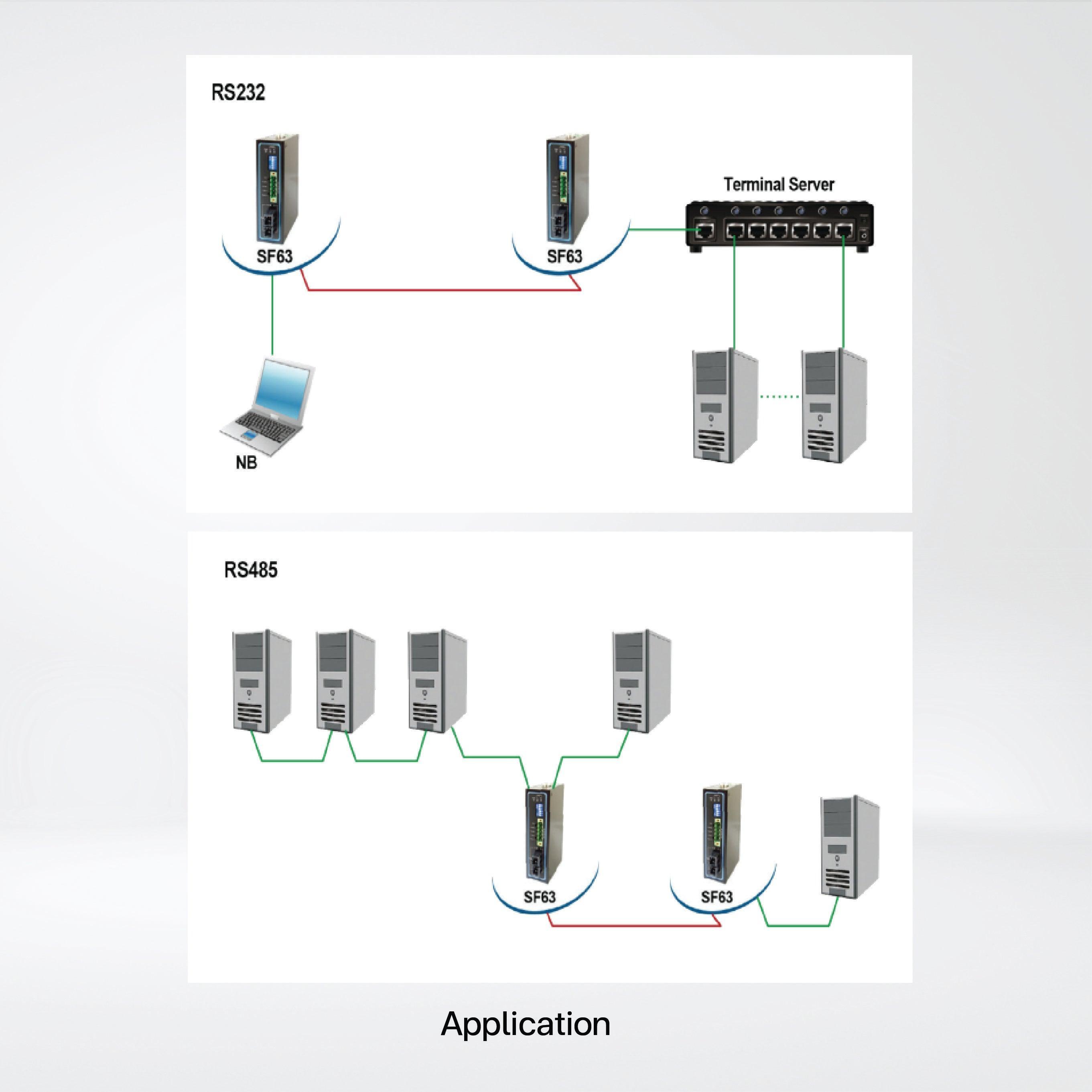

- PTP and Ring mode for serial fiber ring communication
- Supports RS-485 120 ohm line terminator
- Supports RS-485 Data signals pull high/low resister
- Supports input voltage 9 ~ 48VDC
- -40 ~ 70°C Wide range of operating temperature for hazardous environment applications
- PART NUMBER : 1P1SF63FMST001G
- FIBER MODE : Multi-mode
- CONNECTOR : ST
- RATED DISTANCE : 2 km
